Gigabyte GA-A75M-D2H Manuel utilisateur
GA-A75M-D2H
User's Manual
Rev. 1002
12ME-A75MD2H-1002R
Motherboard
GA-A75M-D2H
Jun. 10, 2011
Jun. 10, 2011
Motherboard
GA-A75M-D2H
Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com

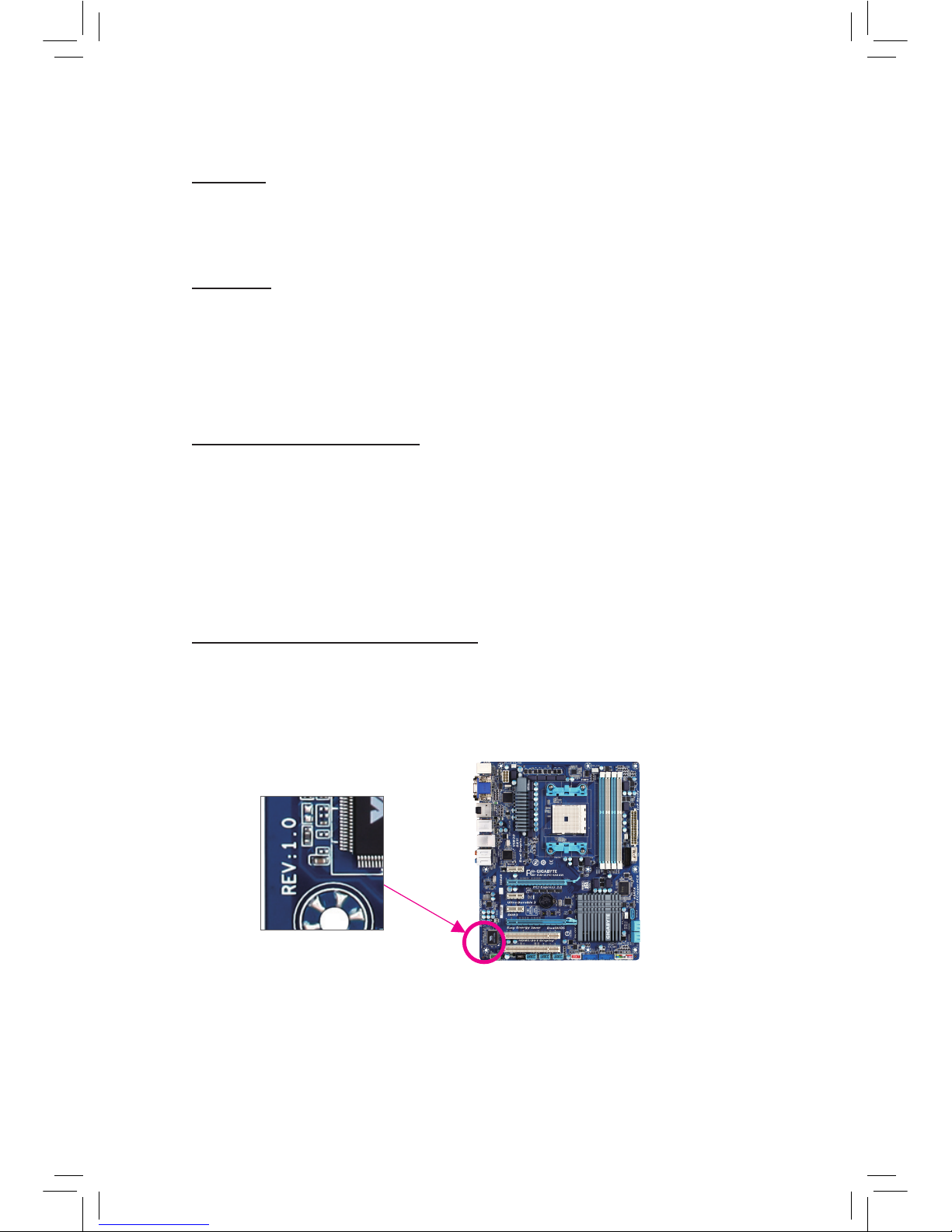

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-A75M-D2H Motherboard Layout ...............................................................................7
GA-A75M-D2H Motherboard Block Diagram...................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 Product Specications.................................................................................... 10
1-3 Installing the APU and APU Cooler................................................................ 13
1-3-1 Installing the APU ...................................................................................................13
1-3-2 Installing the APU Cooler........................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 Dual Channel Memory Conguration .....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Setup of the AMD Dual Graphics Conguration............................................. 19
1-7 Back Panel Connectors.................................................................................. 20
1-8 Internal Connectors........................................................................................ 22
Chapter 2 BIOS Setup ..................................................................................................31
2-1 Startup Screen ............................................................................................... 32
2-2 The Main Menu .............................................................................................. 33
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 35
2-4 Standard CMOS Features.............................................................................. 39
2-5 Advanced BIOS Features .............................................................................. 41
2-6 Integrated Peripherals.................................................................................... 43
2-7 Power Management Setup............................................................................. 46
2-8 PC Health Status............................................................................................ 48
2-9 Load Fail-Safe Defaults.................................................................................. 50
2-10 Load Optimized Defaults................................................................................ 50
2-11 Set Supervisor/User Password ...................................................................... 51
2-12 Save & Exit Setup .......................................................................................... 52
2-13 Exit Without Saving........................................................................................ 52
- 5 -
Chapter 3 Drivers Installation........................................................................................53
3-1 Installing Chipset Drivers ............................................................................... 53
3-2 Application Software ...................................................................................... 54
3-3 Technical Manuals.......................................................................................... 54
3-4 Contact........................................................................................................... 55
3-5 System ........................................................................................................... 55
3-6 Download Center ........................................................................................... 56
3-7 New Utilities ................................................................................................... 56
Chapter 4 Unique Features...........................................................................................57
4-1 Xpress Recovery2.......................................................................................... 57
4-2 BIOS Update Utilities ..................................................................................... 60
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................60
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................63
4-3 EasyTune 6 .................................................................................................... 64
4-4 Q-Share.......................................................................................................... 65
4-5 SMART Recovery........................................................................................... 66
4-6 Auto Green..................................................................................................... 67
Chapter 5 Appendix ......................................................................................................69
5-1 Conguring SATA Hard Drive(s) .................................................................... 69
5-1-1 Conguring SATA Controllers ................................................................................69
5-1-2 Installing the SATA RAID/AHCI Driver and Operating System ...............................75
5-2 Conguring Audio Input and Output............................................................... 79
5-2-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................79
5-2-2 Conguring S/PDIF Out..........................................................................................82
5-2-3 Conguring Microphone Recording........................................................................83
5-2-4 Using the Sound Recorder .....................................................................................85
5-3 Troubleshooting.............................................................................................. 86
5-3-1 Frequently Asked Questions ..................................................................................86
5-3-2 Troubleshooting Procedure ....................................................................................87
- 6 -
Box Contents
GA-A75M-D2H motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Four SATA cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
3.5" Front Panel with 2 USB 3.0/2.0 ports (Part No. 12CR1-FPX582-0*R)
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
- 7 -

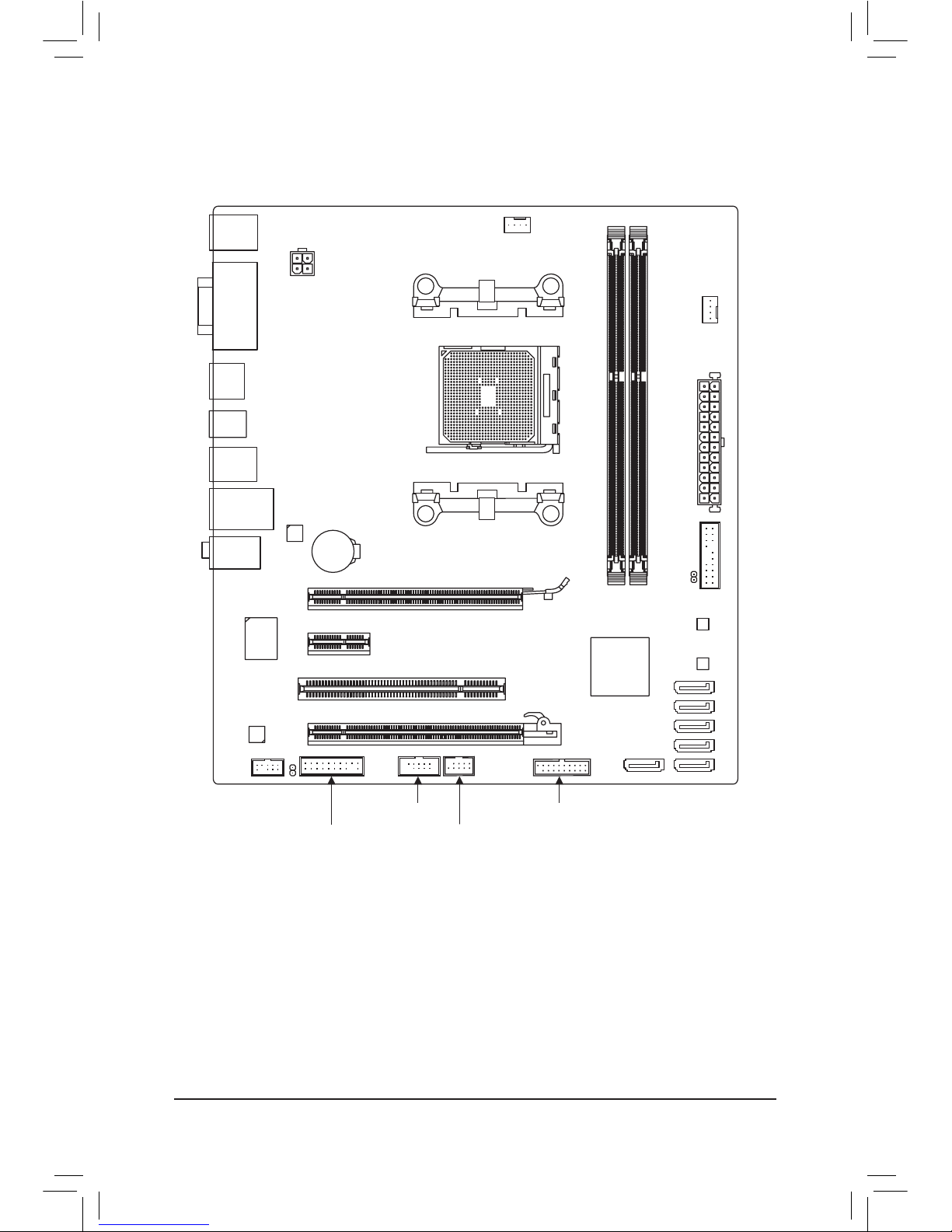

GA-A75M-D2H Motherboard Layout
KB_MS_USB CPU_FAN
Socket FM1
ATX
GA-A75M-D2H
AUDIO
PCIEX16
DDR3_2
DDR3_1
BAT
F_PANEL
ATX_12V
AMD
A75
PCIEX4
OPTICAL
CODEC
PCIEX1
Realtek
RTL8111E
VGA_DVI
HDMI
USB_LAN
PCI
M_BIOS
B_BIOS
CLR_CMOS
SATA3_0
SPDIF_O
COM
TPM F_USB1
iTE
IT8720
SATA3_5
SYS_FAN
F_AUDIO
SATA3_4
F_USB30
R_USB30
SATA3_1
SATA3_3
SATA3_2
- 8 -
GA-A75M-D2H Motherboard Block Diagram
AMD APU
UMI
PCI Express Bus
PCIe CLK
(100 MHz)
1 PCI Express x16
1 PCI Express x4
x4 AMD A75
iTE
IT8720 COM Port
LPC
Bus
6 SATA 6Gb/s
1 PCI
PCI Bus
PCI CLK
(33 MHz)
Dual BIOS
PCIe CLK
(100 MHz)
PCI Express Bus
PS/2 KB/Mouse
6 USB 2.0/1.1
4 USB 3.0/2.0
LAN
RJ45
x1
Realtek
RTL8111E
x1
1 PCI Express x1
x16
CODEC
Line In (Rear Speaker Out )
Line Out (Front Speaker Out )
MIC (Center/Subwoofer Speaker Out )
S/PDIF Out
DDR3 2400 (O.C.)/1866/
1600/1333/1066 MHz
Dual Channel Memory
D-Sub
DVI-D
HDMI
Switch
APU CLK+/- (100 MHz)
DISP CLK+/- (100 MHz)
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, APU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
APU FM1 Socket:
- AMD A series processors/AMD E2 series processors
(Go to GIGABYTE's website for the latest APU support list.)
Chipset AMD A75
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2400 (O.C.)/1866/1600/1333/1066 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
APU:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
* The DVI-D port does not support D-Sub connection by adapter.
*
The resolution of 2560x1600 is supported only when Dual Link DVI mode is enabled.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
(All integrated graphics ports do not support Hot plug. If you want to change to
another graphics port when the computer is on, be sure to turn off the computer
rst.)
Audio Realtek ALC889 codec
High Denition Audio
2/4/5.1/7.1-channel
* To congure 7.1-channel audio, you have to use an HD front panel audio module
and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(All PCI Express slots conform to the PCI Express 2.0 standard.)
1 x PCI slot
Multi-Graphics
Technology
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
Storage Interface Chipset:
- 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
- Support for RAID 0, RAID 1, RAID 10, and JBOD
Autres manuels pour GA-A75M-D2H
1
Table des matières
Autres manuels Gigabyte Carte mère
Gigabyte
Gigabyte 6CX Manuel utilisateur
Gigabyte
Gigabyte MZ32-AR1 Manuel utilisateur
Gigabyte
Gigabyte GS-R22PFL Manuel utilisateur
Gigabyte
Gigabyte Xeon Processor Motherboard GA-5YXS-RH Manuel utilisateur
Gigabyte
Gigabyte GA-AM1M-S2P Manuel utilisateur
Gigabyte
Gigabyte GA-GC220 Manuel utilisateur
Gigabyte
Gigabyte GA-B85M-HD3-A Manuel utilisateur
Gigabyte
Gigabyte B760M AORUS PRO AX Manuel utilisateur
Gigabyte
Gigabyte 7VT600-RZ Manuel utilisateur
Gigabyte
Gigabyte GA-Q77M-D2H Manuel utilisateur
Gigabyte
Gigabyte GA-8I865GME-775-RH Manuel utilisateur
Gigabyte
Gigabyte GA-970A-DS3 Manuel utilisateur
Gigabyte
Gigabyte MZ73-LM0 Manuel utilisateur
Gigabyte
Gigabyte GA-686LX Manuel utilisateur
Gigabyte
Gigabyte GA-VT890P Manuel utilisateur
Gigabyte
Gigabyte B760M GAMING X AX Manuel utilisateur
Gigabyte
Gigabyte GA-780T-D3L Manuel utilisateur
Gigabyte
Gigabyte MZ31-AR0 Manuel utilisateur
Gigabyte
Gigabyte GA-F2A88XM-HD3 Manuel utilisateur
Gigabyte
Gigabyte GA-6OXM7E Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
