Gigabyte B650I AX Manuel utilisateur
B650I AX
User's Manual
Rev. 1001
GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.
Copyright
© 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without
prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
For detailed product information, carefully read the User's Manual.
For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's
website.
https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw
For product-related information, check on our website at: https://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 3 -
Table of Contents
Chapter 1 Product Introduction .....................................................................................4
1-1 Motherboard Layout ........................................................................................... 4
Chapter 2 Hardware Installation....................................................................................5
2-1 Installation Precautions ...................................................................................... 5
2-2 Product Specications........................................................................................ 6
2-3 Installing the CPU and CPU Cooler ................................................................... 9
2-4 Installing the Memory ....................................................................................... 12
2-5 Installing an Expansion Card ........................................................................... 13
2-6 Back Panel Connectors.................................................................................... 14
2-7 Internal Connectors.......................................................................................... 16
Chapter 3 BIOS Setup.................................................................................................26
Chapter 4 Installing the Operating System and Drivers ..............................................28
4-1 Operating System Installation .......................................................................... 28
4-2 Drivers Installation............................................................................................ 29
Chapter 5 Appendix.....................................................................................................30
5-1 Conguring a RAID Set.................................................................................... 30
Regulatory Notices..................................................................................................... 31
Contact Us.................................................................................................................. 34
- 4 -
1-1 Motherboard Layout
Chapter 1 Product Introduction
Temperature sensor
(Note) The chip/temperature sensor is on the back of the motherboard.
U32G2C
DP_HDMI_1
U32G2_LAN
SOCKET AM5
ATX
AUDIO
DDR5_A1
DDR5_B1
BAT
AMD
Chipset
CLR_CMOS
M_BIOS
CODEC
PCIEX16
F_U32
F_U32C
B65I AX
SYS_FAN2
D_LED
F_AUDIO
F_USB
LED_C
F_PANEL
CPU_FAN
ATX_12V
USB20
SATA3 1
SYS_FAN1
QFLASH_PLUS
QFLED
80
M2A_CPU
Realtek®
2.5GbE LAN (Note)
iTE®
Super I/O
U32_20
SPEAKER
CI
SATA3 0
M2_WIFI
BAT
(Note)
- 5 -
2-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before connecting or unplugging the power supply cable from the motherboard, make sure
the power supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature or wet environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation
and/or grounding instructions.
Chapter 2 Hardware Installation
- 6 -
2-2 ProductSpecications
CPU AMD Socket AM5, support for:
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B650
Memory Support for DDR5 5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity)
of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Proles for Overclocking (AMD EXPO™) and Extreme
Memory Prole (XMP) memory modules
(The CPU and memory conguration may affect the supported memory types, data
rate (speed), and number of DRAM modules, please refer to "Memory Support
List" on GIGABYTE's website for more information.)
Onboard
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specications may vary depending on CPU support.)
Audio Realtek®Audio CODEC
High Denition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To
congure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Communication
Module
Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Interface CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
- 7 -
USB CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the
internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through
the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through
the internal USB header)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel
Connectors
1 x DisplayPort
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB 3.2 Gen 1 port
3 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks
I/O Controller iTE® I/O Controller Chip
- 8 -
Hardware
Monitor
Voltage detection
Temperature detection
Fan speed detection
Water cooling ow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS 1 x 256 Mbit ash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions
of each application may also vary depending on motherboard specications.
Support for Q-Flash
Support for Q-Flash Plus
Bundled
Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating
System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information without
prior notice.
&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version
of apps.
https://www.gigabyte.com/Support/Utility/Motherboard?m=ut
- 9 -
2-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications, please do so according to your hardware specications including the CPU, graphics
card, memory, hard drive, etc.
A. Note the CPU Orientation
Note the alignment keys on the motherboard CPU socket and the notches on the CPU.
Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load
plate automatically after you insert the CPU and close the load plate.
&Please visit GIGABYTE's website for details on hardware installation.
https://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw
Notch
Notch
Triangle Pin One
Marking on the
CPU
AM5 CPU
Alignment Key
Alignment Key
AM5 CPU Socket
Triangle Pin One
Marking of the
CPU Socket
- 10 -

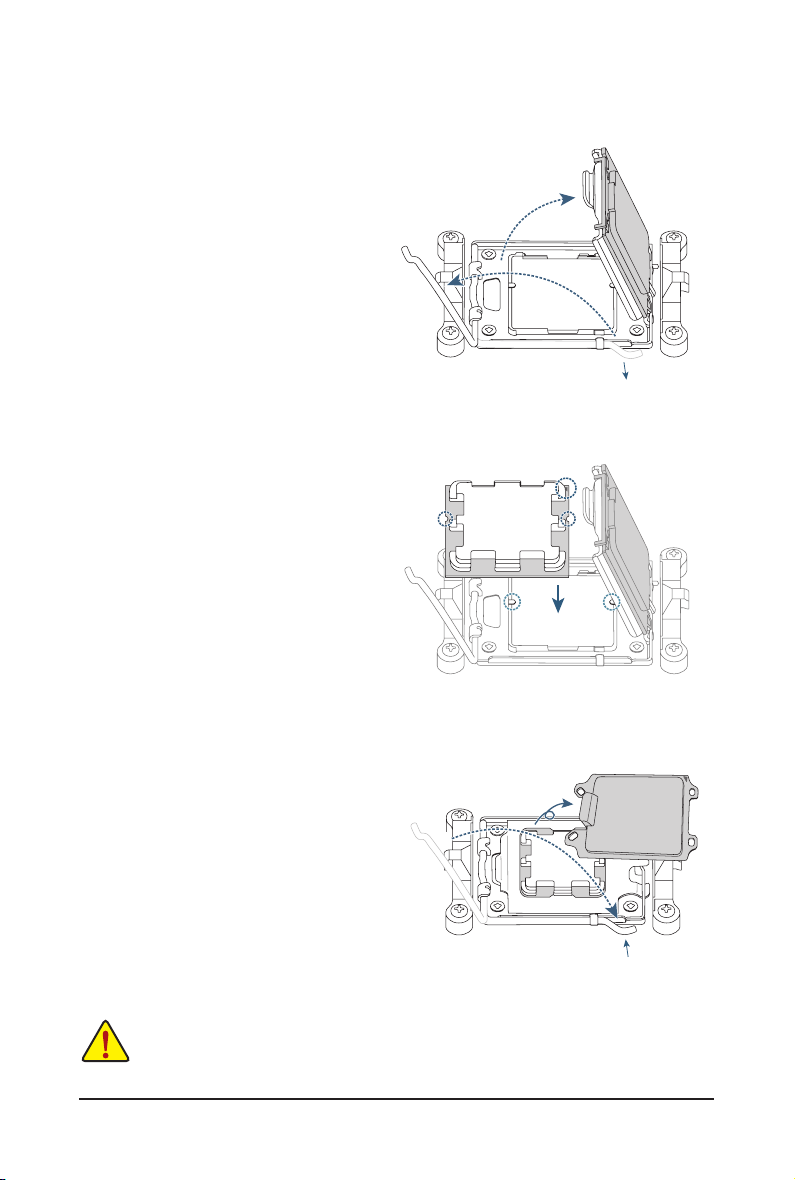

B. Installing the CPU
Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Do not force to engage the CPU socket locking lever when the CPU is not installed correctly
as this would damage the CPU and CPU socket.
41
23
j
k
l
41
23
Pin One
w
u
v
j
Gently press the CPU socket lever
handle down and away from the socket.
k
Completely lift up the CPU socket lock-
ing lever.
l
With your ngers, hold the plastic protec-
tive cover attached to the metal load
plate to lift open the metal load plate.
Hold the CPU with your fingers by the
edges. Align the CPU pin one marking (tri-
angle) with the pin one corner of the CPU
socket (or you may align the CPU notches
with the socket alignment keys) and gently
insert the CPU into position.
Make sure the CPU is properly installed
and then close the load plate. Secure the
socket lever under its retention tab. The
plastic protective cover will pop off by itself
and can be removed.
* Always replace the plastic protective
cover when the CPU is not installed to pro-
tect the CPU socket.
41
23
l
k
jj
Table des matières
Autres manuels Gigabyte Carte mère
Gigabyte
Gigabyte GA-P55-UD5 Manuel utilisateur
Gigabyte
Gigabyte GA-J1900N-D2PH Manuel utilisateur
Gigabyte
Gigabyte MZ72-HB2 Manuel utilisateur
Gigabyte
Gigabyte GA-H81TN Manuel utilisateur
Gigabyte
Gigabyte G1.Sniper Manuel utilisateur
Gigabyte
Gigabyte GA-Z270X-DESIGNARE Manuel utilisateur
Gigabyte
Gigabyte R281-3C0 Manuel utilisateur
Gigabyte
Gigabyte H410M H Manuel utilisateur
Gigabyte
Gigabyte GA-8SMML Manuel utilisateur
Gigabyte
Gigabyte GA-7VM Manuel utilisateur
Gigabyte
Gigabyte GA-7VT600 Manuel utilisateur
Gigabyte
Gigabyte GA-7N400E Manuel utilisateur
Gigabyte
Gigabyte P4 Titan Series GA-8S655FXUltra Manuel utilisateur
Gigabyte
Gigabyte GA-G31M-ES2C Manuel utilisateur
Gigabyte
Gigabyte GA-78LMT-S2 Manuel utilisateur
Gigabyte
Gigabyte GA-5AX Manuel utilisateur
Gigabyte
Gigabyte GA-M68SM-S2L Manuel utilisateur
Gigabyte
Gigabyte GA-7VEML Manuel utilisateur
Gigabyte
Gigabyte GA-8I865GVMK Manuel utilisateur
Gigabyte
Gigabyte GA-K8V Ultra-939 Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
