German pool TOR-721 Manuel utilisateur

P.1

TOR-721

TOR-723

TYP -716

TYP -717

台式抽油煙機

Wall-Mount Range Hood

P.2

P.3

1. The appliance is not intended for the use of,

and playing with, by persons (including children)

with reduced physical, sensory or mental

capabilities, or any individual lacking experience

and knowledge, unless they have been given

supervision or instruction.

2. Keep children away from the appliance. Do not

let them use the appliance without supervision.

3. If the power supply cord is damaged, do not

operate the appliance. Contact German Pool

or a licensed technician for replacement

immediately.

4. Disconnect the power supply before cleaning,

5. The range hood must be earthed.

6. Connect the range hood with an independent

air vent for exhausting fumes to the exterior.

7. The connection opening at the top of the range

hood is to be connected to the exhaust pipe for

exhausting fumes into the air vent. Exhaust pipe

of 6 inches in diameter should be used.

8. To protect electrical parts, do not splash or

spray the range hood with water.

9. The appliance should be positioned 700±50mm

above the cooking range.

10. Do not ambe under the range hood.

1.本產品並不適用於兒童、身體或心智殘障、

 缺乏經驗或知識的人士使用和玩樂，除非

 該人士得到負責保障其安全的人士的監管

 或指引。

2.請將產品遠離兒童。不要讓兒童單獨使用

 本產品。

3.為免發生危險，若發現電源線有任何損壞，

 必須停止使用產品，並立即聯絡本公司或

 合資格技術人員進行更換。

4.清潔、維修或拆除抽油煙機前應先切斷

 電源。

5.電源插座必須安裝接地線。

6.請接駁獨立排氣喉將油煙排往室外。

7.抽油煙機頂部的圓形接駁口須接駁排氣喉來

 把油煙排出室外，應使用6吋直徑排氣喉。

8.請勿直接潑水噴淋機身以免損壞電器機件。

9.抽油煙機安裝於氣體爐上方時，抽油煙機底

 部距離爐面700±50mm之間為宜。

10.切勿在抽油煙機下直接燃點明火。

P.4

注意

此標誌表示本產品在歐盟地區範圍內不得與其他家居垃圾一併棄掉。為避免不受

控制的廢物處理危害環境或人類健康的可能性，請循環使用可再用物料。請善用

社區回收系統或聯絡本產品的銷售商協助回收已用的電器來進行環保處理。

Attention

This symbol indicates that this product should not be disposed with other household

wastes throughout the E.U. To prevent possible harm to the environment or human health

from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse

of material resources. To return your used device, please use the return and collection

systems or contact the retailer from where the product was purchased. They can take

this product for environmentally safe recycling.

11. German Pool range hood has high venting

efciency. Most of the grease vapor will be

exhausted through the air vent when the range

hood is in operation. Hence only very little amount

of residual oil will be collected in the oil container.

12. The air must not be discharged into a venting

pipe that is used for exhausting fumes from

appliances burning gas or other fuels.

13. There should be adequate ventilation of the

room when the range hood is used along with

appliances that burn gas or other fuels.

14. Regulations concerning the discharge of air

have to be fullled.

15. To prevent re hazard in case of oil build-up, the

turbine impellers and other easily-soiled parts

must be cleaned at least once a week.

16. Please wear safety gloves for installation,

cleaning, light bulb changing and dismantling in

order to prevent injuries.

11.德國實抽油煙機抽吸力特強，大部分油煙

 在抽油煙機操作時已被抽出室外，故此油

 杯的油污量很少，請放心使用。

12.抽油煙機不可與燃氣或使用其他能源之器

 具共同使用同一排放管道。

13.當使用抽油煙機時，如房間內同時使用燃氣

 或其他能源的器具，房間必須有足夠通風。

14.用戶必須遵照有關排放空氣的條例來安裝

 及使用本產品。

15.抽油煙機的風輪及易沾油污的部份之表面

 均須最少每星期進行清洗一次，避免油污

 因長時間積聚而引致火警危險。

16.安裝、清潔、更換燈泡及拆除抽油煙機時

 請戴上安全手套，以免受傷。

P.5

P. 4

22 4 3455 7 7

22 4 3457 56 7

產品結構 Product Structure

TOR-721

TOR-723

1. 操作面版Control Panel

2. 易拆式旋鈕(一對)

Bottom Cover Knob (1 pair)

3. 底蓋Bottom Cover

4. 油杯(一對)Oil Container (1 pair)

5. 風網(一對)Fan Grille (1 pair)

6. 照明燈Lighting

7. 防漏油碟(一對)Oil Collector (1 pair)

8. 風機開關(左)Left Fan On/Off Switch

9. 速度調校掣(左)Left Speed Control

10.風機開關(右)Right Fan On/Off Switch

11.速度調校掣(右)

Right Speed Control

12.照明燈開關Light Switch

操作面版 Control Panel

高速Super 低速Normal

8 9 10 11 12

P.6

P. 5P. 5

22 4 3455 6 7

22 4 345 56

7 7

TYP-716

TYP-717

產品結構 Product Structure

操作面版 Control Panel

1.操作面版Control Panel

2.易拆式旋鈕(一對)Bottom Cover Knob (1 pair)

3.底蓋Bottom Cover

4.油杯(一對)Oil Container (1 pair)

5.風網(一對)Fan Grille (1 pair)

6.照明燈Lighting

7.防漏油碟(一對)Oil Collector (1 pair)

8.速度調校掣(左)Left Speed Control

9.速度調校掣(右)Right Speed Control

10.總開關Main Power Switch

11.照明燈開關Light Switch

高速Super 低速Normal

8 9 10 11

P.7

P. 6

I. 安裝高度

 抽油煙機底部距離爐面70-75cm之間為宜，

 距離越接近70cm，抽油煙效果越佳。

I. Height of Installation

The appliance should be positioned 70-75 cm

above the cooking range. A distance that is

near 70 cm results in higher venting efciency.

安裝說明 Installation Instructions

II. 安裝程序

 1.根據抽油煙機兩掛耳之間的距離，在牆上

打孔。

 2. 裝上膨脹螺絲，然後將抽油煙機上的掛耳

  用螺絲固緊入膨脹螺絲中，再以螺母旋緊

 螺絲即可。

 3. 將機背安裝支架的螺絲釘旋鬆，把兩側掛

耳調至適合的位置，然後將整機用螺絲釘

緊固在牆上。

 4. 安裝時機身必須保持左右水平，並須把隨

機附設的膠塞裝在機背後，讓機身前端稍

為向上傾斜(圖1)。

II. Installation Procedures

1. Drill holes in the wall based on the positions

and distance between the mounting brackets.

2. Install screw anchors in the holes. Screw

the mounting brackets through the anchors.

Secure screws with nuts.

3. Loosen the screws of the mounting stand at

the back of the range hood. Adjust the range

hood to a suitable position on the wall.

4. Keep the range hood horizontally balanced

and x it to the wall with screws provided.

Place the provided rubber cap behind the

range hood so that the front of the unit is

tilted slightly (Fig. 1).

TOR-721 / TYP-716

TYP-723 / TYP-717

135

100

530 711

330

152

(mm)

排氣口

Air Outlet

牆壁

Wall

掛耳

Mounting

Brackets

215

140

711

420

152

(mm)

523

基本尺寸圖

Dimensions Diagrams

圖 1

Fig. 1

P.8

P. 7

清潔與保養 Care & Maintenance

重要說明

 -為達致本產品的最佳效能，用戶應最少每週

  清洗抽油煙機一次。

 -警告:如用戶不依照本說明書指示進行維修

  或清潔保養(特別是風扇及易沾油污部份)，

  有可能會導致火警。

1. 清潔抽油煙機前先關掉電源。

2. 取出油杯，再扭開2邊易拆式旋鈕，

將底蓋拆下。

Important

- To ensure the most optimum efciency, the range

hood must be cleaned at least once a week.

- Warning: There is a risk of re if repair and

cleaning of the range hood (especially the fan

and other easily-soiled parts) are not carried

out in accordance with the instructions.

1. Cut off the power supply before cleaning the

range hood.

2. Remove the two oil containers, then turn the 2

bottom cover knobs to detach the bottom cover.

3. 將接油盤除下。如使用TOR-723或TYP-717型

號，將兩個銀色扣鈎移開才可將接油盤取下

(圖3)。

4. 將鎖緊帽按順時針方向旋鬆，取出風輪。

5. 清潔時，內外表面可用軟布沾中性清潔劑擦拭

並用清水揩抹，注意避免刮花機身內外表面。

6. 清潔後，按上述相反的程序裝上，請檢查底板

上的掛勾與機身是否妥當接合，以策安全。

3. Detach the oil collecting trays. For TOR-723 or

TYP-717 models, free oil collecting trays from

the two small buckles (Fig 3).

4. Loosen the locking caps by turning the caps

clockwise and take out the turbine impellers.

5. Use a soft cloth to clean the inner and outer

surfaces with a mild liquid detergent, and then

rinse the trays with water. Avoid using a rough or

metal brush to scrub the surface.

6. After cleaning, assemble the parts in reverse

order as shown above. To ensure safety, make

sure that the bottom cover is securely hooked

with the hood body.

底蓋

Bottom Cover

扣鈎

Buckle

機身

Hood Body

風輪

Turbine Impeller

鎖緊帽

Locking Cap

接油盤

Oil Collecting Tray

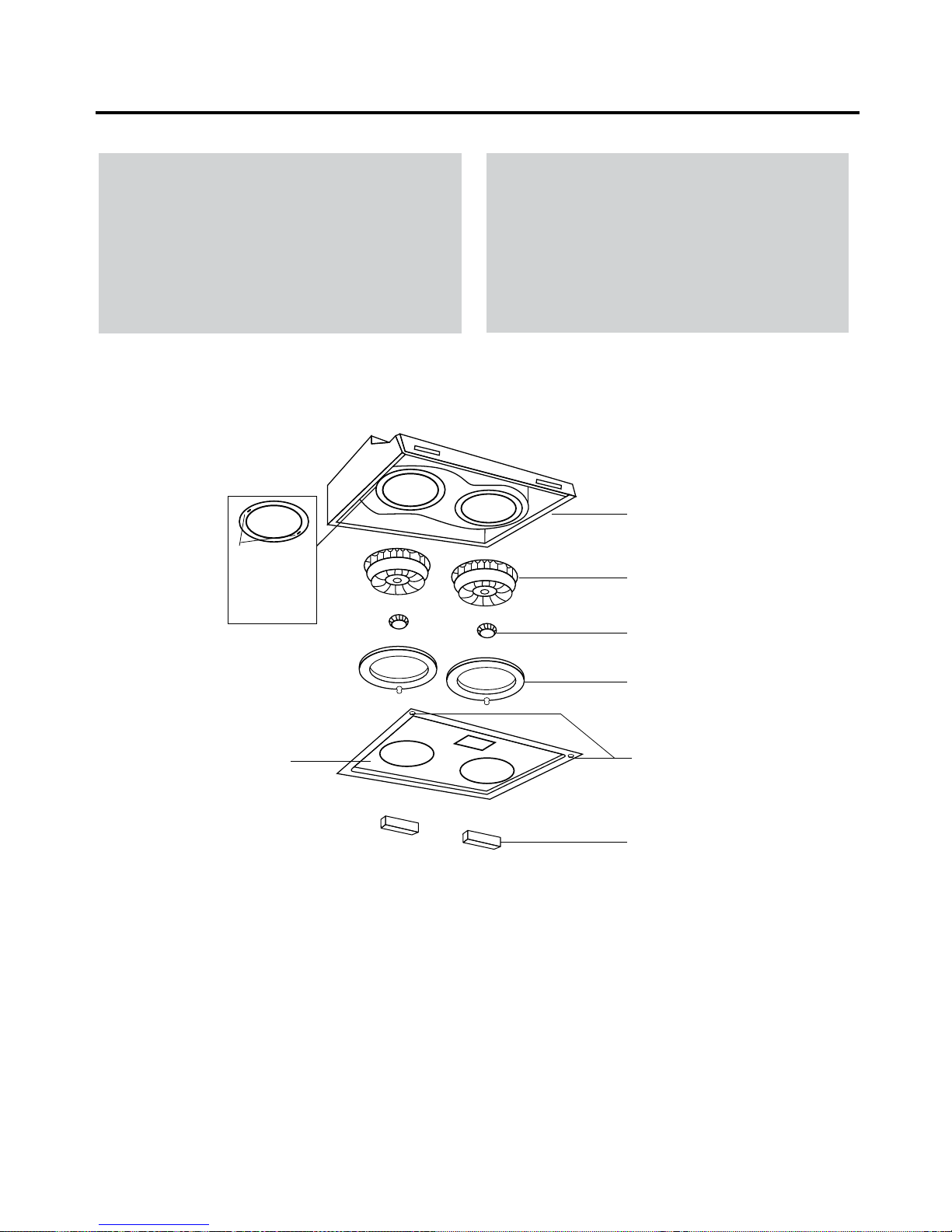

圖2

Fig. 2

易拆式旋鈕

Bottom Cover Knob

油杯

Oil Container

圖3

Fig. 3

P.9

技術規格 Technical Specications

型號Model TOR-721 TOR-723 TYP-716 TYP-717

電壓Voltage /

頻率Frequency 220 V / 50 Hz

功率Rated Power 310 W 160 W

顏色Colour 銀色 Silver

摩打轉速Motor Speed 2,100 R.P.M. 2,300 R.P.M. 1,600 R.P.M. 1,650 R.P.M.

排風量Exhaust Flow 1,320 m³/hr 1,380 m³/hr 960 m³/hr 1,020 m³/hr

照明燈Lighting 40 W

排風口直徑

Exhaust Outlet Diameter

Ø152mm / 6”

機身尺寸Dimensions (H) 100 mm

(W) 711 mm

(D) 530 mm

(H) 140 mm

(W) 711 mm

(D) 523 mm

(H) 100 mm

(W) 711 mm

(D) 530 mm

(H) 140 mm

(W) 711 mm

(D) 523 mm

淨重Net Weight 10.5 kg 11.3 kg 10.2 kg 11.1 kg

P. 8

產品規格及設計如有變更，恕不另行通知。

Specications are subject to change without prior notice.

中英文版本如有出入，一概以中文版為準。

If there is any inconsistency or ambiguity between the English version and the Chinese version,

the Chinese version shall prevail.

本產品使用說明書以 www.germanpool.com 網上版為最新版本。

Refer to www.germanpool.com for the most up-to-date version of the Operating Instructions.

P.10

如欲獲取更多有關本產品最新資訊，歡迎瀏覽本公司網站。

For additional product information, please visit our website.

www.germanpool.com
