RHM

SERIES

煙導式抽油煙機

Chimney Type Range Hood

6328S / 7328S / 8328S / 9328S /

6428S / 7428S / 8428S / 9428S /

系列

在使用之前請詳細閱讀「使用說明書」及「保用條款」，並妥善保管。

Please read these instructions an d warranty information carefully

before use and keep them han dy for future reference.

使用說明書USER MANUAL

即時網上登記保用

Online Warranty Registration

P.3

P.2

目錄 Table of Contents

注意事項 Notice Before Use 03

產品結構 Product Structure 05

安裝說明 Installation Instructions 06

電路圖 Wiring Diagram 07

操作說明 Operating Instructions 08

清潔與保養 Care & Maintenance 11

常見故障及處理 Troubleshooting 12

技術規格 Technical Specications 13

保用條款 Warranty Terms & Conditions 15

1.本產品並不適用於兒童、身體或心智殘

 障、缺乏經驗或知識的人士使用和玩樂，

 除非該人士得到負責保障其安全的人士的

 監管或指引。

2.請將產品遠離兒童。不要讓兒童單獨使用

 本產品。

3.為免發生危險，若發現電源線有任何損

 壞，必須停止使用產品，並立即聯絡本公

 司或合資格技術人員進行更換。

4.清潔、維修或拆除抽油煙機前應先切斷電源。

5.電源插座必須安裝接地線。

6.請接駁獨立排氣喉將油煙排往室外。

7.抽油煙機不可與燃氣或使用其他能源之器

 具共同使用同一排放管道。

8.抽油煙機頂部的圓形接駁口須接駁風管，

 將油煙排出室外，須用6吋直徑風管。

9.抽油煙機安裝於氣體爐上方時，抽油煙機

 底部距離爐面700±50mm之間為宜。

10.切勿在抽油煙機下直接燃點明火。

重要說明

 為安全起見，初次使用產品前請先細閱本說

 明書，並保存說明書，以便作參考之用。

 本產品只供家居使用。請必須依照本說明書

 內的指示安裝及操作。

注意事項 Notice Before Use

Important

For safety purpose, you should read the instructions

carefully before using the appliance for the rst

time. Save the instructions for future reference.

The appliance is designed for domestic use

and may only be installed and operated in

accordance with these instructions for use.

1. The appliance is not intended for the use

of, and playing with, by persons (including

children) with reduced physical, sensory or

mental capabilities, or any individual lack of

experience and knowledge, unless they have

been given supervision or instruction.

2. Keep children away from the appliance.

Do not let them use the appliance without

supervision.

3. If the power supply cord is damaged, do not

operate the appliance. Contact German Pool

or a licensed technician for a replacement

immediately.

4. Disconnect the power supply before cleaning,

repairing or dismantling the range hood.

5. The range hood must be earthed.

6. Connect the range hood with an independent

air vent to exhaust lampblack.

7. The air must not be discharged into a venting

pipe that is used for exhausting fumes from

appliances burning gas or other fuels.

8. The connection opening at the top of the range

hood must be connected to the exhaust pipe

for exhausting fumes to the outdoors. Exhaust

pipe of 6 inches in diameter should be used.

9. The appliance should be positioned

700±50mm above the cooking range.

10. Do not ambe under the range hood.

P.5

P.4

注意事項 Notice Before Use

11.安裝、清潔、更換燈泡及拆除抽油煙機

 時請戴上安全手套，以免受傷。

12.請勿直接潑水噴淋機身，以免損壞電器

 機件。

13.德國寶抽油煙機抽吸力特強，大部分油

 煙在抽油煙機操作時已被抽出室外，故

 此集油器的油污量很少，請放心使用。

14.當使用抽油煙機時，如房間內同時使用

 燃氣或其他能源的器具，房間必須有足

 夠通風。

15.用戶必須遵照有關排放空氣的條例來安裝

 及使用本產品。

16.抽油煙機易沾油污的部份之表面均須最少

 每星期進行清洗一次，避免油污因長時間

 積聚而引致火警危險。

11. Please wear safety gloves for installation,

cleaning, light bulb changing and dismantling

in order to prevent injuries.

12. To protect electrical parts, do not splash or

spray the range hood with water.

13. German Pool range hood has high venting

efciency. Most of the grease vapor will be

exhausted through the air vent when the range

hood is in operation. Only very little amount

of residual oil will be collected in the Oil

Collecting Tray.

14. There should be adequate ventilation in the

room when the range hood is used along with

appliances that burn gas or other fuels.

15. Regulations concerning the discharge of air

have to be fullled.

16. To prevent re hazard in case of oil build-up,

the easily-soiled parts must be cleaned at

least once a week.

65 23

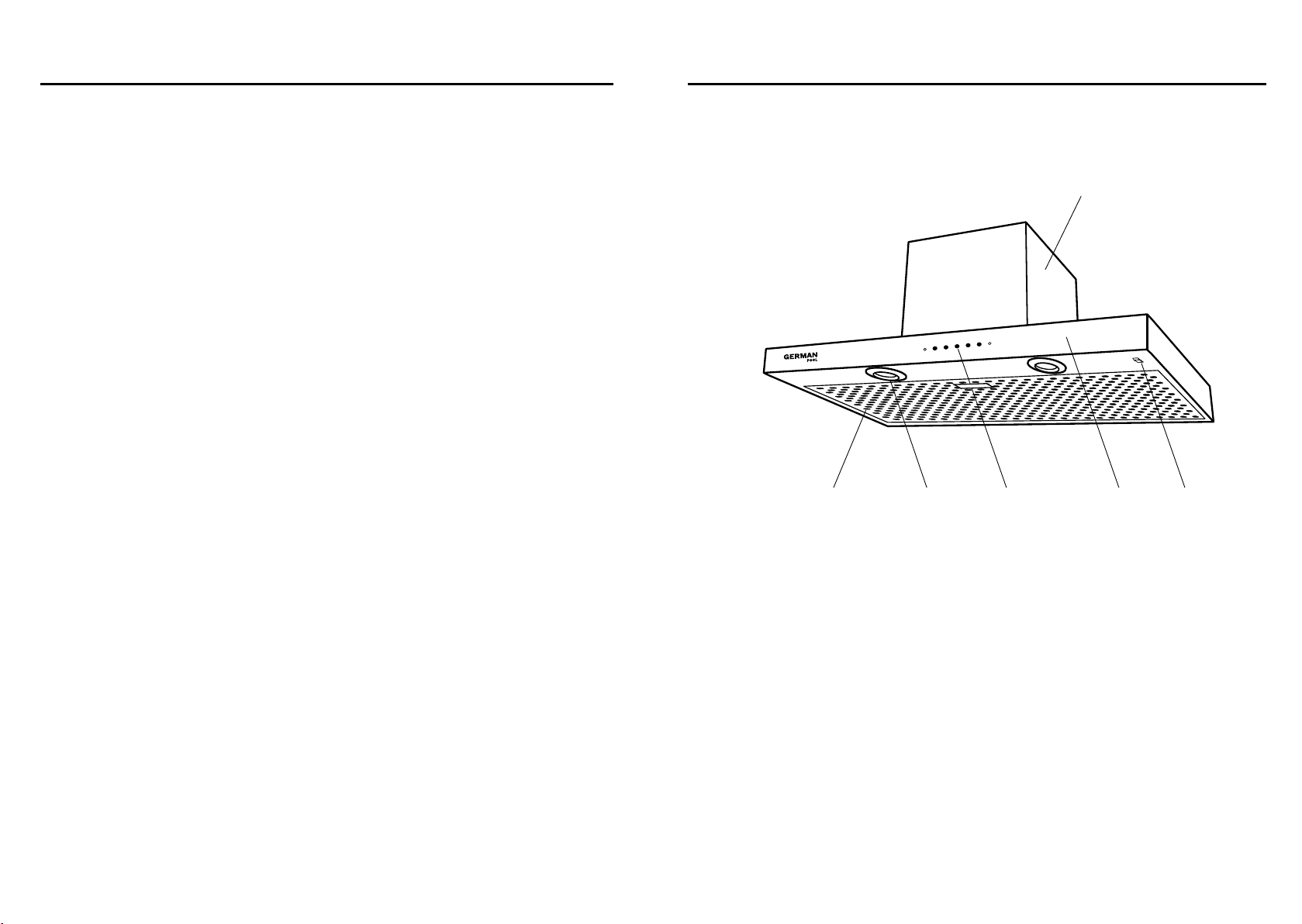

產品結構 Product Structure

1. 摩打風箱

2. 機身

3. 照明燈

4. 操作面板

5. 金屬底板(內附集油杯)

6. 總開關掣

1. Motor Cover

2. Body

3. Light

4. Control Panel

5. Metal Panel (oil collector inside)

6. Main Power Switch

P.7

P.6

周圍環境

抽油煙機四周應避免門窗過多，而產生過大之空

間對流。如果油煙未上升至25cm有效吸力範圍，

抽油煙機則無法發揮正常效果。

安裝高度

抽油煙機底部距離爐面700±50mm之間為宜，

距離越接近700mm，抽油煙效果越佳

(如圖A)。

機體保持水平

確定安裝位置時，機體應保持前後左右水平，

若機體傾斜積油會漏出 (如圖B)。

安裝方法

根據抽油煙機兩掛耳之間的距離及掛耳兩孔間距

的大小，在牆上打孔裝上膨脹螺絲固緊，將抽油

煙機上的掛耳掛入螺絲中，用螺母旋緊即可。

風管長度

抽油煙機頂部的圓形接駁口須接駁風管，將油煙

排出室外，須用6吋直徑風管。風管長度之標準

接法 (如圖C)。排風出口至機體之距離，應儘量縮

短，以免氣流擠壓於風管內，影響其排風效果。

Installation Environment

For efcient air extraction, avoid opening too many

windows surrounding range hood for this will cause air

convection which prevents cooking fumes from rising to

25 cm (the effective suction / exhaust area).

Height of Installation

The appliance should be positioned 700 ± 50mm above

the cooking range. A distance that is near 700mm

results in higher venting efciency (Fig A).

Keep the Hood Level

The installation of the hood should remain level, in order

to prevent oil from spilling over from oil collectors (Fig B).

Installation Method

Drill holes in the wall according to the distance between

the 2 mounting brackets and the diameter of the 2 holes

on the mounting bracket. Install the anchor screws in

the holes. Fix the range hood onto the screw and secure

with nuts.

Length of Exhaust Pipe

The connection opening at the top of the range hood

must be connected to the exhaust pipe for exhausting

fumes to the outdoors. Exhaust pipe of 6 inches in

diameter should be used. The length of the exhaust pipe

should be minimized to avoid air turbulence inside the

pipe (Fig C).

安裝說明 Installation Instructions

安裝前注意

必須由專業合資格技術人員安裝及維修抽油

 煙機。

安裝前先接上電源檢查照明與摩打開關是否

 正常操作。

Pre-installation Notice

The range hood must be installed and repaired by

authorized qualied technicians.

Before installation, plug in and check if all switches

are functional.

圖B Fig B圖A Fig A 圖C Fig C

OFF Autostart

Night

light

OFF

Autostart

Night

light

700±50mm

Level

Tilted

機身平衡

機身傾斜

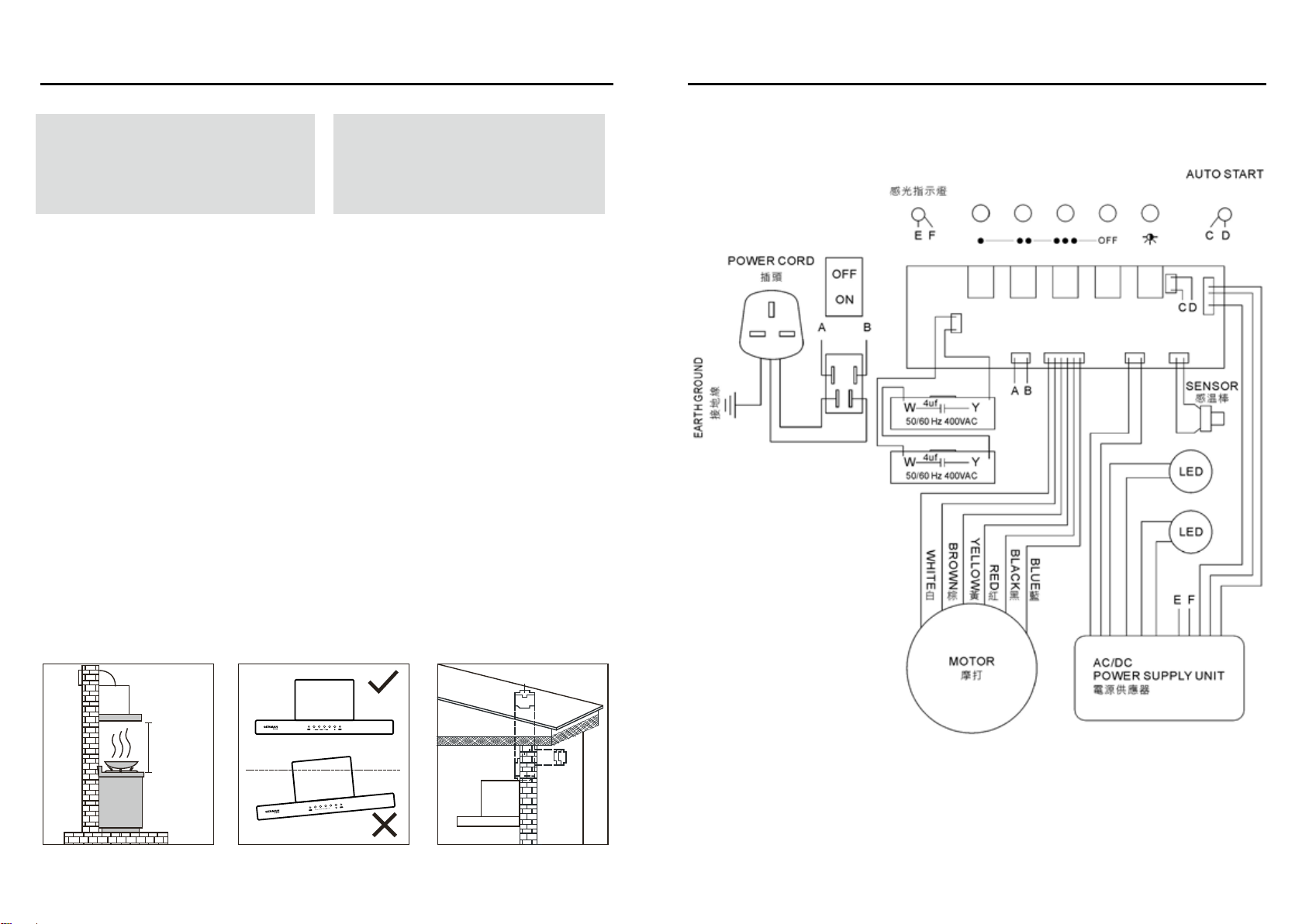

電路圖 Wiring Diagram

NIGHT LIGHT INDICATOR

自動智能感溫啟動燈

P.9

P.8

Note:

- After the rst activation of auto start,

you need to press the desired Fan Speed

if you want to keep the

fan running.

操作說明 Operation Instructions

重要事項

1. 抽油煙機風管必須連接於屋外，嚴禁直接

排進屋內。

2. 使用氣體爐或其他燃料烹飪時，室內必須

有足夠通風空間。

3. 抽油煙機之排氣管嚴禁與氣體管或其他燃

料排氣管相通。

4. 通電前須注意電源電壓是否與機身銘牌標

示之電壓一致。

Important

1. The exhaust duct must be exposed outdoors.

2. There should be adequate ventilation in the

room when a gas cooking range or other fuels

are in use for cooking.

3. The air from the range hood must not be

discharged into a venting pipe that is used for

exhausting fumes from appliances burning

gas or other fuels.

4. Ensure the electrical rating shown on the

rating plate corresponds with the power supply

in your house before switching on the power

supply.

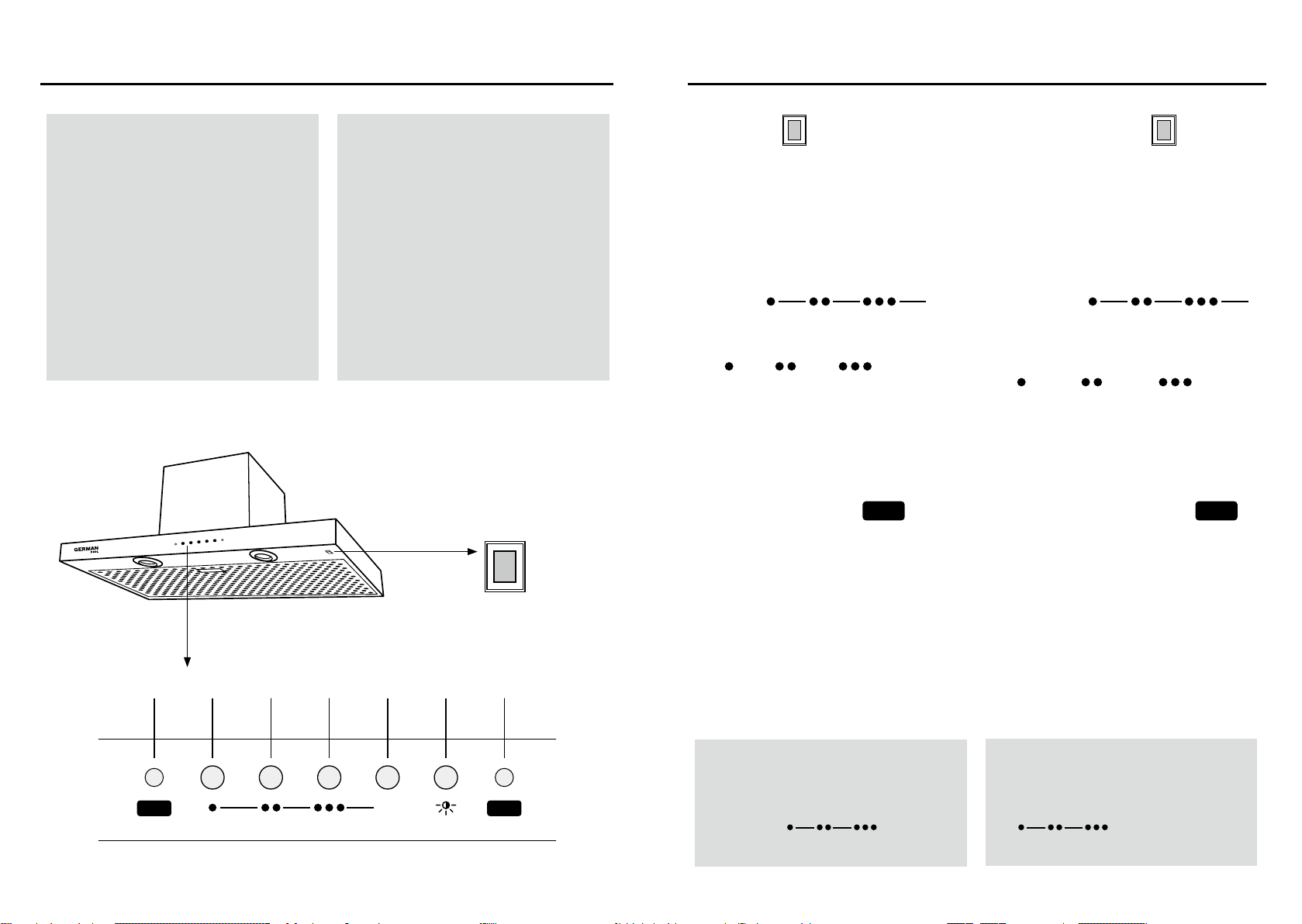

操作面板 Control Panel

OFF Auto start

Night

light

感光指示燈

Night Light Indicator

低速鍵

Low Speed

高速鍵

High Speed

極速鍵

Turbo Speed

風扇關閉鍵

Fan Off

LED 燈鍵

LED Light

自動智能感溫啟動燈

Auto Start

操作說明 Operation Instructions

I. 總開關

- 當總開關掣切換至ON時，抽油煙機即接上

電源，處於待機狀態，可啟動機上任何功

能。

- 當總開關掣切換至OFF時，機上所有功能，

包括自動感應輔助夜間照明及自動智能感

溫，將不能啟動。如要使用任何功能，總

開關鍵必先切換至ON。

lI. 風速

- 選擇風速：開啟抽油煙機後按所需風速

鍵，選擇風扇速度。

- 關閉風扇：欲關閉風扇只須按風扇關閉

鍵。

注意：切勿同時按兩個風速鍵，否則會引

致摩打損壞。

IlI. 自動智能感温啟動

注意：使用自動智能感溫啟動前，請先確認

本機處於待機狀態。

- 當煮食爐或電爐正在使用中而並未啟動抽

油煙機風扇時，只要抽油煙機底下的溫度

達55-60℃(130-140°F)時，自動感溫將會

啟動風扇以高速運轉1分30秒後停止。

- 若自動運轉完畢而用戶仍未啟動任何風

速，只要抽油煙機底下的溫度達55-

60℃(130-140°F)時，風扇仍會如上一步

驟啟動。

I. Main Power Switch

- When it is switched to ON, the range hood is

connected with power and at stand-by status.

All functions can be activated.

- When it is switched to OFF, all functions including

Heat-Activated Auto Start and Automatic Night

Light cannot be activated. To activate any

functions, it must be switched to ON.

lI. Fan Speed

- Select fan speed: After pressing the Main

Power Switch, select fan speed with one of

the Fan Speed buttons.

- Fan off: To turn off the fan, just press the Fan

Off button.

Note: Do not press two Fan Speed buttons at the

same time or else the motor will be damaged.

lII. Heat-Activated Auto Start

Note: Make sure the range hood is at stand-by

status thus heat-activated auto start can

operate.

- When the gas cooking range is working without

the fan turned on, and the air temperature under

the range hood reaches 55-60ºC (130-140°F),

thermal sensor will activate the fan to run at high

speed for 1.5 minutes automatically.

- If the temperature under the range hood still

reaches 55-60ºC (130-140°F) after the auto

start has completed, the fan will be activated

again as described in the step above.

OFF OFF

註：

- 自動智能感溫經第一次啟動，當風扇停止

運轉後，若要持續保持風扇運轉，須按下

所需風速鍵。

低速高速極速 Low

speed High

speed Turbo

speed

Auto start Auto start

總開關鍵

Main Power Switch

OFF

P.11

P.10

操作說明 Operation Instructions

IV. LED 燈

- 注意：使用LED照明前，請先確認

本機處於待機狀態。

- 按LED燈鍵開啟照明。

- 再按一次LED燈鍵關掉照明。

V. 自動感應夜間輔助照明

注意：使用自動夜間感應輔助照明，

請先確認本機處於待機狀態。

- 當抽油煙機四周環境已漸暗或全暗時，

感光指示會以LED燈原亮之20%自動啟動

夜間照明功能。

- 當抽油煙機四周環境已漸亮或全亮時，

輔助照明將自動熄滅。

IV. LED Light

- Note: Make sure the range hood is in stand-by

status before activating LED lighting.

- Press the LED Light button to turn it on.

- Press the button again to turn it off.

V. Automatic Night Light

Note: Make sure the range hood is in stand-by

status before activating night light function.

- When the surroundings are getting darker or

completely dark, the night light function will be

automatically activated at 20% of LED light’s

normal brightness.

- When the surroundings are getting brighter or

completely bright, the senor will turn off the

night light function automatically.

清潔與保養 Care & Maintenance

重要事項

- 為達致本產品的最佳效能，用戶應最少每週

清洗抽油煙機一次。

- 清洗或拆裝金屬底部時，請務必先戴上安全

手套，以免割傷。

- 警告：如用戶不依照本說明書指示進行維修

或清潔保養 (特別是風扇及易沾油污部份)，

有可能會導致火警。

1. 清潔、保養及維修前必須先拔掉電源插頭。

2. 清潔時，內外之表面可用軟布沾中性清潔劑

擦拭，再沾清水揩抹，應避免刮花機體內外

表面。

3. 集油杯積油一半或以上時，需要將油污倒掉

以免溢出。先打開金屬底板，取出風輪下的

集油杯，清洗及抹乾後重新裝上 (如圖D) 。

Important

- To ensure the most optimum efciency, the range

hood must be cleaned at least once a week.

- Make sure to wear safety gloves before cleaning

or dismantling the metal parts of the range hood

in order to reduce the risk of any injury caused by

the sharp edges.

- Warning: There is a risk of re if repair and

cleaning of the range hood (especially the fan

and other easily-soiled parts) are not carried out

in accordance with the instructions.

1. Power plug must be disconnected before

cleaning and repair.

2. Use soft cloth with mild detergent to clean the

surface of the hood from outside and inside each

time after use and then clean with a cloth soaked

with water. Avoid scraping the surface.

3. Clear oil from oil collectors when they are more

than half full of grease in order to avoid spilling.

Open metal panel and pull and slide the oil

collector placed under the fan. Wash and wrap it

dry. Then slide and push it back (Fig D).

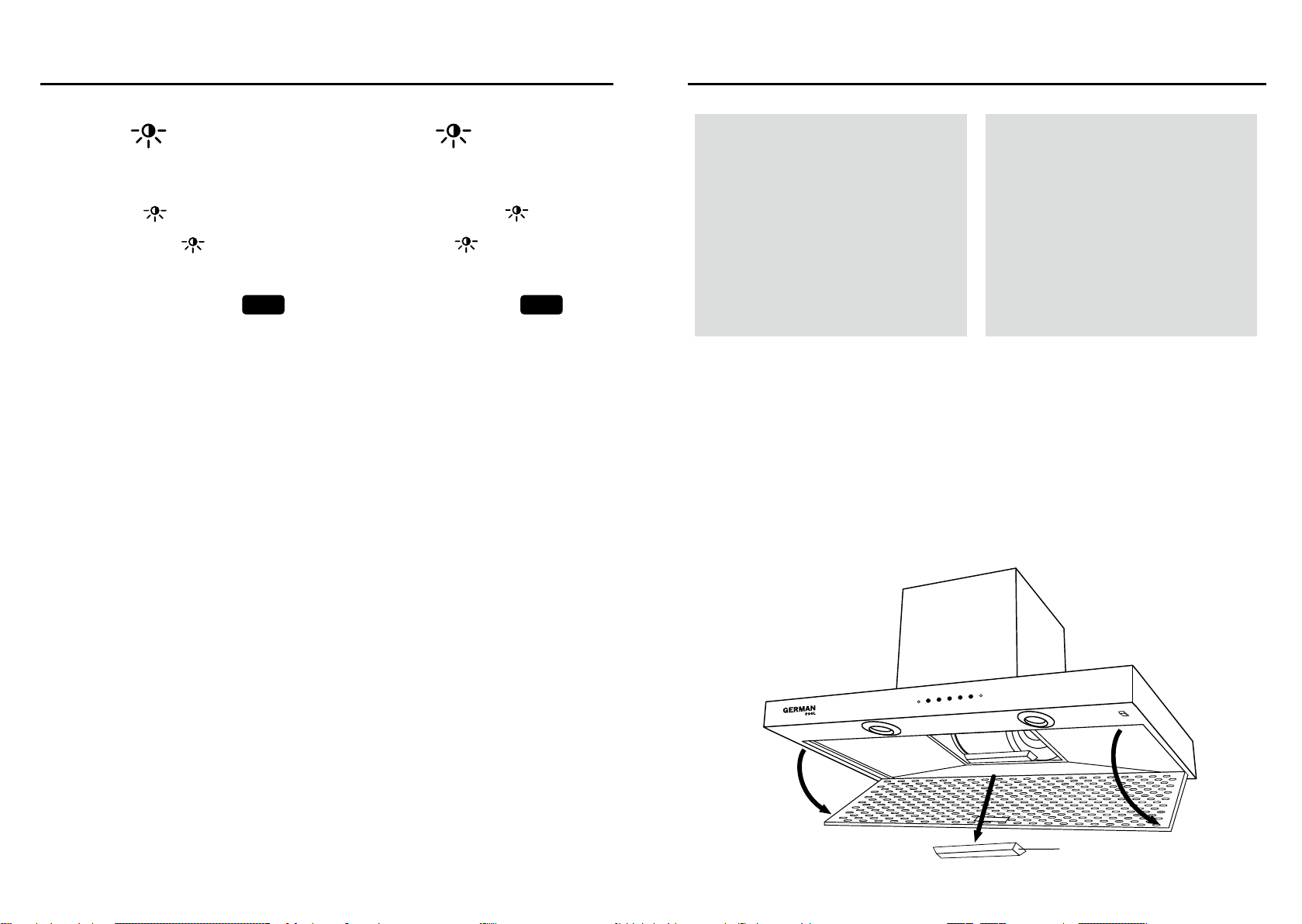

圖D Fig D

集油杯

Oil Collector

Night

light

Night

light

P.13

P.12

常見故障及處理 Troubleshooting

故障現象 Phenomenon 原因分析Possible Cause 處理方法Solution

按下 LED 燈鍵，LED 燈不

運作。

Press the LED light button but

LED lighting is not working.

-電源插頭未插好

-照明燈壞

-電源線脫落或接觸不良

- The plug is not inserted

to the socket properly

- The light is out of order

- Power cord comes off and

is not attached properly

-檢查插頭，應可靠地插

入插座

-更換照明燈

-維修或更換

- Check whether the plug

is properly plugged

to the socket

- Change the light bulb

- Repair or replace

電機不運作。

The machine is not working.

-葉輪被卡阻

-電容器接觸不良或損壞

-電機損壞

- Impeller gets stuck

- Capacitor is not well

connected or damaged

- Motor is damaged

-排除葉輪卡阻故障

-維修或更換

-維修或更換

- Clear impeller from

obstructions

- Repair or replace

機身震動。

The hood vibrates.

-機身懸掛不牢固

-電機安裝不牢固

-葉輪受損平衡被破壞

- Not rmly mounted

- Not installed securely

- Impeller is damaged and

becomes imbalanced

-緊固機身

-維修或更換

- Secure the hood

- Repair or replace

選擇不同風速，但風機不運

作。

Fan works at one speed but

not at another.

-控制開關失靈

-轉換電路未接通

- Power switch malfunction

- Circuit not connected well

-維修或更換

- Repair or replace

抽油煙效果不好。

Does not exhaust effectively.

-機身安裝過高

- The hood is mounted at a

rather high position

-降低安裝高度

- Lower the installation

position

如遇以下一般性故障，請按以下指示處理，

如仍處理不了或未發現故障原因時，請與本

公司維修服務中心聯繫。

注意：為安全著想，再次特別提醒，請勿自

行拆卸修理。

If you encounter the following common troubles,

please solve according to the following instructions.

If the problem cannot be solved or a cause cannot

be found, please contact our customer services

centre.

Note: For safety purpose, do not dismantle the

product for repair by yourself.

技術規格 Technical Specications

S8237-MHRS8236-MHRledoM

Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz

W024~083W024~083rewoP

)2xDELW1(W6)2xDELW1(W6gnithgiL

Motor Speed Max. 2,800±50 R.P.M. Max. 2,800±50 R.P.M.

Exhaust Flow Max. 1,000±50 m³/hr Max. 1,000±50 m³/hr

Exhaust Outlet Diameter Ø 152 mm / 6” Ø 152 mm / 6”

Product Dimensions (H) 314 mm

(W) 600 mm

(D) 356 mm

(H) 314 mm

(W) 700 mm

(D) 356 mm

Net Weight 12.5 kg 13 kg

S8239-MHRS8238-MHRledoM

Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz

W024~083W024~083rewoP

)2xDELW1(W6)2xDELW1(W6gnithgiL

Motor Speed Max. 2,800±50 R.P.M. Max. 2,800±50 R.P.M.

Exhaust Flow Max. 1,000±50 m³/hr Max. 1,000±50 m³/hr

Exhaust Outlet Diameter Ø 152 mm / 6” Ø 152 mm / 6”

Product Dimensions (H) 314 mm

(W) 800 mm

(D) 356 mm

(H) 314 mm

(W) 900 mm

(D) 356 mm

Net Weight 13.5 kg 14.2 kg

P.15

P.14

技術規格 Technical Specications

S8247-MHRS8246-MHRledoM

Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz

W024~083W024~083rewoP

)2xDELW1(W6)2xDELW1(W6gnithgiL

Motor Speed Max. 2,800±50 R.P.M. Max. 2,800±50 R.P.M.

Exhaust Flow Max. 1,000±50 m³/hr Max. 1,000±50 m³/hr

Exhaust Outlet Diameter Ø 152 mm / 6” Ø 152 mm / 6”

Product Dimensions (H) 314 mm

(W) 600 mm

(D) 457 mm

(H) 314 mm

(W) 700 mm

(D) 457 mm

Net Weight 13.4 kg 14.2 kg

S8249-MHRS8248-MHRledoM

Voltage / Frequency 220-240 V ~ 50 Hz 220-240 V ~ 50 Hz

W024~083W024~083rewoP

)2xDELW1(W6)2xDELW1(W6gnithgiL

Motor Speed Max. 2,800±50 R.P.M. Max. 2,800±50 R.P.M.

Exhaust Flow Max. 1,000±50 m³/hr Max. 1,000±50 m³/hr

Exhaust Outlet Diameter Ø 152 mm / 6” Ø 152 mm / 6”

Product Dimensions (H) 314 mm

(W) 800 mm

(D) 457 mm

(H) 314 mm

(W) 900 mm

(D) 457 mm

Net Weight 15 kg 15.9 kg

User Manual.

此保用只適用於香港及澳門

This warranty is valid only in Hong Kong and Macau

客戶服務及維修中心 Customer Service & Repair Centre

Hong Kong

10/F, Kowloon Godown

1-3 Kai Hing Road, Kowloon Bay,

Kowloon, Hong Kong

Tel : +852 2333 6249

Fax : +852 2356 9798

Email : [email protected]

Macau

3/F, Edificio Industrial Pou Fung,

145 Rua de Francisco Xavier Pereira,

Macau

Tel : +853 2875 2699

Fax : +853 2875 2661

香港

九龍灣啟興道1-3號

九龍貨倉10樓

電話：+852 2333 6249

傳真：+852 2356 9798

電郵：[email protected]

澳門

澳門俾利喇街145號

寶豐工業大廈3樓

電話：+853 2875 2699

傳真：+853 2875 2661

保用條款

此保用提供德國寶產品之機件在正常使用下壹年保用

(自購買日起計算)。

Warranty Terms & Conditions

Under normal operations, the product will gurantee a 1-year full

warranty provided by German Pool (effective from the date of

purchase).

機身號碼 Serial No. :

購買商號 Purchased From :

發票號碼 Invoice No. :

購買日期 Purchase Date :

型號 Model No. :

另請填妥以下表格並與正本發票一併保存，以便維修時核對資料。用戶提供之所有資料必須正確無誤，否則免費保用將會無效。

Please fill out the form below. This information and the original purchase invoice will be required for any repairs. Warranty will be

invalidated if information provided is found to be inaccurate.

貴戶須在購機十天內，以下列其中一種方式向本公司

登記資料，保用手續方正式生效﹕

填妥本公司網頁內之

保用登記表格

www.germanpool.com/

warranty

填妥保用登記卡，

郵寄至本公司。

* This warranty is not valid until customer registration information

is received by our Service Centre within 10 days of purchase

via one of the following means:

1) Visit our website and register

online:

www.germanpool.com/

warranty

Complete all the fields on the

attached Warranty Card and

mail it back to our Customer

Service Centre.

RHM-6328S

RHM-6428S

RHM-7328S

RHM-7428S

RHM-8328S

RHM-8428S

RHM-9328S

RHM-9428S

德國寶(香港)有限公司

German Pool (Hong Kong) Limited

香港

Hong Kong

Room 113, Newport Centre Phase II, 116 Ma Tau

Kok Road, Tokwawan, Kowloon, Hong Kong.

電話 Tel: +852 2773 2888

傳真 Fax: +852 2765 8215

香港九龍土瓜灣馬頭角道116號

新寶工商中心2期113號室

中國

China

電話 Tel: +86 757 2980 8308

傳真 Fax: +86 757 2980 8318

8th, Xinxiang Road, Wusha Industrial Park,

Daliang, Shunde, Foshan, Guangdong, China

廣東省佛山市順德區

大良五沙工業區新翔路8號

澳門

澳門俾利喇街145號

寶豐工業大廈3樓

3/F, Edificio Industrial Pou Fung,

145 Rua de Francisco Xavier Pereira, Macau

電話 Tel: +853 2875 2699

傳真 Fax: +853 2875 2661

Macau

HONG KONG TOP BRAND TEN YEAR

ACHIEVEMENT AWARD

RHM-SERIES-M-18(8)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels German pool hotte de ventilation

German pool

German pool tos-723 Manuel utilisateur

German pool

German pool M28-P6356 Manuel utilisateur

German pool

German pool 6328 Manuel utilisateur

German pool

German pool GPR-DL900 Manuel utilisateur

German pool

German pool 2100 Manuel utilisateur

German pool

German pool GPR-I900 Manuel utilisateur

German pool

German pool RDC Series Manuel utilisateur

German pool

German pool RDS Series Manuel utilisateur

German pool

German pool 2102-28 Manuel utilisateur

German pool

German pool TOR-721 Manuel utilisateur

German pool

German pool GPR-S700L Manuel utilisateur

German pool

German pool 2100 Manuel utilisateur

German pool

German pool XRZ-723 Manuel utilisateur

German pool

German pool GPR-DL900L Manuel utilisateur

German pool

German pool WRY-723 Manuel utilisateur

German pool

German pool TOU-716 Manuel utilisateur

German pool

German pool GPR-V600 Manuel utilisateur

German pool

German pool GPR-W700/S Manuel utilisateur

German pool

German pool DCR-7508-SC Manuel utilisateur

German pool

German pool 6328S Manuel utilisateur

German pool

German pool RDC-S Series Manuel utilisateur

German pool

German pool DWL-509A Manuel utilisateur

German pool

German pool TF-600W Manuel utilisateur

German pool

German pool TOS-723D Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
