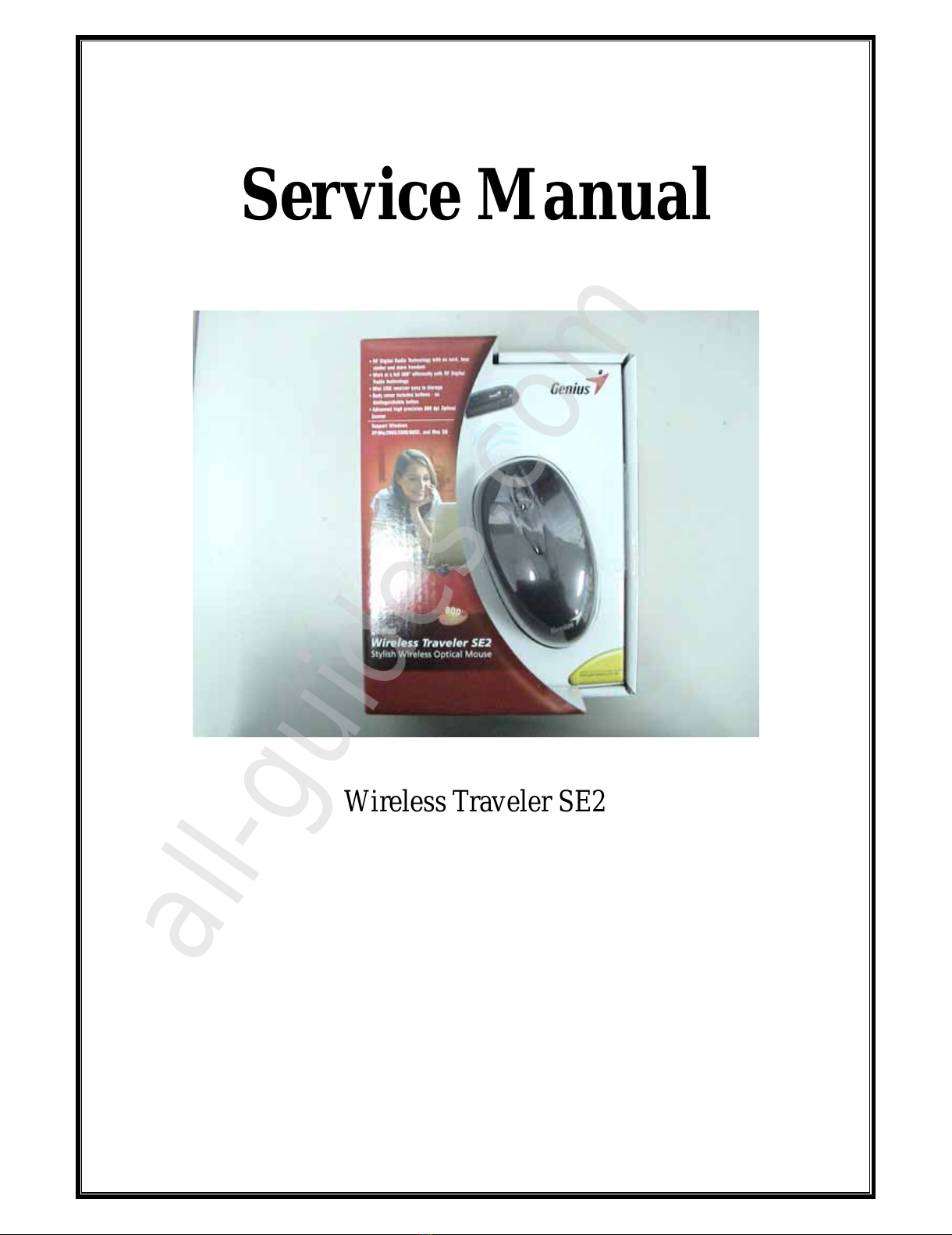

Service Manual

Wireless Traveler SE2

All manuals and user guides at all-guides.com

all-guides.com

ServiceManual WirelessTravelerSE2

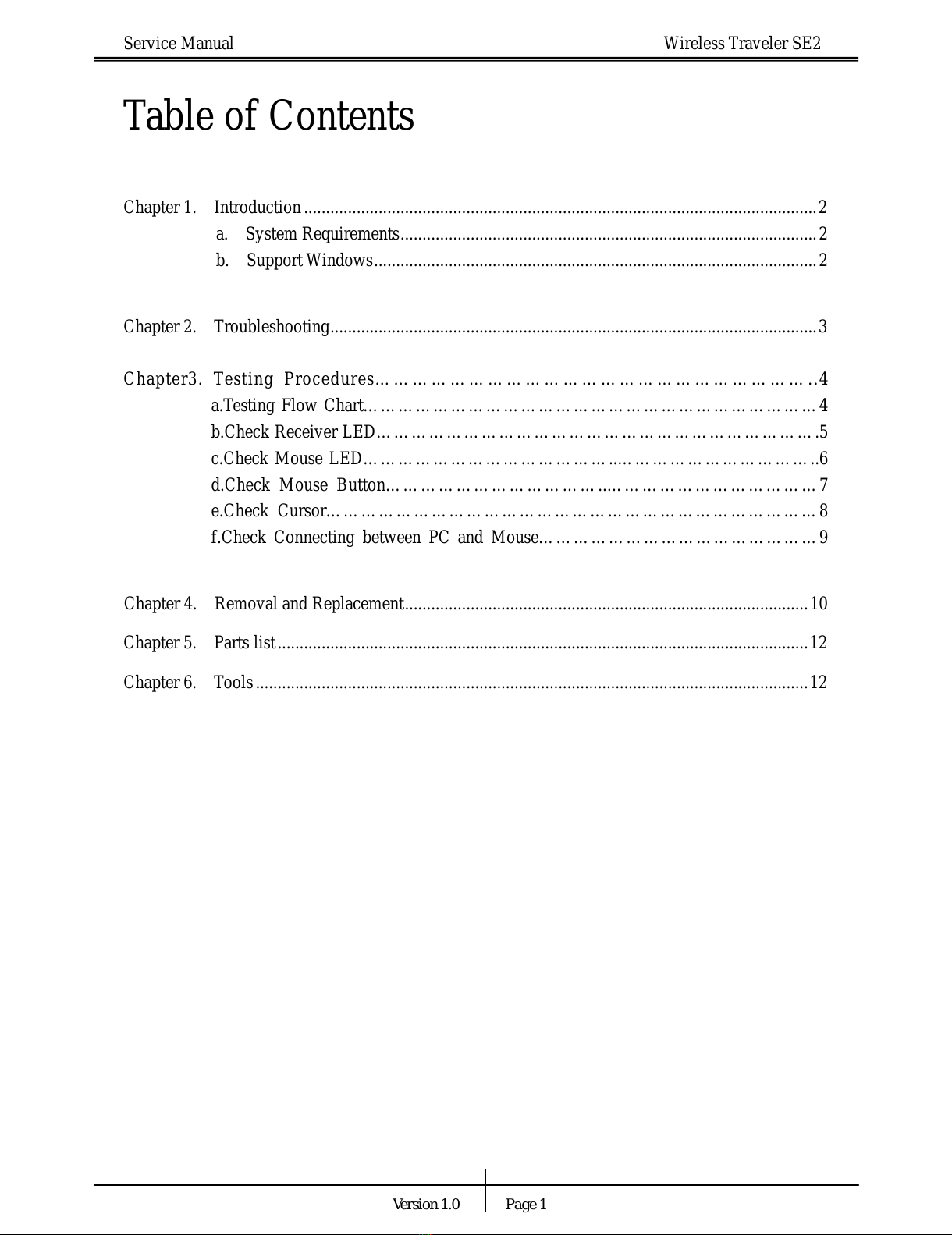

Table of Contents

Chapter 1. Introduction.....................................................................................................................2

a. System Requirements...............................................................................................2

b. Support Windows.....................................................................................................2

Chapter 2. Troubleshooting...............................................................................................................3

Chapter3. Testing Procedures……………………………………………………………..4

a.Testing Flow Chart……………………………………………………………………4

b.Check Receiver LED………………………………………………………………….5

c.Check Mouse LED……………………………………..……………………………..6

d.Check Mouse Button………………………………..………………………………7

e.Check Cursor…………………………………………………………………………8

f.Check Connecting between PC and Mouse…………………………………………9

Chapter 4. Removal and Replacement............................................................................................10

Chapter 5. Parts list.........................................................................................................................12

Chapter 6. Tools..............................................................................................................................12

Version 1.0

age 1

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

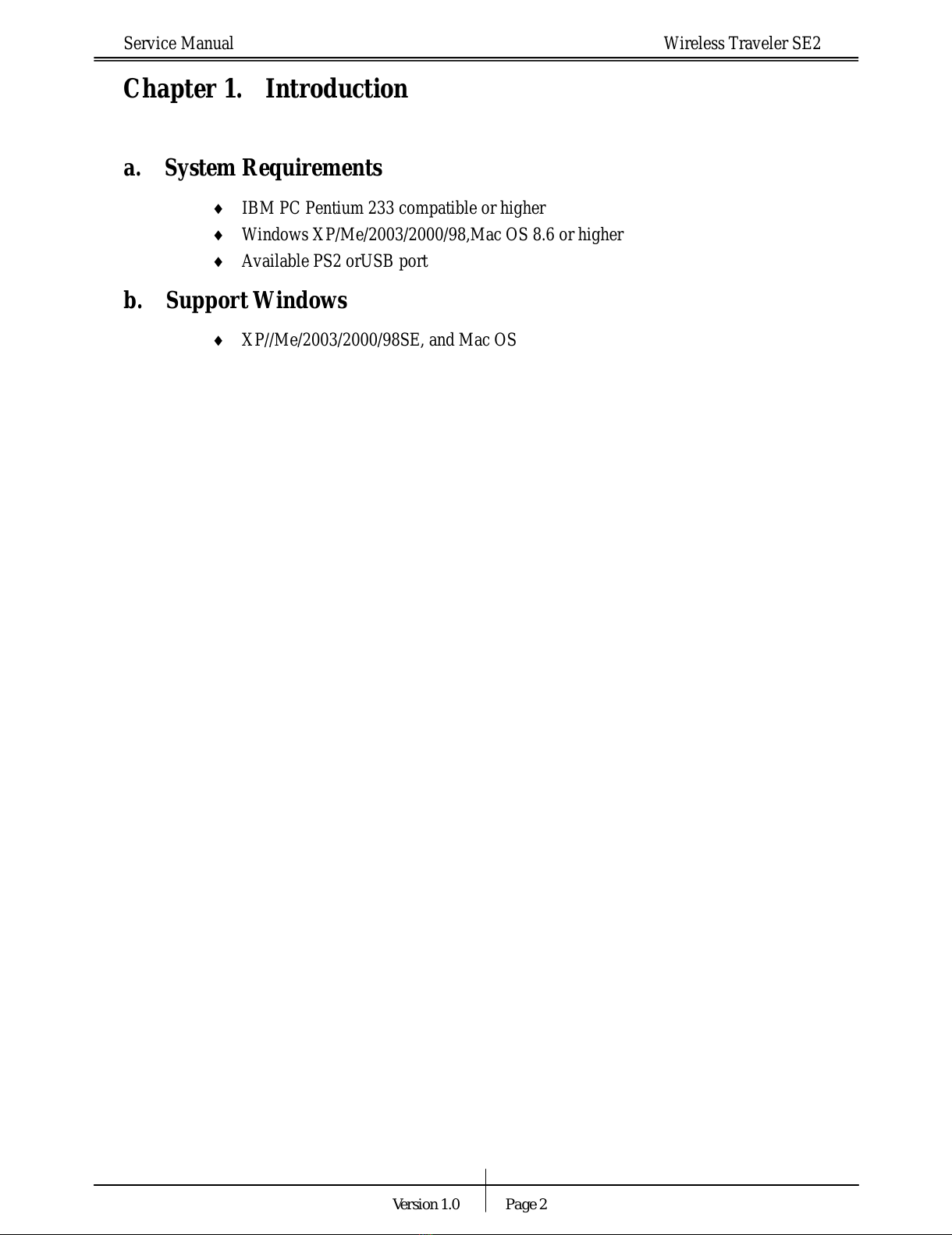

Chapter 1. Introduction

a. System Requirements

♦IBM PC Pentium 233 compatible or higher

♦Windows XP/Me/2003/2000/98,Mac OS 8.6 or higher

♦Available PS2 orUSB port

b. Support Windows

♦XP//Me/2003/2000/98SE, and Mac OS

Version 1.0

age 2

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

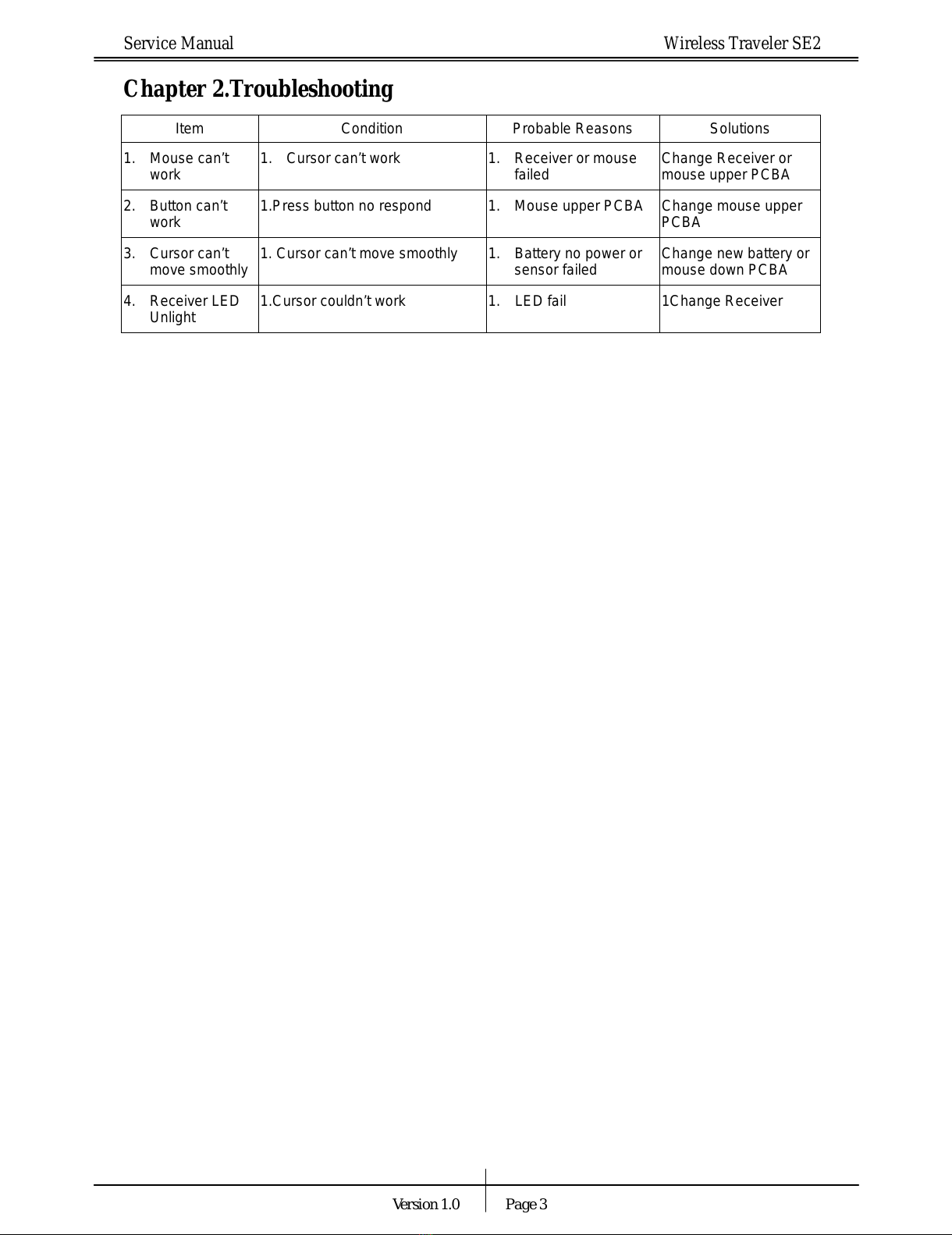

Chapter 2.Troubleshooting

Item Condition Probable Reasons Solutions

1. Mouse can’t

work 1. Cursor can’t work 1. Receiver or mouse

failed Change Receiver or

mouse upper PCBA

2. Button can’t

work 1.Press button no respond 1. Mouse upper PCBA Change mouse upper

PCBA

3. Cursor can’t

move smoothly 1. Cursor can’t move smoothly 1. Battery no power or

sensor failed Change new battery or

mouse down PCBA

4. Receiver LED

Unlight 1.Cursor couldn’t work 1. LED fail 1Change Receiver

Version 1.0

age 3

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

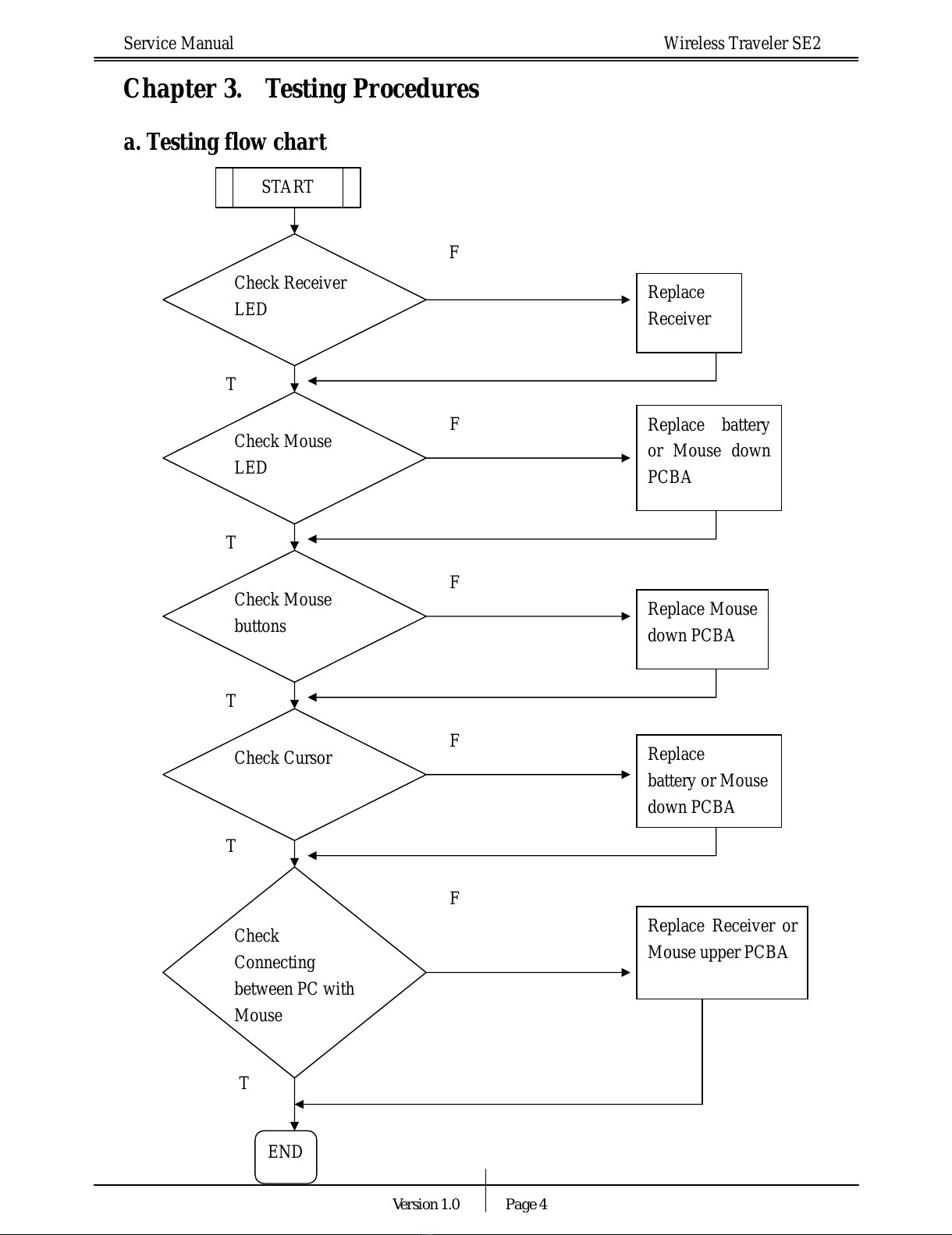

Chapter 3. Testing Procedures

a. Testing flow chart

Replace

attery or Mouse

down PCBA

Replace

Receiver

Replace battery

or Mouse down

PCBA

Check Mouse

buttons Replace Mouse

down PCBA

Check

Connecting

etween PC with

Mouse

END

Replace Receiver or

Mouse upper PCBA

Check Cursor

Check Mouse

LED

Check Receiver

LED

START

Version 1.0

age 4

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

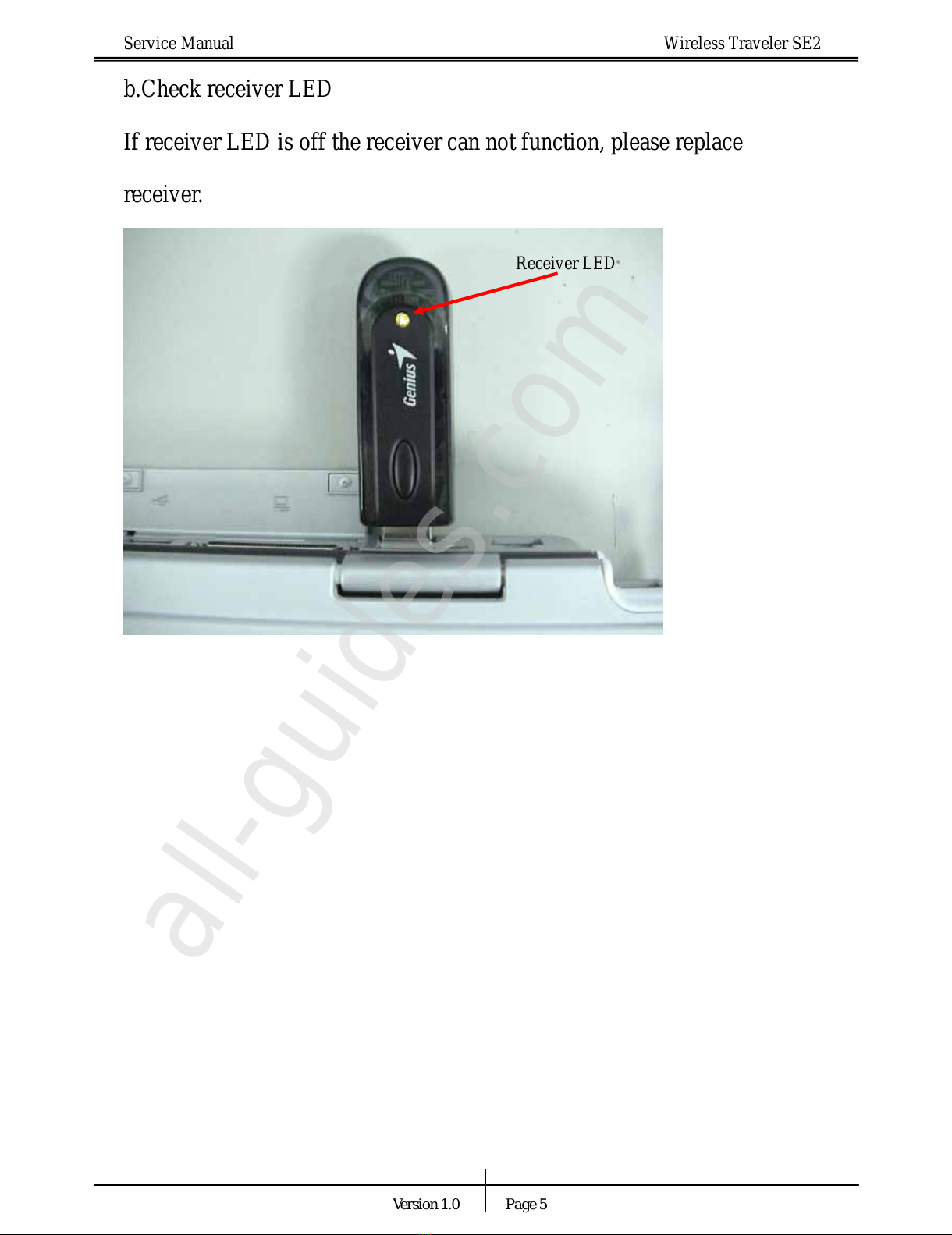

b.Check receiver LED

If receiver LED is off the receiver can not function, please replace

receiver.

Receiver LED

Version 1.0

age 5

All manuals and user guides at all-guides.com

all-guides.com

ServiceManual WirelessTravelerSE2

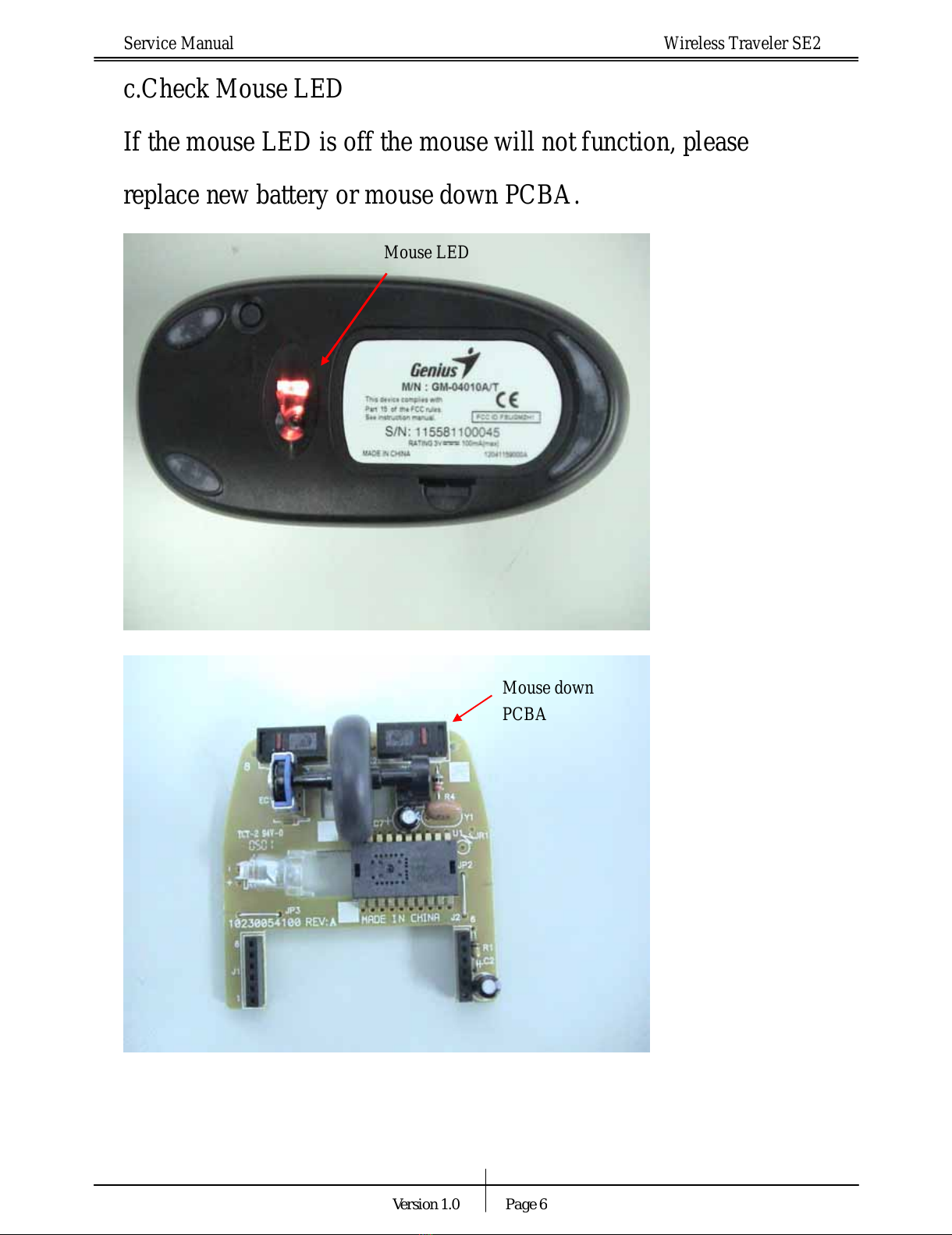

c.Check Mouse LED

If the mouse LED is off the mouse will not function, please

replace new battery or mouse down PCBA.

Mouse LED

Mouse down

PCBA

Version 1.0

age

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

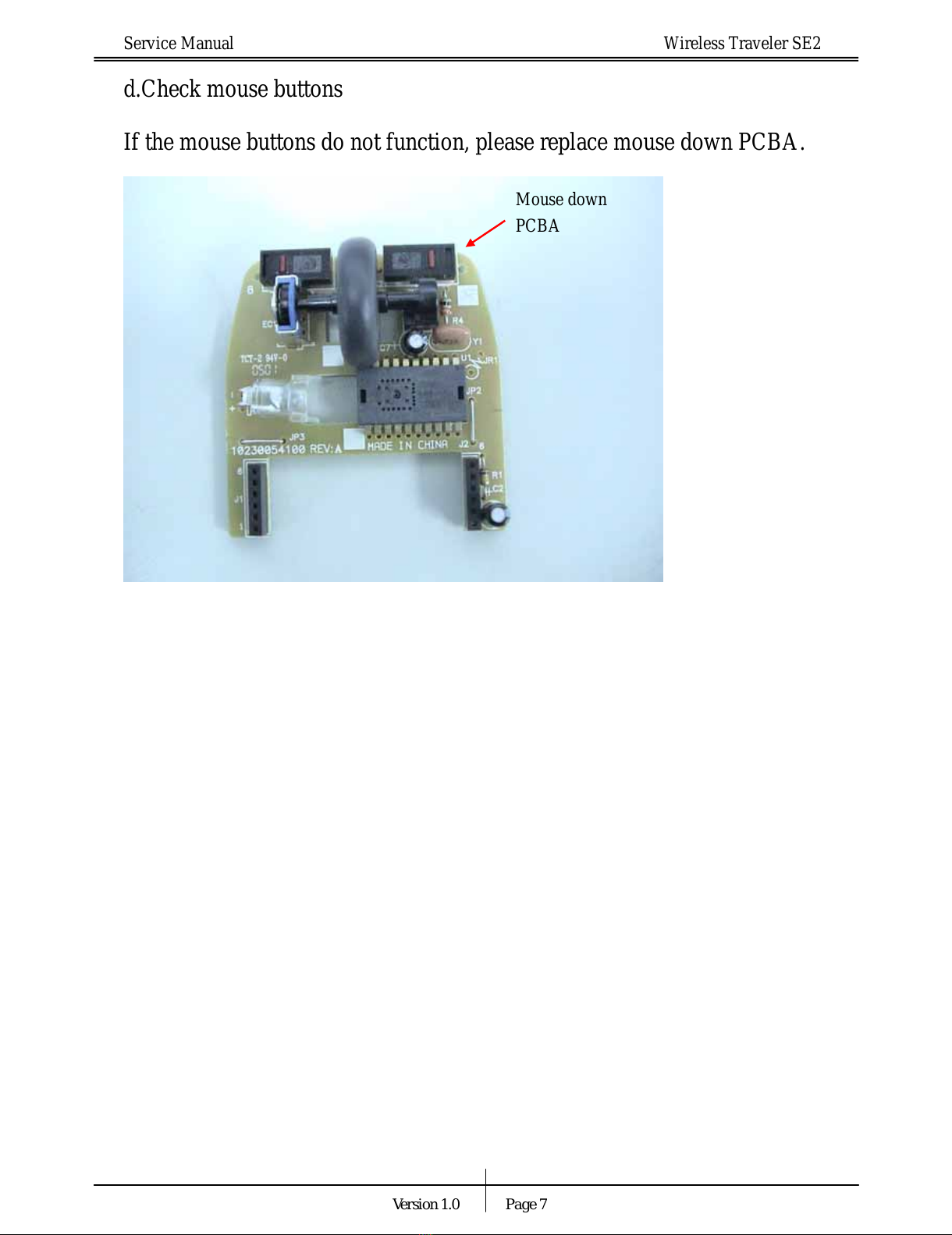

d.Check mouse buttons

If the mouse buttons do not function, please replace mouse down PCBA.

Mouse down

PCBA

Version 1.0

age

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

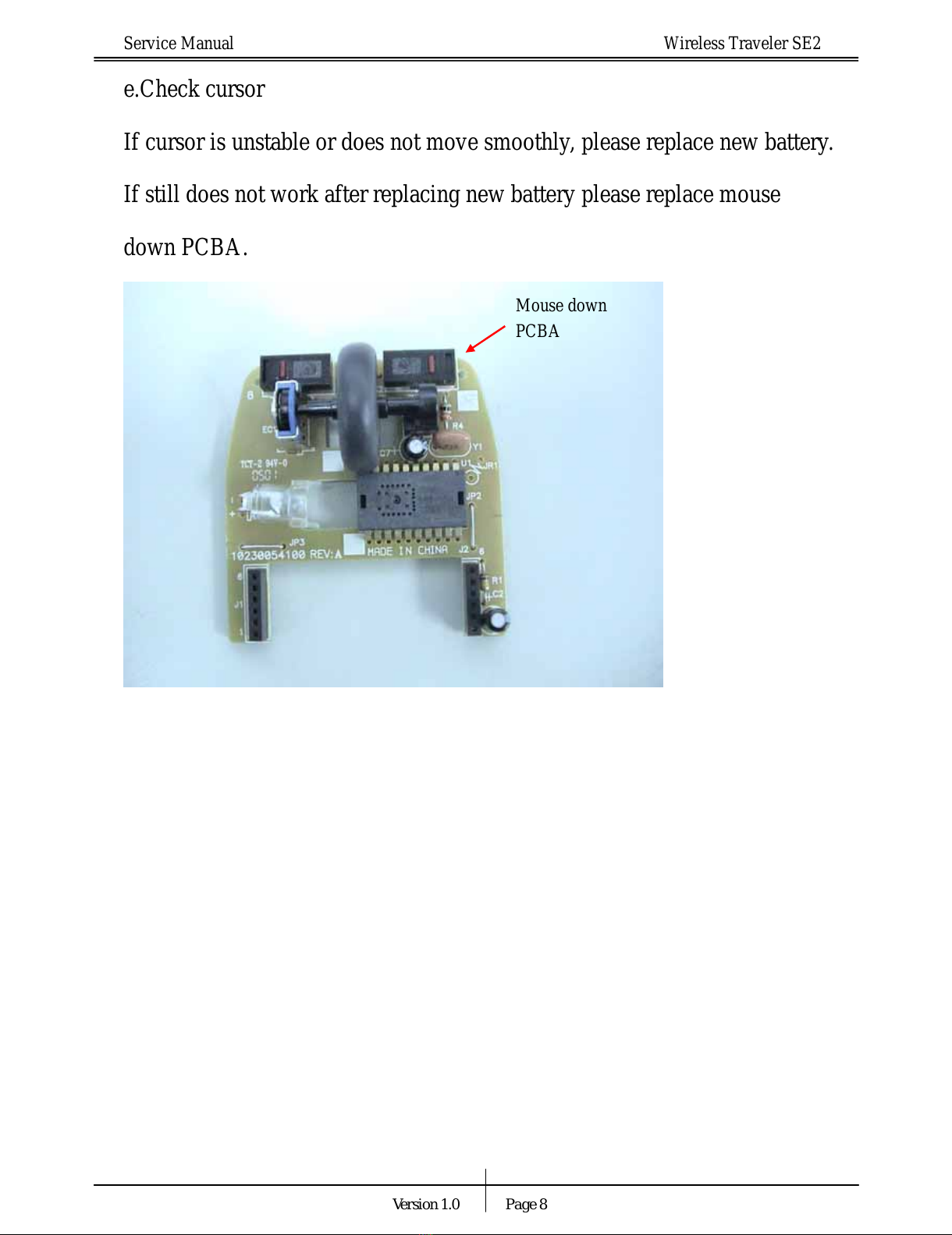

e.Check cursor

If cursor is unstable or does not move smoothly, please replace new battery.

If still does not work after replacing new battery please replace mouse

down PCBA.

Mouse down

PCBA

Version 1.0

age 8

All manuals and user guides at all-guides.com

ServiceManual WirelessTravelerSE2

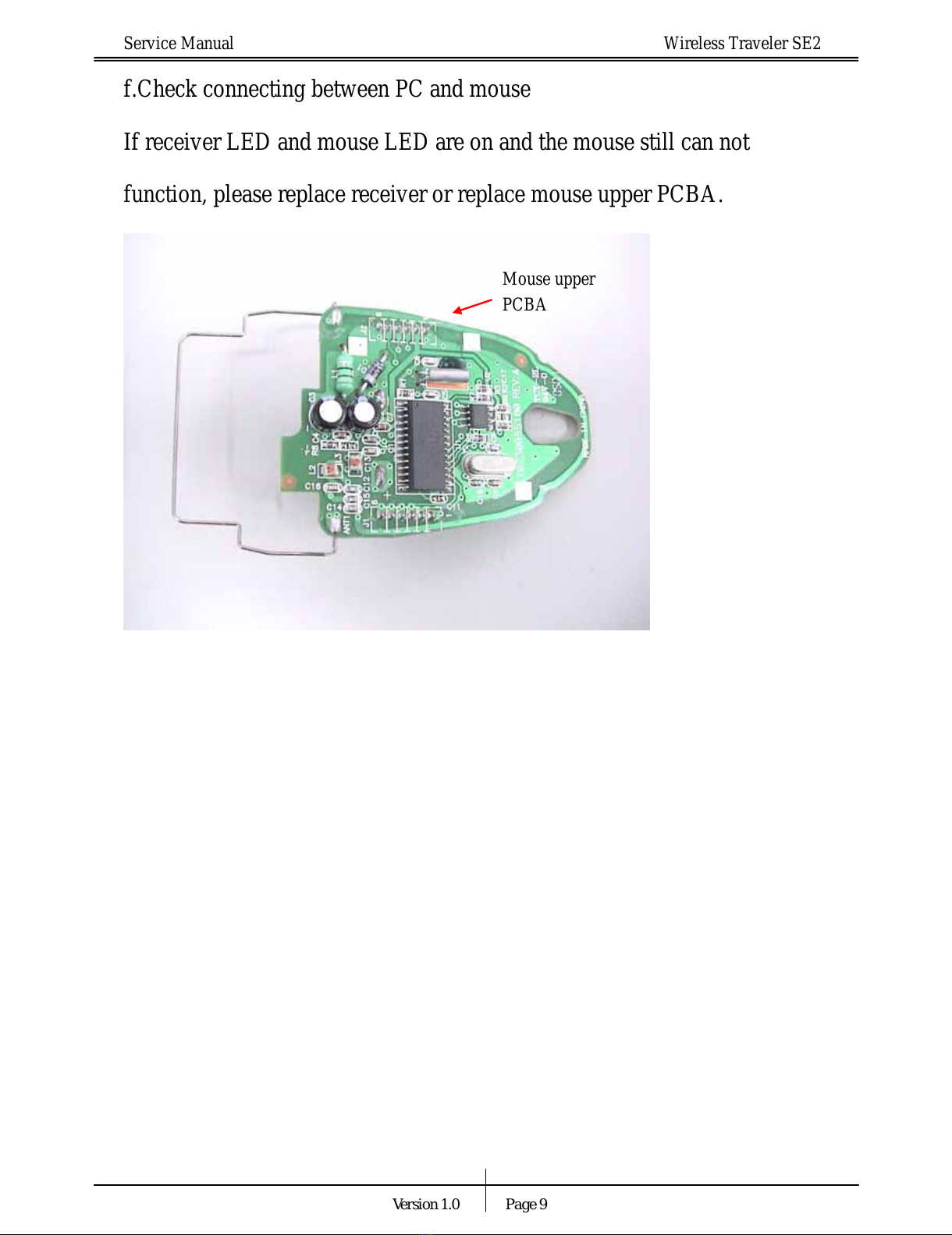

f.Check connecting between PC and mouse

If receiver LED and mouse LED are on and the mouse still can not

function, please replace receiver or replace mouse upper PCBA.

Mouse upper

PCBA

Version 1.0

age 9
