Service Manual

Ergo 3000

Service Manual Ergo 3000

Version 1.0

age 1

Table of Contents

Chapter 1. Introduction.....................................................................................................................2

a. System Requirements...............................................................................................2

b. Support Windows.....................................................................................................2

Chapter 2. Troubleshooting...............................................................................................................3

Chapter3. Testing Procedures……………………………………………………………..4

a.Testing Flow Chart……………………………………………………………………4

b.Check Receiver ………………………………………………………………….5

c.Check Mouse Button………………………………..………………………………6

d.Check Cursor…………………………………………………………………………7

e.Check Connecting between PC and Mouse…………………………………………8

Chapter 4. Removal and Replacement..............................................................................................9

Chapter 5. Parts list.........................................................................................................................11

Chapter 6. Tools..............................................................................................................................11

Service Manual Ergo 3000

Version 1.0

age 2

Chapter 1. Introduction

a. System Requirements

♦ IBM PC Pentium 233 compatible or higher

♦ Windows XP/Me/2003/2000/98SE,Mac OSX or later

♦ Available USB port

b. Support Windows

♦ XP/Me/2003/2000/98SE

Service Manual Ergo 3000

Version 1.0

age 3

Chapter 2.Troubleshooting

Item Condition Probable Reasons Solutions

1. Mouse can’t

work 1. Cursor can’t work 1. Receiver or mouse

failed Change Receiver or

mouse PCBA

2. Button can’t

work 1.Press button no respond 1. Mouse PCBA Change SW1,2,3,4,5 or

mouse PCBA

3. Cursor can’t

move smoothly

or can’t work

1. Cursor can’t move smoothly 1. Battery no power or

sensor failed

2. Receiver failed

1. Change new battery

or sensor(U2) or

PCBA

2. Change receiver.

Service Manual Ergo 3000

Version 1.0

age 4

Chapter 3. Testing Procedures

a. Testing flow chart

Replace

Receiver

START

Check Receiver

Check Mouse

buttons

Check Cursor

Check Connecting

etween PC with

mouse

Replace buttons

or mouse PCBA

Replace

attery o

sensor or mouse

PCBA

Replace receive

or mouse PCBA

END

Service Manual Ergo 3000

Version 1.0

age 5

b.Check receiver.

If cursor can not work or can not move smoothly ,please use another new

good receiver with original mouse to check whether the cursor can

function or not, if yes it means the former receiver is bad so please replace

receiver.

Receiver

Service Manual Ergo 3000

Version 1.0

age 6

c.Check mouse buttons

If the mouse buttons do not function, please replace mouse

SW1,SW2,SW3,SW4,SW5.

Mouse

SW1,2,3,4,5

Service Manual Ergo 3000

Version 1.0

age 7

d.Check cursor

If cursor is unstable or does not move smoothly, please replace new battery.

If still does not work after replacing new battery please replace sensor U2

or mouse PCBA.

Mouse PCBA

Sensor U2

Service Manual Ergo 3000

Version 1.0

age 8

e.Check connecting between PC and mouse

If depress channel connect button the mouse still can not function, please

replace mouse PCBA or receiver.

Mouse PCBA

Receiver

Service Manual Ergo 3000

Version 1.0

age 9

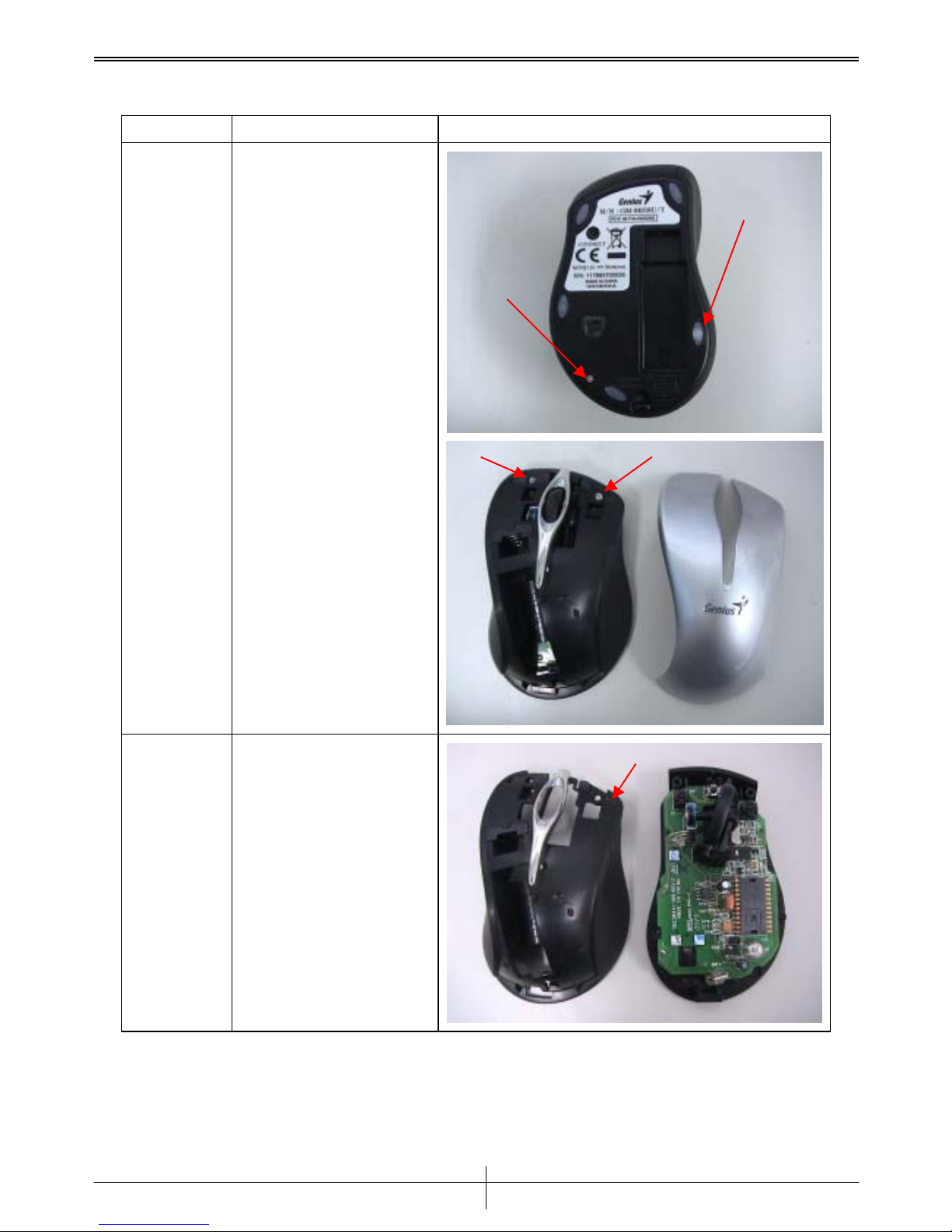

Chapter 4. Removal and Replacement

Step Description Picture

1. Turn over

mouse To disassemble the mouse,

you have to turn over mouse

and open the upper plate.

Red arrows pointed are

screws.

2. Loose

screws Using screwdriver to loose

screws the upper cover will be

taken apart.

Upper cover
