3200 PSI
Owner’s Manual
Model No. 1014-0 (3200PSI Pressure Washer) Manual No. B4275 Rev s on 2 (5/1/99)
GENERAC
The Reliable Ones
Th s symbol po nts out mportant safety nstruct ons, wh ch, f not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all nstruct ons
n the manual before attempt ng to operate th s un t.
Problems?
Quest ons?
Before tak ng your un t
back to the store,
call the generator
helpl ne at
1-800-270-1408
M-F 8-5 CT
Generac Portable Products 3200PSI Pressure Washer
2
CAUTION! Always disconnect spark plug
wire and place wire where it cannot contact
spark plug to prevent accidental starting when
setting up, transporting, ad usting or making
repairs to your high pressure washer.
Engine exhaust gases contain DEADLY carbon
monoxide gas. This dangerous gas, if breathed in
sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
Gasoline is highly FLAMMABLE and its vapors are
EXPLOSIVE. Do not permit smoking, open flames,
sparks or heat in the vicinity while handling gasoline.
Avoid spilling gasoline on a hot engine. Allow unit to
cool for 2 minutes before refueling. Comply with all
laws regulating storage and handling of gasoline.
Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
The high pressure equipment is designed to be used
with authorized parts only. If you use this equipment
with parts that do not comply with minimum
specifications, the user assumes all risks and
liabilities.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning. The harmful elements may cause
property damage or severe in ury.
Do not allow CHILDREN to operate the Pressure
Washer at any time.
Operate engine only at governed speed. Running the
engine at excessive speeds increases the hazard of
personal in ury. Do not tamper with parts which may
increase or decrease the governed speed.
Ad ustments should be made by authorized service
personal only.
Do not wear loose clothing, ewelry or anything that
may be caught in the starter or other rotating parts.
Before starting the Pressure Washer in cold weather,
check all parts of the equipment and be sure ice has
not formed anywhere.
Units with broken or missing parts, or without
protective housing or covers should NEVER be
operated.
The muffler and air cleaner must be installed and in
good condition before operating the Pressure
Washer. These components act as spark arrestors if
the engine backfires.
Check the fuel system for leaks or signs of
deterioration such as chafed or spongy hose, loose
or missing clamps or damaged tank or cap. Correct
all defects before operating the Pressure Washer.
Do not spray flammable liquids.
Never aim the gun at people, animals or plants.
High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
Important! Safety Rules Important!
The eng ne exhaust from th s product
conta ns chem cals known to the State
of Cal forn a to cause cancer, b rth
defects, or other reproduct ve harm.
WWAARRNNIINNGG::
3
Generac Portable Products 3200PSI Pressure Washer
Never allow any part of the body to come in contact
with the fluid stream. DO NOT come in contact with a
fluid stream created by a leak in the high pressure
hose.
The high pressure stream of fluid that this equipment
produces can pierce skin and its underlying tissues,
leading to serious in ury and possible amputation.
Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
Operate the pressure at no more than the PSI fluid
pressure rated for your pressure washer.
Never move the machine by pulling on the high
pressure hose. Use the handle provided on the top of
the unit.
Always be certain the spray gun, nozzles and
accessories are correctly attached.
Never use a spray gun which does not have a trigger
lock or trigger guard in place and in working order.
Use a respirator or mask whenever there is a chance
that vapors may be inhaled. Read all instructions with
mask so you are certain the mask will provide the
necessary protection against inhaling harmful vapors.
High pressure spray may damage fragile items
including glass. Do not point spray gun at glass when
in the et spray mode.
Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
Hold the spray gun firmly in your hand before you
start the unit. Failure to do so could result in an in ury
from a whipping spray gun. Do not leave the spray
gun unattended while the machine is running.
The cleaning area should have adequate slopes and
drainage to reduce the possibility of a fall due to
slippery surfaces.
Keep water spray away from electric wiring or fatal
electric shock may result.
Do not secure gun trigger in the pull-back (open)
position.
Do not by-pass any safety device on this machine.
The muffler and engine heat up during operation and
remain hot immediately after shutting it down. Avoid
contact with a hot muffler or engine or you could be
severely burned.
Operate and store this unit on a stable surface.
High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of in ecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace the hose immediately. Never repair a
high pressure hose. Replace it with another hose that
meets minimum pressure rating of your pressure
washer.
Important! Safety Rules Important!
4
Generac Portable Products 3200PSI Pressure Washer
CONGRATULATIONS on your purchase of a Honda
Powered High Pressure Washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
Should you experience any problem you cannot
easily remedy, please contact your nearest
Authorized Service facility. We have competent, well-
trained technicians and the proper tools to service or
repair this unit.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly. Always observe the
SAFETY RULES.
CUSTOMER
RESPONSIBILITIES
Read and observe the safety rules.
Read and observe all the instructions in this
manual.
Follow regular schedule in maintaining, caring for
and using your high pressure washer.
Follow the instructions under Customer
Responsibilities and Storage sections of this
Owner's Manual.
PRODUCT
SPECIFICATIONS
Pressure Washer Spec f cat ons
Outlet Pressure 3200PSI
Flow Rate 4.0 Gallons per minute (gpm)
Detergent Use detergent approved for
pressure washers.
Water Supply Not to exceed 140°F
Temperature
Pump O l SAE 20-30w
Automat c Cool Will cycle when water
Down System reaches 140°-145°F
Hose Length 50ft.
Eng ne Spec f cat ons
Eng ne Model Honda GX340
Rated Horsepower 11HP
D splacement 337cc (20.6 cu. in.)
Spark Plug
Type BPR6ES (NGK)
Set Gap To: .028-.031 inch. (.7-.8mm)
Gasol ne Capac ty 1.7 U.S. Gallons (6.5l)
O l SAE 10W30
In the State of California a spark arrestor is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar
laws. Federal laws apply on federal lands.
NOTE:The engine of your pressure washer is
equipped with a spark arresting muffler. The spark
arrestor must be maintained in effective working order
by the owner/operator. You can order a spark arrestor
through your authorized Honda service dealer.
Model Number 1014-0
Serial Number ____________________
Date Of Purchase ____________________
The model and serial numbers will be found on a
decal attached to the pressure washer. Record
both serial number and date of purchase and keep
in a safe place for future reference.
5
Generac Portable Products 3200PSI Pressure Washer

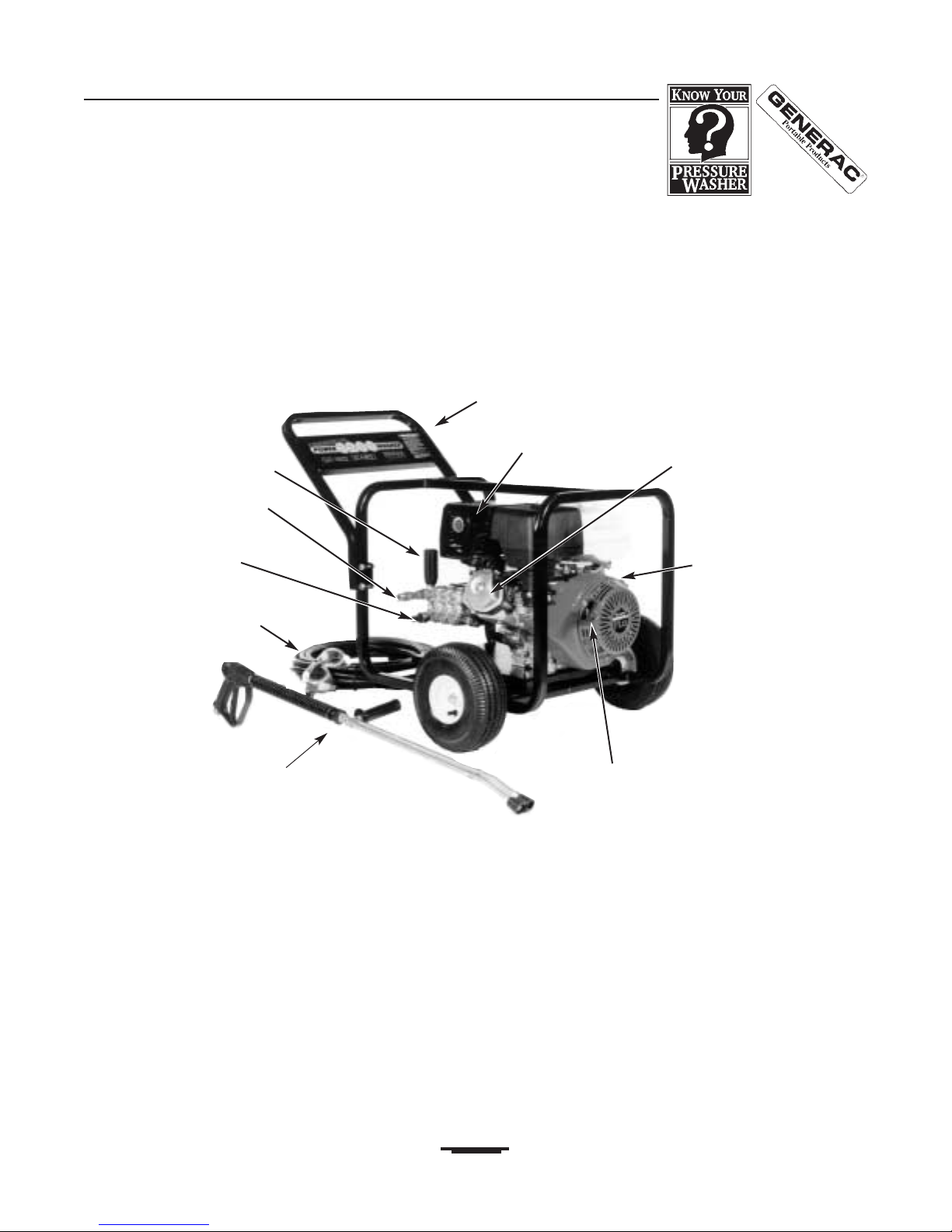

A r Cleaner Dry type filter element limits the
amount of dirt and dust that gets in the engine.
Eng ne RUN/STOP Sw tch Enables and disables
the ignition system.
Gu de Handle Provides ease of handling when
moving or storing pressure washer.
Gun and Wand Assembly Controls the
application of water onto cleaning surface with trigger
device. Includes safety latch.
H gh Pressure Hose Transfers water under high
pressure to gun assembly.
H gh Pressure Outlet Connection for high
pressure hose.
Muffler Disperses exhaust gas and quiets engine.
Pressure Regulator Allows you to ad ust the
pressure of the outlet stream.
Reco l Starter Pulling the starter grip operates the
recoil starter to crank the engine.
Water Inlet Connection for garden hose.
H gh Pressure Outlet
Water Inlet
Pressure Regulator
Reco l Starter
Gu de Handle
Gun and Wand Assembly
H gh Pressure Hose
A r Cleaner
Muffler
Eng ne RUN/STOP
Sw tch
KNOW YOUR PRESSURE WASHER
Read th s owners manual and safety rules before operat ng your h gh pressure washer.
Compare this illustration with your high pressure washer to familiarize yourself with the location of the controls.
Save this manual for future reference.
6
Generac Portable Products 3200 PSI Pressure Washer
Warn ng! Read entire owners manual before
you attempt to assemble or operate your new
pressure washer.
REMOVE PRESSURE
WASHER FROM CARTON
Remove the accessory and parts box included with
the pressure washer.
Slice two corners at the guide handle end of carton
from top to bottom so the panel can be folded down
flat, then remove all packing material.
Roll the pressure washer out of the carton.
CARTON CONTENTS
Items in the carton include:
Main unit
High Pressure Hose
Handle
Parts Box (includes the following):
Goggles
Nozzle Cleaning Kit
Owners Manual
Engine Manual
Engine Warranty
Emissions Control Warranty
Spray Gun
Parts Bag (containing hardware to attach handle
to pressure washer)
Wand - Dual
Spark Plug Wrench
Crank Key
Exhaust Deflector with three screws.
If any of the above parts are missing or damaged, call
the pressure washer helpline at 1-800-270-1408.
PREPARING THE
PRESSURE WASHER
FOR USE
If you have any problems with the assembly of your
pressure washer of if parts are missing or damaged,
call the Pressure Washer Helpline at
1-800-270-1408
To prepair your pressure washer for operation you will
need to perform these tasks:
Attach the handle to the main unit.
Add oil to the engine.
Add fuel to the fuel tank.

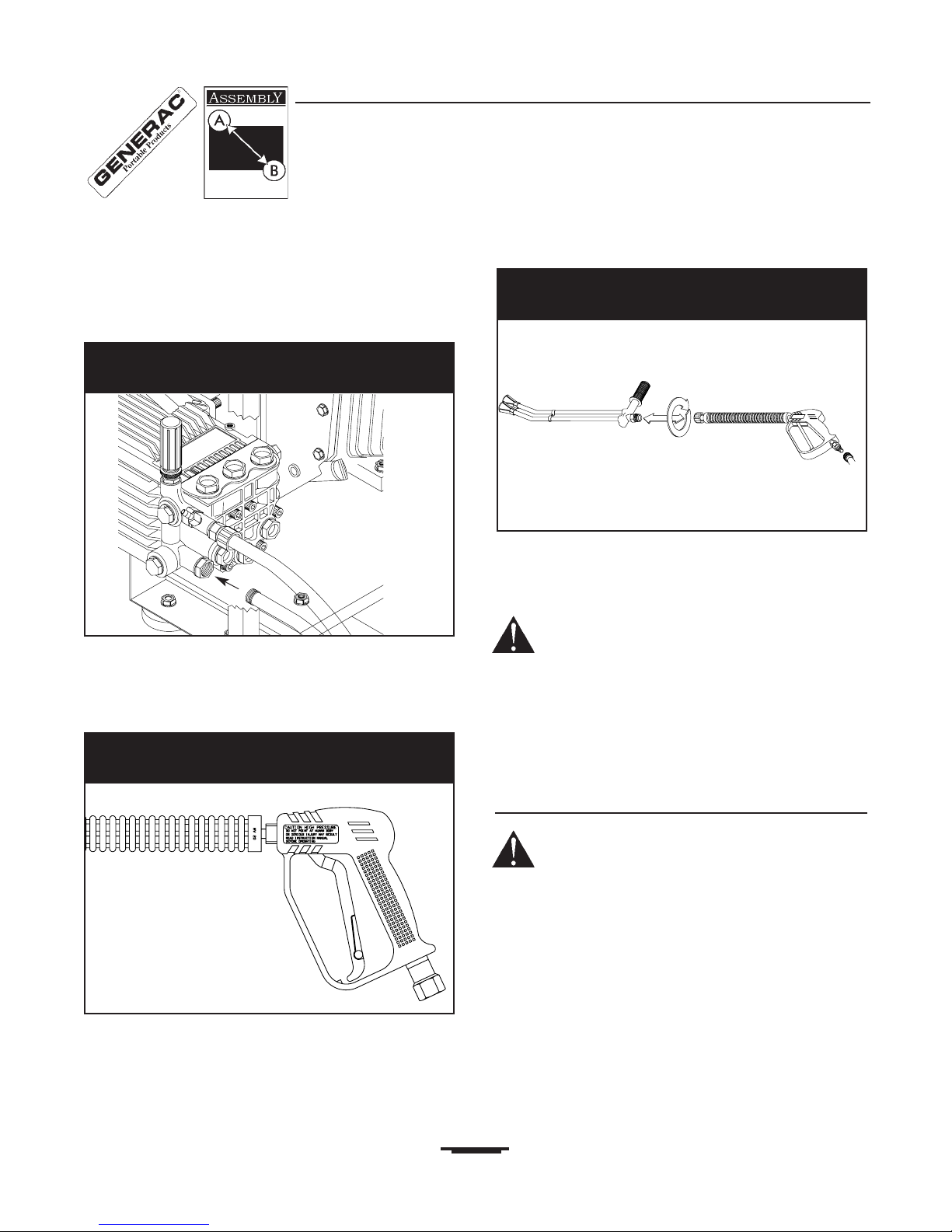

Connect the high pressure hose to the spray gun and
the pump.
Connect the water supply to the pump.

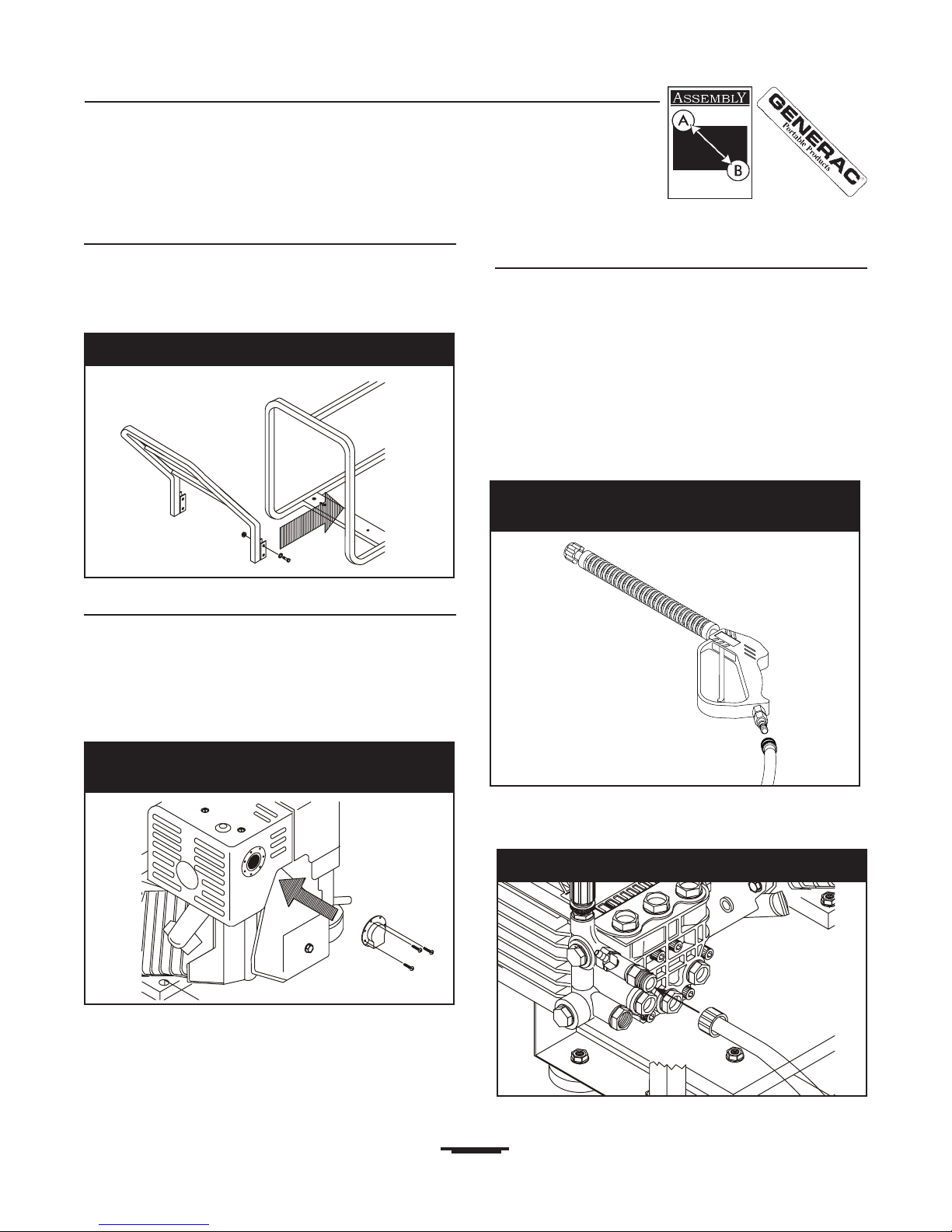

Attach Handle To Pressure Washer
Place the handle on the pump side of the
pressure washer in the center of the frame.
Attach the handle to the frame using the supplied
bolts (Figure 1).
Attach the Exhaust Deflector
Note: Th s Step s opt onal.
The exhaust deflector channels the hot air coming
from the muffler to the ground. To install the exhaust
deflector:
Attach the deflector to the muffler using the three
screws provided (Figure 2).
Connect Hose and water supply to
pump
Important: You must assemble the wand and attach
all hoses before you start engine. Starting engine
without all hoses connected and water supplied will
damage pump.
Unravel the high pressure hose.
Attach the gun to the high pressure hose using
the quick connect fitting. Pull back on the quick
connect sleave and push the fitting all the way in.
Tug on the gun to ensure a secure connection
(Figure 3).
Connect the hose to the water outlet. Tighten by
hand (Figure 4).
7
Generac Portable Products 3200 PSI Pressure Washer
Figure 2 Attach the exhaust deflector
Figure 1 Attach the Guide Handle
Figure 3 Connect high pressure hose to spray
gun
Figure 4 Connect high pressure hose to pump
Inspect the Inlet Screen on the water inlet. Clean
it if it contains debris or have it replaced if
damaged. Do not run the pressure washer f
the screen s damaged.
Connect the garden hose tightly to the water inlet
and turn on the water (Figure 5).
Note: Your Water valve must be opened completely.
Squeeze the trigger until a steady stream of water
appears to purge the pump of air and impurities
(Figure 6).
Connect the nozzle extension to the spray gun
(Figure 7).
BEFORE STARTING THE
ENGINE
Caut on: Before starting the pressure washer,
be sure you are wearing adequate eye
protection. Goggles are included with this unit.
Before you operate your pressure washer,you should
prepare the engine for the initial starting. Consult the
eng ne owners manual for deta ls about
prepar ng the eng ne. To operate the engine you will
need the following:
Add Eng ne O l
Warn ng! Any attempt to crank or start the
engine before it has been properly serviced
with the recommended oil will result in an
engine failure.
Figure 5 Connect garden hose tightly to water
inlet and turn ON the water
Figure 6 Squeeze trigger to purge pump
system of air and impurities
Figure 7 Connect nozzle extension to spray
gun
8
Generac Portable Products 3200 PSI Pressure Washer

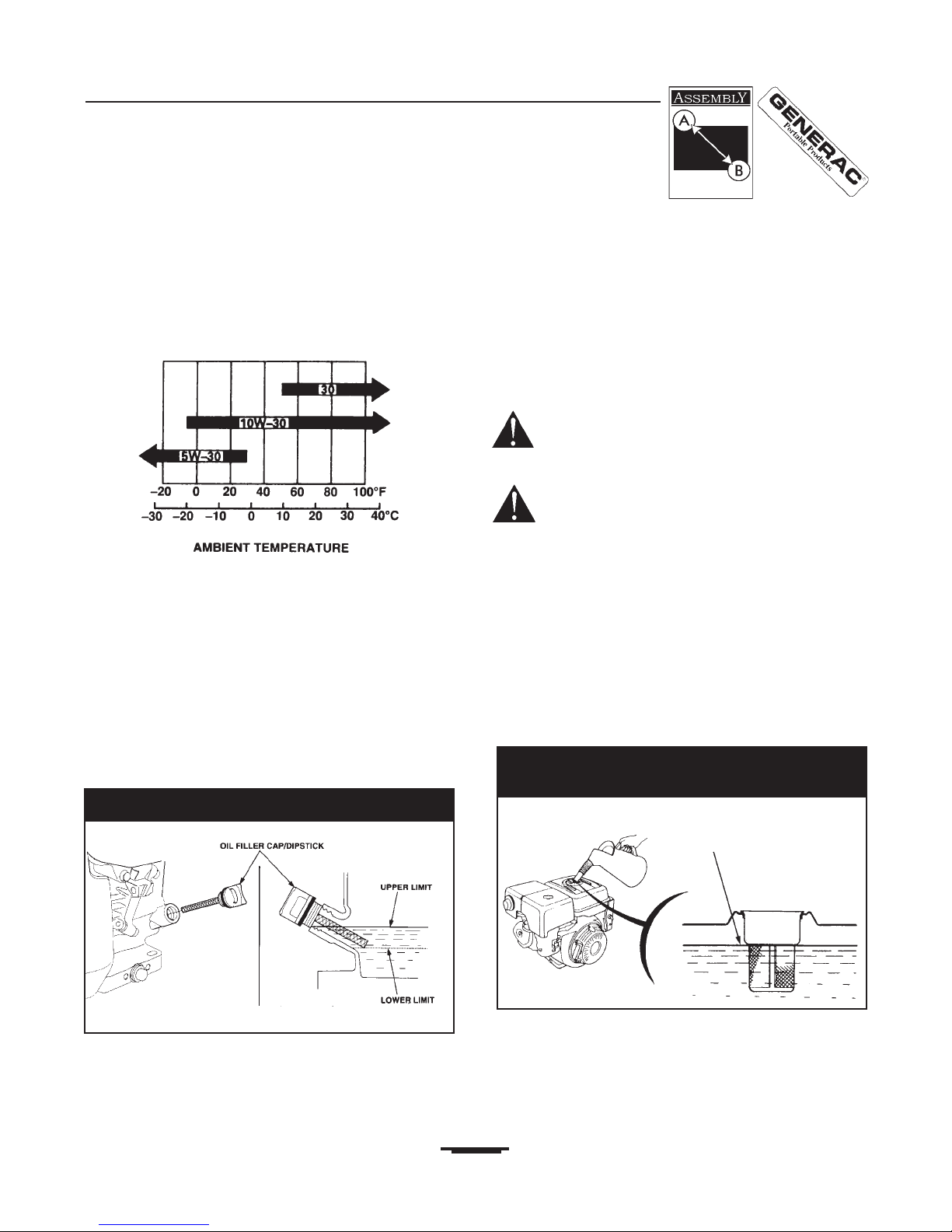

Use only h gh qual ty detergent o l rated w th API
serv ce class f cat on SF or SG rated 10W30. Do
not use SAE 10W40 o l. Other v scos t es shown
n the chart below may be used when the average
temperature n your area s w th n the
recommended range.
IMPORTANT: This engine is equipped with the Oil
Alert System. The Oil Alert System is designed to
prevent damage caused by an insufficient amount of
oil in the crankcase. Before the oil level in the
crankcase can fall below a safe limit, the Oil Alert
System will automatically stop the engine (the engine
switch will remain in the ON position).
Place the pressure washer on a level surface.
Clean the area around the oil fill and remove the oil
fillercap/dipstick (Figure 8).
Wipe the dipstick clean.
Insert and remove the dipstick without screwing it into
the filler neck. Check the oil level shown on the
dipstick.
Fill to the edge of the oil filler hole with the
recommended oil. DO NOT OVERFILL. Engine oil
capacity is 1.16 US qt. (1.1L)
Reinstall the oil fillercap/dipstick, and hand tighten
securely.
Note: Check oil often during engine break-in.
Add Gasol ne
WARNING: Never fill fuel tank indoors. Never
fill fuel tank when engine is running or hot. DO
NOT smoke when filling fuel tank.
WARNING: NEVER fill fuel tank completely
full. Fill tank as shown (Figure 9) to provide
space for fuel expansion. Wipe away any fuel
spillage from engine and equipment before
starting.
Use unleaded gasol ne w th a pump octane rat ng
of 86 or h gher.
Use clean fuel and store in approved, clean covered
containers. Use clean fill funnels. Never use stale
gasoline left over from last season or gasoline stored
for long periods.
Clean area around the fuel fill cap, remove the cap
(Figure 9).
Add regular UNLEADED gasol ne, slowly, to fuel
tank.
Install fuel cap and wipe up any spilled gasoline.
Figure 8 Add oil to engine crankcase.
Figure 9 Add Regular Unleaded Gasoline to
Fuel Tank
9
Generac Portable Products 3200 PSI Pressure Washer
Generac Portable Products 3200 PSI Pressure Washer
10
CHECKLIST BEFORE
STARTING ENGINE
When you have reached this point, look back over the
assembly to see if you have performed all of the
following.
Check for properly tightened hose connections (high
pressure and water supply). Also, check to make
sure that there are no kinks, cuts, or damage to the
high pressure hose.
Check that oil has been added to the proper level in
engine crankcase before trying to start the pressure
washer.
Add proper gasoline to fuel tank.
Provide proper water supply (not to exceed 140°F).
Be sure to read Safety Rules and How To Use Your
Pressure Washer sections before using the pressure
washer.
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800-270-1408
You have assembled your high pressure washer and
have prepared the engine for starting. You are now
ready to clean your car, boat or the outside of a
building or whatever you plan to clean.
How to Start Your Eng ne
The best way to start your engine-powered pressure
washer for the first time is to follow these instructions
step-by-step. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
Place the pressure washer in an area close enough
to an outside water source that can flow at a rate of
4.4 gallons per minute. Connect a garden hose to a
water spout.
Make sure the unit is in a level position.
Check that the high pressure hose is tightly
connected to the spray gun and to the pump. See
Preparing the Pressure Washer for Use.
(Pages 6-8)
Connect the garden hose to the water inlet on
pressure washer pump and turn on the water.
Note: Make sure the valve is opened completely.
WARNING! Do not run the pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
Squeeze the trigger on the spray gun (make sure the
nozzle is in low pressure mode) to relieve the air
pressure caused by turning ON the water. Water will
spew out of the gun in a thin stream. Hold the trigger
until a steady stream of water appears. This will
make it easier to pull start the engine. Release the
trigger.
Apply the safety latch to the spray gun trigger
(Figure 10).
Move the fuel valve to the ON position (Figure 11).
Figure 11 Fuel Valve
Figure 10 Apply safety latch
Safety Latch
Table des matières
Autres manuels Generac Power Systems Nettoyeur haute pression
Generac Power Systems
Generac Power Systems 1420-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1455-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 3000CP Manuel utilisateur
Generac Power Systems
Generac Power Systems 7132 Manuel utilisateur
Generac Power Systems
Generac Power Systems 2000PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems 1042-2 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1300PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems Power Washer Manuel utilisateur
Generac Power Systems
Generac Power Systems 1600PSI Manuel utilisateur
Generac Power Systems
Generac Power Systems OneWASH Manuel utilisateur
Generac Power Systems
Generac Power Systems 1418-1 Manuel utilisateur
Generac Power Systems
Generac Power Systems The Reliable Ones Manuel utilisateur
Generac Power Systems
Generac Power Systems 1067-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 1293-2 Manuel utilisateur
Generac Power Systems
Generac Power Systems DPW3101DEN Manuel utilisateur
Generac Power Systems
Generac Power Systems 1292-1 Manuel utilisateur
Generac Power Systems
Generac Power Systems 4240 PRO GAS PW 49ST EPA III Manuel utilisateur
Generac Power Systems
Generac Power Systems 1043-2 Manuel utilisateur
Generac Power Systems
Generac Power Systems 2700PSI 1676-0 Manuel utilisateur
Generac Power Systems
Generac Power Systems 2100PSI 1974-0 Manuel utilisateur
