Generac Power Systems 1292-1 Manuel utilisateur

2300PSI

Pressure Washer Owner’s Manual

Problems?

Questions?

Before taking your

unit back to the store, call

the pressure washer

helpline at

1-800-2 0-1408

M-F 8-5 CT

GENERAC

The Reliable Ones

This symbol points out important safety instructions, which, if not followed, could endanger the

personal safety and/or property of yourself and others. Read and follow all instructions in the

manual before attempting to operate this unit.

Model No. 1292 1 (2300 psi High Pressure Washer) Manual No. B4730 Revision 1 (4/15/1999)

CAUTION! Disconnect spark plug wire and place wire where it cannot contact spark plug to prevent

accidental starting when setting up, transporting, adjusting or making repairs to your high pressure

washer.

 Engine exhaust gases contain DEADLY carbon

monoxide gas. This dangerous gas, if breathed

in sufficient concentrations, can cause

unconsciousness or even death. Operate this

equipment only in the open air where adequate

ventilation is available.

 Gasoline is highly FLAMMABLE and its vapors

are EXPLOSIVE. Do not permit smoking, open

flames, sparks or heat in the vicinity while

handling gasoline. Avoid spilling gasoline on a

hot engine. Allow unit to cool for 2 minutes

before refueling. Comply with all laws regulating

storage and handling of gasoline.

 Locate this pressure washer in areas away from

combustible materials, combustible fumes or

dust.

 The high pressure equipment is designed to be

used with Generac authorized parts only. If you

use this equipment with parts that do not comply

with minimum specifications, the user assumes

all risks and liabilities.

 Some chemicals or detergents may be harmful if

inhaled or ingested, causing severe nausea,

fainting or poisoning. The harmful elements may

cause property damage or severe injury.

 Do not allow CHILDREN to operate the pressure

washer at any time.

 Operate engine only at governed speed.

Running the engine at excessive speeds

increases the hazard of personal injury. Do not

tamper with parts which may increase or

decrease the governed speed.

 Do not wear loose clothing, jewelry or anything

that may be caught in the starter or other rotating

parts.

 Before starting the pressure washer in cold

weather, check all parts of the equipment and be

sure ice has not formed there.

 Units with broken or missing parts, or without

protective housing or covers should NEVER be

operated.

 The muffler and air cleaner must be installed and

in good condition before operating the pressure

washer. These components act as spark

arrestors if the engine backfires.

 Check the fuel system for leaks or signs of

deterioration such as chafed or spongy hose,

loose or missing clamps or damaged tank or

cap. Correct all defects before operating the

pressure washer.

 Do not spray flammable liquids.

 Never aim the gun at people, animals or plants.

 High pressure spray can cause paint chips or

other particles to become airborne and fly at high

speeds. Always wear eye protection when

operating the pressure washer.

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other

reproductive harm.

WWAARRNNIINNGG::

Generac Portable Products 2300PSI High Pressure Washer

 Never allow any part of the body to come in

contact with the fluid stream. DO NOT come in

contact with a fluid stream created by a leak in

the high pressure hose.

 The high pressure hose can develop leaks from

wear, kinking, abuse, etc. Water spraying from a

leak is capable of injecting material into

skin. Inspect the hose each time before use.

Check all hoses for cuts, leaks, abrasions or

bulging of cover, or damage or movement of

couplings. If any of these conditions exist,

replace hose immediately. Never repair the high

pressure hose. Replace it with another hose that

meets minimum pressure rating of your pressure

washer.

 The high pressure stream of water that this

equipment produces can pierce skin and its

underlying tissues, leading to serious injury.

 Always wear eye protection when you use this

equipment or when you are in the vicinity where

the equipment is in use.

 Never move the machine by pulling on the high

pressure hose. Use the handle provided on the

top of the unit.

 Always be certain the spray gun, nozzles and

accessories are correctly attached.

 Never use a spray gun which does not have a

trigger lock or trigger guard in place and in

working order.

 Use a respirator or mask whenever there is a

chance that vapors may be inhaled. Read all

instructions with mask so you are certain the

mask will provide the necessary protection

against inhaling harmful vapors.

 High pressure spray may damage fragile items

including glass. Do not point spray gun at glass

when in high pressure mode.

 Keep the hose connected to machine and spray

gun while the system is pressurized.

Disconnecting the hose while the unit is

pressurized is dangerous.

 Hold the spray gun firmly in your hands before

you start the unit. Failure to do so could result in

an injury from a whipping spray gun. Do not

leave the spray gun unattended while the

machine is running.

 The cleaning area should have adequate slopes

and drainage to reduce the possibility of a fall

due to slippery surfaces.

 Keep water spray away from electric wiring.

Fatal electric shock may result.

 Do not secure trigger gun in the pull-back (open)

position.

 Do not by-pass any safety device on this

machine.

 The muffler and engine heat up during operation

and remain hot immediately after shutting it

down. Avoid contact with a hot muffler or engine.

 Operate and store this unit on a stable, level

surface.

Generac Portable Products 2300PSI High Pressure Washer

CONGRATULATIONS on your purchase of a

GENERAC high pressure washer. It has been

designed, engineered and manufactured to give you

the best possible dependability and performance.

Should you experience any problem you cannot

easily remedy, please contact your nearest

GENERAC Authorized Service facility, or call the 1-

800 number listed on the front of this manual. We

have competent, well-trained technicians and the

proper tools to service or repair this unit.

Please read and retain this manual. The instructions

will enable you to assemble and maintain your high

pressure washer properly.

CUSTOMER RESPONSIBILITIES

 Read and observe the safety rules.

 Follow regular schedule in maintaining, caring for

and using your high pressure washer.

 Follow the instructions under Customer

Responsibilities and Storage sections of this

Owner's Manual.

PRODUCT SPECIFICATIONS

Pressure Washer Specifications

Outlet Pressure . . . . 2300 psi

Flow Rate . . . . . . . . . 2.9 gallons per minute (gpm)

Detergent Mix . . . . . . Use undiluted detergent

approved for pressure

washers

Water Supply . . . . . . Not to Exceed 140°F

Temperature

Automatic Cool . . . . Will cycle when water

Down System reaches 140°-145°F

Engine Specifications

Engine Model . . . . . . Briggs & Stratton Intek

Rated Horsepower . . 6

Displacement . . . . . . 190cc

Spark Plug

Type . . . . . . . . RC-12YC

Set Gap To: . . 0.030 inch (0.76mm)

Gasoline Capacity . . 3 U.S. quarts

Oil . . . . . . . . . . . . . . . SAE 30

In the State of California a spark arrestor is required

by law (Section 4442 of the California Public

Resources Code). Other states may have similar

laws. Federal laws apply on federal lands.

NOTE: If you equip the engine of your pressure

washer with a spark arrestor muffler, the spark

arrestor must be maintained in effective working order

by the owner/operator.

You can order a spark arrestor through your

authorized Briggs & Stratton service facility. See

Engine Owners Manual for details.

Model Number 12921

Serial Number

Date of Purchase

The model and serial numbers will be found on a

decal attached to the pressure washer. Record both

serial number and date of purchase and keep in a

safe place for future reference.

Generac Portable Products 2300PSI High Pressure Washer

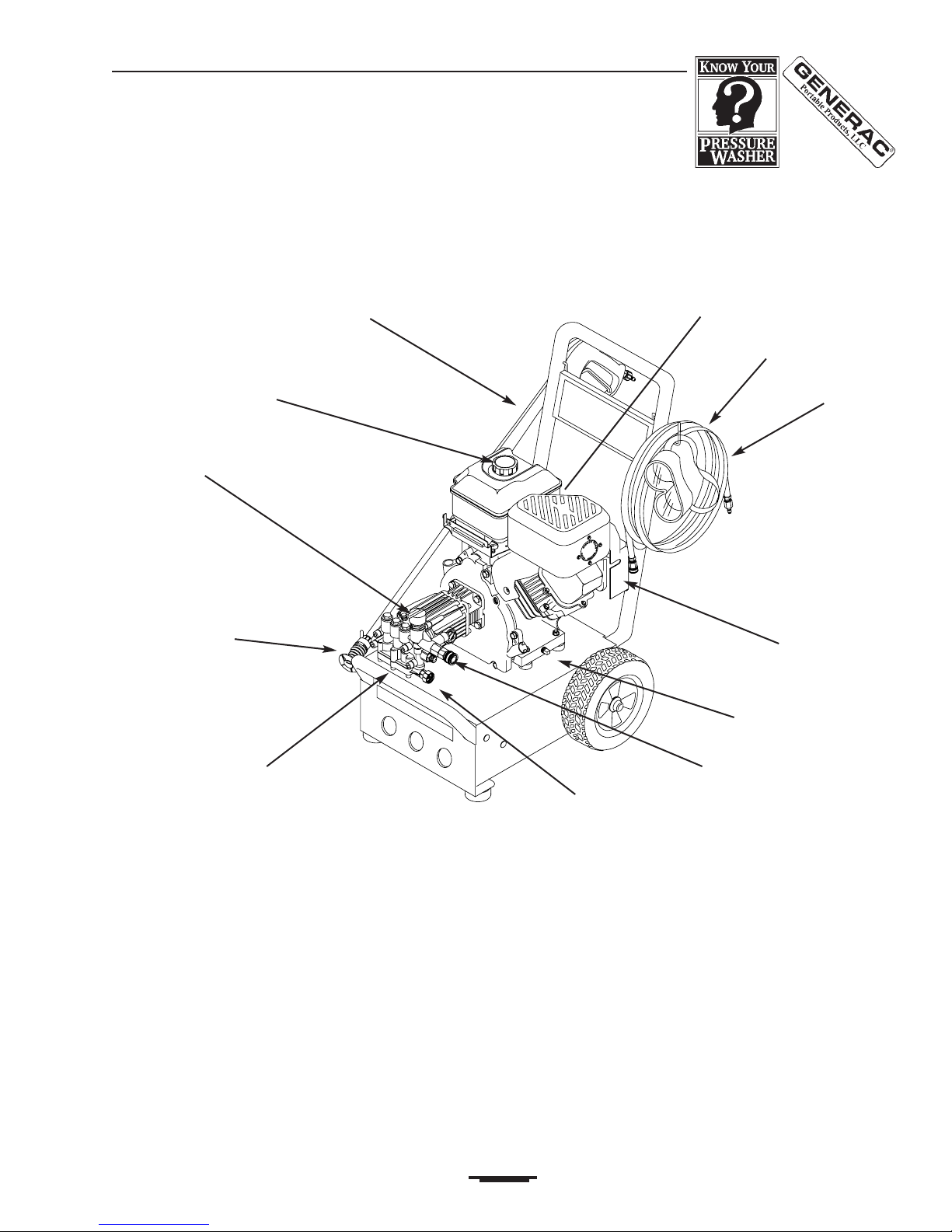

KNOW YOUR PRESSURE WASHER

Read this owners manual and safety rules before operating your high pressure washer.

Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various

controls and adjustments. Save this manual for future reference.

Adjustable Nozzle Extension  Attach the adjustable

nozzle extension to the spray gun to provide high

pressure stream. The adjustable nozzle allows you to

adjust the spray pattern which, in turn, adjusts the force

of spray.

Automatic Cool Down System  Cycles water

through pump when water reaches 140°-145°F. Warm

water will discharge from pump onto ground. This

system prevents internal pump damage.

Dual Element Air Filter  Filter limits the amount of

dirt and dust that gets in the engine.

Gas Tank  Fill tank with regular unleaded gasoline.

Always leave room for fuel expansion.

Goggles  Always use the enclosed goggles or other

eye protection when running your pressure washer.

High Pressure Hose  Connect one end to the water

pump and the other end to the spray gun.

High Pressure Outlet  Connection for high pressure

hose.

Yellow Oil Fill Cap  Fill engine with oil here. See

page 7 for oil recommendations.

Pressure Control Knob  Varies the pressure of the

high pressure spray.

Pump  Develops high pressure.

Recoil Starter  Use for starting the engine manually.

Spray Gun  Controls the application of water onto

cleaning surface with trigger device. Includes safety

latch.

Water Inlet  Connect garden hose here.

Spray Gun

Adjustable Nozzle Extension

High Pressure Hose

Recoil Starter

Goggles

Gas Tank

Water Inlet

Pressure Control Knob

Pump equipped with

Automatic Cool Down System

High Pressure Outlet

Dual Element Air Filter

Yellow Oil Fill Cap

Generac Portable Products 2300PSI High Pressure Washer

Read entire owners manual before you attempt to

assemble or operate your new pressure washer. Your

new pressure washer has been assembled at the

factory with the exception of those parts left

unassembled for shipping purposes.

REMOVE PRESSURE WASHER

FROM CARTON

 Remove parts box included with pressure

washer.

 Slice two corners at guide handle end of carton

from top to bottom so the panel can be folded

down flat, then remove all packing material.

 Roll pressure washer out of carton.

CARTON CONTENTS

Items in the carton include:

 Main Unit

 Manual Bag Contents

 Manual

 O-Ring Kit

 Nozzle Cleaning Kit

 Sta Bil® Brochure

 Owner Registration Card

 B&S Intek Engine Manual

 Parts Box (which includes the following):

 Sta Bil®

 Engine Oil

 Video

 Wireform

 Goggles

 Spray Gun

 Nozzle Extension

 High Pressure Hose

 Handle

 Parts Bag (which includes the following):

 2 carriage bolts

 2 knobs

PREPARING THE PRESSURE

WASHER FOR USE

If you have any problems with the assembly of your

pressure washer or if parts are missing or damaged,

call the Pressure Washer Helpline at 1-800-2 0-1408.

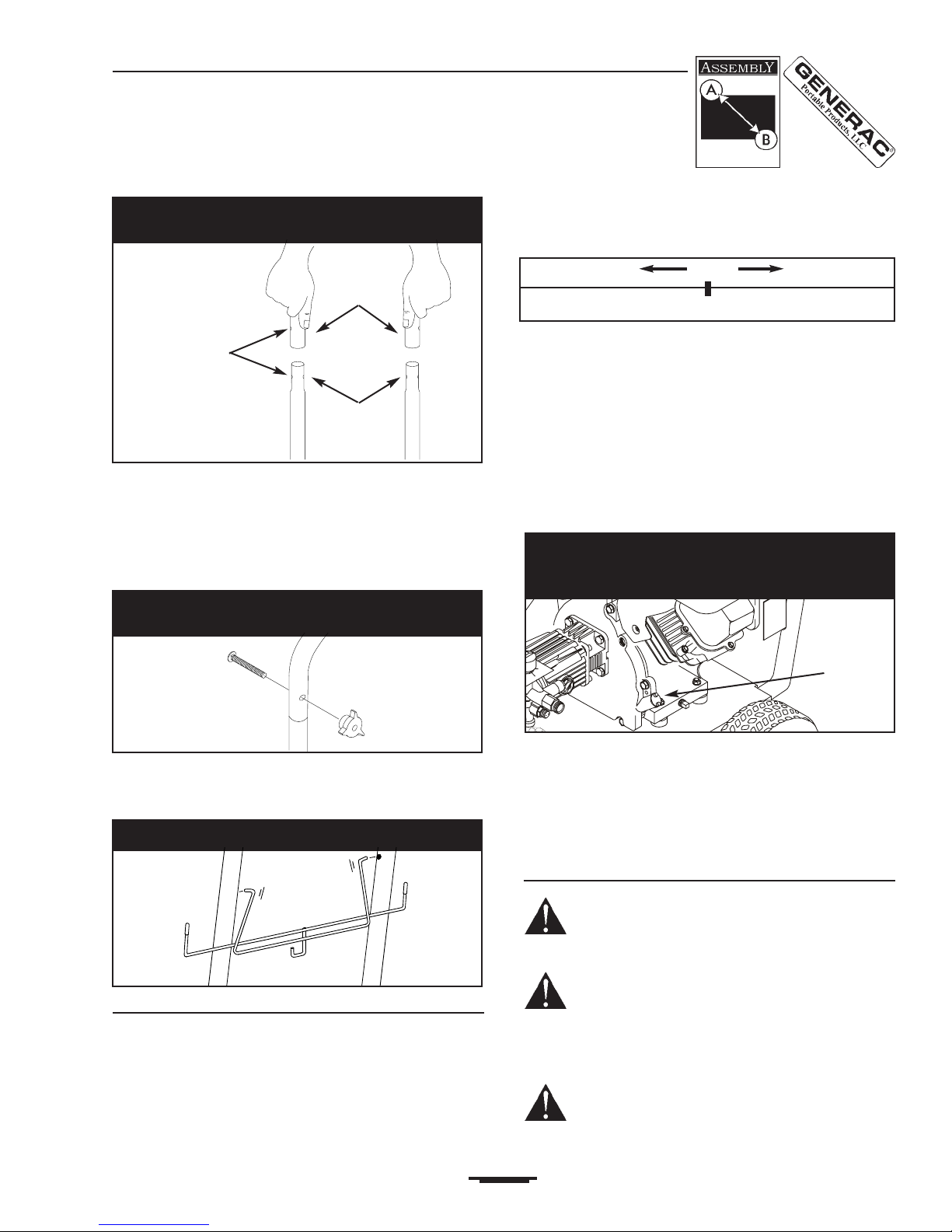

To prepare your pressure washer for operation you

will need to perform these tasks:

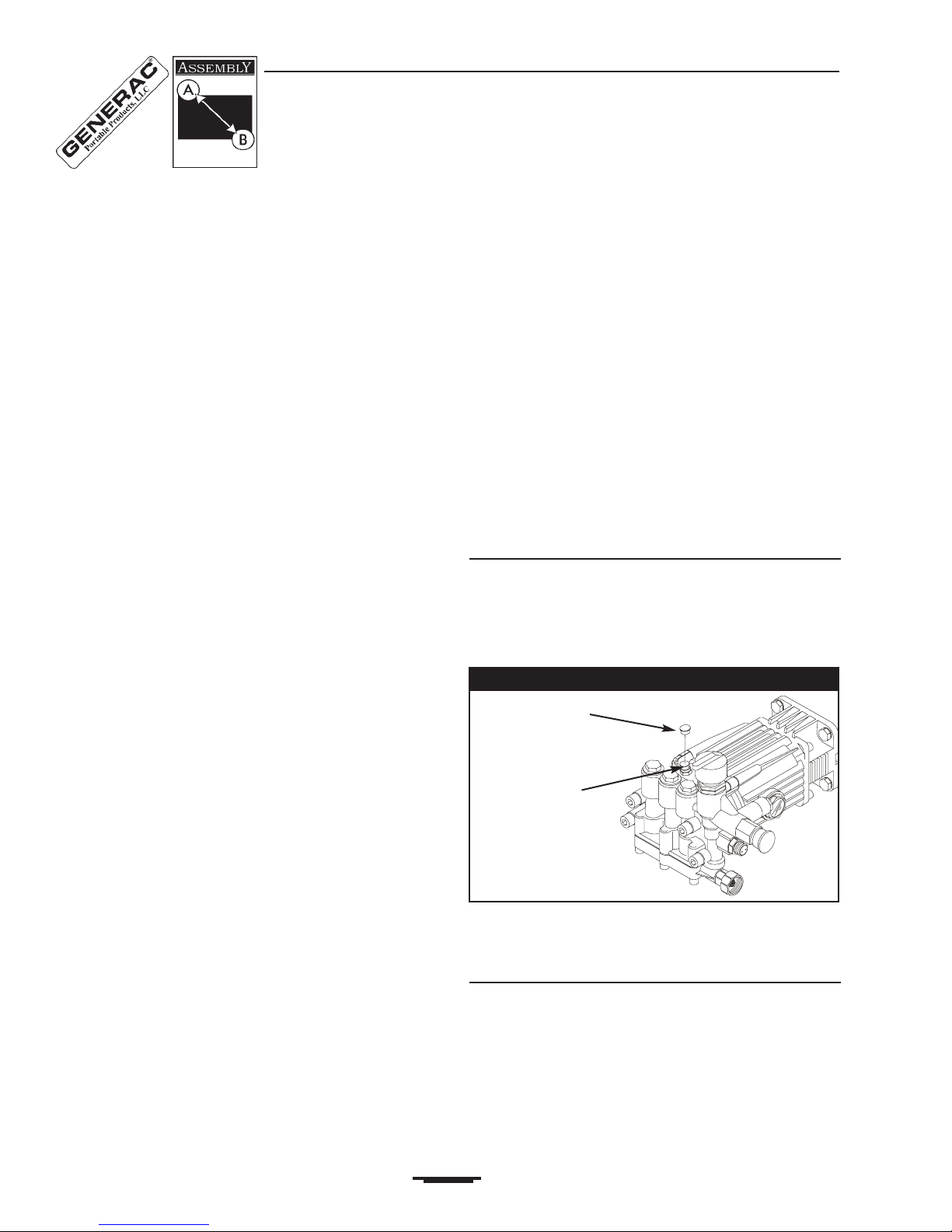

 Remove shipping cap on top of pump.

 Attach the handle and attach the wire form that

holds the high pressure hose and spray gun.

 Connect the high pressure hose to the spray gun

and the pump and connect water supply to the

pump.

 Add oil to engine crankcase.

 Add fuel to fuel tank.

Remove Shipping Cap

To prevent oil from leaking from the pump, a shipping

cap has been installed on the oil breather of the

pump.

You must remove the cap for your pressure washer to

operate properly (Figure 1).

Running unit with the shipping cap installed will

damage the pump and void your warranty.

Attach the Handle

 Place the handle onto the handle supports

already connected to the main unit. Make sure

the holes in the handle align with the holes on

the handle supports. (Figure 2)

Figure 1  Remove shipping cap on top of pump.

Shipping Cap

Remove

shipping cap

from here.

Generac Portable Products 2300PSI High Pressure Washer

Note: It may be necessary to move the handle

supports from side to side in order to align the handle

so it will slide over the handle supports.

 Insert the carriage bolts through the holes on the

handle and attach the plastic knobs. Tighten the

knobs by hand (Figure 3).



Insert the wire support with the longer arm

positioned on the left. From this view (from rear of

unit), the hook should resemble a J

(Figure 4).

Add Engine Oil

IMPORTANT: Any attempt to start the engine before it

has been properly serviced with the recommended oil

may result in an engine failure.

Note: When adding oil to the engine crankcase, use

only high quality detergent oil rated with API service

classification SF,SG, SH or rated SAE 30 weight.

Select the oils viscosity grade according to your

expected operating temperature. Do Not Use SAE

10W40 Oil.

Although multi-viscosity oils (5W30, 10W30, etc.)

improve starting in cold weather, these multi-viscosity

oils will result in increased oil consumption when used

above 32°F. Check your engine oil level more

frequently to avoid possible damage from running low

on oil.

 Place pressure washer on a level surface.

 Clean area around yellow oil fill and remove oil

fill cap (Figure 5). Do not use grey cap to add or

check oil.

 Pour oil into oil fill opening until the oil reaches

the point of overflowing. Stop occasionally to

check oil level. Do not overfill.

 Install oil fill cap, hand tighten securely.

Note: Check oil often during engine breakin.

Add Gasoline

DANGER! Never fill fuel tank indoors. Never

fill fuel tank when engine is running or hot. Do

not smoke when filling fuel tank.

WARNING! Never fill fuel tank completely

full. Fill tank to about 1/2" below the bottom of

the filler neck to provide space for fuel

expansion. Wipe away any fuel spillage from

engine and equipment before starting.

DANGER! Allow engine to cool 2 minutes

before refueling.

Figure 4  Fit wire form on handle.

Figure 5  Add oil to engine crankcase. Do not

attempt to start engine without adding

oil.

Yellow Oil

Fill Cap

Figure 3  Insert the carriage bolts and attach the

plastic knobs.

colder 32°F warmer

5W30 SAE 30

Figure 2  Attach the handle to the handle

supports.

Make sure the

holes on the

handle are

aligned with

the holes on

the handle

supports

Handle

Supports

Generac Portable Products 2300PSI High Pressure Washer

The manufacturer recommends fresh, clean unleaded

automotive gasoline with a minimum of 87 octane.

 Use clean fuel and store in approved, clean,

covered containers. Use clean fill funnels. Never

use stale gasoline left over from last season or

gasoline stored for long periods (over 30 days).

 Clean area around fuel fill cap, remove cap.

(Figure 6).

 Add UNLEADED regular gasoline, slowly, to

fuel tank. Use a funnel to prevent spillage.

 Install fuel cap and wipe up any spilled gasoline.

Note: Some fuels, called oxygenated or reformulated

gasolines, are gasoline blended with alcohols or

ethers. Excessive amounts of these blends can

damage the fuel system or cause performance

problems. If any undesirable operating systems

occur, use gasoline with a lower percentage of

alcohol or ether.

Connect Hose and Water Supply to Pump

IMPORTANT: You must assemble the nozzle

extension and attach all hoses before you start the

engine. Starting engine without all hoses connected

and water supplied will damage pump.

 Uncoil high pressure hose and attach hose quick

connect coupler to the fitting on the spray gun

(Figure 7). To engage the fitting, pull back on the

coupler collar, insert the gun fitting, and release

the collar. Pull on the gun to make sure it is

securely in place.

 Similarly, attach other end of the high pressure

hose to the high pressure quick connect fitting

on the pump (Figure 8). Pull on the hose to

make sure it is securely attached to the pump.

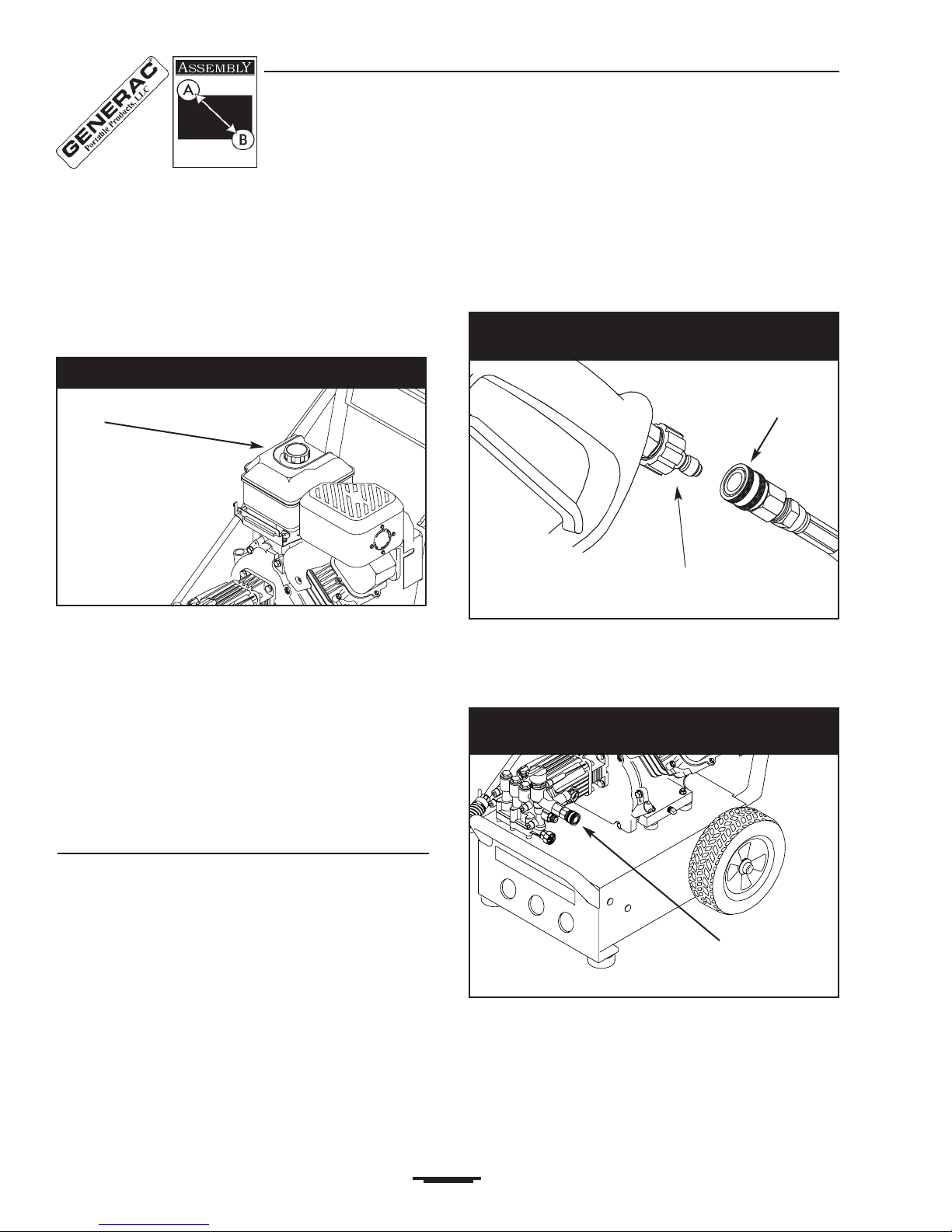

Figure 8  Connect high pressure hose to pump.

Figure 7  Connect high pressure hose

to spray gun.

Figure 6  Add gasoline to fuel tank.

Fuel Cap

Connect High Pressure

Hose Here

Coupler Collar

Connect High Pressure

Hose Here

Generac Portable Products 2300PSI High Pressure Washer

WARNING! You must provide a water supply

with a minimum flow of 3.2 gallons per minute

or damage to the pump will occur.

 Before you connect your garden hose to the

water inlet, inspect the Inlet Screen (see Figure

9). Clean the screen if it contains debris or have

it replaced if damaged. Do not run the pressure

washer if the inlet screen is damaged.

 Connect garden hose to water inlet. Tighten by

hand (Figure 9).

 Turn ON the water (open valve completely).

 Squeeze trigger on gun to purge pump system of

air and impurities.

CAUTION! Before starting the pressure

washer, be sure you are wearing adequate

eye protection.

 Attach nozzle extension to spray gun. Tighten by

hand (Figure 10).

CHECKLIST BEFORE STARTING

ENGINE

If you have reached this point, look back over the

assembly to see if you have performed all of the

following.

 Check for properly tightened hose connections

(high pressure and water supply) and for tight

connections and that there are no kinks, cuts, or

damage to the high pressure hose.

 Check that oil has been added to proper level in

engine crankcase before trying to start the

pressure washer.

 Add proper gasoline to fuel tank.

 Provide proper water supply (not to exceed

140°F).

 Be sure to read Safety Rules and Operation

sections before using the pressure washer.

Figure 10  Connect nozzle extension

to spray gun.

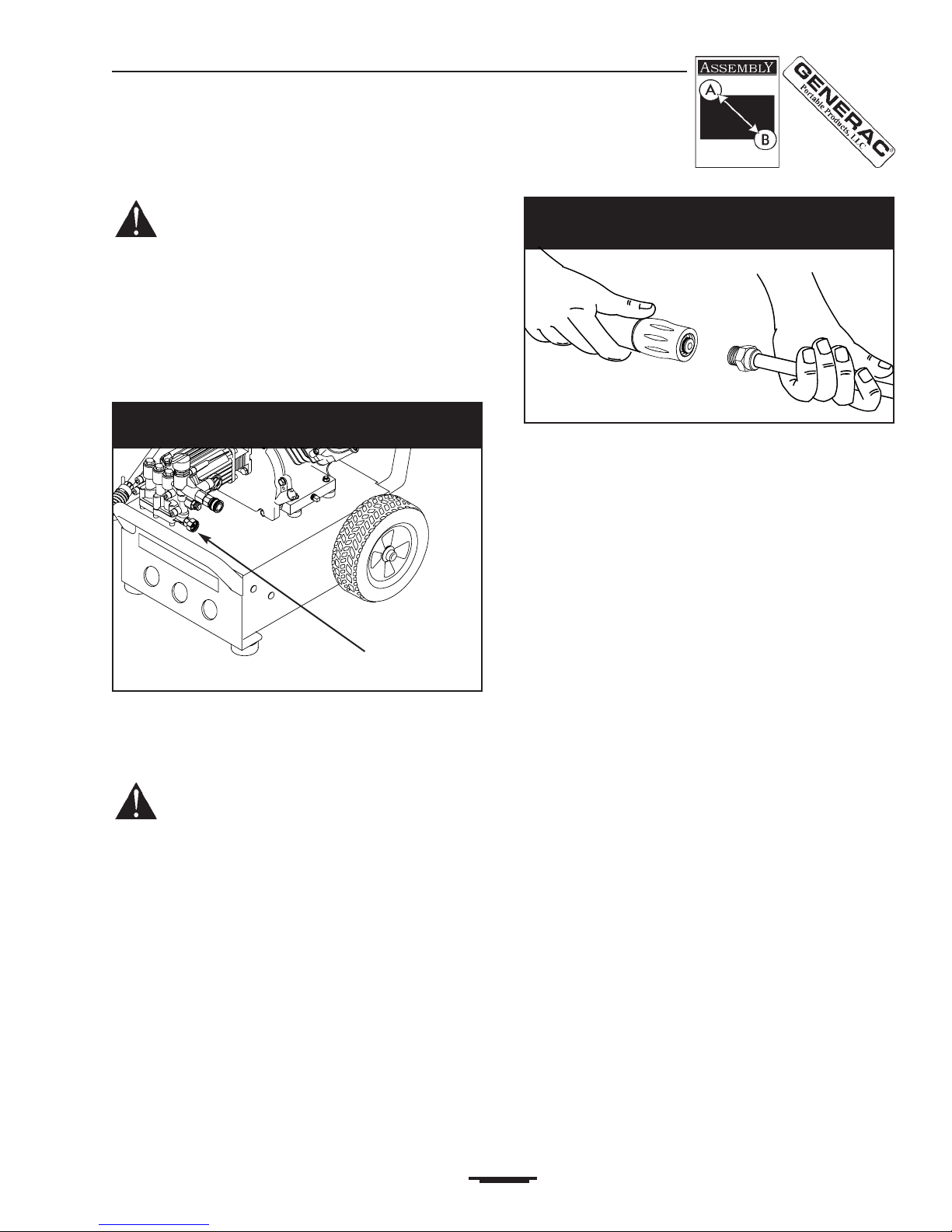

Figure 9  Connect garden hose to water inlet and

turn ON the water.

Check Screen for Damage

Generac Portable Products 2300PSI High Pressure Washer

HOW TO USE YOUR PRESSURE

WASHER

If you have any problems operating your pressure

washer, please call the pressure washer helpline at

1-800-2 0-1408.

How to Start Your Engine

The best way to start your engine-powered pressure

washer for the first time is to follow these instructions

step-by-step.

 This pressure washer requires a water source

that flows at least 3.2 gallons per minute. Do not

attempt to siphon water from a non-

pressurized container. Place the pressure

washer close enough to an outside water source

so that no more than 50' of garden hose is

needed.

 Check that the high pressure hose is tightly

connected to the spray gun and to the pump.

See ASSEMBLY section for illustrations.

 Connect the garden hose to water inlet on the

pressure washer pump and turn the water on

all the way.

IMPORTANT: Do not run pump without the water

supply connected and turned on. You must follow this

caution or the pump will be damaged.

 Set choke lever to Choke position. Note: This

is a multi-position choke.

 Move the throttle control lever to the Fast

position.

Note: For a warm engine, be sure the throttle control

is in the Fast position and the choke lever is in the

Run position.

 Turn the fuel shut off valve to the On position.

 Squeeze the trigger on the spray gun to relieve

air pressure caused by turning ON the water.

Water will spew out the gun in a thin stream.

Continue to hold trigger until you have a steady

stream of water and no air remains.This will

make it easier to pull start the engine. Release

the trigger.

 Apply the safety latch to the spray gun trigger

(Figure 11).

 Grasp rope handle and pull slowly until you feel

some resistance. Then pull cord rapidly to

overcome compression, prevent kickback and

start the engine. Let rope return to starter slowly.

Note: Always keep the throttle control in the Fast

position when operating the pressure washer.

 When the engine starts, gradually move the

choke control from one position to the next until it

is in the Run position.

If after 3 pulls the engine fails to start, disengage the

spray gun safety latch, squeeze the trigger to relive

water pressure, re-engage the spray gun safety latch,

move the choke control to the Run position and pull

the recoil starter handle rapidly (Max. 3 pulls).

How to Stop Your Pressure Washer

Important: Do Not move the choke control to

Choke position to stop the engine. Backfire or

engine damage may occur.

 Move the throttle control to the Idle or Slow

position.

 Wait for the engine to idle down.

 Move the throttle control to the Off position.

 Close the fuel shut off valve.

Squeeze trigger on the spray gun to relieve

pressure in the hose. Simply shutting off the

engine will not release pressure in the system.

Note: A small amount of water will squirt out when

you release the pressure.

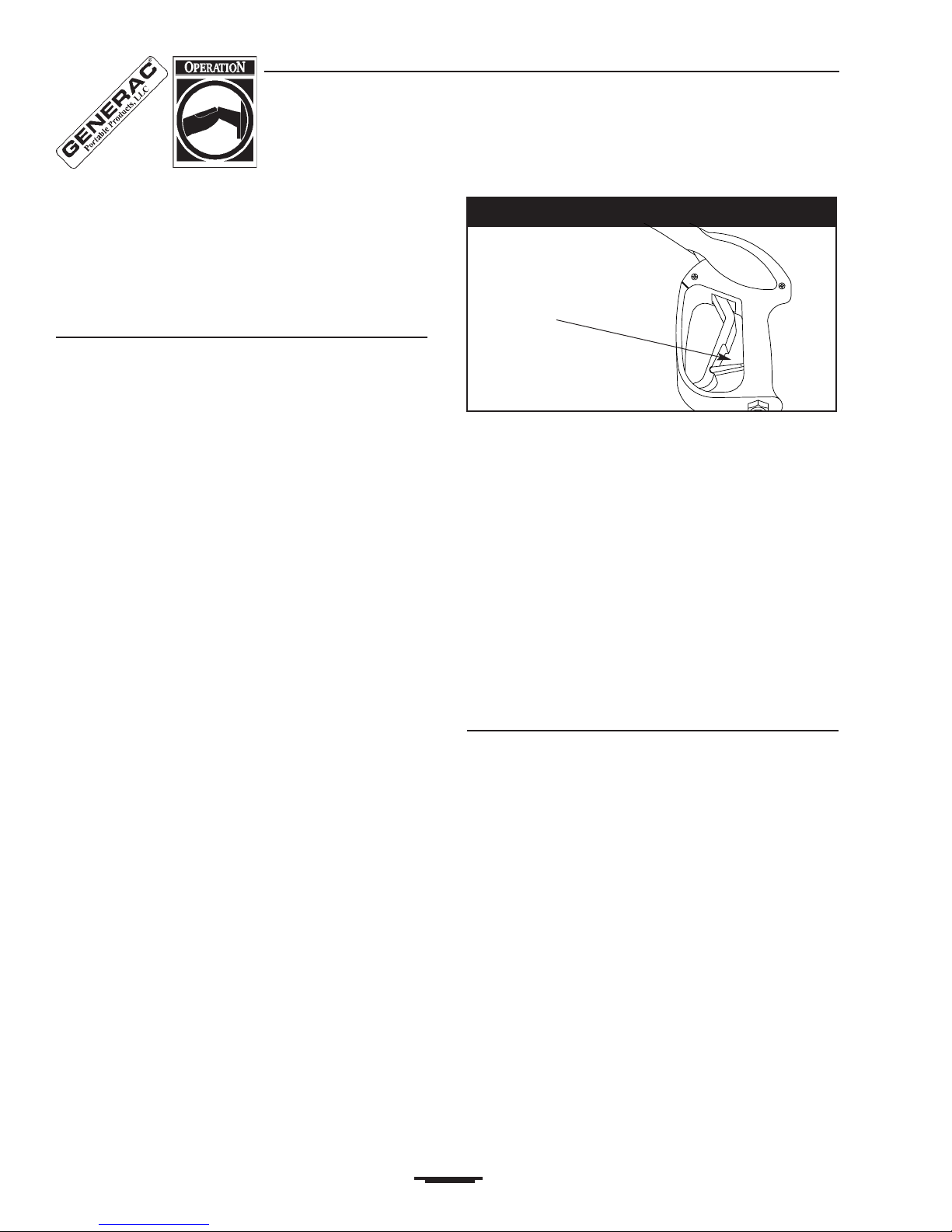

Figure 11  Safety Latch.

Safety Latch

Generac Portable Products 2300PSI High Pressure Washer

Table des matières

Autres manuels Generac Power Systems Nettoyeur haute pression

Generac Power Systems

Generac Power Systems 1455-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 1042-2 Manuel utilisateur

Generac Power Systems

Generac Power Systems 2600 PSI Manuel utilisateur

Generac Power Systems

Generac Power Systems 1700PSI Manuel utilisateur

Generac Power Systems

Generac Power Systems The Reliable Ones 1800PSI Manuel utilisateur

Generac Power Systems

Generac Power Systems 1750PSI Manuel utilisateur

Generac Power Systems

Generac Power Systems Power Washer Manuel utilisateur

Generac Power Systems

Generac Power Systems Power Washer Manuel utilisateur

Generac Power Systems

Generac Power Systems 1455-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 7132 Manuel utilisateur

Generac Power Systems

Generac Power Systems 1420-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 4240 PRO GAS PW 49ST EPA III Manuel utilisateur

Generac Power Systems

Generac Power Systems The Reliable Ones Manuel utilisateur

Generac Power Systems

Generac Power Systems BELT DRIVEN POWER WASHER Manuel utilisateur

Generac Power Systems

Generac Power Systems 2000PSI Manuel utilisateur

Generac Power Systems

Generac Power Systems 1418-1 Manuel utilisateur

Generac Power Systems

Generac Power Systems 1042-2 Manuel utilisateur

Generac Power Systems

Generac Power Systems OneWASH Manuel utilisateur

Generac Power Systems

Generac Power Systems 2100PSI 1536-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 6020-2 Manuel utilisateur

Generac Power Systems

Generac Power Systems 2700PSI 1676-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 1067-0 Manuel utilisateur

Generac Power Systems

Generac Power Systems 1293-2 Manuel utilisateur

Generac Power Systems

Generac Power Systems 2000PSI Manuel utilisateur

Manuels Nettoyeur haute pression populaires d'autres marques

Shark

Shark RG-232637 Manuel utilisateur

Shakti Technology

Shakti Technology S3 Manuel utilisateur

Kärcher

Kärcher K 4 Pure Manuel utilisateur

Porter-Cable

Porter-Cable D25806-025-2 Manuel utilisateur

REM POWER

REM POWER HDEm 662 Manuel utilisateur

Landa

Landa HS-3000 Manuel utilisateur

Craftsman

Craftsman 580.752270 Manuel utilisateur

HIKOKI

HIKOKI AW 100 Manuel utilisateur

Delco

Delco DC 1302 Manuel utilisateur

Kärcher

Kärcher K 3 Full Control Manuel utilisateur

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Manuel utilisateur

ARKSEN

ARKSEN 014-HG-14141-HR Manuel utilisateur

Black & Decker

Black & Decker PW1700SPX Manuel utilisateur

Kärcher

Kärcher 595 - SPARE Mode d’emploi

Kranzle

Kranzle B 10 200 Manuel utilisateur

Stihl

Stihl RE 90 Manuel utilisateur

Husky

Husky HU80911 Manuel utilisateur

PowR-Quip

PowR-Quip PQ-2600 Manuel utilisateur
