Gefen HDMI-242 Manuel utilisateur

2x2 HDMI

Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

2x2 HDMI Switcher is a trademark of Gefen Inc.

HDMI is a trademark of hdmi.org

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 2x2 HDMI Switcher

RMT2-IR Installation

IR Code Conﬂicts

Dip Switch Guidelines

RS-232 Interface

Speciﬁcations

Warranty

Congratulations on your purchase of the Gefen 2x2 HDMI Switcher. Your complete sat-

isfaction is very important to us.

Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 2x2 HDMI Switcher allows access to two HDTV devices, using two HDTV displays.

Both output displays will have mirrored images. Also included is a TOSLINK output that

will output the digital audio signal in audio form.

The Gefen line offers solutions for Home Theater, A/V installation, noise, space and

security concerns, data center, information distribution, conference room presentation,

school and corporate training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime support from a team of outstanding engineers.

The Gefen 2x2 HDMI Switcher allows two HDTV HDMI devices to be switched easily

in to two HDTV HDMI compatible monitors or projectors. Simply connect your HDTV

displays to the Switcher’s display outputs. The 2x2 HDMI Switcher can also be placed

at the end of a long HDMI cable to regenerate the HDMI signal.

INTRODUCTION

FEATURES

Features

• Switches easily between any two HDMI sources

• Maintains 480p, 720p, 720i, and 1080i, 1080p resolutions

• Maintains highest HDMI single link video resolution

• Maintains highest HDMI digital audio signal

• Includes TOSlink output for easy hookup to digital audio systems

• Supports HDCP compliant devices

• Fully HDMI 1.2 compliant

• HDMI or DVI to HDMI cables are used to connect the inputs and switcher output

• Inputs can be switched with the IR remote control

• RS-232 Controllable

• Installs in seconds

Includes:

(1) 2x2 HDMI Switcher

(2) 6’ HDMI cables (M-M)

(1) 5VDC Power Supply

(1) RMT2-IR

PANEL DESCRIPTIONS

Connects to

5VDC power

supply

IR eye

Indicates if input 1

or 2 is selected

RS232

Controller

Port

HDMI In 1 HDMI Out 1HDMI In 2

Extender

port

Power LED

Indicator

HDMI Out 2

TOSLINK

Optical Out

CONNECTING AND OPERATING THE 2x2 HDMI SWITCHER

How to Connect the 2x2 HDMI Switcher to your devices

1 Connect the supplied cables from the HDTV sources into the 2x2 HDMI Switcher inputs.

2Connect the cable from your display (monitor or projector) into the HDMI outs of the

2x2 HDMI Switcher.

3 Connect any Digital Audio System into the OPTICAL out of the 2x2 HDMI Switcher

3 Plug the 5VDC power supply into the 2x2 HD Switcher.

How to Control the 2x2 HDMI Switcher

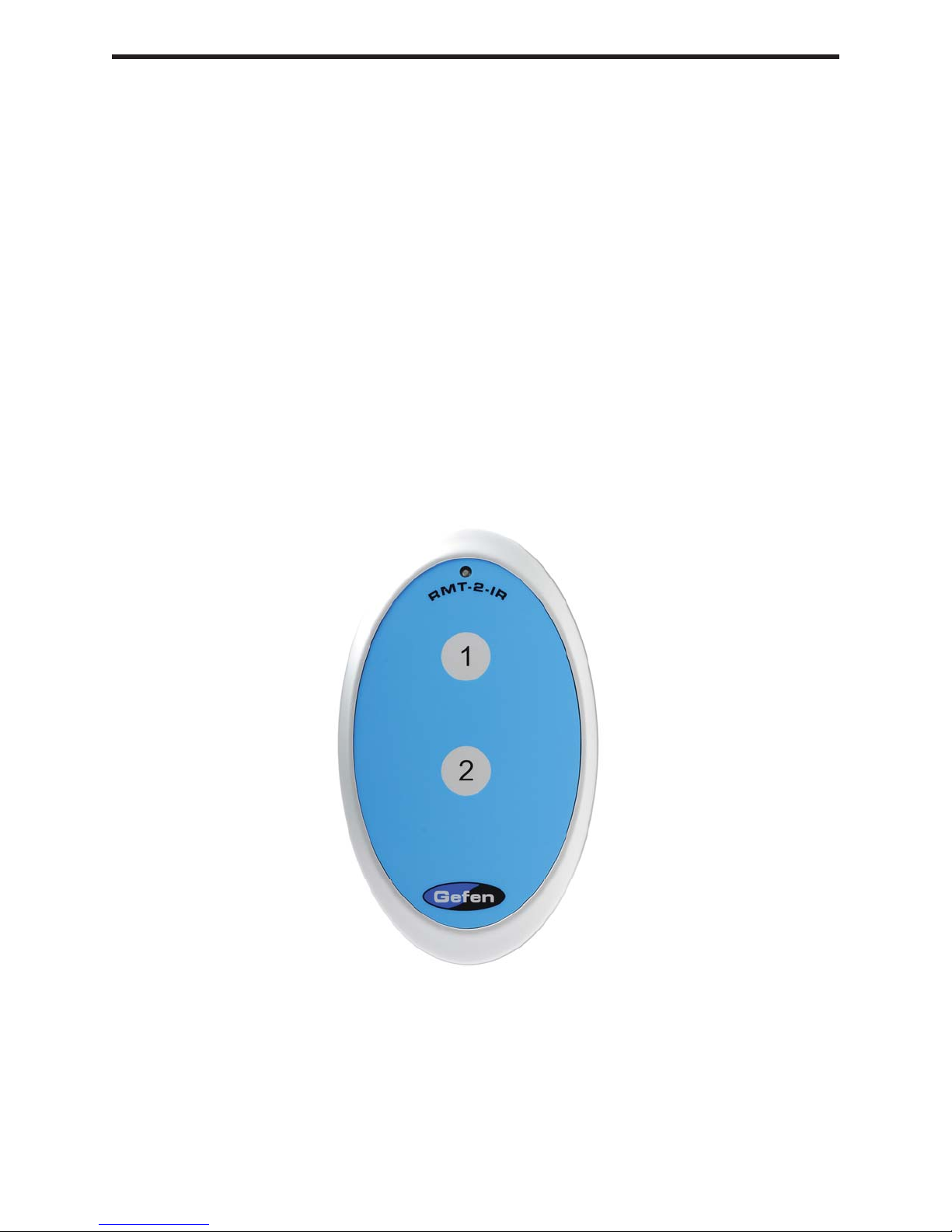

Use the RMT2-IR remote control to toggle between sources.

RMT2-IR INSTALLATION

1. Remove battery cover from the back of the RMT2-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT2-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

IR CODE CONFLICTS

How to Resolve IR Code Conﬂicts

There are matching pairs of dip switches underneath the Switcher unit and under the

remote battery cover. Switch 1 & 2 on the Remote and Switch 3 & 4 underneath the unit

are the matching switches. These switches need to be matched for the remote to

communicate with the switcher. There are 4 possible sets of IR codes and at least one of

these sets should be able to resolve any IR conﬂicts with other home theater devices.

Remote Channel 1:

Remote Channel 2:

Remote Channel 3:

Remote Channel 4:

Remote

DIP SWITCH GUIDELINES

Extended display identiﬁcation data (EDID) is a data structure provided by a display to

describe its capabilities to any source that asks for it. The EDID includes manufacturer

name, product type, timings supported by the display, display size, luminance data, (for

digital displays only) pixel mapping data, supported audio channels and formats. This

information is used by the source to cater its output to resolutions and audio formats

that are supported by the display.

Additional EDID modes are available and conﬁgured using a combination of dip

switches 1, 2, and 5. Please refer below for the different EDID modes.

To access the Dip Switches, remove all screws from the bottom and sides of the

Gefen unit. Remove the hex screw heads from each side of the RS-232 port. Carefully

slide the unit apart. The 8 Bank of Dip Switches are located on the main PCB. Once

adjustments are complete, slide the unit back together and replace all removed screws.

EDID Mode 0 (Switch 1=OFF Switch2=OFF Switch5=ON)

-EDID is copied from the ﬁrst HDMI port

EDID Mode 1 (Switch 1=ON Switch2=OFF Switch5=ON)

-Same as Mode 0 and adds basic audio support

EDID Mode 2 (Switch 1=OFF Switch2=ON Switch5=ON)

-Same as Mode 0 and adds full audio support

EDID Mode 3 (Switch 1=ON Switch2=ON Switch5=OFF)

-EDID is generated based on the common video and audio features of all of the

connected devices

EDID Mode 4 (Switch 1=OFF Switch2=ON Switch5=OFF)

-Same as Mode 3 and adds basic audio support

EDID Mode 5 (Switch 1=ON Switch2=OFF Switch5=OFF)

-Same as Mode 3 and adds full audio support

EDID Mode 6 (Switch 1=OFF Switch2=OFF Switch5=OFF) DEFAULT

-EDID is generated based on the common video features of all of the connected

devices and the combined audio features of all of the connected devices

DIP SWITCH

EDID GUIDE
