Gefen DVI-422 Manuel utilisateur

2x2 DVI Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The 2x2 DVI Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Front Panel Descriptions

Back Panel Descriptions

How To Connect The 2x2 DVI Switcher

System Speciﬁcations

Warranty

INTRODUCTION

ThankyouforpurchasingGefen’s2x2DVISwitcherseries.The2x2DVISwitcherswitches

DVI, USB 1.1 and Audio between any combination of two computers.

Now you can switch easily and reliably between any combination of two computers using

two DVI displays, USB keyboard and mouse.

The 2x2 DVI Switcher saves space – there’s no need to work on a desk crowded with four

monitors, keyboards and mouse devices. It saves time – there’s no need to move from

one monitor to another to access different computers. And it saves money – there’s no

need to purchase additional monitors, mouse devices, keyboards etc.

The 2x2 DVI Switcher allows you to choose between any combination of Macintosh or PC

computers and switching two monitors side by side.

CONTENTS

The 2x2 DVI Switcher system consists of:

--- (1) 2x2 DVI Switcher

--- (1) 12V AC power supply

--- (4) DVI to DVI cables (6FT)

--- (2) USB cables (6FT)

--- (2) Audio cables (6FT)

--- (1) User Manual

1-2 Indicator LED

Power LED

FRONT PANEL DESCRIPTIONS

1-2 Switch Buttons

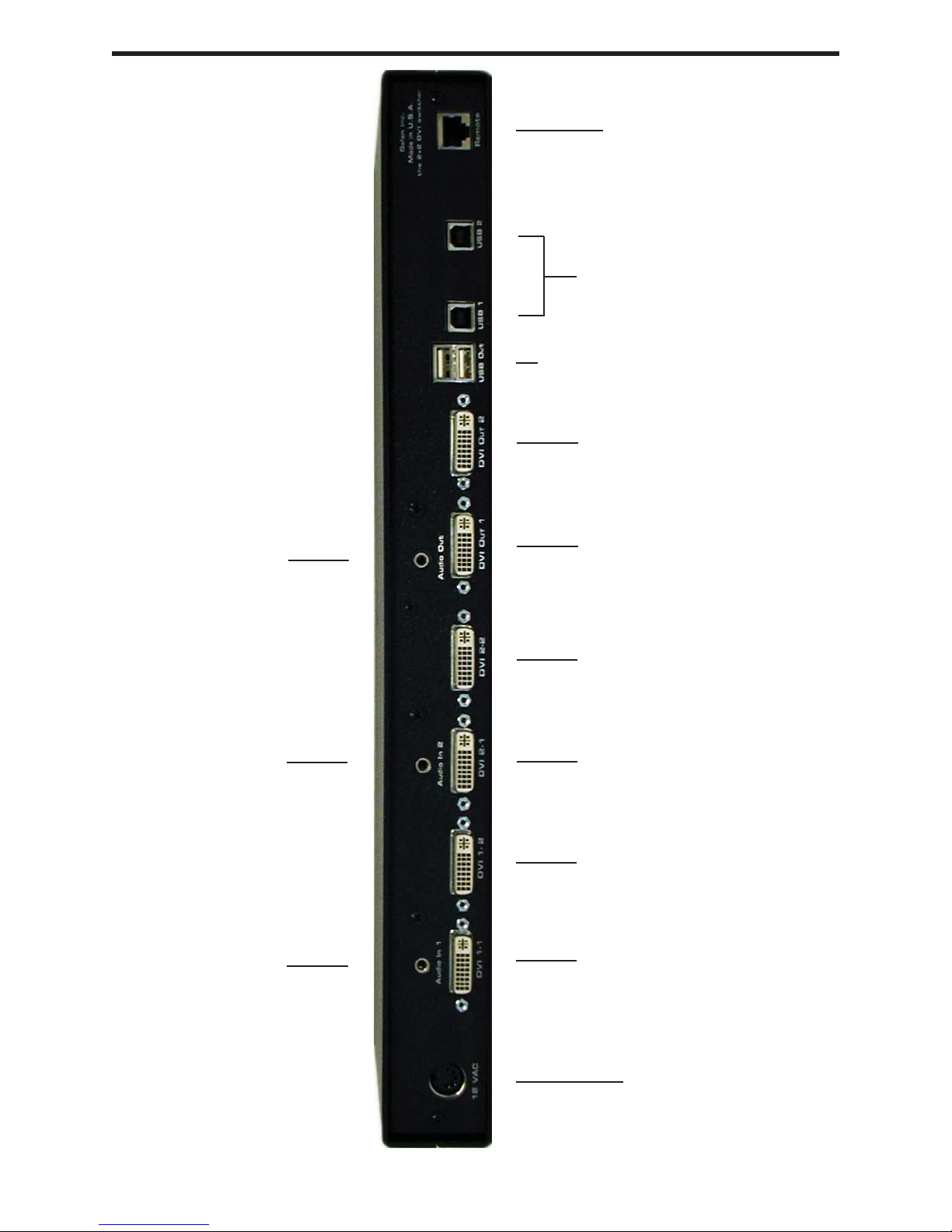

BACK PANEL DESCRIPTIONS

POWER INPUT

DVI IN 1.1 DVI IN 1.2 DVI IN 2.1 DVI IN 2.2 DVI OUT 2

USB OUT

USB INPUTS REMOTE -

RJ-45 Connecter

For RMT-4 Wired

Remote

AUDIO IN 1 AUDIO IN 2 AUDIO OUT

DVI OUT 1

1- Connect the cables from your ﬁrst computer into the DVI 1.1, DVI 1.2, USB and

Audio connection in the back of the 2x2 DVI Switcher.

2- Connect the cable from your second computer into the DVI 2.1, DVI 2.2, USB and

Audio connection in the back of the 2x2 DVI Switcher.

3- Connect the monitors to the DVI Out (1 and 2) connections.

4- Plug the 12v power supply into the 2x2 DVI Switcher.

5- Plug the 12v wallmount power supply into the wall outlet.

6- Start your computers only after you’ve made all the connections.

7- Press select, to switch between Computer 1 or Computer 2 or switch remotely using

the optional contact closure remote control.

HOW TO CONNECT THE 2x2 DVI Switcher

Video Ampliﬁer Bandwidth ................................................................................. 1.65 GHz

Input Video Signal ......................................................................................... 1.2 volts p-p

Input Sync Signal ................................................................................... 5 volts p-p (TTL)

Single Link Range ......................................................................................... 1920 x 1200

Vertical Frequency Range ....................................................................................... 60 Hz

DVI Input/Output Connector Type ............................................................................. DVI-I

USB Version ........................................................................................................ USB 1.1

USB Input Connector .......................................................................................... Type “B”

USB Output Connector ........................................................................................ Type “A”

Power Consumption ................................................................................ 18 Watts (max.)

Power Supply ........................................................................................................ 12V AC

Dimensions ...................................................................................... 16”W x 1.75”H x 4”D

Rackmountable ........................................................................................... 1 Rack Space

Shipping Weight ..................................................................................................... 12 Lbs

SPECIFICATIONS

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within one (1)

year from the date of shipment, Gefen System will, at its option, repair or replace the

equipment, provided that the equipment has not been subjected to mechanical, electrical

or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of shipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose, all

of which are expressly disclaimed.

Theinformationinthismanualhasbeencarefully checked and is believed to be accurate.

However, GefenInc.assumes no responsibility foranyinaccuracies that may becontained

in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,

or consequential damages resulting from any defect or omission in this manual, even if

advised of the possibility of such damages. The technical information contained herein

regarding the 2x2 DVI Switcher features and speciﬁcations is subject to change without

notice.

WARRANTY
