6x2 HDMI
Switcher
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
6x2 HDMI Switcher is a trademark of Gefen Inc.
HDMI is a trademark of hdmi.org
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
1 Introduction
2 Features
3 Front Panel Description
4 Back Panel Description
5 Connecting and Operating the 6x2 HDMI Switcher
6 RMT-6IR Installation
7 IR Code Configuration
8 EDID Management Feature
9 EDID Management Modes
10 RS-232 Serial Control
11 RS-232 Serial Control Commands
12 Rack Mount Diagram
13 Specifications
14 Warranty
Congratulations on your purchase of the Gefen 6x2 HDMI Switcher. Your complete sat-
isfaction is very important to us.
Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V
equipment use more comfortable, more productive and less expensive.
The 6x2 HDMI Switcher allows access to six HDTV devices, using two HDTV displays.
Both output displays will have mirrored images. Also included is a TOSLINK output that
will output the HDMI digital audio signal in Toslink digital audio form.
The Gefen line offers solutions for Home Theater, A/V installation, noise, space and
security concerns, data center, information distribution, conference room presentation,
school and corporate training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime support from a team of outstanding engineers.
The Gefen 6x2 HDMI Switcher allows six HDTV HDMI devices to be switched easily
in to two HDTV HDMI compatible monitors or projectors. Simply connect your HDTV
displays to the Switcher’s display outputs. The 6x2 HDMI Switcher can also be placed
at the end of a long HDMI cable to regenerate the HDMI signal.
INTRODUCTION
1
FEATURES
Features
• Switches easily between any six HDMI sources
• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions
• Maintains highest HDMI single link video resolution
• Maintains highest HDMI digital audio signal
• Includes TOSLINK output for easy hookup to digital audio systems
• Supports HDCP compliant devices
• HDMI or DVI to HDMI cables are used to connect the inputs and switcher output
• Inputs can be switched with the IR remote control, contact closure controller or
through the RS232 connector.
• Installs in seconds
Includes:
(1) 6x2 HDMI Switcher
(6) 6’ HDMI cables (M-M)
(1) 24VDC Power Supply
(1) RMT-6IR
(1) Rack Ears
(1) Manual
2
FRONT PANEL DESCRIPTIONS
IR eye
Indicates if input
1,2,3,4,5, or 6 is
selected
3
LED Power
Indicator
IR Extender
Eye Port
BACK PANEL DESCRIPTIONS
Connects to
24VDC power
supply
4
RS232
Controller
Port
HDMI In 1
HDMI Out 1
HDMI In 2 HDMI Out 2
TOSLINK
Optical Out
HDMI In 3
HDMI In 4
HDMI In 5
HDMI In 6
CONNECTING AND OPERATING THE 6x2 HDMI SWITCHER
How to Connect the 6x2 HDMI Switcher to your devices
1 Connect the supplied cables from the HDTV sources into the 6x2 HDMI Switcher inputs.
2Connect the cable from your display (monitor or projector) into the HDMI outs of the
6x2 HDMI Switcher.
3 Connect any Digital Audio Receiver into the Toslink out of the 6x2 HDMI Switcher
3 Plug the 5VDC power supply into the 6x2 HD Switcher.
How to Control the 6x2 HDMI Switcher
Use the RMT-6IR remote control to toggle between sources.
5
6
RMT-6IR INSTALLATION
1. Remove battery cover from the back of the RMT-6IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT-6IR remote by pressing ONLY one button at a time. The indicator light
on the remote will flash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT-6IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
7
IR CODE CONFIGURATION
Why would I need to change the remote channel?
In some instances, the 6x2 Switcher for HDMI may use IR codes that conflict with
other IR remote control devices. The unit may switch inputs when another brand IR
remote control is used or the RMT-6IR may cause other brand IR controlled devices
to behave unexpectedly.
I am experiencing the issues listed above. What do I do?
In these cases it is recommended to change the IR channel that the RMT-6IR
remote control and the 6x2 Switcher for HDMI use. The IR channel is configured
independently on the RMT-6IR remote control and the 6x2 Switcher for HDMI but the
channel selection must match on both units for proper operation.

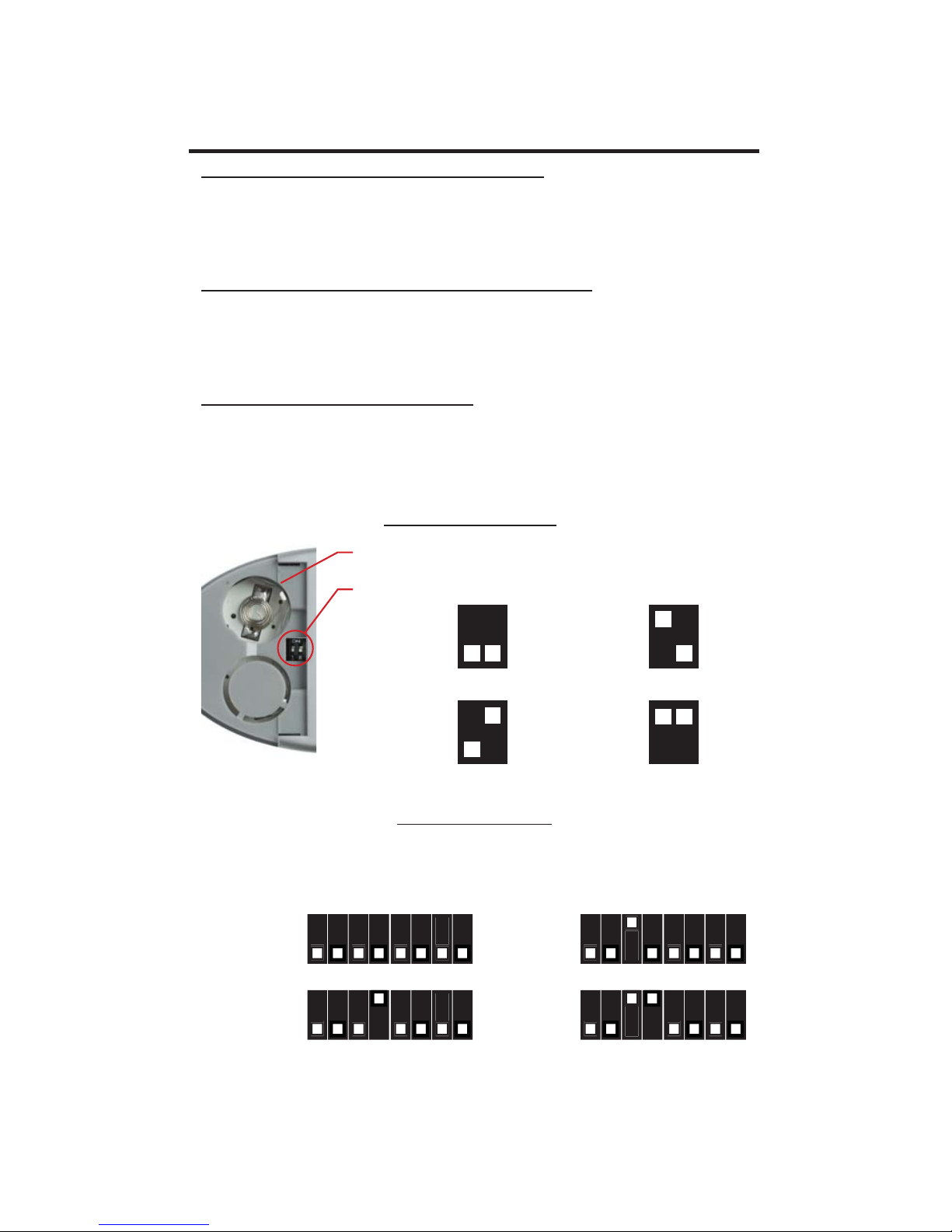

How Do I change the Remote Channel?
There are service DIP switches on the RMT-6IR remote control and also inside the
6x2 Switcher for HDMI. Use the diagrams below to locate and change the IR channel
to one that is not the default. Remember that the channel must match on both the
unit and remote control for successful operation.
2 DIP switch bank for IR channel configuration.
6x2 Switcher for HDMI
RMT-6IR Remote Control
Remote Channel 1:
Default
Remote Channel 4:
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
12345678
Remote Channel 3:
12345678
Remote Channel 2:
12345678
12345678
Remove the battery cover on the rear side of the RMT-6IR remote control
to expose the DIP switches.
The IR channel DIP switches for the 6x2 Switcher for HDMI are located on an 8 bank DIP switch inside
of the unit and on its main-board. To open the unit, remove all screws on the underside and side of the
unit. Remove all HEX screws on the rear panel. This includes the screws above each HDMI port and on
each side of the RS-232 serial communications port. Carefully slide the unit apart. Locate DIP switches 3
and 4. Once adjustments are complete replace all screws and.
