1x4 DVI Monitor

Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

1x4 DVI Monitor Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 1x4 DVI Monitor Switcher

RMT4-IR Installation

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 1x4 DVI Monitor Switcher. Your com-

plete satisfaction is very important to us.

Gefen’s line of DVI switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 1x4 DVI Monitor Switcher allow access to multiple DVI displays, using a single DVI

source while the DVI extender product line can extend the DVI video up to 1640 feet

(500 meters).

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

The ex•tend•it 1x4 DVI Monitor Switcher allows four DVI displays to be switched easily

from one DVI source. The 1x4 DVI Monitor Switcher can also be placed at the end of a

long DVI cable to regenerate the DVI signal.

INTRODUCTION

FEATURES

Features

• Connects a DVI/HDMI source to multiple DVI or HDMI compatible monitors or

projectors

• Maintains highest single link video resolution (1920x1200x60hz)

• Supports DDWG standard for DVI compliant monitors

• Installs in minutes

Includes:

(1) 1x4 DVI Monitor Switcher

(1) 6’ DVI-D cables (m-m)

(1) 5VDC Power Supply

(1) RMT4-IR

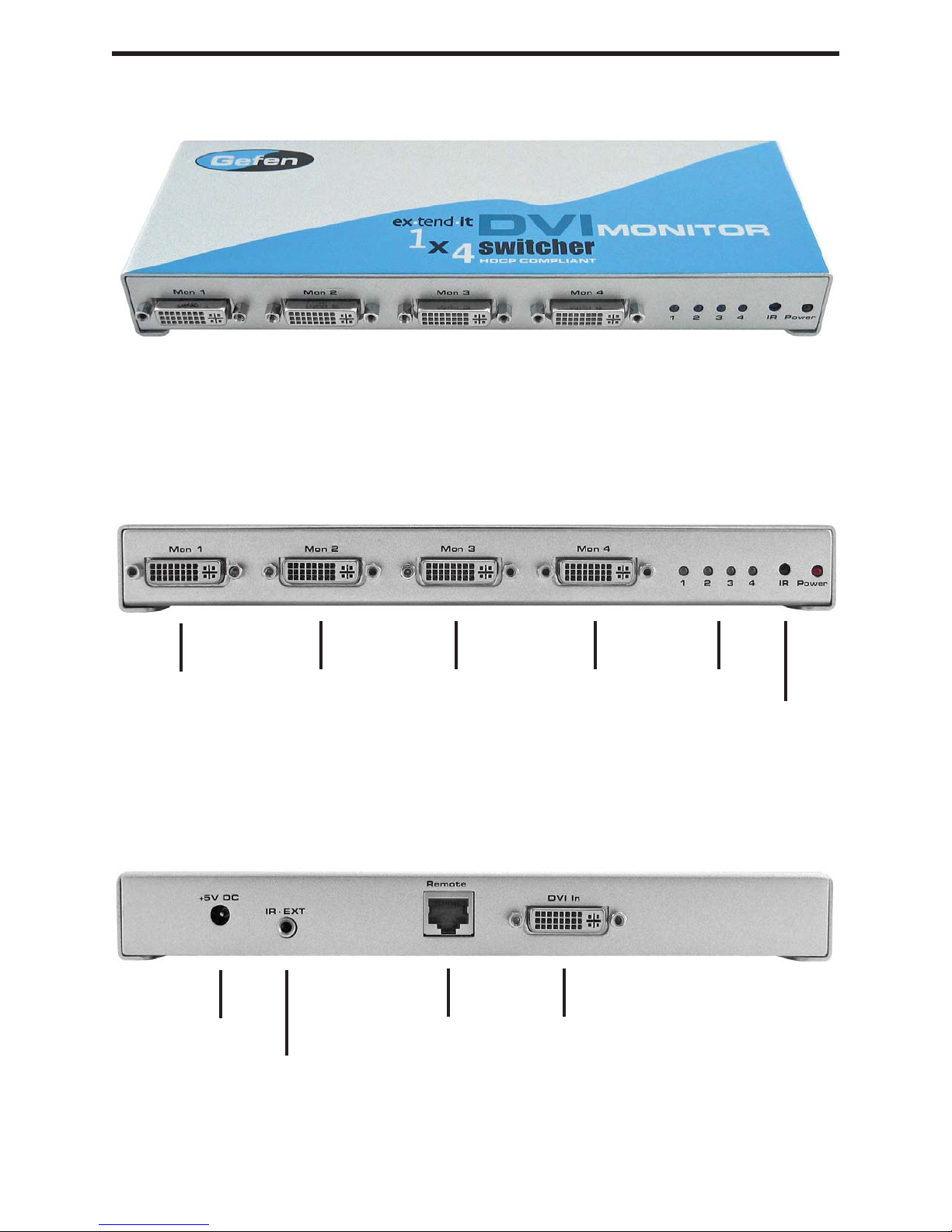

PANEL DESCRIPTIONS

LED Indicators

IR Eye

DVI out 1

5v Power

DVI out 2

Contact

Closure

DVI out 3

DVI In

DVI out 4

IR Extender Port

CONNECTING AND OPERATING THE 1X4 DVI MONITOR SWITCHER

How to Connect the 1x4 DVI Monitor Switcher to your devices

1 Connect the supplied DVI cable from the DVI source into the 1x4 DVI Monitor Switcher

Input.

2Connect the cables from your displays (monitor or projector) into the DVI Outputs of

the 1x4 DVI Monitor Switcher.

3Plug the 5v power supply into the DVI Monitor Switcher.

4Plug the 5v power supply into the wall outlet.

How to Operate the 1x4 DVI Monitor Switcher

1 Use the RMT4-IR remote control to remotely switch between sources.

2 Alternatively, use a RMT4 remote control port to remotely switch between sources.

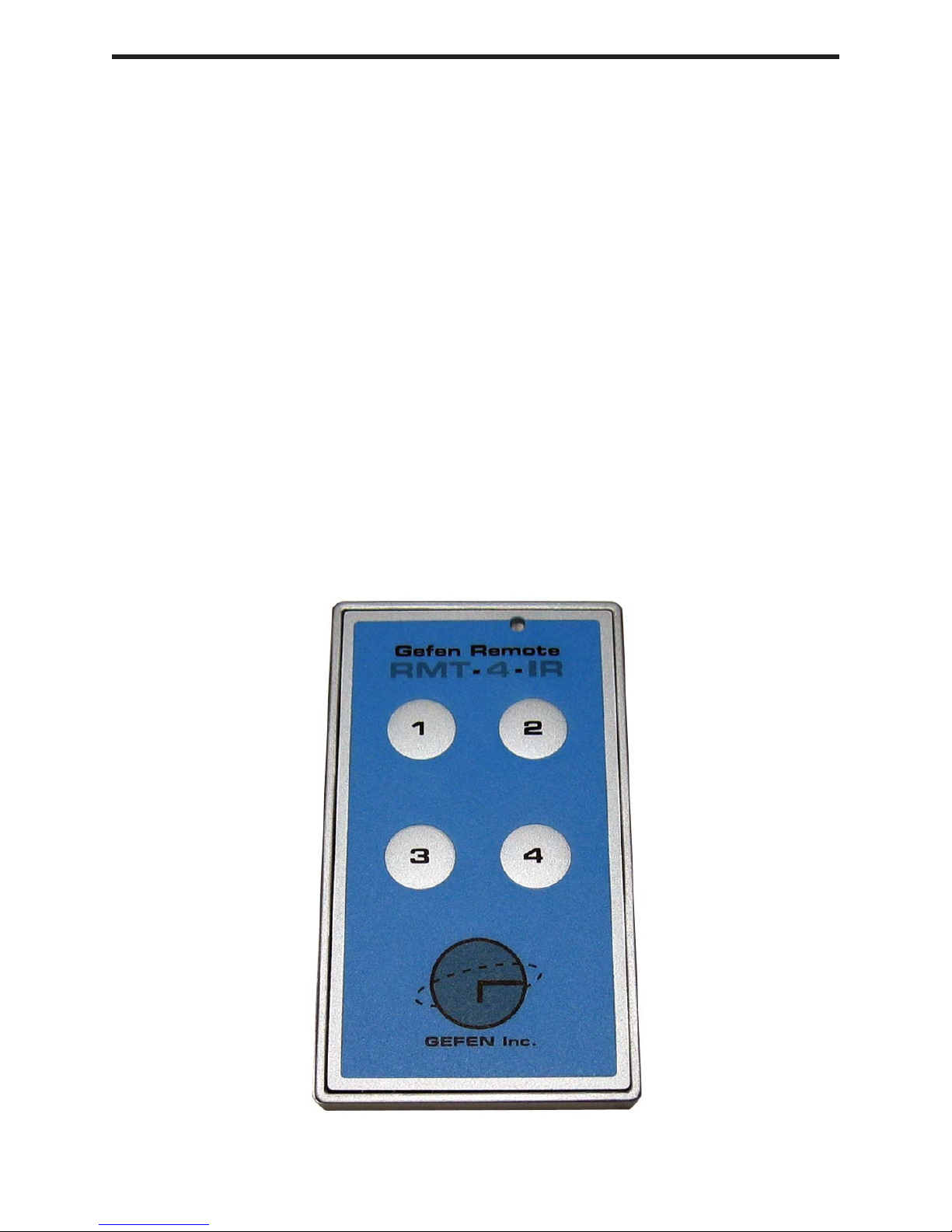

RMT4-IR INSTALLATION

1. Remove battery cover from the back of the RMT4-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT4-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT4-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

SPECIFICATIONS

Video Ampliﬁer Bandwidth ................................................................................. 1.65 GHz

Input Video Signal ......................................................................................... 1.2 volts p-p

Input DDC Signal .................................................................................... 5 volts p-p (TTL)

Single Link Range ......................................................................................... 1920 x 1200

DVI Input/Output Connector Type ........................................................................... DVI-D

Power Consumption ................................................................................ 15 Watts (max.)

Power Supply .......................................................................................................... 5VDC

Dimensions .......................................................................... 9.125”W x 1.125”H x 3.25”D

Shipping Weight ....................................................................................................... 4 Lbs

Gefen Inc. warrants the equipment it manufactures to be free from defects in material

and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two

(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical, or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the of repair. Such repairs are warranted for

ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that

may be contained in this manual. In no event will Gefen Inc., be liable for direct,

indirect, special, incidental, or consequential damages resulting from any defect

or omission in this manual, even if advised of the possibility of such damages. The

technical information contained herein regarding 1x4 DVI Monitor Switcher features and

speciﬁcations is subject to change without notice.

WARRANTY
