INTRODUCTION

Thank you for purchasing the ex•tend•it USB•500 Series.

Incorporating ExtremeUSB, the new USB•500 model allows

users the beneﬁts of USB technology beyond the desktop,

extending your computer keyboard, mouse, trackball, and

any USB device up to 1650 feet away from the location of

your Macintosh or PC computer.

The USB•500 system consists of two units: the

USB•500S Sender resides next to the host computer, and

the USB•500R Receiver resides next to the extended USB

type device connected by conventional USB cables.

The USB•500 signal controls the keyboard, mouse,

trackball and other USB devices by buffering the keyboard/

mouse signal through send and receive line drivers, and the

signal is extended by using standard ﬁber optic cabling.

You can connect additional USB•500 Series to the same

computer, allowing you to access the computer from other

locations up to 1650 feet apart.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE USB•500 SYSTEM.

* The USB•500 units were designed to operate on USB type

computers. DO NOT attempt to use this equipment with any

other type computers.

* Use the computer's USB port when using a local keyboard

that is not extended with the USB•500 sender unit.

* In order to operate properly, the USB•500S and USB•500R

units must be connected, powered up, and the MTRJ ﬁber

optic cable installed between both units.

* The length of cable used to connect the USB•500S send

unit to the USB•500R receiver unit MUST NOT EXCEED

1650 feet.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

USB•500 SERIES INSTALLATION

USB•500R (Receiver Unit)

1. Place the USB•500R unit close to the USB device to be

served.

2. Connect the USB devices to the USB•500R unit.

3. Connect the power adapter to a suitable AC source wall

outlet.

4. Connect the power adapter to the USB•500R unit using

the supplied cable.

USB•500S (Sender Unit)

5. Place the USB•500S unit close to the host computer.

6. Connect the power adapter to the USB•500S unit using

the supplied cable.

7. Connect the USB•500S unit to the USB•500R unit using

the desired length of ﬁber optic cable outﬁtted with standard

MTRJ.

8. Connect the USB•500S unit to the host computer using

the 6ft. USB cable supplied with the unit .

This connection should be made last.

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

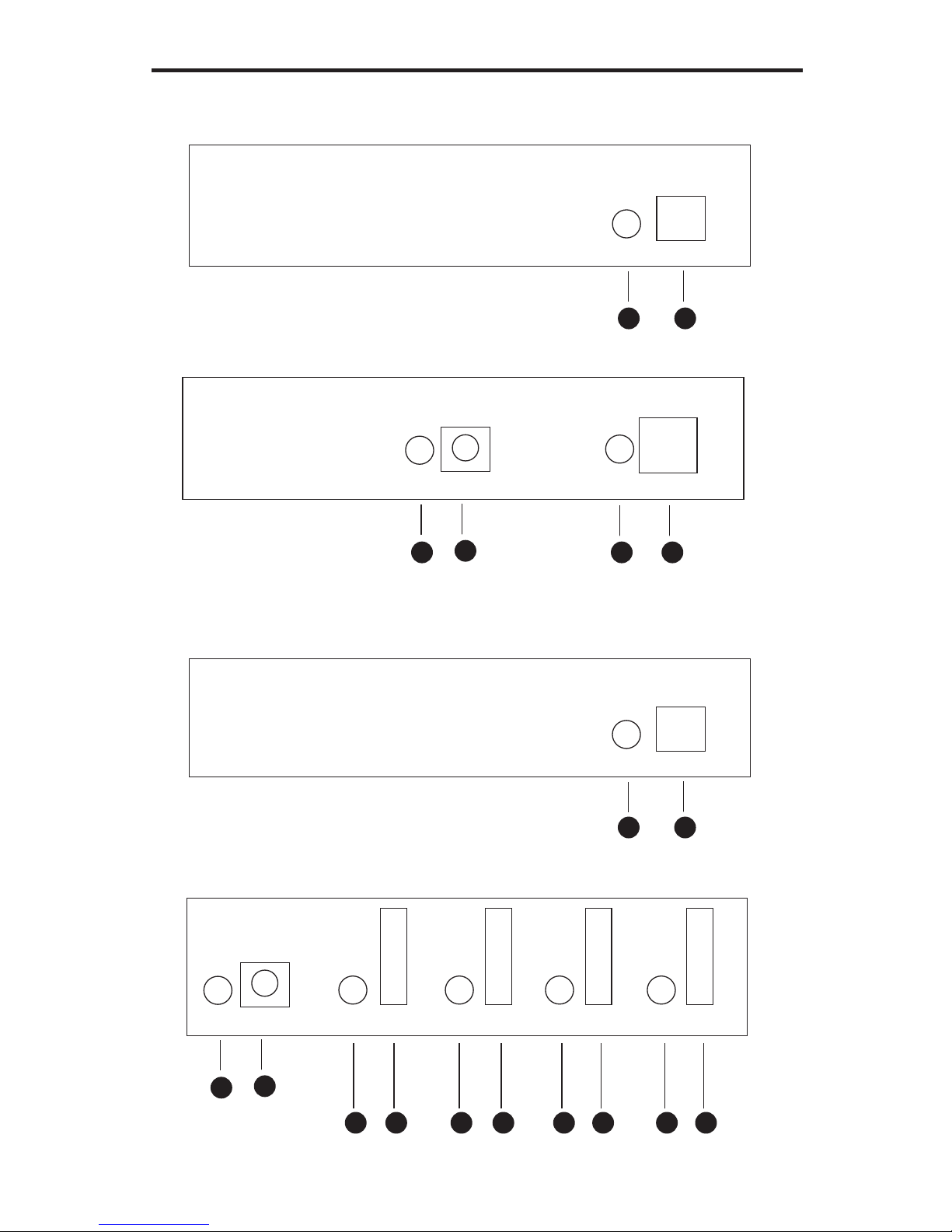

USB•500 PANELS LAYOUT

USB•500S

USB•500R

Link

1 2

USB 1 USB 2 USB 3 USB 4

11 12 11 12 11 12 11 12

Power

USB In

USB•500S

Link

7 8

Power

910

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

USB•500 FUNCTION DESCRIPTION

Link LED

Indicates a link between the USB•500S send and the USB•500R

Receive units.

Link

MTRJ Modular Jack which connects to the USB•500S send and

the USB•500R Receive units.

Power LED

Indicates the unit is plugged in and powered up.

AC IN

Power plug for +-15VDC Wallmount power supply.

USB Link Led

Indicates if the USB connection to the computer is active.

USB In

USB from computer

Link LED

Indicates a link between the USB•500S send and the USB•500R

Receive units.

Link

MTRJ Modular Jack which connects to the USB•500S send and

the USB•500R Receive units.

Power LED

Indicates the unit is plugged in and powered up.

AC IN

Power plug for +-15VDC Wallmount power supply.

USB Led

Indicates if a USB device is plugged in.

USB input A

Four (4) USB A type connector Hub.
