Gefen EXT-DIGAUD-141 Manuel utilisateur
www.gefen.com
®
Digital Audio
Extender
EXT-DIGAUD-141
USER MANUAL
ASKING FOR ASSISTANCE
Rev A1
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST
Write To:
Gefen, LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Digital Audio Extender is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners
TABLE OF CONTENTS
Introduction
Box Contents and Operation Notes
Connecting the Digital Audio Extender
Panel Layouts
Link Cable Wiring Diagram
Specifications
Warranty
1
2
3
4
5
6
7
Thank you for purchasing the ex•tend•it Digital Audio Extender.
This unit will extend S/PDIF and TOSLINK digital audio devices up to 100 meters
(330 feet).
Place your digital audio components anywhere you want with Gefen’s DigitalAudio
Extender. It supports either S/PDIF or TOSLINK digital audio signals, which are
commonly used to transmit stereo and multichannel (7.1, DTS, Dolby Digital, etc.)
digital audio.
The Digital Audio Extender system is made up of two units, a sender and a receiver.
The sender and receiver boxes are connected by CAT-5 cables to extend the digital
audio.
How It Works
The Digital Audio Extender’s sender unit connects to the audio source component.
The Digital Audio Extender’s receiver unit connects to the extended audio compo-
nent (up to 330 feet away). One CAT-5 cable connects the sender to the receiver
and crystal clear digital audio is heard at the device hooked up to the receiver.
INTRODUCTION
1
The Digital Audio Extender system consists of:
(1) Digital Audio Extender
(1) 5 VDC power supply
(1) TOSLINK Cable (6 FT M-M)
(1) User Manual
BOX CONTENTS
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE DIGITAL AUDIO EXTENDER SYSTEM
Industry standard Category-5 (CAT5 or CAT5e) cables are used to link the Digital
Audio Extender sender and receiver boxes together.
The Digital Audio Extender units are housed in metal boxes for RF shielding.
The Digital Audio Extender uses any single CAT5/CAT5e/CAT6 cable of no more
than 330 feet (100m) in length.
OPERATION NOTES
2
Figure 1. Top photo of the Digital Audio Extender Sender and
Receiver units showing the positions and markings of connectors.
2
Fi
g
ure 1. Top photo of the Di
g
ital Audio Extender Sender and
Receiver units showin
g
the positions and markin
g
s of connectors
.
CONNECTING THE DIGITAL AUDIO EXTENDER
How to Connect the Digital Audio Extender System:
1- Connect your digital audio source’s outputs to the DigitalAudio Extender sender
unit’s audio inputs with either TOSLINK or S/PDIF cabling. Please see “Panel
Layout” on page 4 for a list of connectors on the units.
2- Connect the Sender and Receiver units to one another on their RJ45 link connec-
tor jacks using a single CAT5 cable.
3- Connect your digital audio receiver or digital audio speaker system to the Digital
Audio Extender receiver unit using a TOSLINK or S/PDIF cable plugged into either
one of or both S/PDIF or TOSLINK outputs on the receiver unit. The receiver unit
can output TOSLINK and S/PDIF signals simultaneously.
4- Power on your audio sources and audio playback system. Plug the included 5 volt
DC power supply into the Digital Audio Extender sender unit. Observe that the red
LED on the receiver unit lights up. If it does not, examine all connections carefully
and try again. Upon successful powered connection of the sender and receiver, you
should hear pristine digital audio on your digital audio playback equipment con-
nected to the receiver unit.
Please refer to the next page (page 4) for a detailed panel layout showing
all connectors on the sender and receiver units.
3

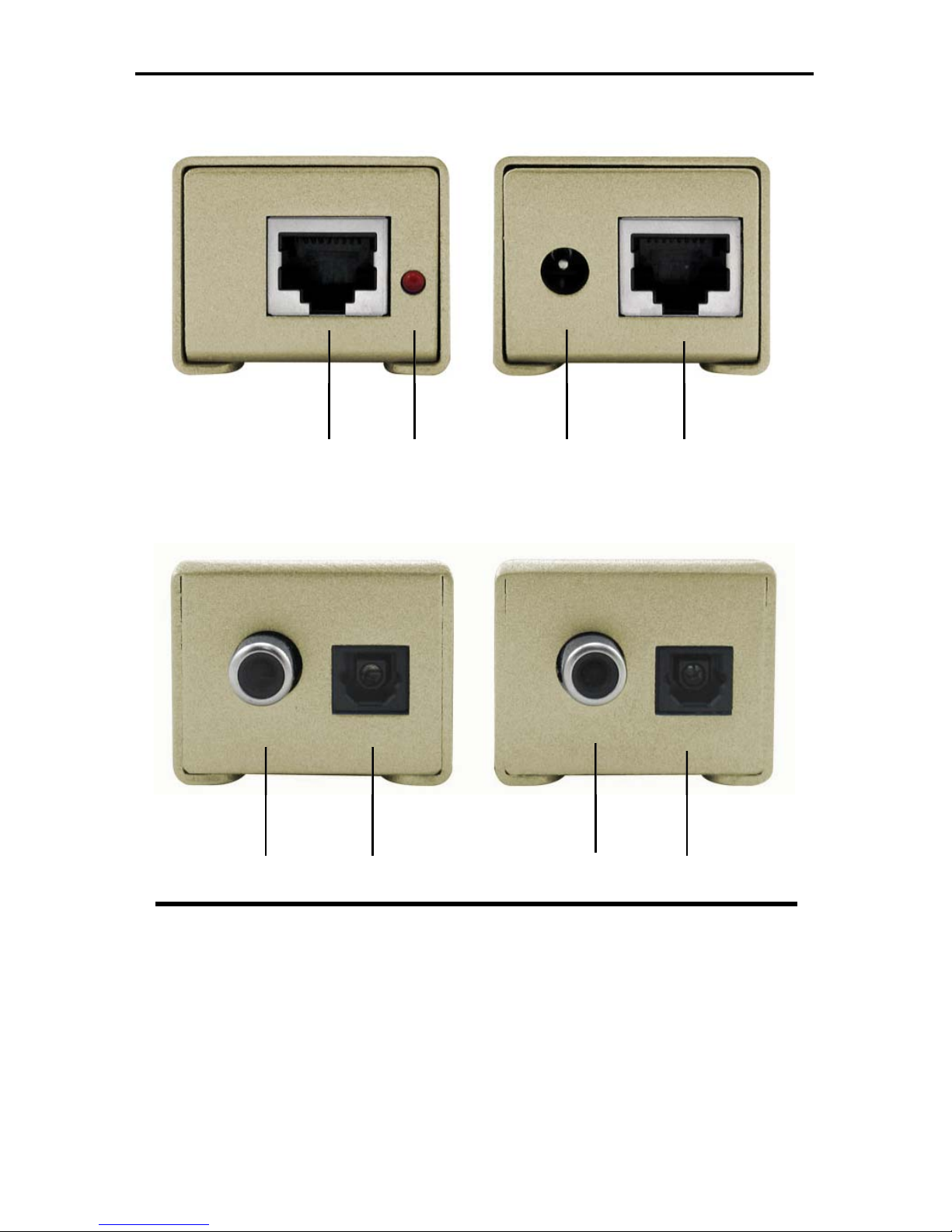

PANEL LAYOUTS
4
Sender (CAT5 link side)Receiver (CAT5 link side)
12 3 4
Receiver (output side) Sender (input side)
56 78
Connections -- Digital Audio Extender Sender & Receiver units
1. RJ45 Jack -- CAT5 cable connection from Sender unit plugs in here
2. Power LED on Receiver -- indicates successful hookup between units
3. 5V DC socket -- Connect the external power supply here (on Sender)
4. RJ45 Jack -- CAT5 cable connection to Receiver unit plugs in here
5. S/PDIF Jack -- Connect digital audio cable here to feed amp / speakers
6. TOSLINK Jack -- Connect digital audio cable here to feed amp / speakers
7. S/PDIF Jack -- Connect digital audio cable here from source to Sender
8. TOSLINK Jack -- Connect digital audio cable here from source to Sender
LINK CABLE WIRING DIAGRAM
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
1818
5
Data Transmission Rate .............................................................................. 12.8 Mb/s
Input/Output ................................................ S/PDIF (Digital Coax), Optical TOSLINK
S/PDIF Performance (Digital Coax): .................................................................96 kHz
Link Connector ................................................................................... RJ-45 Shielded
Power Supply ....................................................................................................5V DC
Power Consumption: ................................................5 Watts (max) per power supply.
Dimensions .............................................................................. 1.2”H x 3.8”W x 1.4”D
Shipping Weight .................................................................................................. 1 lbs
SPECIFICATIONS
6
Gefen Inc. warrants the equipment it manufactures to be free from defects in
material and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two
(2) years from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired
at the current price of parts and labor in effect at the time of repair. Such repairs are
warranted for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including
without limitation, any implied warranty or merchantability or fitness for any particular
purpose, all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from
Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that
may be contained in this manual. In no event will Gefen Inc., be liable for direct,
indirect, special, incidental, or consequential damages resulting from any defect
or omission in this manual, even if advised of the possibility of such damages. The
technical information contained herein regarding Digital Audio Extender features and
specifications is subject to change without notice.
For the latest warranty coverage information, please visit Gefen’s Warranty web
page at http://www.gefen.com/kvm/aboutus/warranty.jsp
PRODUCT REGISTRATION
Please register your product online by visiting Gefen’s web site at http://www.
gefen.com/kvm/Registry/Registration.jsp
WARRANTY
7
