Garmin GPS 75 Manuel utilisateur

GPS 75

Personal NavigatorTM

OWNER'S MANUAL

(Software Version 2.20 or above)

Printed in Taiwan.

transmitted in any form or by any means, electronic or mechanical,

including photocopying and recording, for any purpose without the

express written permission of GARMIN.

Information in this document is subject to change without notice.

GARMIN reserves the right to change or improve their products and to

make changes in the content without obligation to notify any person or

organization of such changes or improvements.

October, 1993 190-00046-00 Rev. D

PREFACE

GARMIN thanks you for selecting our high performance, full featured

Personal NavigatorTM. The GPS 75 represents our continued commitment

to provide you with a portable navigation unit that is versatile, extremely

accurate, and easy to use. We are confident you will enjoy using your unit

for many years to come.

The GPS 75's rugged construction and quality components offer the

reliability demanded by the harshest operating environments. It may be

used in marine and land vehicles, as well as by hunters, hikers, and

military forces. The unit may be operated portably using its own battery

pack, or it may use a 5-40 volt DC external power source for fixed

mounted applications. You can even use a 115- or 230-volt battery

charger for planning trips at home.

This manual and accompanying quick reference guide provide complete

information on safely operating the GPS 75 to its full potential. A

practice voyage has been planned for you to practice your navigation

skills using the built-in simulator. Afterwards, try a trip of your own to

realize the value of the GPS 75 as your Personal NavigatorTM. If you have

any questions or comments, our Product Support Department is eager to

serve you. GARMIN is fully committed to your satisfaction as a

customer.

GARMIN International, Inc.

9875 Widmer Road

Lenexa, KS 66215

1-800-800-1020

(913) 599-1515

CAUTION

The GPS system is operated by the government of the United States

which is solely responsible for its accuracy and maintenance. The

system is under development and is subject to changes which could affect

the accuracy and performance of all GPS equipment. Although the GPS

75 is a precision electronic NAVigation AID (NAVAID), any NAVAID can

be misused or misinterpreted, and therefore become unsafe. Use the

GPS 75 at your own risk. To reduce the risk, carefully review and

understand all aspects of this Owner's Manual and thoroughly practice

operation using the simulator mode prior to actual use. When in actual

use, carefully compare indications from the GPS 75 to all available

navigation sources including the information from other NAVAIDs,

visual sightings, charts, etc. For safety, always resolve any discrepancies

before continuing navigation.

NOTE: This device complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

iii

TABLE OF CONTENTS

CHAPTER PAGE

1 INTRODUCING THE GARMIN GPS 75 1-1

1.1 Capabilities 1-1

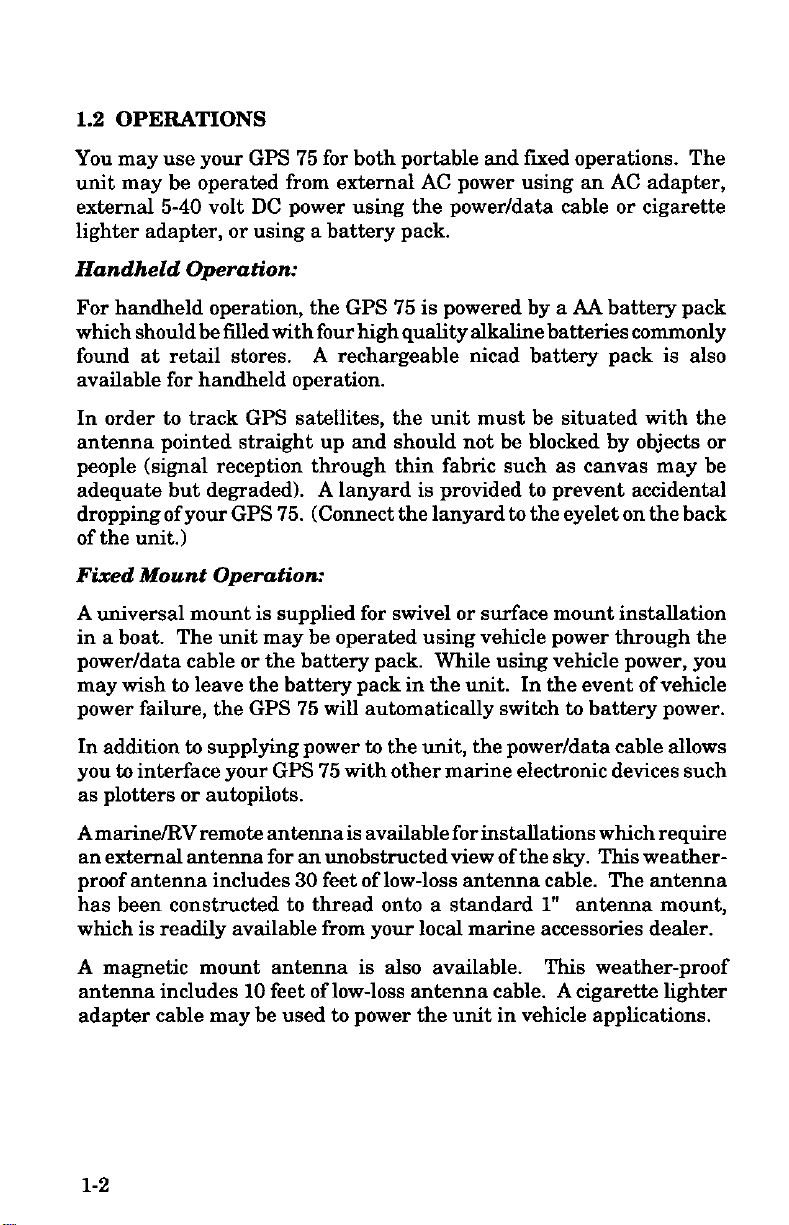

1.2 Operations 1-2

2 GETTING STARTED 2-1

2.1 Front Panel 2-1

2.2 Softkey Operation 2-1

2.3 Cursor and Fields 2-2

2.4 Keypad Operation 2-2

2.5 Entering Data 2-4

2.6 Viewing Messages 2-4

2.7 Operating Modes 2-5

3 BASIC OPERATION 3-1

3.1 Power On 3-1

3.2 Satellite Status Pages 3-2

3.3 Present Position 3-3

3.4 Waypoints 3-5

3.5 Waypoint List 3-6

3.6 AutostoreTM 3-6

3.7 Getting There Fast--GOTO 3-7

3.8 Navigating To A Waypoint 3-8

3.9 Man Overboard 3-11

3.10 Sample Trip 3-11

4 ROUTES 4-1

4.1 Navigating Using Routes 4-1

4.2 Creating and Copying A Route 4-2

4.3 Activating Routes 4-3

4.4 Editing Routes 4-4

4.5 Deleting Routes 4-4

4.6 Active Route 4-5

4.7 Route List 4-5

5 ADVANCED WAYPOINT FEATURES 5-1

5.1 Nearest Waypoints 5-1

5.2 Proximity Waypoints 5-1

5.3 Reference Waypoints 5-2

5.4 Waypoint Scanning 5-3

6 AUXILIARY FUNCTIONS 6-1

6.1 Operating Mode and Filters 6-1

6.2 Plotting Setup 6-2

6.3 Units/Heading Setup 6-3

6.4 Alarms and CDI Setup 6-4

6.5 Date/Time 6-5

6.6 Audio and Display Setup 6-6

6.7 Interface Setup 6-6

6.8 Map Datum Selection 6-7

6.9 Beacon Receiver Setup 6-8

6.10 Sunrise/Sunset Planning 6-9

6.11 Trip & Fuel Planning 6-10

6.12 Messages 6-11

APPENDICES

A MESSAGES A-1

B GLOSSARY AND NAVIGATION TERMS B-1

B.1 Definitions B-1

B.2 Course To Steer (CTS) B-3

C INSTALLATION AND MAINTENANCE C-1

C.1 Specifications C-1

C.2 Electrical Wiring C-3

C.3 Universal Mount Installation C-5

C.4 Universal Mount Operation C-8

C.5 Battery Pack Operation C-10

C.6 Maintenance C-11

C.7 Product Support C-12

D MAP DATUMS D-1

E LOCAL TIME TO UTC TIME OFFSET E-1

2-1

CHAPTER 2

GETTING STARTED

2.1 FRONT PANEL

The front panel consists of a 20-key keypad with a 85 x 64-pixel LCD

display. Both the display and keypad may be illuminated for nighttime

operation.

2.2 SOFTKEY OPERATION

Information displayed on the LCD is commonly referred to as a “page.”

The GPS 75 works with softkey operation. At the bottom of the screen

is a list of page options. To select a different page, press the appropriate

softkey below the desired menu option. Please note that the menu

options must be highlighted in order to use the softkeys. On the bottom

line, extreme right, is the page annunciator, which indicates the current

page you are viewing.

STAT

STO

MOB

ABC

JKL

STU

MNO

VWX

DEF

2GHI

PQR

NAV

RTE

ENT

WPT

CLR

PWR

GOTO

AUTO

Message Annunciator

Page Options

Page Annunciator

Softkeys
