UN3005B

Pull Out Tray

Installation Guide

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

All Flatline Van Co products must be properly assembled and secured before attaching to your

vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily

injury or death to you or to others involved. You are responsible for assembling and securing Flatline

Van Co products to your vehicle, checking the mounting points and attachments prior to use, and

regularly inspecting the products for wear and or damage. We always recommend you use a

professional to install any aftermarket accessories to your vehicle. If you have no mechanical

experience and are not thoroughly familiar with the installation procedures, you must have the

product installed by a professional installer or other qualiﬁed persons. The responsibility is yours

and must be taken seriously for everyone's safety.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

thanks.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

THANK YOU!

ARE YOU EXCITED ABOUT YOUR NEW PULL OUT TRAY? HERE ARE A FEW THINGS TO

DO BEFORE BEGINNING THE INSTALLATION PROCESS--

• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO

DAMAGE INCURRED DURING SHIPPING.

• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR

CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.

• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK

INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS

AND HARDWARE.

• GATHER ALL TOOLS REQUIRED FOR INSTALL.

TOOLS WILL BE DEPENDENT ON YOUR INSTALL METHOD

ESTIMATED INSTALL TIME- 1 HR

ADDITIONAL HELP IS SUGGESTED FOR A FEW OF THE INSTALL STEPS.

NOTE-

NO HARDWARE IS INCLUDED TO SECURE THE PULLOUT TRAY TO YOUR VAN. WE

SUGGEST APPROPRIATE HARDWARE IN THE PAGES THAT FOLLOW.

TOOLS

PACKAGE CONTENTS

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

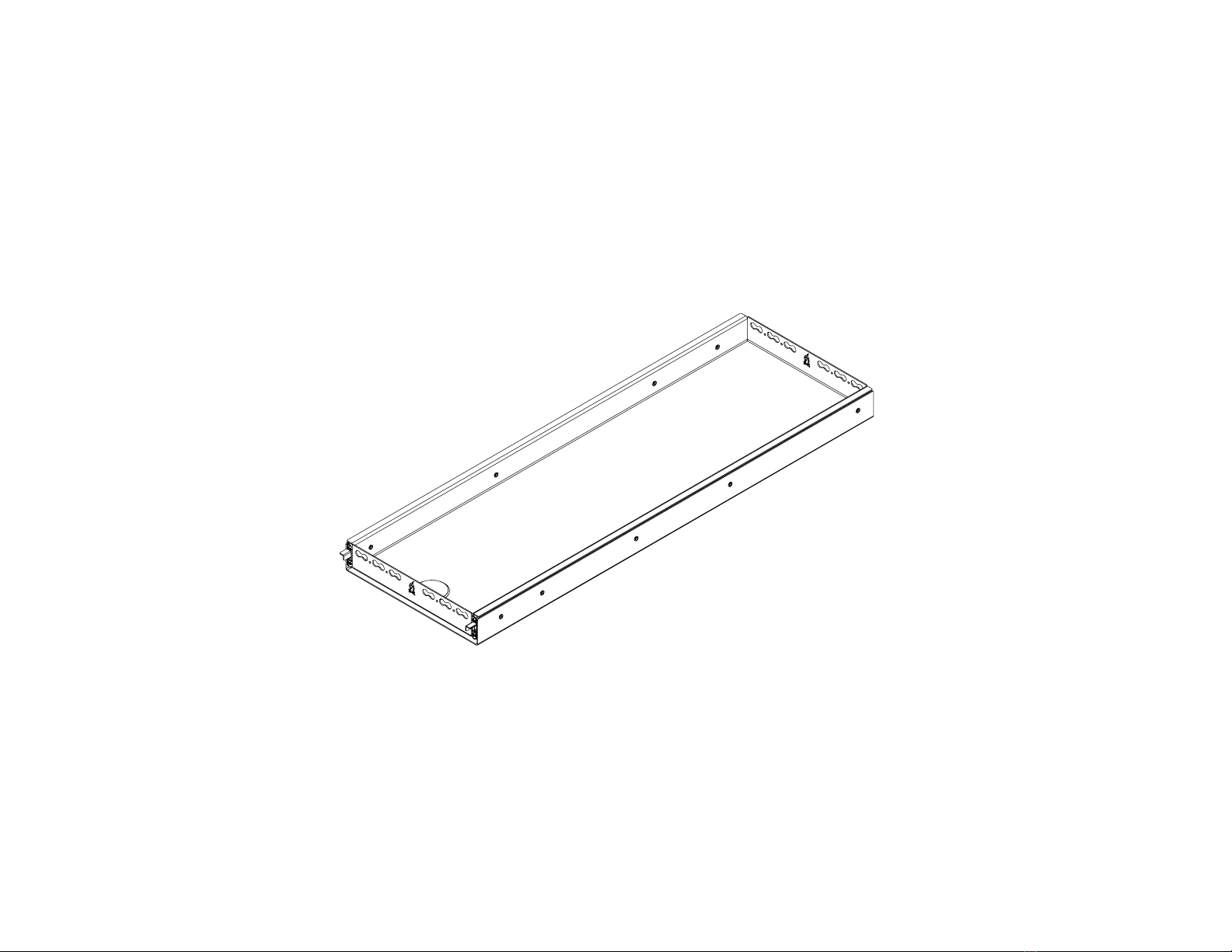

PULL OUT TRAY

QTY - 1

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

LET’S GET STARTED!

1. OUR RECOMMENDED INSTALL METHOD TO ENSURE YOU CAN SAFELY LOAD

THE MAXIMUM CAPACITY REQUIRES DRILLING ALL THE WAY THROUGH YOUR

FLOOR TO THE BOTTOM OF THE VAN AND THROUGH BOLTING (3/8 BOLT,

WASHER, THROUGH PULL OUT TRAY AND FLOOR, LARGE FENDER WASHER,

NYLOCK NUT) THIS METHOD REQUIRES MAPPING OUT YOUR INSTALL

LOCATION AND ENSURING YOU ARE DRILLING IN A SAFE PLACE THAT WON’T

PENETRATE WIRES/BRAKE LINES/FUEL TANKS/ETC.

NOTE- IF YOU HAVE A SUBFLOOR INSTALLED IN YOUR VAN THAT IS

3/4” OR THICKER YOU MAY BE ABLE TO SCREW DIRECTLY INTO THAT

USING #14 SCREWS WITH WASHERS, BUT THE THROUGH BOLT

METHOD IS MUCH STRONGER

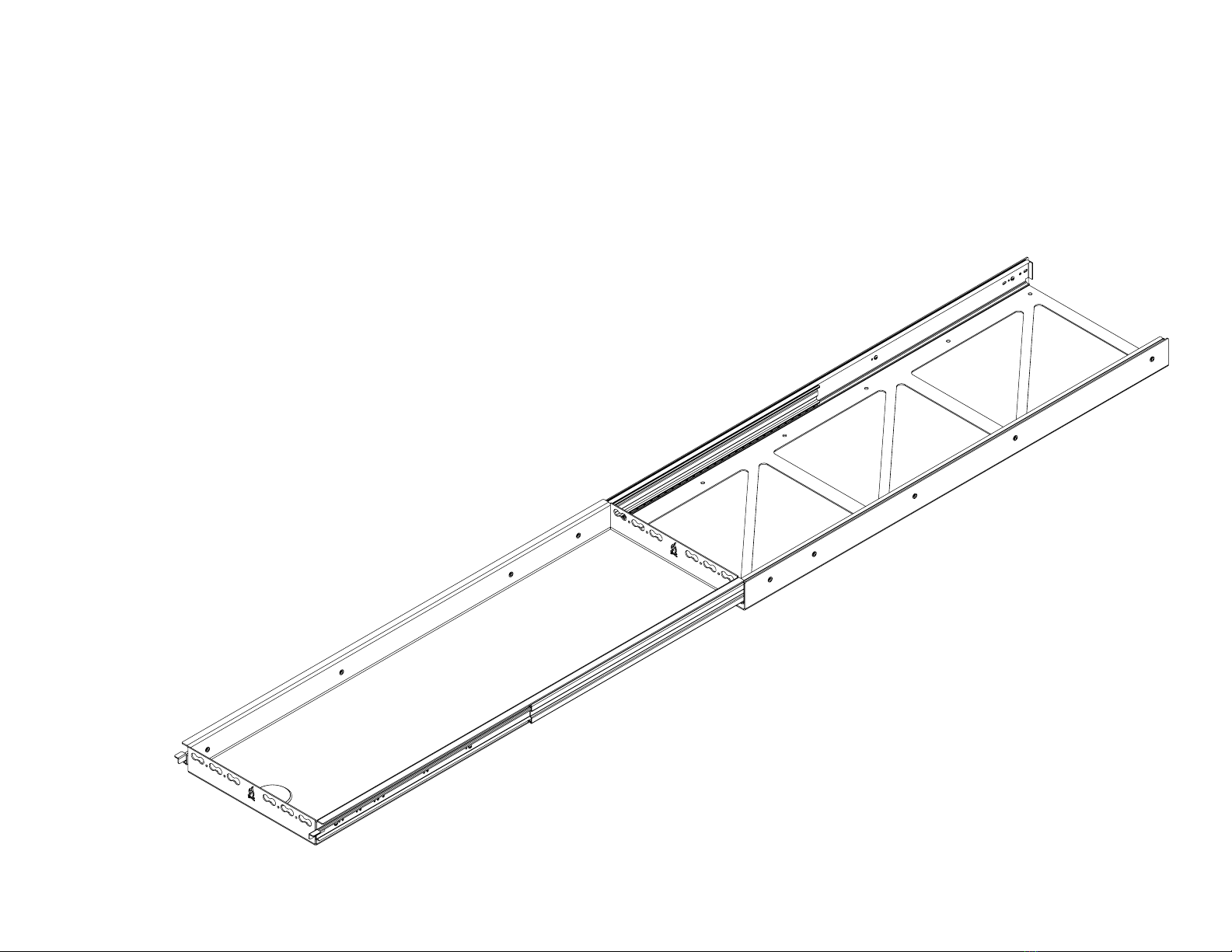

2. YOU WILL NEED TO EXTEND THE PULL OUT TRAY ALL THE WAY OUT TO

REVEAL THE MOUNTING HOLES LOCATED IN THE BASE. WITH THE TRAY

FULLY EXTENDED IT WILL BE NECESSARY TO EITHER PROP THE PROTRUDING

TRAY UP OR HAVE SOMEONE HELP YOU BY HOLDING THE EXTENDED END.

SEE NEXT STEP FOR MORE DETAIL ON MOUNT HOLE LOCATIONS AND

RECOMMENDATIONS.

NOTE- IF YOU ARE MOUNTING THE PULL OUT TRAY IN THE BACK OF

YOUR VAN (MOST COMMON LOCATION) PLEASE ENSURE ENOUGH

CLEARANCE TO CLOSE YOUR REAR DOORS AND NOT MAKE CONTACT

WITH THE DRAWER RELEASE LEVERS.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 5

3. THERE ARE A NUMBER OF MOUNT HOLE LOCATIONS LASER CUT INTO THE

MOUNT BASE. WE RECOMMEND A MINIMUM OF 6 FASTENERS TO SECURE THE

PULL OUT TRAY.

NOTE- THE MOST SECURE METHOD TO FASTEN WOULD BE TO PLACE

A FASTENER IN EACH CORNER AND TWO IN THE CENTER LOCATIONS.

4. DOUBLE CHECK ALL OF YOUR MEASUREMENTS AND FITMENT AND ENSURE

THAT THERE WILL BE NO OBSTRUCTIONS DURING OPERATION OF THE PULL

OUT TRAY.

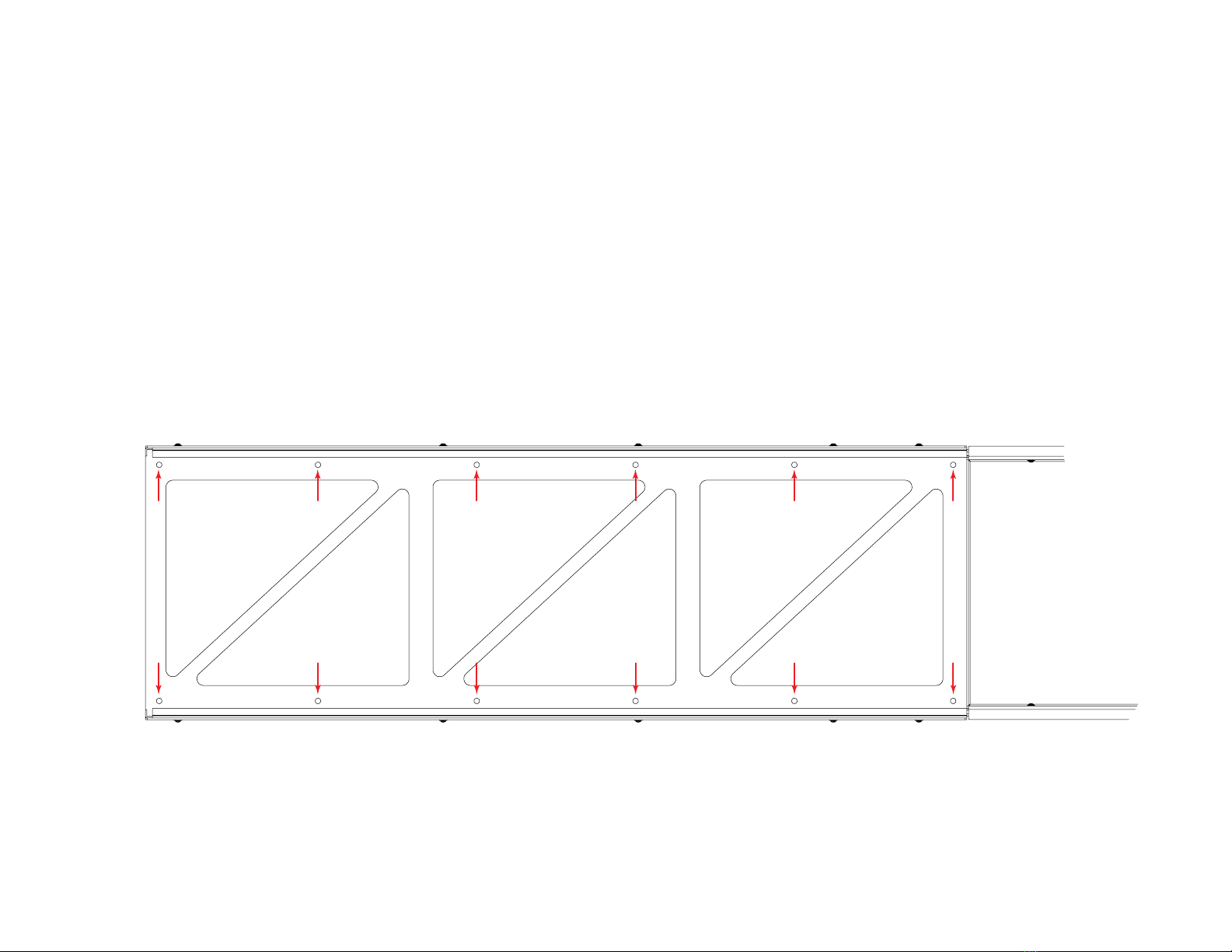

MOUNT HOLE LOCATIONS

SIZED FOR UP TO 3/8” FASTENER

WASHER REQUIRED FOR SMALLER FASTENERS

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 6

1. IF THE SLIDE MOUNT SCREWS ON YOUR PULLOUT TRAY COME LOOSE; SLIDE

THE TRAY OUT TO EXPOSE THE SCREWS FROM THE INSIDE. YOU MAY NEED

TO MOVE THE INNER SLIDE MECHANISM AROUND TO GET THE ACCESS

WINDOW TO LINE UP WITH EACH SCREW.

NOTE- EVERY MOUNT SCREW IS ACCESSIBLE FROM THE INSIDE BY

MOVING THE INNER SLIDE MECHANISM BACK AND FORTH. OUR

CUSTOMER SERVICE TEAM CAN PROVIDE A VIDEO DEMONSTRATING

THIS, PLEASE REACH OUT IF YOU NEED IT.

2. OCCASIONAL VACUUMING AND CLEANING OF THE INSIDE OF THE PULL TRAY

WILL EXTEND THE LIFE OF THE DRAWER SLIDES AND ENSURE SMOOTH

OPERATION.

SERVICE & MAINTENANCE

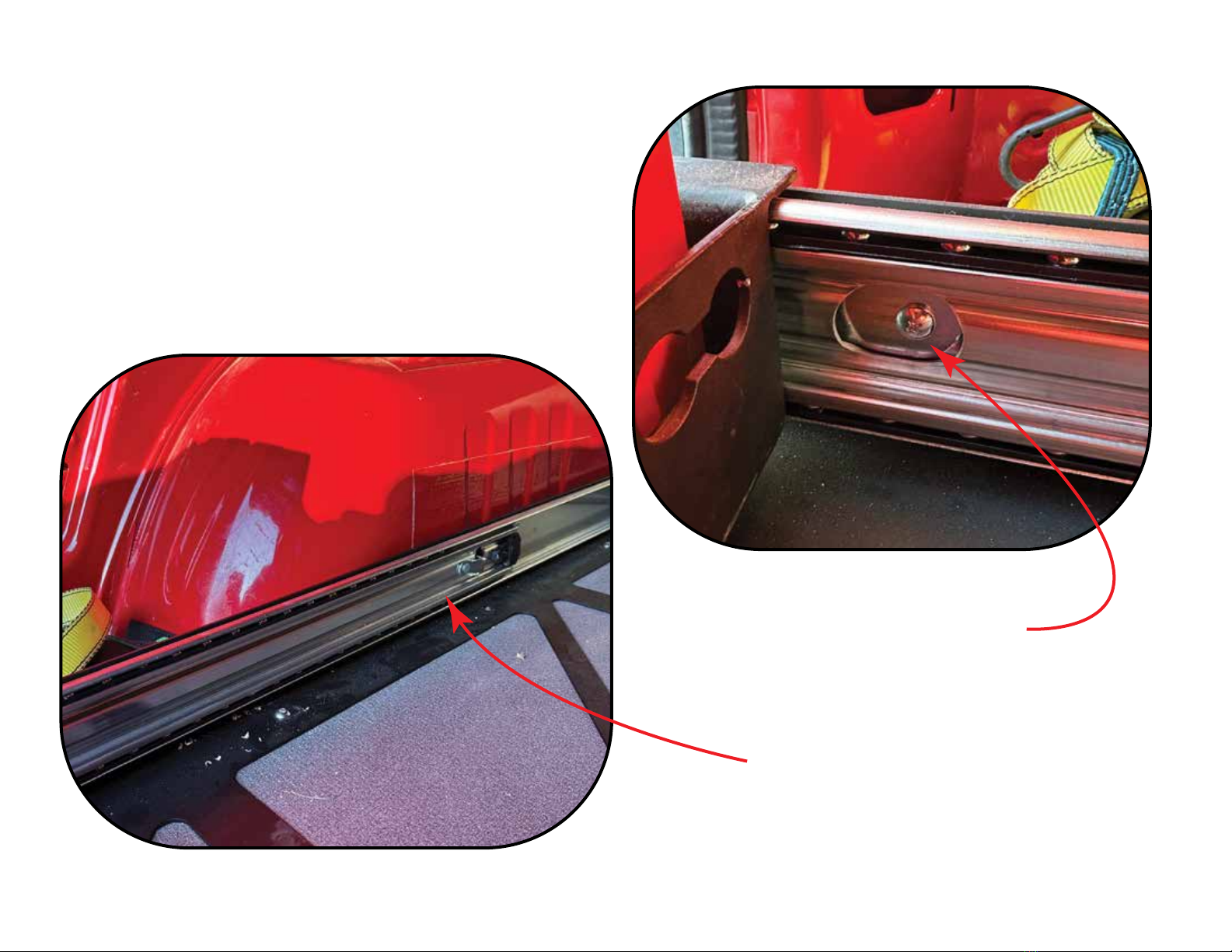

ACCESS HOLE FOR

SLIDE MOUNT SCREWS

MOVE THE INNER SLIDE

INDEPENDENTLY TO ACCESS

ALL SCREWS

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

GET OUT AND EXPLORE!

LEAVE US A REVIEW

Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave

Review." Add a short review and upload a few photos to be showcased on the product page.

SHARE YOUR PHOTOS WITH US

We love seeing how our customers use their FVC products and following along with your adventures. Tag us in your photos

with @ﬂatlinevanco or send them to us via email. We love posting customer pictures in our feed!

CUSTOMER SUPPORT

If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and

outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are!
