FVC TR0201B Manuel utilisateur

PRODUCT


TR0201B

Transit Side Ladder HR

Installation Guide

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

All Flatline Van Co products must be properly assembled and secured before attaching to your

vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily

injury or death to you or to others involved. You are responsible for assembling and securing Flatline

Van Co products to your vehicle, checking the mounting points and attachments prior to use, and

regularly inspecting the products for wear and or damage. We always recommend you use a

professional to install any aftermarket accessories to your vehicle. If you have no mechanical

experience and are not thoroughly familiar with the installation procedures, you must have the

product installed by a professional installer or other qualiﬁed persons. The responsibility is yours

and must be taken seriously for everyone's safety.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

thanks.

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

THANK YOU!

ARE YOU EXCITED ABOUT YOUR NEW SIDE LADDER? HERE ARE A FEW THINGS TO DO

BEFORE BEGINNING THE INSTALLATION PROCESS--

• PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO

DAMAGE INCURRED DURING SHIPPING.

• IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR

CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.

• NEXT, USING THE “PACKAGE CONTENTS” PAGE, CHECK

INVENTORY AND FAMILIARIZE YOURSELF WITH THE PARTS

AND HARDWARE.

• GATHER ALL TOOLS REQUIRED FOR INSTALL.

-9/16 BOX WRENCH OR SOCKET

-7/32 HEX KEY ALLEN WRENCH

-POWER DRILL

-1/8” DRILL BIT

ESTIMATED INSTALL TIME- 1 HR

ADDITIONAL HELP IS SUGGESTED FOR A FEW OF THE INSTALL STEPS.

WE RECOMMEND BLUE LOCTITE FOR SOME OF THE INSTALL STEPS.

TOOLS

7/32 ALLEN KEY

9/16 WRENCH

5/32 ALLEN KEY

PACKAGE CONTENTS

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

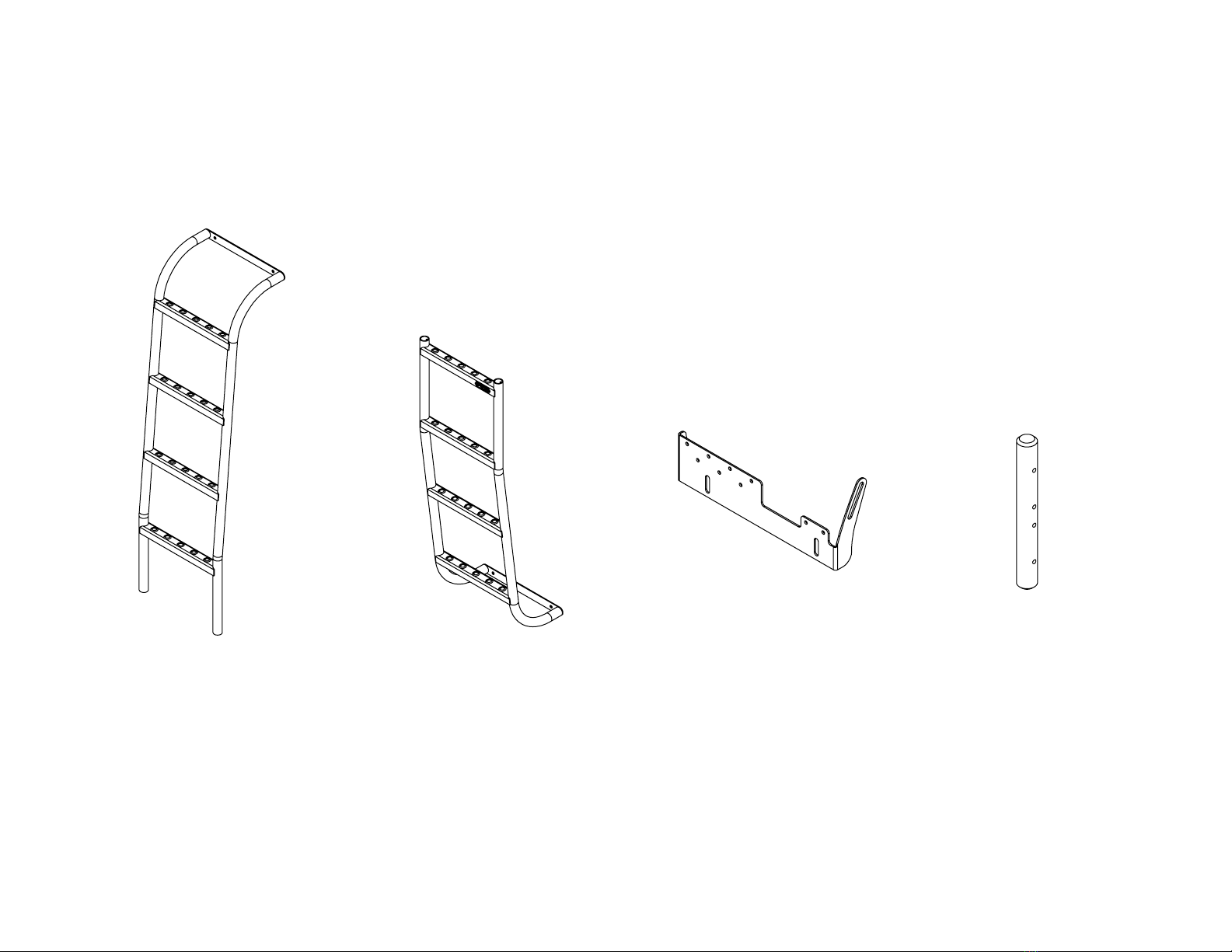

LADDER BOTTOM

QTY-1

LADDER TOP

QTY-1

MOUNT PLATE

QTY-1

COUPLER

QTY-2

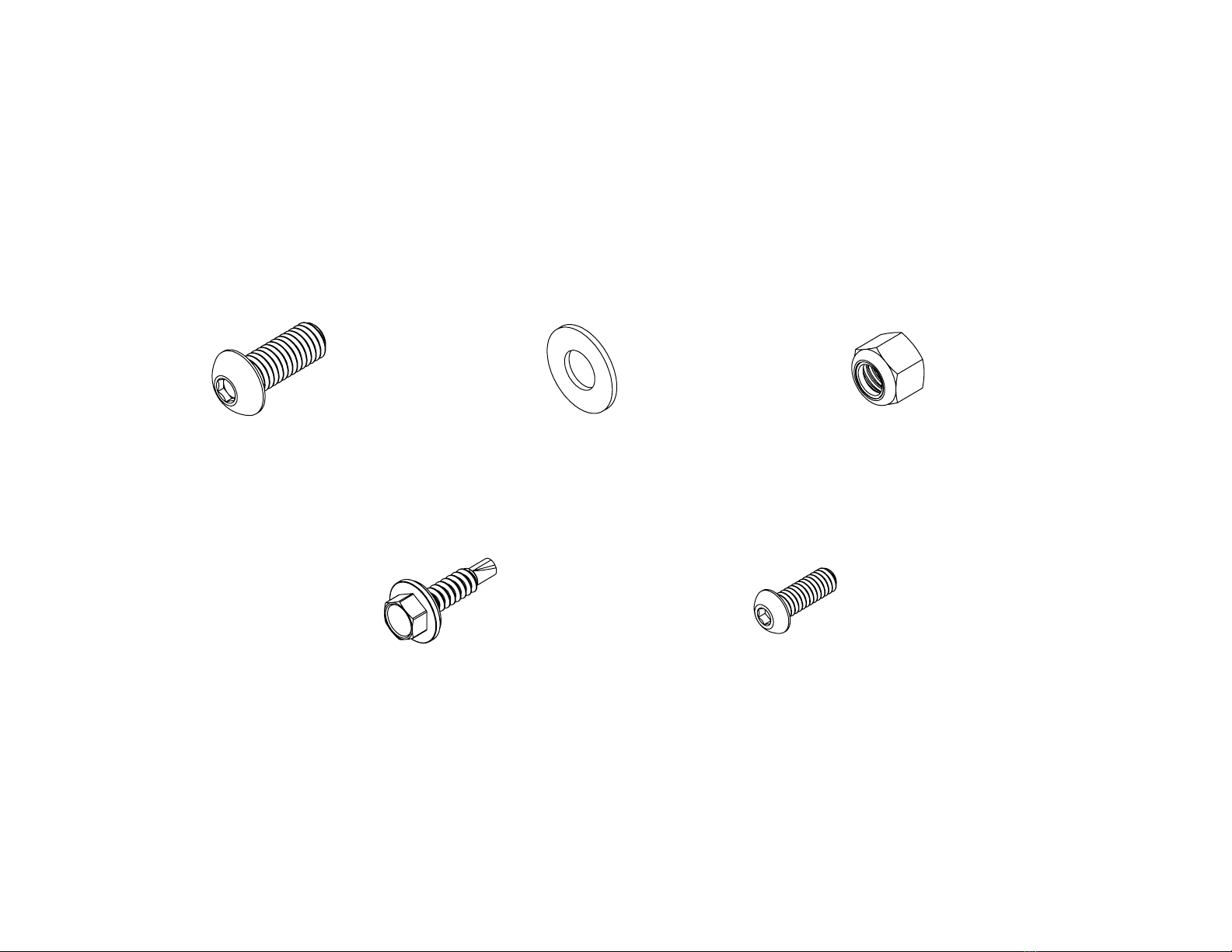

HARDWARE PACK

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

1/4-20 BUTTON HEAD SCREW

QTY-8

3/8-16 X 1” BUTTON HEAD

SCREW

QTY-5

3/8 FLAT WASHER

QTY-10

1/4 SELF DRILLING

SCREW

QTY-9

3/8-16 NYLOCK

QTY-5

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

LET’S GET STARTED!

1. PLACE THE LADDER HALVES FRONT SIDE DOWN, INSERT THE COUPLERS

INTO ONE HALF (SEE FIGURE 1), AND TIGHTEN DOWN USING THE 1/4-20

SCREWS.

2. SLIDE THE OTHER LADDER HALF ONTO THE COUPLERS AND TIGHTEN DOWN.

NOTE- WE RECOMMEND YOU USE BLUE LOCTITE ON THE SCREWS.

FIGURE 1

FIGURE 2

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576

3. NEXT, LOOSELY BOLT THE LADDER TO THE LADDER MOUNT SLOTS ON THE

SIDE OF YOUR LOW PRO ROOF RACK USING TWO (2) EACH OF THE 3/8-16

BUTTON HEAD SCREWS, 3/8 FLAT WASHERS, AND 3/8 NYLOCK NUTS. YOU

MAY NEED TO REMOVE TWO SETS OF FASTENERS ON THE JOINING PLATE OF

YOUR ROOF RACK IF YOU HAVE AN OLDER VERSION OF OUR LOW PRO AS

THEY SIT BEHIND THE LADDER PLATE ON OLDER VERSIONS.

NOTE- HAVING AN EXTRA SET OF HANDS HERE IS VERY HELPFUL.

3B. IF YOU’VE GOT A SAFARI RACK, THIS STEP IS THE SAME, BUT YOU’LL BE

MOUNTING TO THE LADDER MOUNT BRACKET UNDERNEATH THE SAFARI

RACK.

MOUNT TO ROOF RACK

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 7

MOUNT PLATE

4. TAKE THE MOUNT PLATE (SEE RIGHT) AND LOOSELY ATTACH IT TO THE

BOTTOM OF THE LADDER USING TWO 3/8-16 X 1” BUTTON HEAD SCREWS, 3/8

FLAT WASHERS, AND 3/8-16 NYLOCK NUTS.

5. NEXT, TAKE THE REMAINING 3/8 HARDWARE AND ATTACH IT THROUGH THE

WING OF THE MOUNT PLATE AND THE LOWER BODY SUPPORT OF YOUR

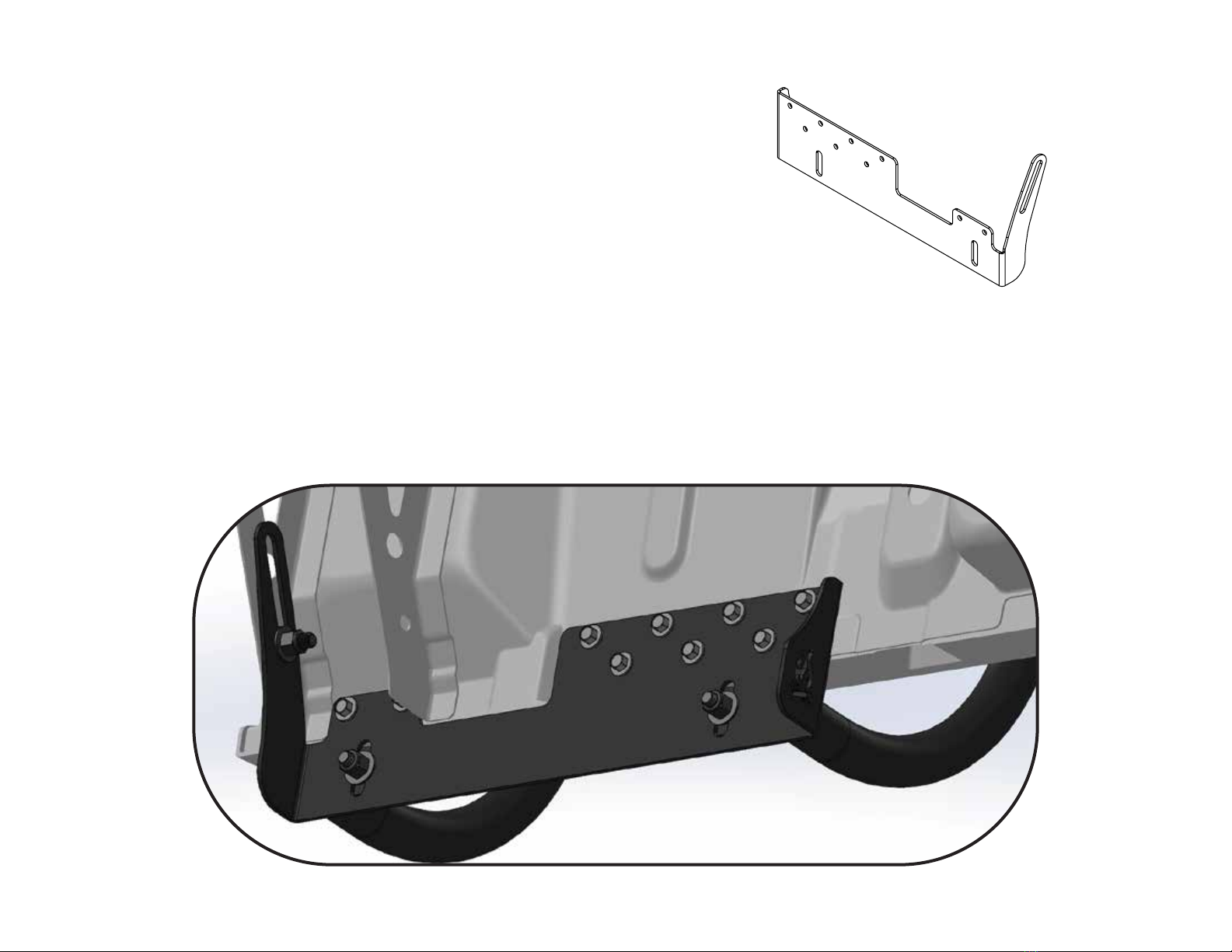

VAN. YOU WANT TO PUSH THE MOUNT UP AS SHOWN BELOW IN FIGURE 3

AND TIGHTEN DOWN THE BOLTS. ONCE THE BOLTS ARE TIGHT, DRIVE IN THE

1/4 SELF DRILLING SCREWS INTO THE PRE-CUT HOLES ON THE MOUNT PLATE.

NOTE- SOME VANS MAY NOT HAVE THE LOWER HOLES NEED TO

MOUNT OUR BRACKET AS SHOWN. IF SO, USE OUR MOUNT BRACKET

AS A TEMPLATE, AND DRILL A 1/2” HOLE IN THE BODY

SUPPORT.

IF YOU’RE HAVING TROUBLE DRIVING THE 1/4 SELF DRILLING SCREWS

IN, SOMETIMES AN 1/8’ PILOT HOLE IS NECESSARY.

6. NOW CLIMB BACK UP TOP, ENSURE THE LADDER IS STRAIGHT UP AND DOWN,

AND TIGHTEN DOWN THE UPPER MOUNTING BOLTS TO THE ROOF RACK.

FIGURE 3

FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576 8

GET OUT AND EXPLORE!

LEAVE US A REVIEW

Happy with your new FVC product? We would love to hear (and see) from you! Head to the product page and click "Leave

Review." Add a short review and upload a few photos to be showcased on the product page.

SHARE YOUR PHOTOS WITH US

We love seeing how our customers use their FVC products and following along with your adventures. Tag us in your photos

with @ﬂatlinevanco or send them to us via email. We love posting customer pictures in our feed!

CUSTOMER SUPPORT

If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and

outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are!

thanks!

@ﬂatlinevanco

facebook.com/ﬂatlinevanco

youtube.com/c/ﬂatlinevanco

support@ﬂatlinevanco.com
