Furuno FELCOM 82A Series Manuel utilisateur

INMARSAT B MOBILE EARTH STATION

FELCOM 82A ... (For Class 1)

FELCOM 82B ... (For Class 2)

Your Local Agent/DealerYour Local Agent/Dealer

9-52 Ashihara-cho,9-52 Ashihara-cho,

Nishinomi

a, Ja

anNishinomi

a, Ja

Tele

hone :Tele

hone : 0798-65-21110798-65-2111

Telefax :Telefax : 0798-65-42000798-65-4200

FIRST EDITION :FIRST EDITION : DEC.DEC. 20002000

Printed in JapanPrinted in Japan

ll ri

hts reserved.

ll ri

hts reserved. D :D : MAY.MAY. 07,200207,2002

PUB.No.PUB.No. IME-56240-DIME-56240-D

*00080907701**00080907701*

(( TENITENI )) FELCOM 82A/BFELCOM 82A/B * 0 0 0 8 0 9 0 7 7 0 1 ** 0 0 0 8 0 9 0 7 7 0 1 *

*IME56240D00**IME56240D00*

* I M E 5 6 2 4 0 D 0 0 ** I M E 5 6 2 4 0 D 0 0 *

WARNING

Ground the equipment to

prevent electrical shock

and mutual interference.

Confirm that the power supply voltage

is compatible with the voltage rating

of the equipment.

Connection to the wrong power supply

can cause fire or equipment damage. The

voltage rating appears on the label at the

rear of the display unit.

Use the correct fuse.

Use of a wrong fuse can cause fire or

equipment damage.

Keep the following compass safe

distances.

Standard Steering

Antenna Unit

Communication Unit

Terminal Unit

Junction Box

Handset

Telex Distress Alert Button

Telephone Distress Button

Incoming Indicator

Printer

Facsimile

Telephone

SAFETY INSTRUCTIONS

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

WARNING

Turn off the power at the

mains switchboard before

beginning the installation.

Post a sign near the switch

to indicate it should not be

turned on while the equip-

ment is being installed.

Fire, electrical shock or

serious injury can result if the

power is left on or is applied

while the eqiuipment is being

installed.

ELECTRICAL

SHOCK

HAZARD

1.60 m 1.10 m

2.10 m 1.40 m

1.10 m 0.80 m

1.10 m 0.90 m

2.05 m 1.40 m

0.80 m 0.60 m

1.00 m 0.80 m

1.60 m 1.20 m

0.50 m 0.40 m

Do not approach the ra-

dome closer than 6 meters

when it is transmitting.

The radome emits radio

waves which can be harmful

to the human body, particu-

larly the eyes.

1.0 m

6.0 m

100W/m

10W/m

distance

RF power density

on antenna aperture

TABLE OF CONTENTS

EQUIPMENT LISTS..................................iii

SYSTEM CONFIGURATION ....................v

1 MOUNTING OF UNITS..........................1

1.1 Antenna Unit...........................................1

1.2 Communication Unit...............................9

1.3 Terminal Unit (for class 1 only)................11

1.4 Printer....................................................12

1.5 Junction Box IB-313................................13

1.6 Telex Distress Alert Button IB-352...........14

1.7 Telephone Distress Button IB-362...........14

1.8 Handset Hanger RB-2721B or

RB-2721B/362..........................................15

1.9 Mounting of Optional Equipment.............16

2 WIRING..................................................20

2.1 Standard Wiring......................................20

2.2 Handset IB-882/IB-882-362 ....................24

2.3 Junction Box IB-313................................25

2.4 Wiring at the Antenna Unit ......................26

2.5 Telephone FC755D1 (option)..................26

2.6 Facsimile PFX-50 (option) ......................27

2.7 Incoming Indicator IC-372 (option)..........28

2.8 Gyrocompass.........................................29

2.9 Telex Distress Alert Button IB-352/

Telephone Distress Button IB-362............30

2.10 DGPS Decoder.....................................31

2.11 Checking the Installation.......................32

3 INITIAL SETTINGS................................34

3.1 Hatch Direction and Heading Adjustment34

3.2 Setting of Telephone (option) ..................35

3.3 Facsimile PFX-50 Setting........................36

4 SYSTEM SETUP....................................38

4.1 Setting Up ..............................................38

4.2 Registering Answerback Code

(Class 1 only)............................................39

4.3 OID/DID Setting......................................40

4.4 Setting of Gyro Converter.......................42

5 9.6K DATA COMMUNICATIONS...........50

5.1 Installation..............................................50

5.2 Checking Operation................................50

5.3 Modem Setup.........................................51

5.4 Dial-up Setup..........................................54

6 CHANGING POWER SPECIFICATIONS

.............................................................58

PACKING LISTS.......................................A-1

OUTLINE DRAWINGS..............................D-1

SCHEMATIC DIAGRAMS.........................S-1

iii

EQUIPMENT LISTS

Standard Supply

Name Type Code No. Qty Remarks

Antenna Unit IB-182 - 1 set

Communication Unit IB-282 - 1 set

Terminal Unit IB-582 - 1 set Class 1 only

Junction Box IB-313 - 1 set

IB-882 - with handset hanger RB-2721BHandset

IB-882-362 -

1 set

with handset hanger RB-2721B-362

Telex Distress Alert

Button IB-352 - 1 set Class 1 only

Telephone Distress

Button IB-362 - 1 set Only when handset IB-882 is selected

Printer PP-510-82 - 1 set

CP16-01300 000-043-215 No antenna cable,

w/CP16-01101

CP16-01310 000-043-216 w/30m antenna

cable, CP16-01101

CP16-01320 000-043-217 w/50m antenna

cable, w/CP16-

01101

CP16-01330 000-043-218

1 set Supplied with antenna

unit

w/100m antenna

cable, w/CP16-

01101

CP16-01811 004-444-210 For CP16-

01310/01320

CP16-01812 004-444-220 For CP16-01330

CP16-01813 004-444-230

1 set Supplied with

Communication Unit

For CP16-01300

CP16-01820 000-043-387 1 set Supplied with Terminal

Unit Cable assy, Power

cable, CP16-01821

CP16-01830 004-444-260 Connector assy

(5m), CP05-08002

CP16-01840 004-444-270 Connector assy

(10m), CP05-08002

CP16-01850 004-444-280

1 set Supplied with Handset

Connector assy

(20m), CP05-08002

CP16-01701 004-444-290 1 set Supplied with Printer

CP16-01102 004-441-450 1 set Supplied with Junction Box

CP16-01801 004-444-300 1 set Supplied with Telex Distress Alert Button

Installation Materials

CP16-01801 004-444-300 1 set Supplied with Telephone Distress Button

FP16-00400 000-043-388 1 set Supplied with Terminal Unit Mini keyboard,

FP16-00401

Accessories

FP16-00100 000-043-258 1 set Supplied with Printer Recording

paper

Optional Supply

Name Type Code No. Qty Remarks

Incoming Indicator IB-372 - 1 set w/CP16-01801

Printer PP-510-82 - 1 set w/CP16-01701, FP16-00100

Facsimile PFX-50 - 1 set w/CP16-00590

Telephone FC755D1 - 1 set w/CP16-00511, 00512

Antenna Cover QB05-1801 100-079-480 1

Modular Jack Box OP16-10 000-043-278 1 Box type

Modular Jack Box OP16-11 000-043-279 1 Flush mount type

Modular Jack Set OP16-13 000-043-228 1

Lifting Metal OP16-15 004-442-460 1

000-560-452 For junction box, 10m

000-103-868 For junction box, 20m

000-103-869 For junction box, 30m

000-132-829 For junction box, 40m

5-pair cable CO-SPEVV-SB-C

0.2x5P

000-132-828

For junction box, 50m

000-110-681 For junction box, 10m

000-138-789 For junction box, 20m

000-138-790 For junction box, 30m

000-138-791 For junction box, 40m

1-pair cable CO-SPEVV-SB-C

0.2x1P

000-138-792

For junction box, 50m

Ribbon Cartridge SP-16051NB 000-133-029 1

A2 1PLYW 000-134-903 1 set 12 rollsPrinter Paper A2 2PLYWW 000-134-780 1 set 12 rolls

K52

257X50M25TRU 000-806-564 1 set 12 rolls, B4 sizeRecording paper

K52

216X50M25TRU 000-806-565 1 set 12 rolls, A4 size

Transformer FIT-100 000-139-903 1 220 VAC→100 VAC

KLASHOPPER

PCMCIA400 000-142-952 1 For laptop computer, PMCIA

card type II, w/cable

HSD I/F

KLASHOPPER

PCI-400 000-142-951 For desktop computer, built-in

type

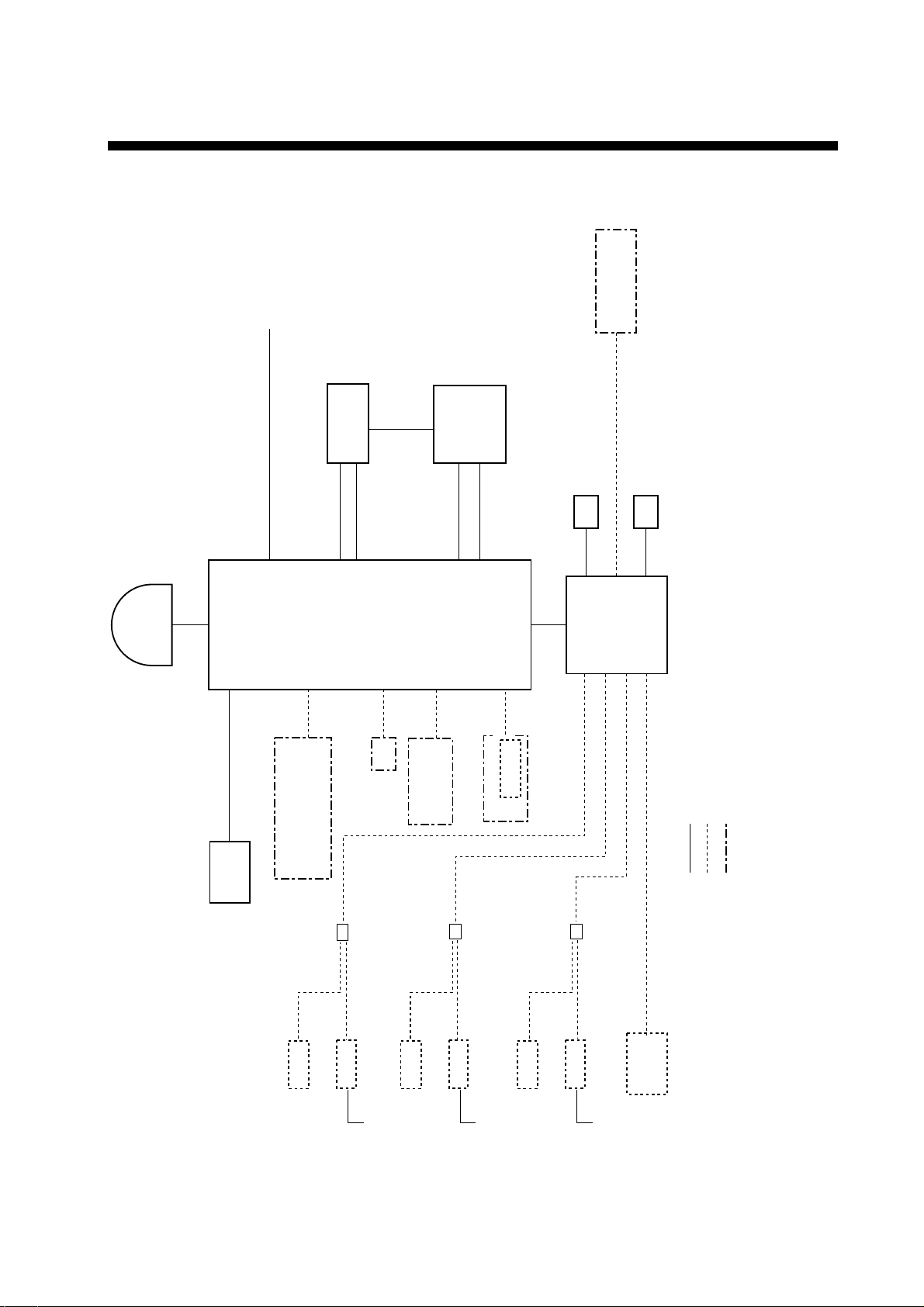

SYSTEM CONFIGURATION

COMMUNICATION

UNIT

IB-282

JUNCTION

BOX

IB-313

ANTENNA

UNIT

IB-182

NAVIGATOR

TELEPHONE DISTRESS BUTTON IB-362*

TELEX DISTRESS ALERT BUTTON IB-352

(FELCOM 82A only)

TERMINAL

UNIT

IB-582

PRINTER

PP-510

(FELCOM 82A only)

Ship's mains

100-115/

220-230 VAC

1∅, 50/60 Hz

HANDSET

IB-882/IB-882-362

DGPS

DECODER

HSD IF

INCOMING INDICATOR IB-372

Max. 3 units

MJ-2S

FACSIMILE PFX-50

PC-AT compatible

HSD

GYROCOMPASS

MJ-2S

100V AC

TELEPHONE FC755D1

Standard supply

Option

Local supply

*: For use with Handset IB-882.

9.6K DATA

100 VAC

TELEPHONE FC755D1

FACSIMILE PFX-50

TELEPHONE FC755D1

FACSIMILE PFX-50

This page is intentionally left blank.

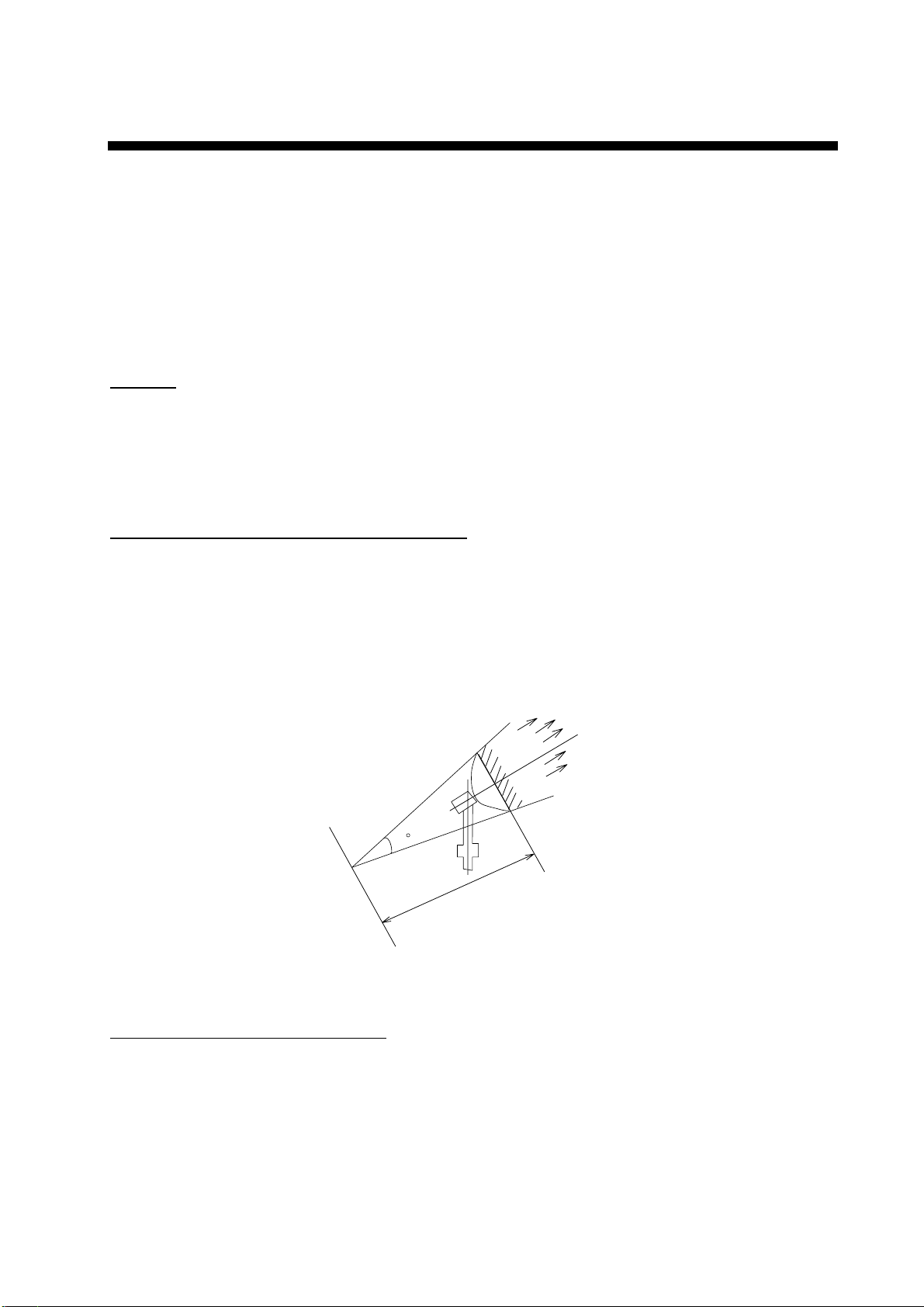

1MOUNTING OF UNITS

This chapter describes how to mount the units of the system, including optional equipment.

1.1 Antenna Unit

1.1.1 Mounting considerations

General

Interfering objects (especially metallic objects such as masts) near the antenna can, in the

worst case, prevent reception or transmission. Further, RF radiation from the antenna will

affect the human body. Keep these and the following guidelines in mind when selecting a

mounting location for the antenna unit.

Secure unobstructed path in all directions

The ideal mounting location secures an unobstructed path between the antenna unit and the

satellites, from horizontal to zenith. In order words, whatever the direction the antenna unit is

pointing there are no interfering objects within the main beam (12 degrees). While this might

be feasible on some vessels, on others it is impossible due to space considerations. The

antenna unit should be located at least 3 meters away from masts having a diameter less

than 15 centimeters.

4300 mm

Beam

Direction

Beam direction

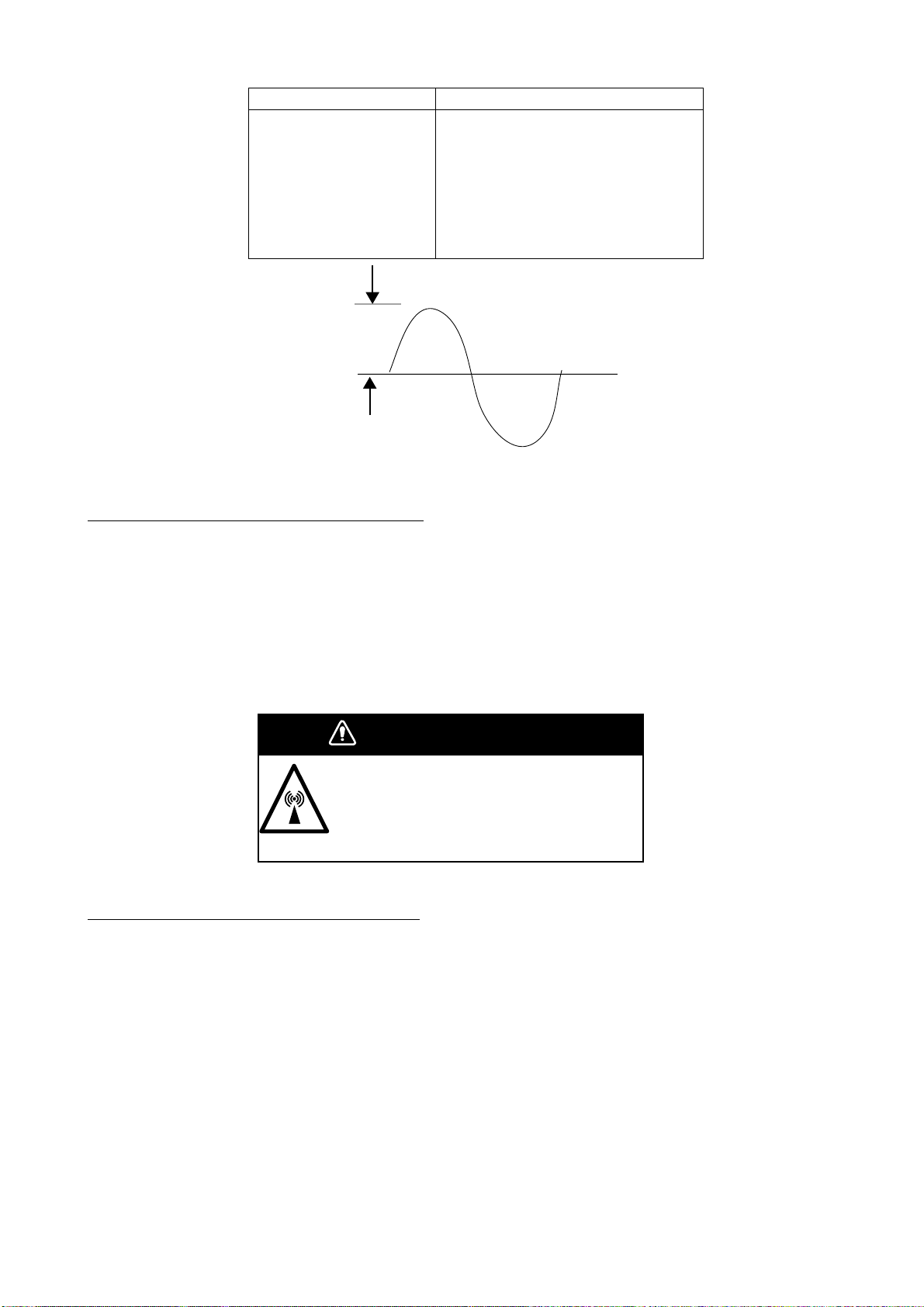

Select a location low in vibration

The maximum permissible vibration amplitude in three axis direction should be as shown in

the table at the top of the next page. Consult with the shipyard to determine the mounting

location which meets the requirements shown in the table.

The table at the top of the next page is taken from Inmarsat’s System Definition Manual

(SDM) and defines frequency and maximum vibration amplitude.

Freq. Range Max. Amplitude

4 to 10 Hz

10 to 15 Hz

15 to 25 Hz

25 to 33 Hz

2.54 mm (max. 9.8 m/s²)

0.76 mm (max. 6.86 m/s²)

0.40 mm (max. 9.8 m/s²)

0.23 mm (max. 9.8 m/s²)

Half Vibration

Max. amplitudes

Locate away from passengers and crew

Radio waves can be harmful to the human body. Since safe distances vary by country and

ship construction there is no uniform formula for calculating safe distance. However, below

are general guidelines.

•Unprotected persons should not approach an area in which the radiation level is higher than 100

W/m2.For an Inmarsat B antenna, the radiation level is less than 100W/m2 at 1 meterdistance from

the radome surface.

•Unprotected persons should not approach within 6 meters of a transmitting Inmarsat antenna.

WARNING

Do not approatch within 6 meters of the

antenna radome when it is transmiting.

Microwave radiation can be harmful to

the human body, particularly the eyes.

Minimum distance from other antennas

HF antennas, communication/navigation antennas:

The FELCOM 82 antenna should be at least 5 meters from a HF antenna. VHF, satellite

navigation antenna and other communication antennas should be at least 4 meters away.

Radar:

The antenna for the FELCOM 82 should be at least 5 meters away to protect the low noise

amplifier in the radar antenna. However, if this distance cannot be secured be sure the

FELCOM 82 antenna unit is not within the radar beam.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Furuno Équipement marin

Furuno

Furuno FR-10 Manuel utilisateur

Furuno

Furuno FCV-1150 Manuel utilisateur

Furuno

Furuno CSH-5 MARK-2 Manuel

Furuno

Furuno FE-800 Manuel utilisateur

Furuno

Furuno GP-1650WF Guide de maintenance et de service

Furuno

Furuno FCV-360 Manuel utilisateur

Furuno

Furuno FCV-295 Manuel utilisateur

Furuno

Furuno FA-170 Manuel utilisateur

Furuno

Furuno MU-192HD Manuel utilisateur

Furuno

Furuno FE-700 Manuel utilisateur

Furuno

Furuno FMD-3200 Manuel utilisateur

Furuno

Furuno 3D Sonar Visualizer F3D-S Manuel utilisateur

Furuno

Furuno FCV-30 Manuel utilisateur

Furuno

Furuno MU-270W Instructions d'utilisation

Furuno

Furuno FG-11/200 MARK-3 Manuel utilisateur

Furuno

Furuno FELCOM 15 Manuel utilisateur

Furuno

Furuno RD-33 Manuel utilisateur

Furuno

Furuno FW-200 Manuel utilisateur

Furuno

Furuno FCV-662 Manuel utilisateur

Furuno

Furuno DS-85 Manuel utilisateur

Furuno

Furuno FE-606 Manuel utilisateur

Furuno

Furuno NavNet TZtouch3 Series Manuel utilisateur

Furuno

Furuno felcom15 Manuel utilisateur

Furuno

Furuno FE-700 Guide de démarrage rapide

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur

Quicksilver

Quicksilver 88688A25 Manuel
