Installation Manual

3D Sonar Visualizer F3D-S

(Option for FSV-25/FSV-25S)

IMPORTANT NOTICES.................................................................................................... i

SYSTEM CONFIGURATION ........................................................................................... ii

1. PREPARATION .......................................................................................................... 1

1.1 Necessary Parts....................................................................................................................1

1.2 Requirements for FSV-25 .....................................................................................................2

1.3 How to Connect the LAN Cable............................................................................................2

1.4 How to Setup the PC ............................................................................................................3

1.5 How to Install the Driver Install File.......................................................................................3

1.6 How to Install the F3D-S Software........................................................................................4

1.7 How to Start and Quit the Software ......................................................................................6

1.8 Initial Settings........................................................................................................................8

2. DISPLAY SCREEN, OPERATIONAL OVERVIEW .................................................. 11

APPENDIX 1 MENU TREE .......................................................................................AP-1

IMPORTANT NOTICES

• This manual has been authored with simplified grammar, to meet the needs of international us-

ers.

• The operator of this equipment must read and follow the instructions in this manual.

Wrong operation or maintenance can void the warranty or cause injury.

• Do not copy any part of this manual without written permission from FURUNO.

• If this manual is lost or worn, contact your dealer about replacement.

• The contents of this manual and the equipment specifications can change without notice.

• The example screens (or illustrations) shown in this manual can be different from the screens

you see on your display. The screens you see depend on your system configuration and equip-

ment settings.

• Save this manual for future reference.

• Any modification of the equipment (including software) by persons not authorized by FURUNO

will void the warranty.

• The following concern acts as our importer in Europe, as defined in DECISION No 768/2008/

EC.

- Name: FURUNO EUROPE B.V.

- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands

• Microsoft and Windows are registered trademarks or trademarks of the Microsoft Corporation

of the USA and other countries.

• Intel and Core are registered trademarks or trademarks of the Intel Corporation of the USA and

other countries.

• GeForce is registered trademark or trademark of the NVIDIA Corporation of the USA and other

countries.

• InstantAccess bar is a trademark of FURUNO Electric Co., Ltd.

• All brand, product names, trademarks, registered trademarks, and service marks belong to their

respective holders.

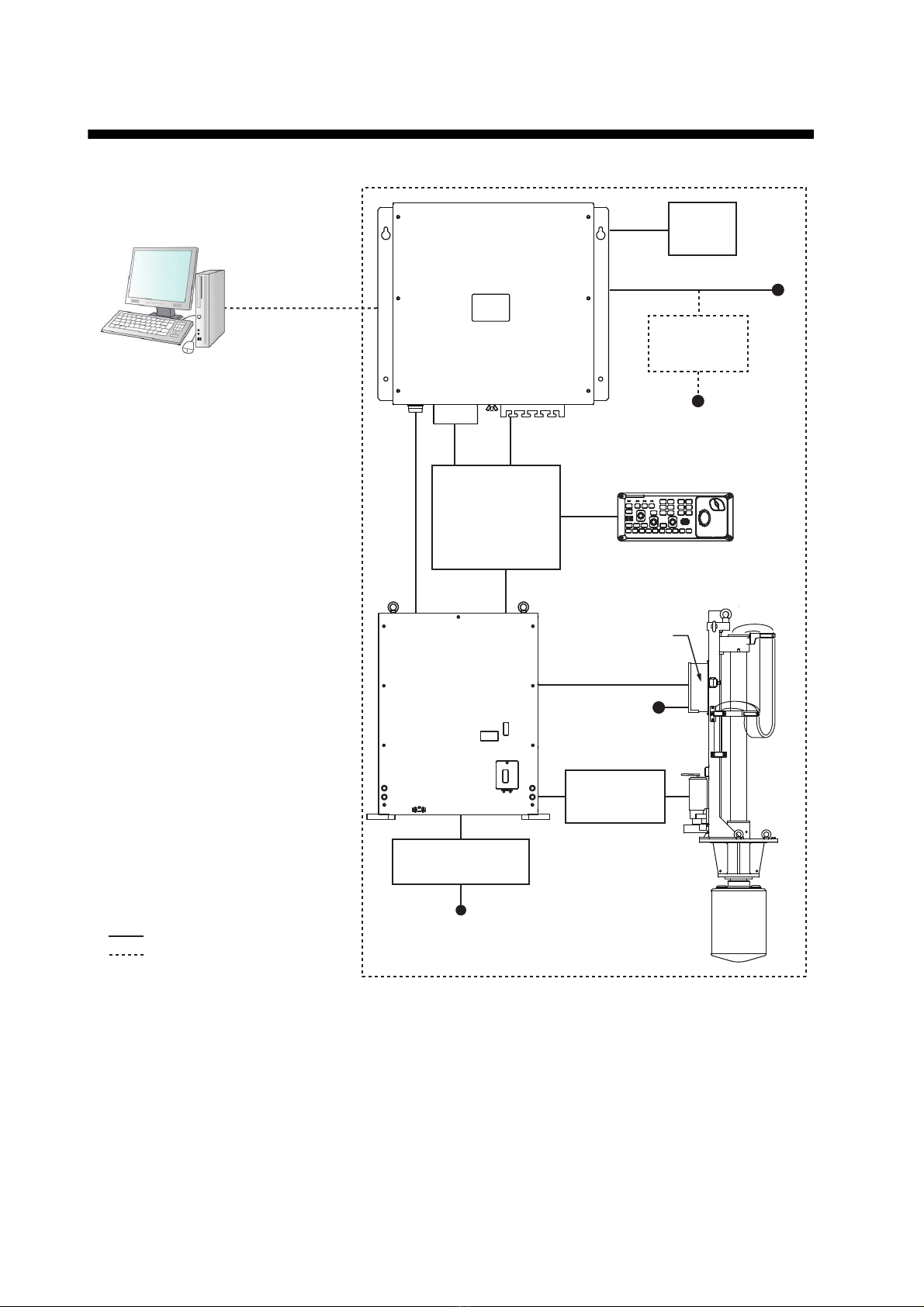

SYSTEM CONFIGURATION

(Local supply, program

installed in PC)

LAN cable

Color Scanning Sonar FSV-25/FSV-25S

Processor Unit

FSV-2503/2503S

IF Unit

FSV-8502

Control Unit FSV-2501

Hull Unit

FSV-253/254

Transceiver Unit

FSV-251

Junction Box

FSV-2550

Raise/Lower

Control Box

FSV-2530

Monitor

Power Supply Unit

FSV-252

100/110/115/220/230 VAC,

1ø, 50/60 Hz

Rectifier

RU-1746B-2

100/110/115/220/230 VAC,

1ø, 50/60 Hz

12-24

VDC

: Standard supply

: Local or optional supply

200-220 VAC,

3ø, 50/60 Hz

1. PREPARATION

1.1 Necessary Parts

Standard Supply

The 3D Sonar Visualizer contains the following items.

3D Sonar visualizer F3D-S (Code No.: 001-546-350)

Folder structure of the CD-ROM

*: For Microsoft®Windows®10 users, this file is usually unnecessary because this file

is already installed as part of the operating system.

PC requirements

Correct operation of the PC cannot be guaranteed unless the following are observed.

• Do not install any software other than F3D-S.

• Do not connect to the Internet.

• Do not perform windows update. This software is compatible with updates up to ver-

sion 1809.

Name Type Code No. Qty Remarks

CD-ROM CDR700S.WP.

S1P10S

000-177-025-10 1 For details, see "Folder

structure of the CD-ROM".

USB Protec-

tion Key

942-000058-

001 KQAKA

000-197-077-10 1

Installation

Manual

IMC-13442-x 000-196-806-1x 1

Folder File Remarks

F3D-S_setup 3DSonarVisualizer.msi F3D-S intallation file; in-

cludes Operator’s Manual

(See section 1.6.)

setup.exe* .NET Framework installation

file

OSS OSS.txt OSS declaration

Sentinel_LDK_Run-time_setup HASPUserSetup.exe Sentinel LDK driver installa-

tion file (See section 1.5.)

readme.html Instructions

OS Microsoft®Windows®10 Pro / Home (English or Japanese)

DirectX version 11.0 or later

CPU Intel®Core™i5 or better

GPU NVIDIA GeForce®GTX1060 or better

Memory Min. 4 GB

SSD / HDD Min. 250 GB

I / O Ethernet 100Base-T, USB 2.0 or better (for USB protect key)

1. PREPARATION

1.2 Requirements for FSV-25

The following updates of programs and printed circuit boards are required to use the

F3D-S. If your FSV-25 does not meet the following requirements, contact your dealer.

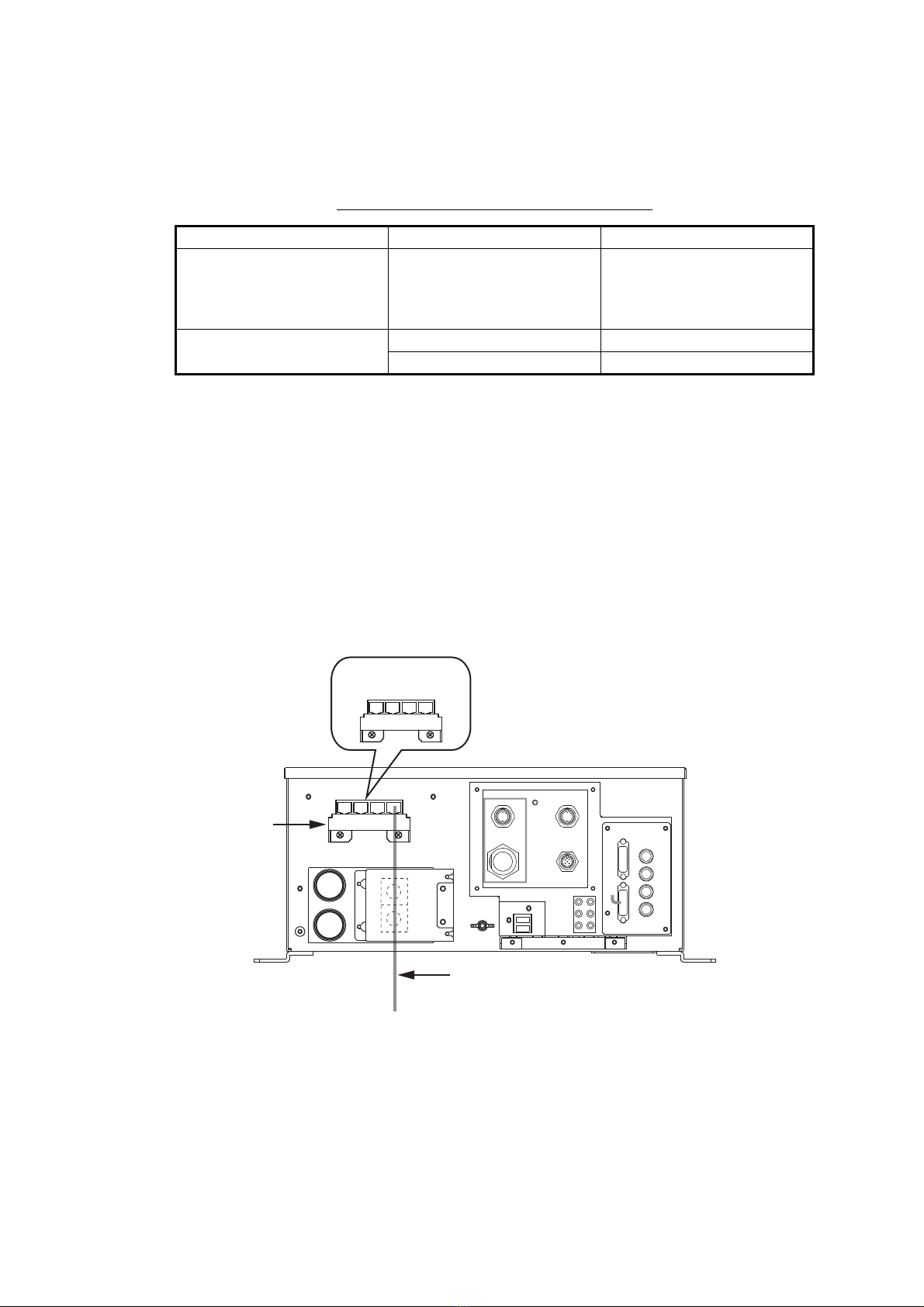

Program version requirements for FSV-25

1.3 How to Connect the LAN Cable

Note: Before connecting the cable, post a notice indicating that the power should not

be applied while doing this procedure.

1. Connect the LAN cable at the back of the processor unit, to Port 3 or Port 4.

Note: Do not connect the cable to Port 1 or Port 2, because the system will auto-

matically shut down after boot up.

2. Use a cable tie to fasten the cable to the cable clamp on the processor unit.

3. Connect the other end of the cable to the LAN port on the PC.

Unit Name of operation test Program version

Processor Unit FSV-2503 FSV-2503 105-0896-02.07 or higher

105-0897-02.07 or higher

105-0926-01.01 or higher

105-0927-01.01 or higher

Transceiver Unit FSV-251 TRCPU 105-0894-02.04 or higher

TRX 105-0890-01.08 or higher

LAN cable

To PC

Cable gland

Port number

1 2 3 4

1. PREPARATION

1.4 How to Setup the PC

1. Turn the PC on.

2. Set the IP address and subnet mask in [Internet Protocol Version 4 (TCP/IPv4)

Properties].

• IP address: 172.31.10.10

• Subnet mask: 255.255.0.0

3. Acces the power and sleep settings then set [Sleep] and [Screen] to [Never].

4. Select [Disable] in [Personalization] - [Lock screen] - [Screen saver settings].

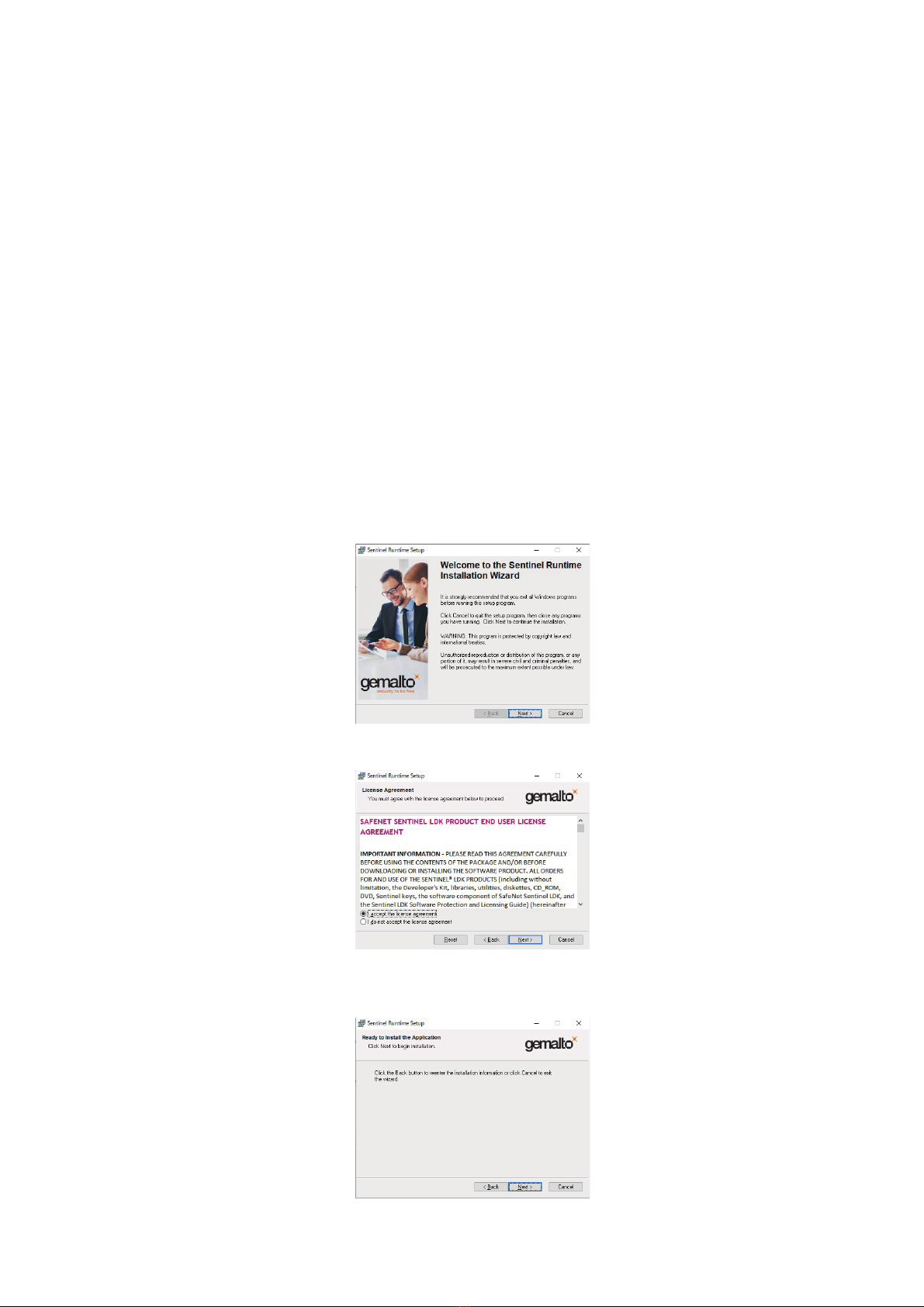

1.5 How to Install the Driver Install File

1. Turn the PC on.

2. Login as a user with administration rights.

3. Set the supplied CD-ROM in the CD drive.

4. Double-click [Sentinel_LDK_Run-time_setup] to open the folder.

5. Double-click [HASPUserSetup.exe].

6. Click [Next].

7. Confirm the contents and click [Next] with [I accept the license agreement] select-

ed.

1. PREPARATION

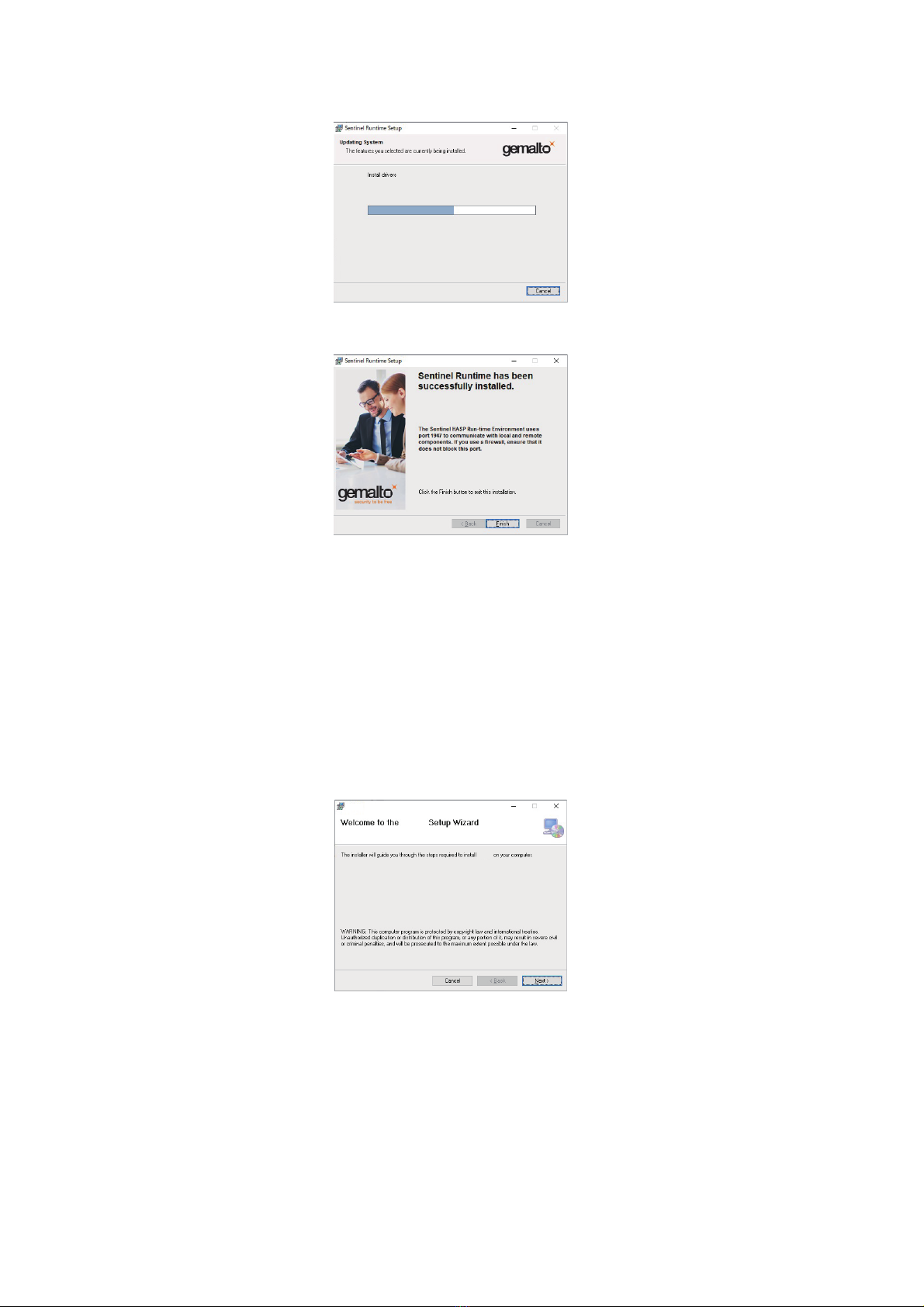

8. Click [Next] to start the installation.

When the installation is complete, the dialog box shown below appears.

9. Click [Finish] to finish.

1.6 How to Install the F3D-S Software

1. Turn the PC on.

2. Login as a user with administration rights.

3. Set the supplied CD-ROM in the CD drive.

4. Double-click [F3D-S_setup] to open the folder.

5. Double-click [3DSonarVisualizer.msi].

F3D-S

1. PREPARATION

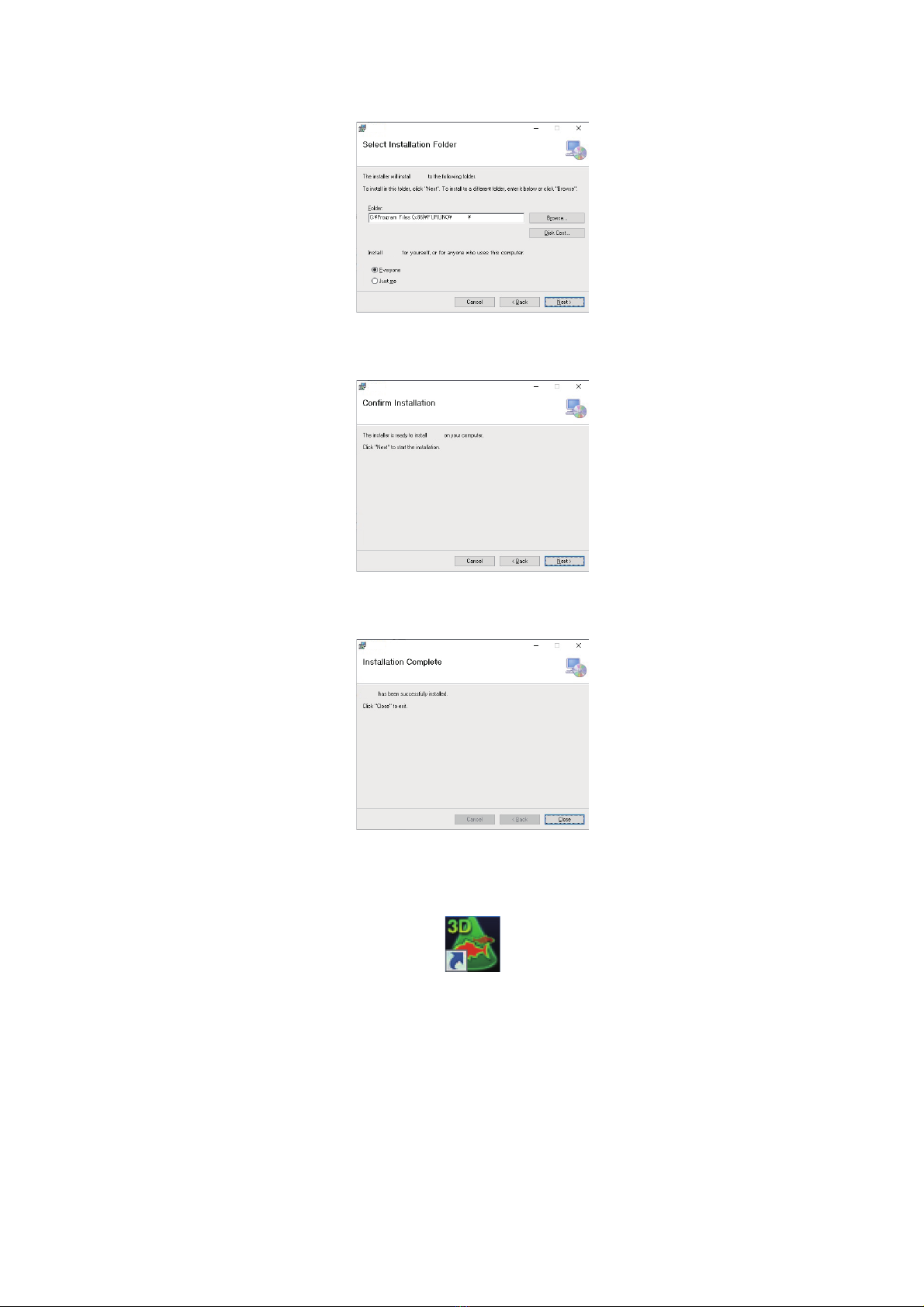

6. Click [Next].

7. Click [Next]. To change the installation folder, click [Browse] and select the folder

before clicking [Next].

8. Click [Next] to start the installation.

When the installation is complete, the dialog box shown below appears.

9. Click [Close] to finish.

Create a shortcut icon for “3DSonarVisualizer.exe” on the desktop.

A shortcut icon for the operator’s manual is automatically generated in the startup fold-

er.

F3D

1. PREPARATION

1.7 How to Start and Quit the Software

1. Turn the FSV-25 on.

2. Turn the PC on.

3. Login as a user with administration rights.

4. Insert the USB dongle into a USB port on the PC. The LED in the dongle lights

red. The USB dongle is required to use this software. Take care not to lose it.

5. Double-click the “3D” shortcut icon on the desktop to start the software.

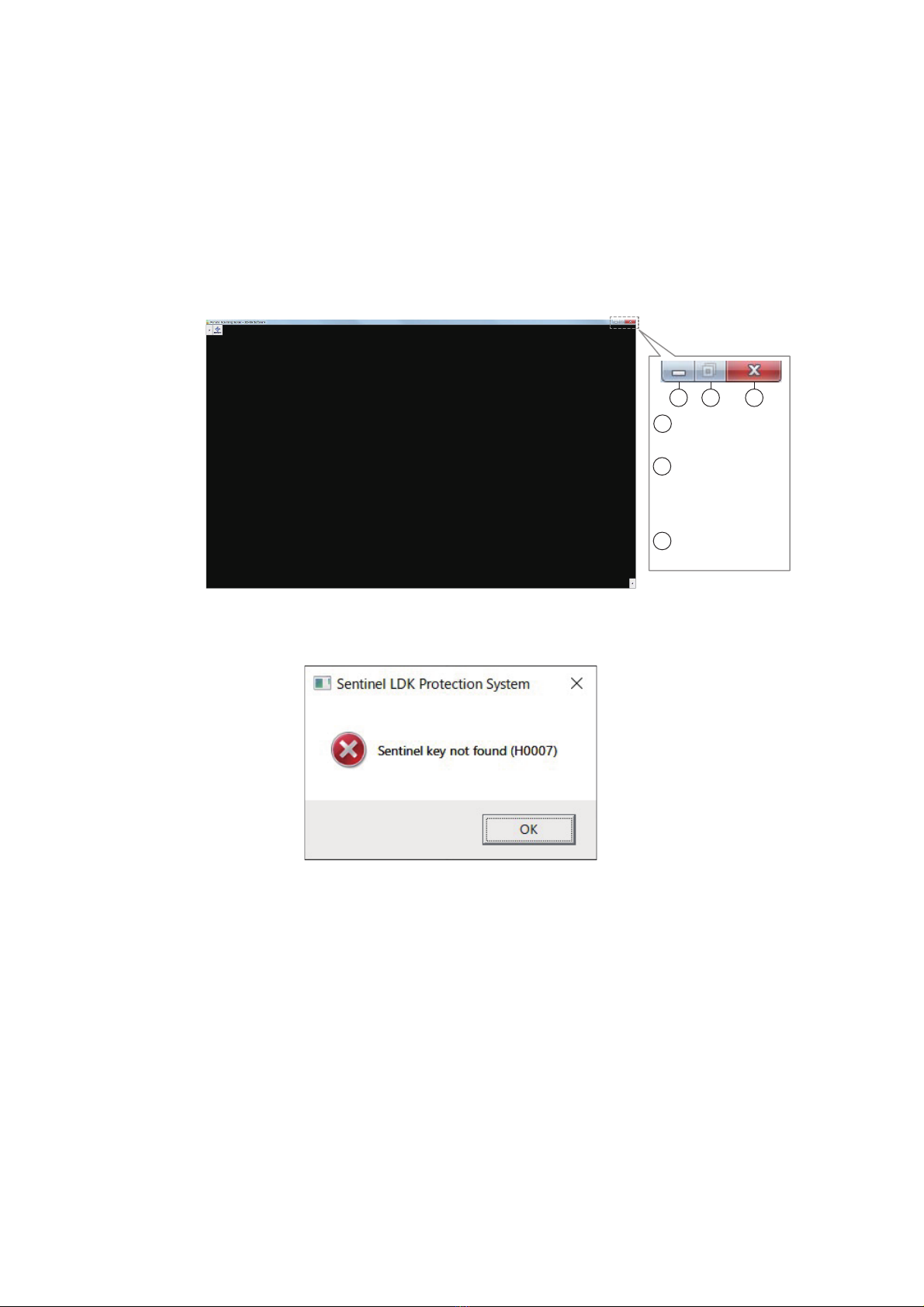

After the start up is completed, the following screen appears.

Note: If the following message appears, re-insert the USB dongle, or re-install the

USB dongle. See section 1.6.

6. To quit the software, click the close button (x) at the upper right-hand corner of the

screen. All setting information is saved to the folder “C: \ Users \ User name \ Doc-

uments \ FURUNO \ F3D-S”.

Note: If the information has not been saved, open the properties of the above-

mentioned files and check that they are not “read only”.

1: Minimize the

window.

2: Maximize the

window.

(Operation is

not available.)

3: Close the

window.
