Installation Manual

NAVIGATIONAL ECHO SOUNDER

FE-700

SAFETY INSTRUCTIONS .............................................................................i

EQUIPMENT LISTS......................................................................................ii

SYSTEM CONFIGURATION .......................................................................iv

1. MOUNTING...............................................................................................1

1.1 Category of Equipment .......................................................................................................1

1.2 Display Unit.........................................................................................................................1

1.3 Transducer..........................................................................................................................4

1.4 Distribution Box...................................................................................................................6

1.5 Matching Box......................................................................................................................7

1.6 Digital Depth Indicator (option) FE-720...............................................................................7

1.7 Transducer Switch Box (option) EX-8..................................................................................8

2. WIRING .....................................................................................................9

3. CHANGING POWER SPECIFICATIONS...............................................17

4. ADJUSTMENTS......................................................................................19

4.1 Transducer Setting............................................................................................................19

4.2 Setting the Time................................................................................................................20

PACKING LISTS………………………………………………………………A-1

OUTLINE DRAWINGS………………………………………………………..D-1

INTERCONNECTION DIAGRAMS………………………………………….S-1

Your Local Agent/DealerYour Local Agent/Dealer

9-52 Ashihara-cho,9-52 Ashihara-cho,

Nishinomi

a, Ja

anNishinomi

a, Ja

Tele

hone :Tele

hone : 0798-65-21110798-65-2111

faxfax 0798-65-42000798-65-4200

IRST EDITION :

IRST EDITION : JANJAN .. 20002000

Printed in JapanPrinted in Japan

ll ri

hts reserved.

ll ri

hts reserved. P2P2 :: JULJUL .. 05, 200405, 2004

PUB.No.PUB.No. IME-23660-P2IME-23660-P2

00080891000

(( KAMIKAMI )) FE-700FE-700 * 0 0 0 8 0 8 9 1 0 0 0 ** 0 0 0 8 0 8 9 1 0 0 0 *

IME

23660

IME

23660

IME

23660

IME

23660

* I M E 2 3 6 6 0 P 2 0 ** I M E 2 3 6 6 0 P 2 0 *

WARNING

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

Do not install the equipment where it

may get wet from rain or water splash.

Water in the equipment can result in fire,

electrical shock or equipment damage.

Be sure no water leaks in at the trans-

ducer mounting location.

Water leakage can sink the vessel. Also

confirm that the transducer will not loosen

by ship’s vibration. The installer of the

equipment is solely responsible for the

proper installation of the equipment.

FURUNO will assume no responsibility for

any damage associated with improper

installation.

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or equipment damage. The

voltage rating of the equipment appears

on the label above the power connector.

ELECTRICAL SHOCK HAZARD

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

CAUTION

Observe the following compass safe

distances to prevent deviation of a

magnetic compass:

Display

unit

Standard Steering

compass compass

0.50 m 0.40 m

When handling the transducer cable,

keep in mind following points.

Keep the cable away from oil and

fuel.

Keep the cable away from the

place where it may be damaged

during the installation.

Do not paint the cable.

The sheath of the transducer cable is

made of chlorophrene rubber (or vinyl

chloride). Therefore, do not paint the

sheath with organic liquid (such as

toluene) since it may harm the sheath.

SAFETY INSTRUCTIONS

Distribution

Box 1.90 m 1.15 m

Digital depth

indicator (option) 0.50 m 0.40 m

Matching Box 0.50 m 0.40 m

Transducer

Switch Box

(option)

1.00 m 0.60 m

Junction Box

(option) 0.30 m 0.30 m

EQUIPMENT LISTS

Standard Supply

Name Type Code no. Qty Remarks

Display Unit FE-701 - 1

w/Installation Materials

CP02-06400 (000-015-872)

and Accessories FP02-04800

(000-015-469)

Distribution Box FE-702 - 1

MB-502 000-013-602 For 50B-6B

Matching Box MB-504 000-013-604

1 For 200B-8B

50B-6B - w/15 m or 30 m cable

Transducer 200B-8B -

1 w/15 m, 30 m or 50 m cable

TTF-5600 000-015-586 For 50B-6B

Transducer Tank TTF-2000 000-015-587 1 For 200B-8B

Spare Parts SP02-04101 001-228-890 1 set For distribution box

Installation Materials CP02-06301 001-228-950 1 set For distribution box

Optional Supply

Name Type Code no. Qty Remarks

000-012-179 Flush mount, color specified

000-012-176 Bulkhead mount, color

specified

000-012-183 7.5BG7/2, Flush mount

000-012-182 7.5BG7/2, Bulkhead mount

000-012-180 N.G, Flush mount

Transducer Switch

Box EX-8

000-012-181

N.G, Bulkhead mount

Cable Assy. FM-C6FPS003-

020

000-143-821 1 2 m cable w/ a 6P connector

For EX-8

JUNCTION Box JIS F8821-1MO

0-20A3P

000-804-877 1

TTF-5001 000-015-877 For 50B-6B

TTF-2001 000-015-878 For 200B-8B

TTF-5002 000-015-885 For 50B-6B (w/Flange)

Transducer Tank

TTF-2002 000-015-887

For 200B-8B (w/Flange)

OP02-78-1 001-229-270 2.5GY5/1.5

Bulkhead Kit OP02-78-2 001-229-280

1 7.5BG7/2

OP02-79-1 001-229-290 N3.0

OP02-79-2 001-229-300 2.5GY5/1.5

Flush Mount Kit (F)

OP02-79-3 001-229-310

7.5BG7/2

Flush Mount Kit (S) OP02-80 001-229-320 1

Data Recording

Software for PC 02-522-990 001-229-090 1 For Windows 95/98/NT4.0

Digital Depth

Indicator FE-720 000-029-025 1 set

w/Installation Materials

CP02-06700 (000-029-068)

Spare Parts

SP65-00601 (002-889-730)

Accessories

FP65-00400 (000-029-067)

iii

MF-22L-1-100V 002-316-040 100 VAC-120 VAC,

Flush mount type

MF-22L-1-200V 002-316-100 200 VAC-240 VAC,

Flush mount type

MF-22L-2-100V 002-316-050 100 VAC-120 VAC,

Bulk head type

Dimmer

MF-22L-2-200V 002-316-130

200 VAC-240 VAC,

Bulk head type

Terminal Box DS-802 000-029-064 1 set With Installation Materials

CP65-00903 (000-029-064)

EGC Printer PP-505-FE 000-055-892 1 set

GV-50B-6B 000-015-265

Gate Valve GV-200B-8B 000-015-273

SYSTEM CONFIGURATION

TRANSDUCER

DISTRIBUTION

BOX

FE-702

DISPLAY UNIT

FE-701

JUNCTION BOX

JIS F8821-1 0-20A3P

MATCHING BOX MB-502 (for 50B-6B)

MB-504 (for 200B-8B)

IEC 61162-1

EIA-232C

IEC 61162-1 Navigation Device

Navigation Device

Personal Computer

IEC 61162-1

TRANSDUCER SWITCH BOX

EX-8

DIGITAL DEPTH INDICATOR

FE-720

: Standard Supply

: Optional Supply

Terminal Box

DS-802

: Local Supply

CONTACT CLOSURE Alarm Unit

Ship's mains

100-115 VAC/200-230 VAC

or 24 VDC

DIMMER

Printer

1. MOUNTING

1.1 Category of Equipment

Equipment for protected area

• Display Unit

• Distribution Box

• Matching Box

• Transducer Switch Box (option)

• Digital Depth Indicator (option)

Equipment to be submerged

• Transducer

1.2 Display Unit

1.2.1 Mounting consideration

The display unitcan be installed on a desktop,on the overhead, on the bulkhead or flush mounted in

a console or panel.

When selecting a mounting location for the display unit keep the following in mind.

• Keep the display unit out of direct sunlight.

• The temperature and humidity should be moderate and stable.

• Locate the unit away from exhaust pipes and vents.

• The mounting location should be well ventilated.

• Mount the unit where shock and vibration are minimal.

• Keep the unit away from electromagnetic field-generating equipment such as motors and

generators.

• For maintenance and checking purposes, leave sufficient space at the sides and rear of the

unit and leave slack in cables.

•A magnetic compass will be affected if placed too close to the display unit. Observe the

following compass safe distances to prevent disturbance to the magnetic compass.

Standard compass: 0.50 meters

Steering compass: 0.40 meters

Cover

Desktop Overhead

1.2.2 Removing the cover

While pressing the center of the cover with your thumbs as illustrated, pull the cover towards you to

remove it.

1.2.3 Desktop mounting

1. Fix the hanger with four tapping screws (5x20).

2. Screw knob bolts in display unit, set it to hanger, and tighten knob bolts.

3. Attach the dummy covers to the unused holes.

Dummy cover

5x20 tapping screws

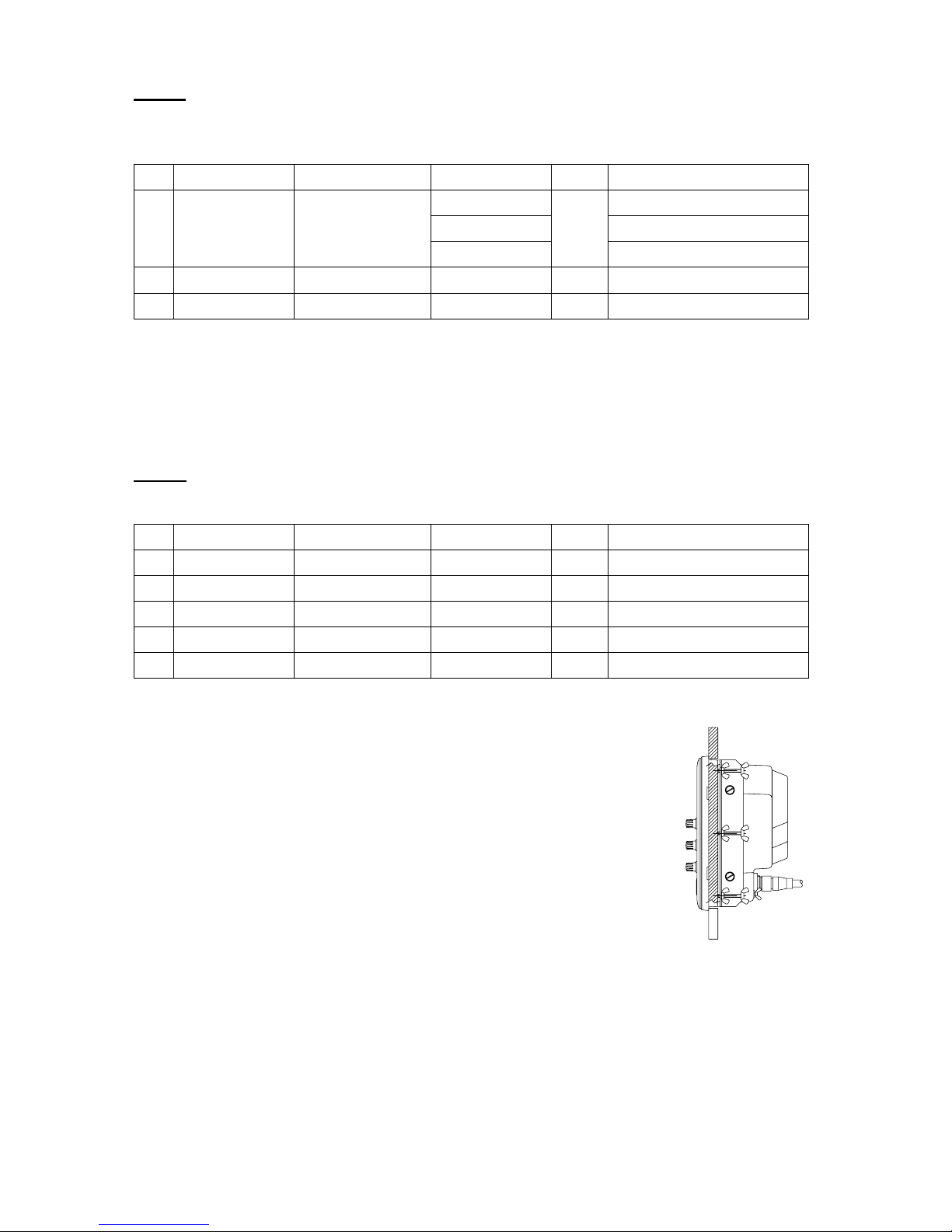

1.2.4 Flush mounting

There are two types of flush mount kits, F type and S type. For details, see the outline diagrams at

the back of this manual.

F type

Flush Mount Kit (F): OP02-79-1 (001-229-290)

OP02-79-2 (001-229-300)

OP02-79-3 (001-229-310)

No. Name Type Code no. Qty Remarks

100-279-270 OP02-79-1:N3.0

100-279-280 OP02-79-2:2.5GY5/1.5

1 Cosmetic panel 02-129-1041-0 100-279-290 1 OP02-79-3:7.5GY7/2

2 Hex bolt M6X12 000-862-127 4

3 Spring washer M6 000-864-260 4

1. Prepare a cutout in the mounting location whose dimensions are 210 (W) X 194 (H) mm.

2. Attach the cosmetic panel (02-129-1041-0) to the display unit with four hex bolts (M6X12)

and four spring washers (M6).

3. Fix the display unit to the mounting location with four tapping screws (5X20).

S type

Flush Mount Kit (S): OP02-80 (001-229-320)

No. Name Type Code no. Qty Remarks

1 Fixing plate 02-129-1045-0 100-279-300 2

2 Wing bolt M4X30 000-804-799 6

3 Hex bolt M6X12 000-862-127 4

4 Spring washer M6 000-864-260 4

5 Wing nut M4 000-863-306 6

1. Prepare a cutout in the mounting location whose dimensions are 194 X 194 mm.

2. Insert the display unit to the cutout.

3. Attach two fixing plates (02-129-1045-0) to the display unit with four

hex bolts (M6X12) and spring four washers (M6).

4. Screw six wing bolts (M4X30) to wing nuts (M4).

5. Fasten the display unit with six wing bolts and nuts.

1.3 Transducer

The installation of the transducer and the tank should be accomplished by a dockyard referring to

the installation drawings at the back of this manual. An example of transducer installation method is

also shown in paragraph 1.3.2.

Note: Discussions should take place and agreement reached with the dockyard for sufficient

reinforcement and watertightness of the hull to comply with the regulations concerned.

Autres manuels pour FE-700

Table des matières

Autres manuels Furuno Équipement marin

Furuno

Furuno FMD-3200 Manuel utilisateur

Furuno

Furuno FELCOM251 Manuel utilisateur

Furuno

Furuno GP-1650WF Guide de maintenance et de service

Furuno

Furuno FCV-10 Manuel utilisateur

Furuno

Furuno FCV-1100L Manuel utilisateur

Furuno

Furuno NavPilot 711 Manuel utilisateur

Furuno

Furuno Black Box Video Sounder FCV-1200BB Manuel utilisateur

Furuno

Furuno Color Video Sounder FCV-522 Manuel utilisateur

Furuno

Furuno FELCOM250 Manuel utilisateur

Furuno

Furuno FMV-605 Manuel utilisateur

Furuno

Furuno FA-170 Manuel

Furuno

Furuno SCX-21 Guide d'installation

Furuno

Furuno FI-501 Manuel utilisateur

Furuno

Furuno FCV-1200L Manuel utilisateur

Furuno

Furuno FELCOM 82A Series Manuel utilisateur

Furuno

Furuno IF-1002 Manuel utilisateur

Furuno

Furuno LC-90MK2 Supplément

Furuno

Furuno DFF1 Manuel utilisateur

Furuno

Furuno ETR-10N Manuel utilisateur

Furuno

Furuno FCV-295 Manuel utilisateur

Furuno

Furuno FE-700 Manuel

Furuno

Furuno Sc 50 Manuel

Furuno

Furuno FCV-1500 Manuel utilisateur

Furuno

Furuno GP-3700F Manuel utilisateur

Manuels Équipement marin populaires d'autres marques

Clarion

Clarion CMS2 Manuel de réparation

EBS

EBS M7000 Manuel utilisateur

Kongsberg

Kongsberg M3 Bathy Manuel utilisateur

NPK

NPK SCS-1002 Manuel utilisateur

Harken

Harken 1561 Manuel utilisateur

Simrad

Simrad DD15 Manuel utilisateur

Notifier

Notifier FS-BSO Manuel utilisateur

Raymarine

Raymarine ST40 Manuel utilisateur

E2S

E2S E2XS112UL Manuel utilisateur

R2Sonic

R2Sonic 2026 Manuel utilisateur

COBHAM

COBHAM SAILOR 6000 Manuel utilisateur

Clarion

Clarion GR10BT Manuel de réparation

Raymarine

Raymarine Maxiview ST80 Guide de l'utilisateur

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instructions de montage

Raymarine

Raymarine ST60 Tridata Guide de l'utilisateur

olympia electronics

olympia electronics ΒS-531/1/MAR Manuel utilisateur

Sonic

Sonic 2024 Manuel utilisateur

Quicksilver

Quicksilver 88688A25 Manuel
