CHAPTER 3 Installation Conditions
3.1 Dimensions
3.2 Mounting
3.3 Cable Connections
3.4 Jumper Settings
This chapter gives the external dimensions, installation conditions, surface
temperature conditions, cable connections, and switch settings of the hard disk
drives.
For information about handling this hard disk drive and the system installation
procedure, refer to the following Integration Guide.
C141-E144
C141-E250 3-1
Installation Conditions
3.1 Dimensions

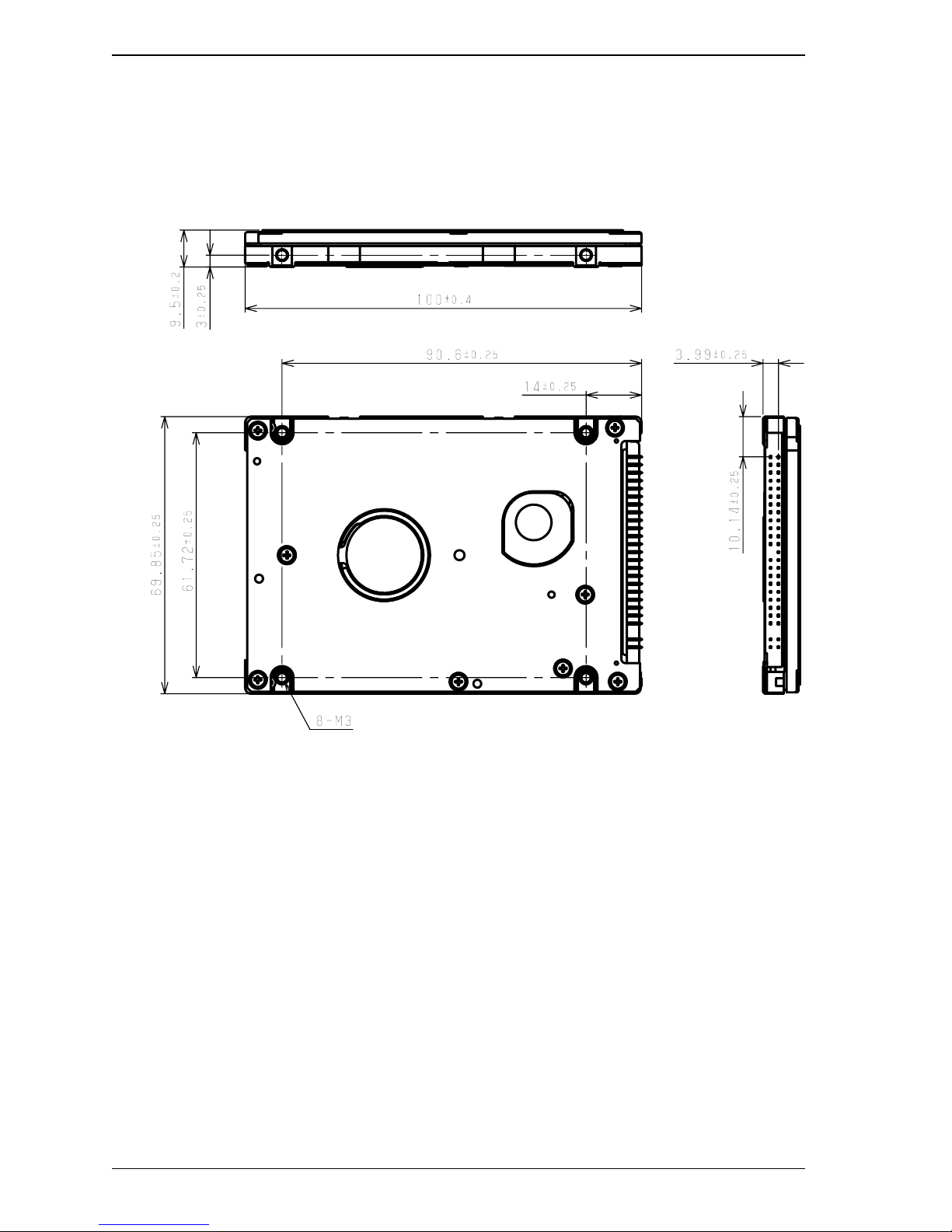

Figure 3.1 illustrates the dimensions of the disk drive and positions of the
mounting screw holes. All dimensions are in mm.
Figure 3.1 Dimensions
3-2 C141-E250
3.2 Mounting
3.2 Mounting
For information on mounting, see the "FUJITSU 2.5-INCH HDD INTEGRATION
GUIDANCE (C141-E144)."
(1) Orientation
The disk drives can be mounted in any direction.
(2) Frame
The MR head bias of the HDD disk enclosure (DE) is zero. The mounting frame
is connected to SG.

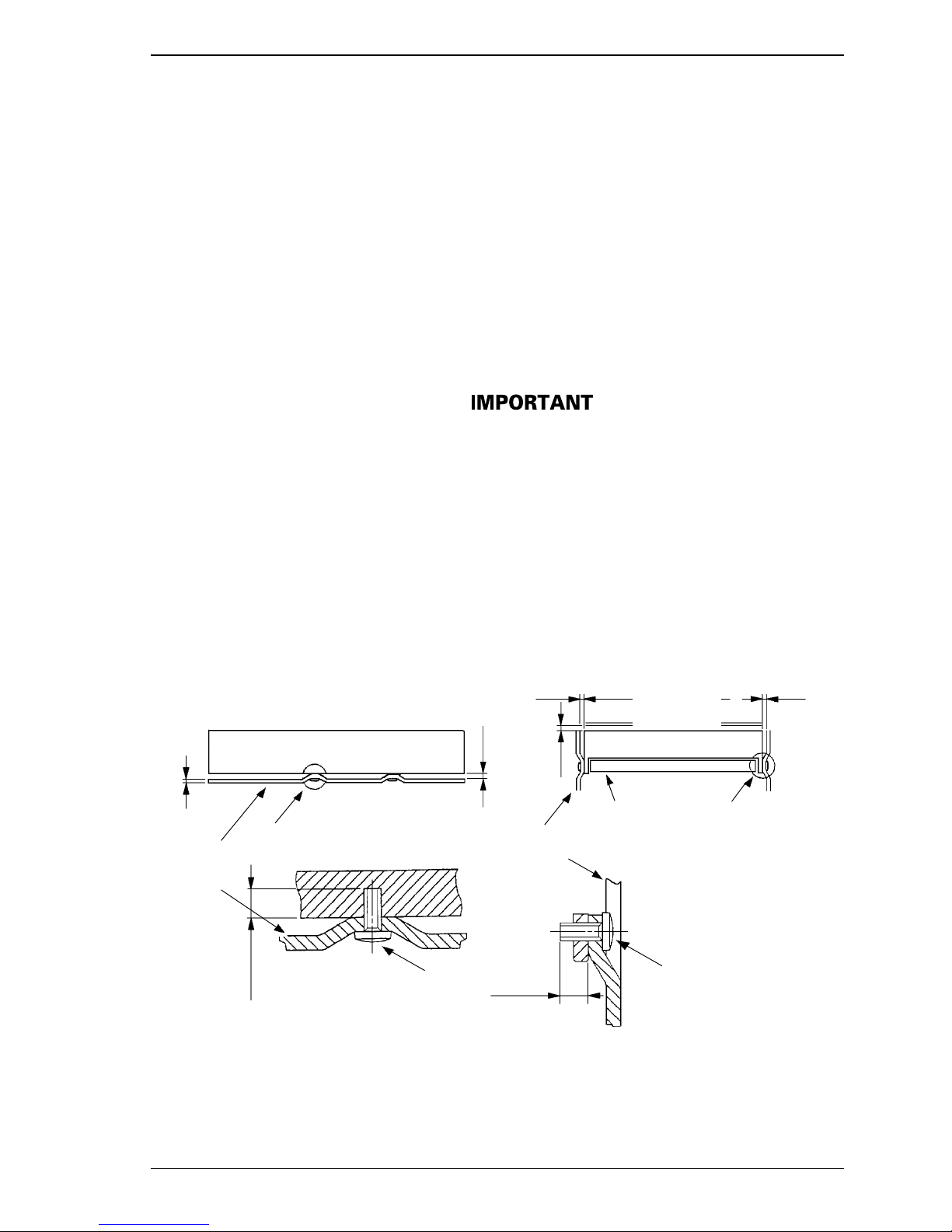

Use M3 screw for the mounting screw and the screw length should
satisfy the specification in Figure 3.2.
The tightening torque must be 0.49N•m (5kgf•cm).
When attaching the HDD to the system frame, do not allow the
system frame to touch parts (cover and base) other than parts to
which the HDD is attached.
(3) Limitation of mounting
Note) These dimensions are recommended values; if it is not possible to satisfy
them, contact us.
Side surface
mounting
2.5 2.5
Bottom surface mounting
2.5
DE 2.5
2 B
PCA
A Frame of system
cabinet
Frame of system
cabinet
3.0 or less Screw
Screw 3.0 or less
Details of A
Details of B
Figure 3.2 Mounting frame structure
C141-E250 3-3
Installation Conditions
Because of breather hole mounted to the HDD, do not allow this to
close during mounting.

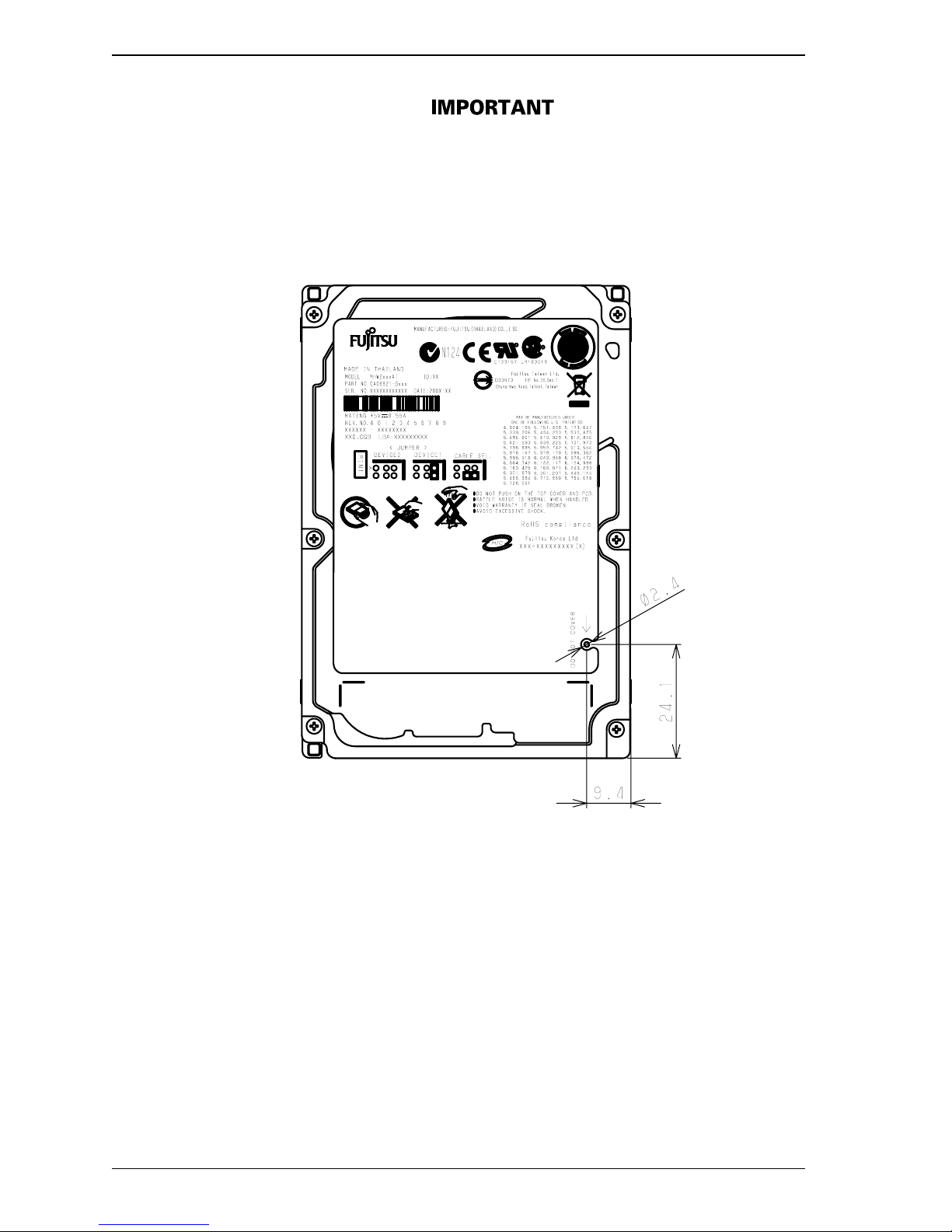

Locating of breather hole is shown as Figure 3.3.
For breather hole of Figure 3.3, at least, do not allow its around φ 3
to block.
Figure 3.3 Location of breather
3-4 C141-E250
3.2 Mounting
C141-E250 3-5
(4) Ambient temperature
The temperature conditions for a disk drive mounted in a cabinet refer to the
ambient temperature at a point 3 cm from the disk drive. The ambient
temperature must satisfy the temperature conditions described in Section 1.4, and
the airflow must be considered to prevent the DE surface temperature from
exceeding 60 °C.
Provide air circulation in the cabinet such that the PCA side, in particular,
receives sufficient cooling. To check the cooling efficiency, measure the surface
temperatures of the DE. Regardless of the ambient temperature, this surface
temperature must meet the standards listed in Table 3.1. Figure 3.4 shows the

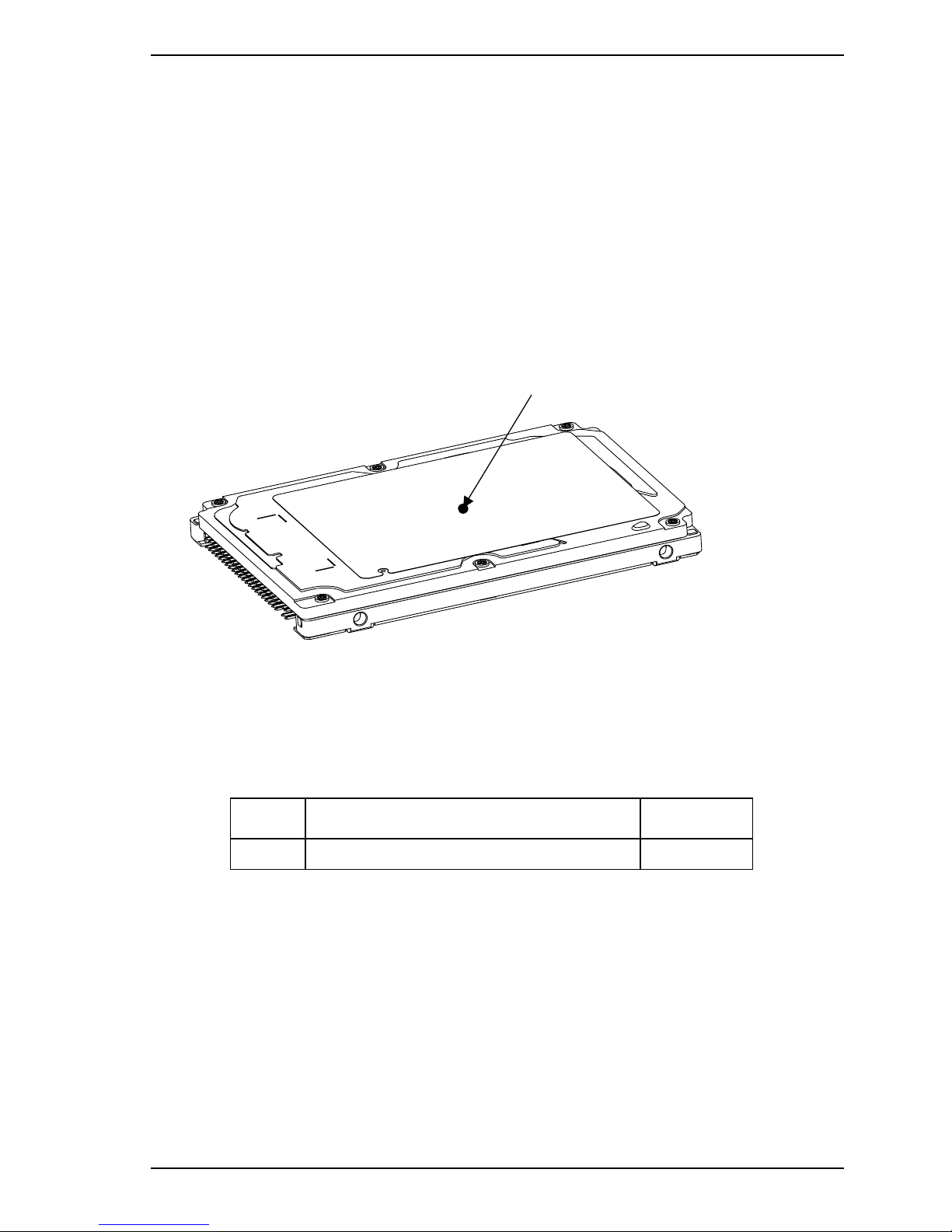

temperature measurement point.
1
Figure 3.4 Surface temperature measurement points
Table 3.1 Surface temperature measurement points and standard values
No. Measurement point Temperature
1 DE cover 60 °C max
Installation Conditions
(5) Service area

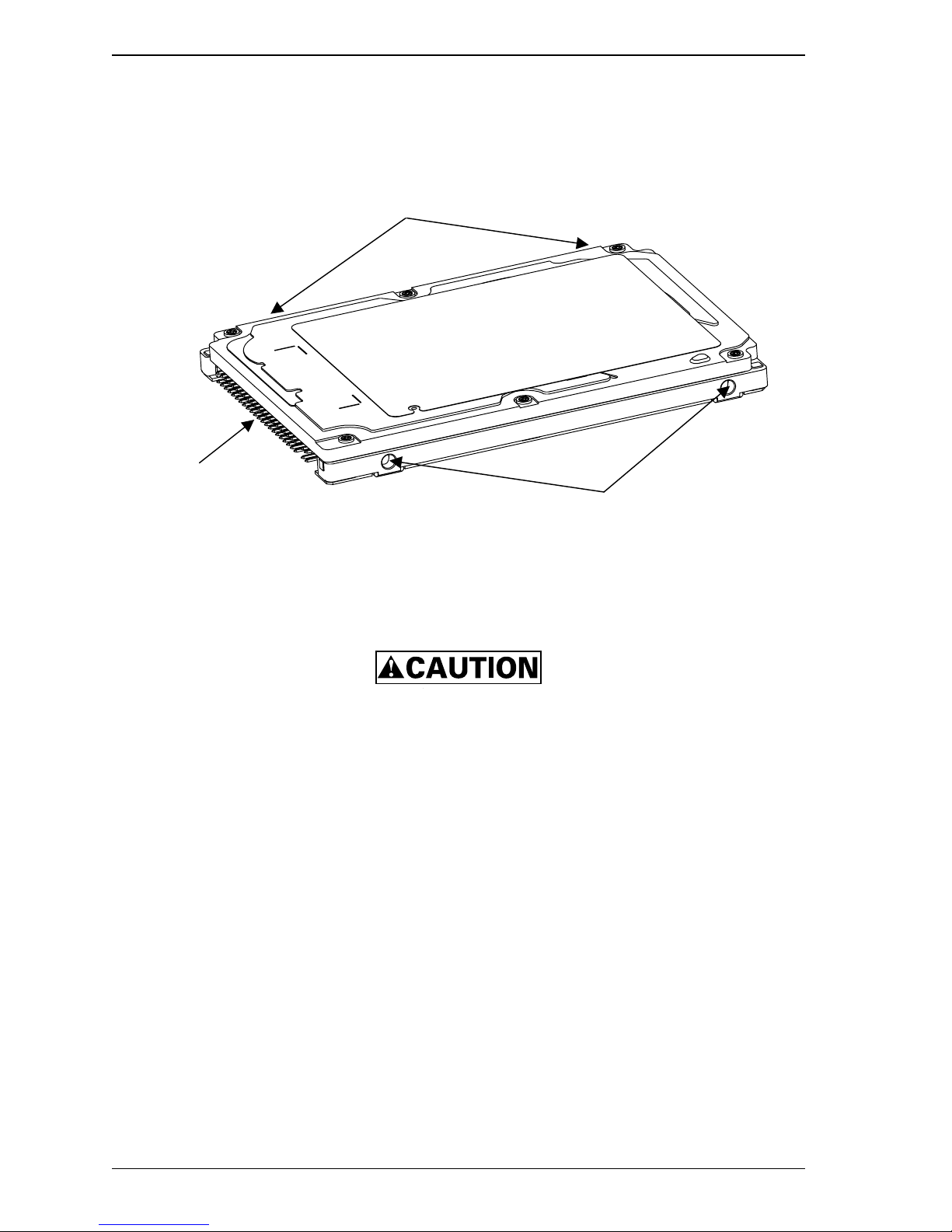

Figure 3.5 shows how the drive must be accessed (service areas) during and after
installation.
Mounting screw hole
Mounting screw hole
Cable connection
Figure 3.5 Service area
Data corruption: Avoid mounting the disk drive near strong
magnetic sources such as loud speakers. Ensure that the disk drive
is not affected by external magnetic fields.
Damage: Do not press the cover of the disk drive. Pressing it too
hard, the cover and the spindle motor contact, which may cause
damage to the disk drive.
Static: When handling the device, disconnect the body ground
(500 kΩor greater). Do not touch the printed circuit board, but hold
it by the edges.
(6) Handling cautions

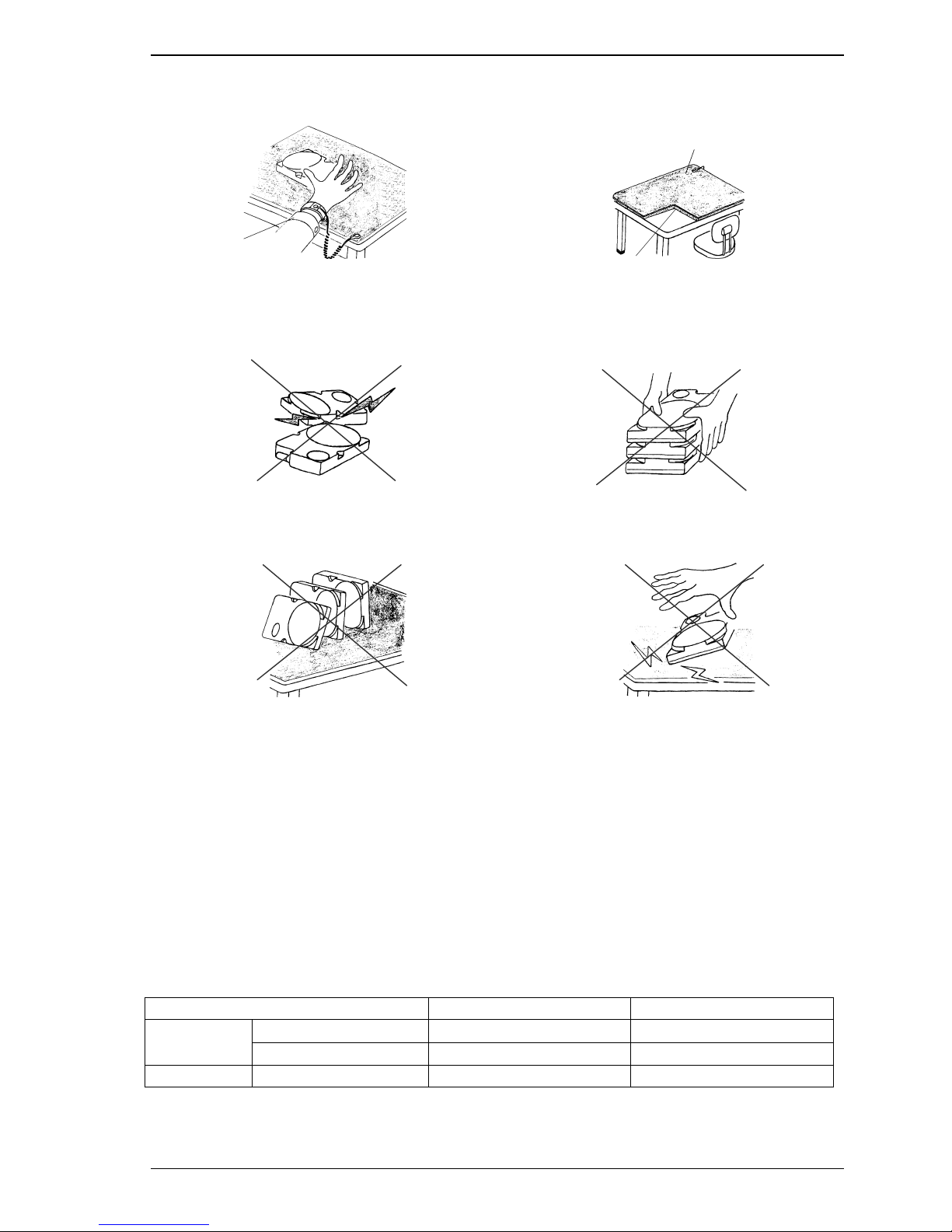

Please keep the following cautions, and handle the HDD under the safety
environment.
3-6 C141-E250
3.2 Mounting
- General notes
ESD mat
Shock absorbin
g
mat
Wrist strap
Use the Wrist stra
p
. Place the shock absorbing mat on the
operation table, and place ESD mat on it.
Do not hit HDD each other. Do not stack when carr
y
in
g
.
Do not
p
lace HDD verticall
y
to avoid fallin
g
down. Do not dro
p
.
Figure 3.6 Handling cautions
- Installation
(1) Please use the driver of a low impact when you use an electric driver.
HDD is occasionally damaged by the impact of the driver.
(2) Please observe the tightening torque of the screw strictly.
M3 ······· 0.49N•m (5 kgf•cm).
- Recommended equipments
Contents Model Maker
Wrist strap JX-1200-3056-8 SUMITOMO 3MESD
ESD mat SKY-8A (Color Seiden Mat) Achilles
Shock Low shock driver SS-6500 HIOS
C141-E250 3-7
Installation Conditions
3.3 Cable Connections
3.3.1 Device connector

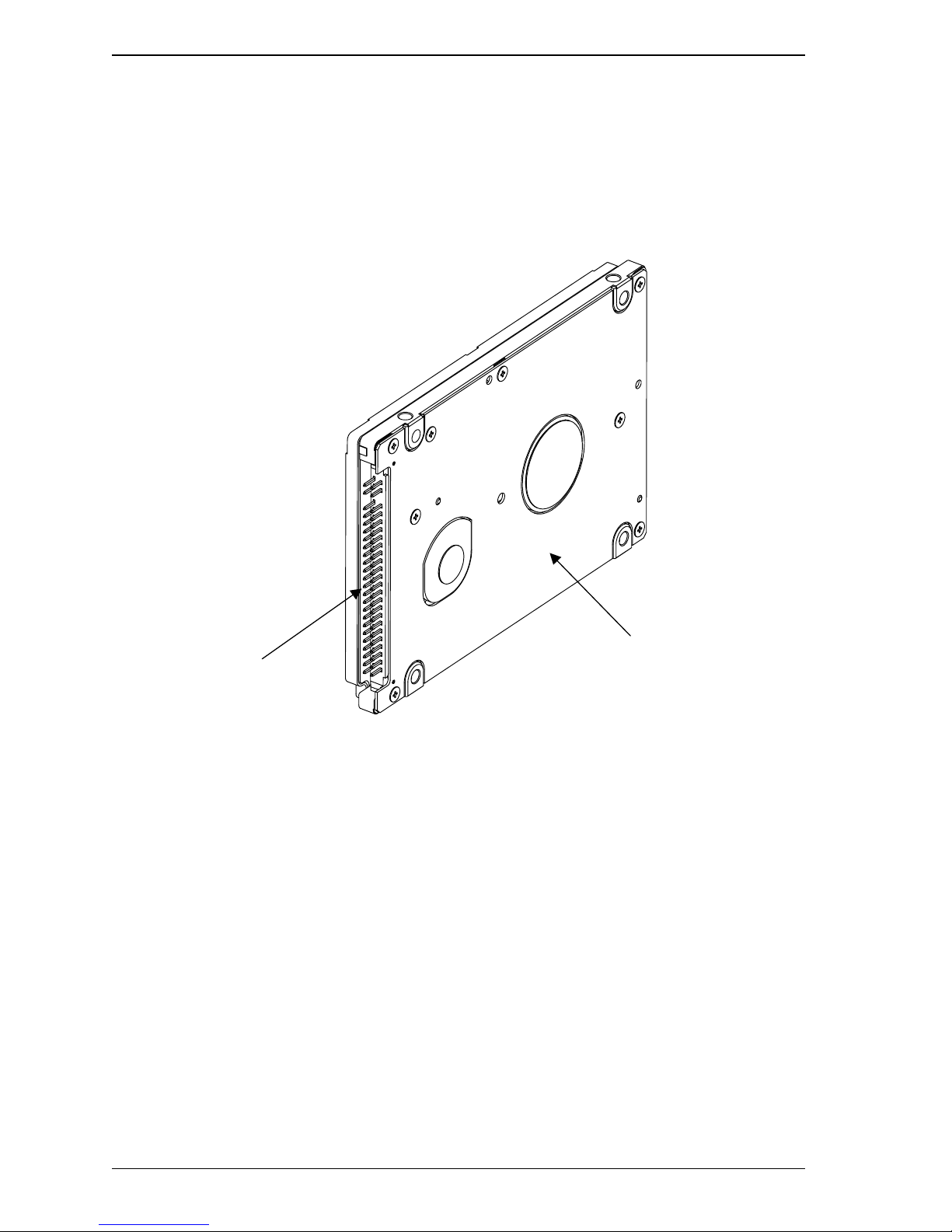

The disk drive has the connectors and terminals listed below for connecting
external devices. Figure 3.7 shows the locations of these connectors and terminals.
Connector,
setting pins
PCA
Figure 3.7 Connector locations
3-8 C141-E250
3.3 Cable Connections
3.3.2 Cable connector specifications
Table 3.2 lists the recommended specifications for the cable connectors.
Table 3.2 Cable connector specifications
Name Model Manufacturer
ATA interface and power
supply cable (44-pin type)
Cable socket
(44-pin type)
89361-144 FCI
For the host interface cable, use a ribbon cable. A twisted cable or a
cable with wires that have become separated from the ribbon may
cause crosstalk between signal lines. This is because the interface is
designed for ribbon cables and not for cables carrying differential
signals.
3.3.3 Device connection

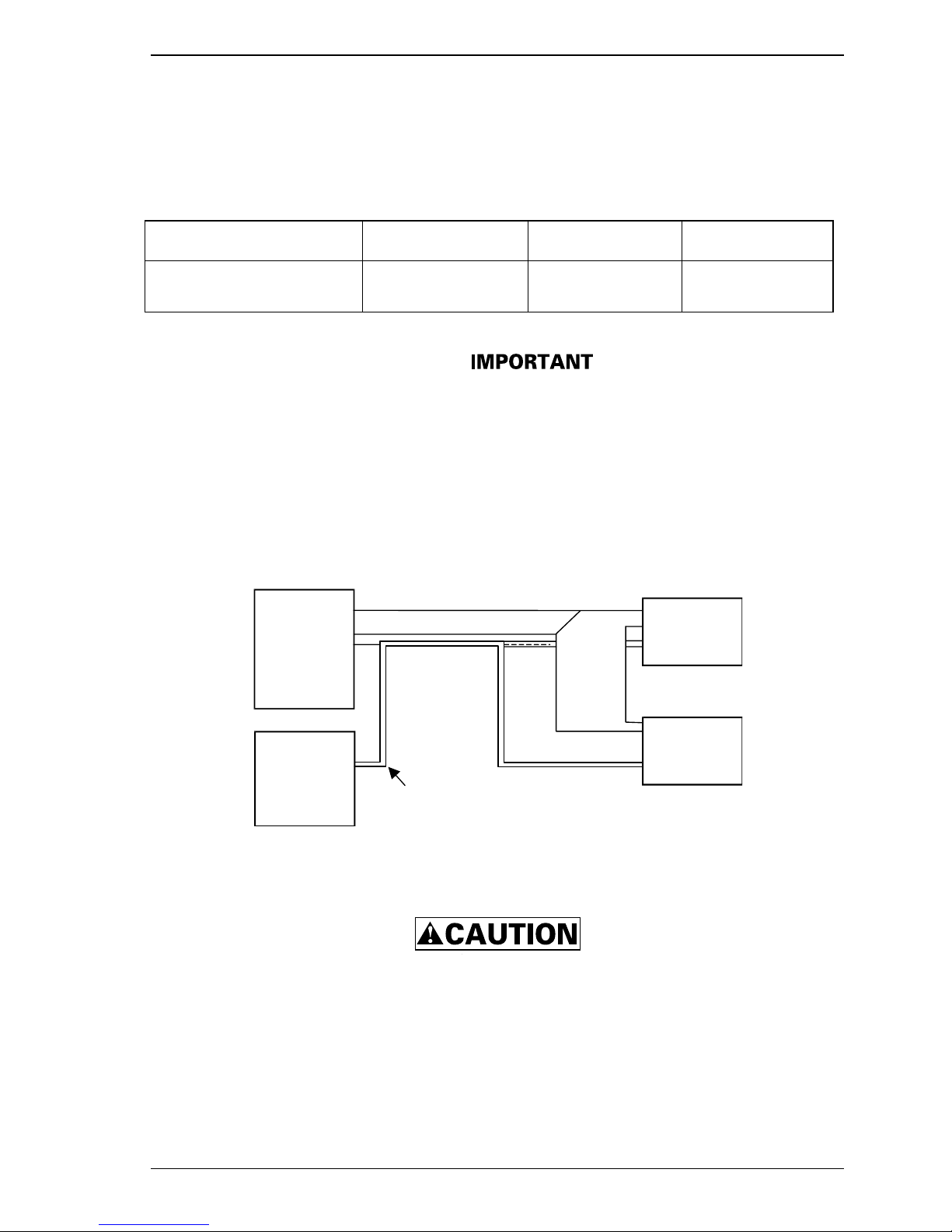

Figure 3.8 shows how to connect the devices.
Host system
DC
Power supply
Disk Drive #0
Disk Drive #1
ATA-cable
ATA-cable
Power supply cable
Figure 3.8 Cable connections
Damage: Interface cable connection
Take note of the following precaution about plugging an interface
cable (socket) into the interface connector of the disk drive and
plugging the connector into a host receptacle:
−When plugging together the disk drive interface connector and
the host receptacle or interface cable connector (socket), do not
apply more than 10 kgf of force in the connection direction once
they are snugly and securely in position.
C141-E250 3-9
Installation Conditions
3.3.4 Power supply connector (CN1)

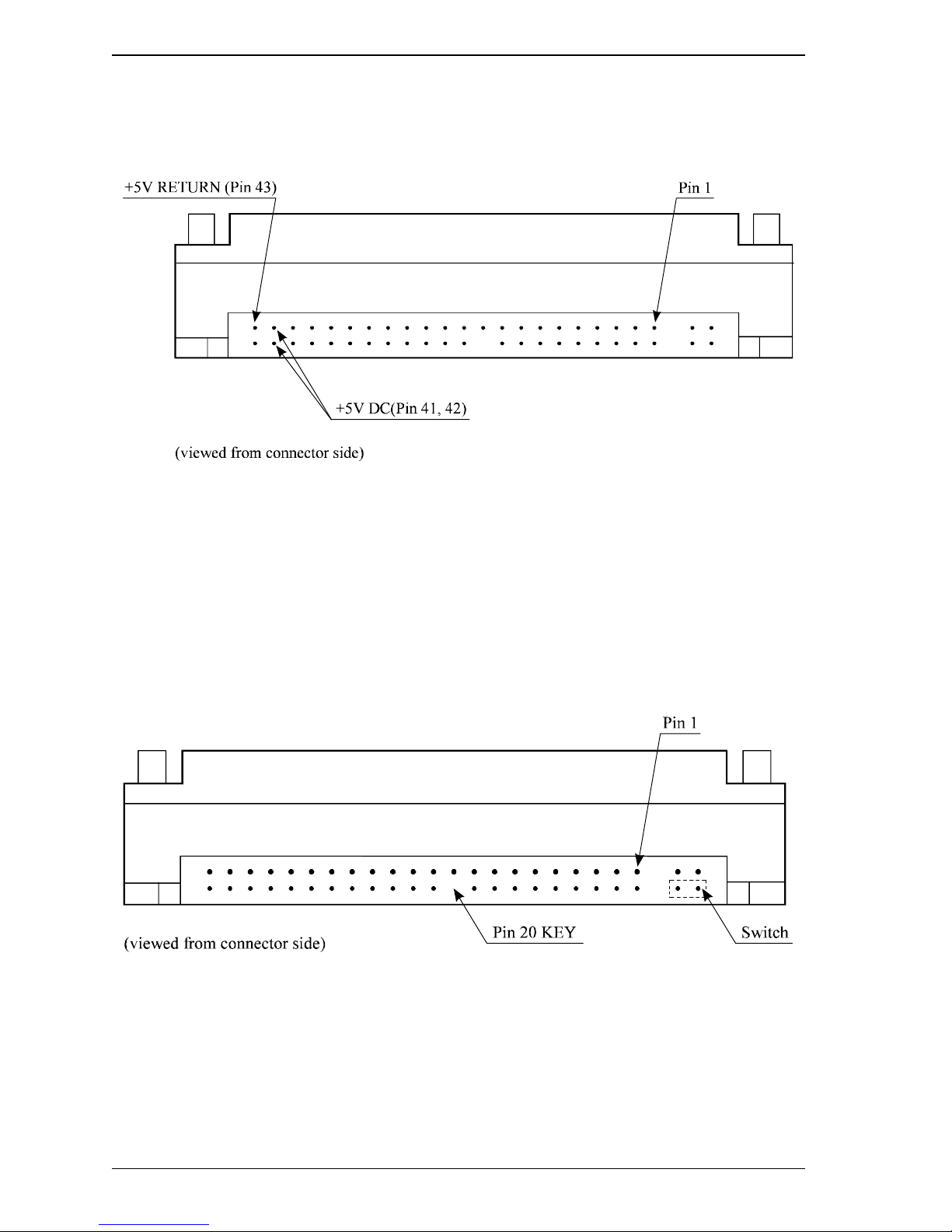

Figure 3.9 shows the pin assignment of the power supply connector (CN1).
Figure 3.9 Power supply connector pins (CN1)
3.4 Jumper Settings
3.4.1 Location of setting jumpers
Figure 3.10 shows the location of the jumpers to select drive configuration and
functions.
Figure 3.10 Jumper location
3-10 C141-E250
