PRIMERGY Server

January 2014

System configurator and order-information guide

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Instructions

This document contains basic product and configuration information that will enable you to configure your system via

PC-/System-Architect.

Only these tools will ensure a fast and proper configuration of your PRIMERGY server or your complete

PRIMERGY Rack system.

You can configure your individual PRIMERGY server in order to adjust your specific requirements.

The System configurator is divided into several chapters that are identical to the current price list and PC-/SystemArchitect.

Please follow the lines. If there is a junction, you can choose which way or component you would like to take. Go through

the configurator by following the lines from the top to the bottom.

Section

III Memory, example

There are X memory slots which can be equipped with XXX MB.

It is permissible to make up to X passes through the memory upgrade options

S26361-XXX-XXX S26361-XXX-XXX

Memory XXX MB

X times

max. X times per system max. X times per system

In one chapter you can only select as many components (here 4x) as the arrow indicates. 4x

Please note that there are information symbols which indicate necessary information.

For further information see:

http://ts.fujitsu.com/products/standard_servers/index.html

(internet)

https://partners.ts.fujitsu.com/com/order-supply/configurators/primergy_config/current/Pages/default.aspx

(extranet)

Fujitsu Technology Solutions x86 PRIMERGY Serve 2 of 21

System configurator and order-information guide

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

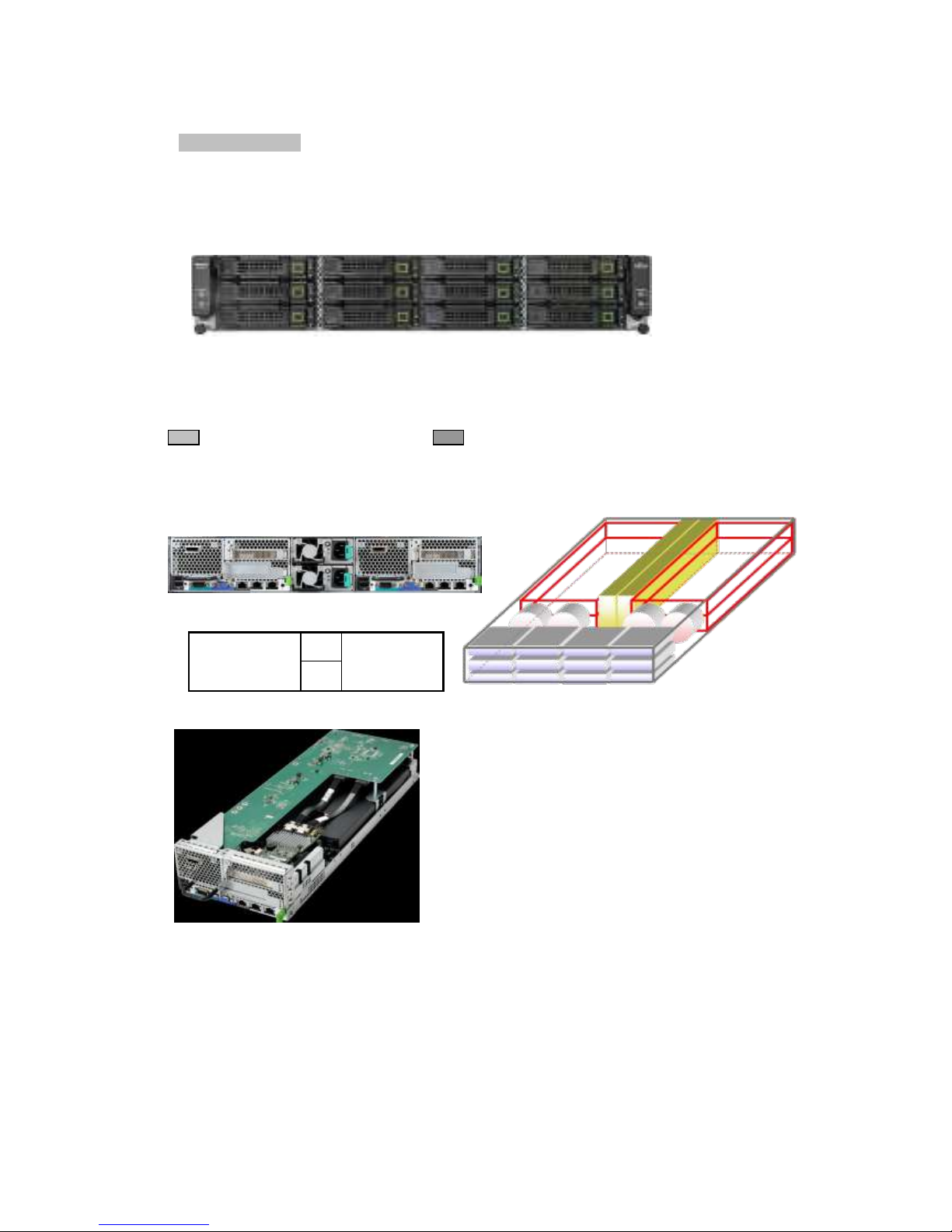

Configuration diagram PRIMERGY CX420 S1

System unit ( I )

with up to 12x 3.5" or 2.5" for shared HDDs plus up to 2x internal HDD per node for OS boot HDDs

CX400 S1 3,5" HDD cage standard (S26361-K1461-V135)

Key:

Included in basic unit Option

Note: each CX420 S1 should install 2x CX272 S1 always

Each nodes are hot plugable and must be identical configuration

CX272 S1 half wide two U server node

PSU 1

PSU 2

Tray 1

Tray 2

Fujitsu Technology Solutions x86 PRIMERGY Serve 3 of 21

System configurator and order-information guide

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Configuration diagram PRIMERGY CX272 S1

System unit ( I )

with up to 12x 3.5" or 2.5" HDDs for shared HDDs plus 2x internal HDDs for OS boot HDDs

Motherboard

CX400 Chassis parts

Memory CPU1

Rear side on each node

( Channel A + B + C + D )

2 USB

Bank 1 (2 Modules)

Xeon DP

1 VGA

Bank 2 (2 Modules)

2x LAN & Service LAN

Bank 3 (2 Modules) Rear side

Bank 4 (2 Modules)

Memory CPU2

1. PSU 2. PSU

( Channel E + F + G + H)

Bank 1 (2 Modules)

Xeon DP

Bank 2 (2 Modules) Hotplug power supply

Bank 3 (2 Modules)

Bank 4 (2 Modules)

Memory (III ) Processor ( II ) Inside

Fan 1 - Fan 4

PSAS CP200i (SAS HBA)

For up to 12x SAS/BC SAS/SAS SSD Non-Hotplug

LSI SW Raid, Raid 0 / 1

included in Chassis

Onboard for up to internal 2x SATA/SATA SSD

Front

Hard disk drives ( VI )

2.5"or3.5" SAS (shared HDD)

Slot 1 PCIe-3 x8, 390mm for PSAS CP200i Up to shared 12x SAS HDDs/SSD

can be installed

in CX420 S1 chassis

Slot 2 PCIe-3 x8, 390mm

2.5" SAS or dummy

Slot 3 PCIe-3 x8 for 10GbE card

2.5" SAS or dummy

Hard disk drives ( VI )

2.5" SATA (OS boot)

Up to 2 SATA HDDs/SSD

can be installed

in CX272 S1 node

2.5" SATA

Key:

Included in basic unit Option

The population order for the CPU is: CPU1 first, then CPU2

Fujitsu Technology Solutions x86 PRIMERGY Serve 4 of 21

PRIMERGY-Software Configurators and Release Lists

Start PRIMERGY CX250 S1 / CX270 S1

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Section

O SW Configurator 64 bit (EM64T / IA64)

with OEM-Software without OEM-Software

for PRIMERGY Server for PRIMERGY Server

OEM- SW is bound to HW and

For all SW products please refer to the corresponding

is not allowed to be ordered

software configurator accessible via the Extranet under separately.

"Configuration & Tools, -All configurations, -Software, Exceptions: VMware SW,

URL see below. Citrix XenServer

Microsoft Hyper-V Server and System Center

- Microsoft Hyper-V Server 2012

Microsoft - Windows Server 2012

Microsoft - Windows Storage Server 2012

- Windows Server 2012 Datacenter

- Windows Server 2012 Standard

**) Pay attention to release and order information in PRINCE -> Operating System

https://partners.ts.fujitsu.com/com/products/servers/primergy/Pages/default.aspx

***) Supply over distribution or procurement from FSC VP BC Software

You'll find single software configurators and release lists (OS-matrix / system management / security) under following addresses:

for internal users: http://sp.ts.fujitsu.com/dmsp/docs/osrel.xlsx

for partners:

https://partners.ts.fujitsu.com/com/products/servers/primergy/Pages/default.aspx

Continue with PRIMERGY

HW configurator

Fujitsu Technology Solutions x86 PRIMERGY Server

System configurator and order-information guide

Start PRIMERGY CX400 S1

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Section

IBasic unit

System unit consisting of:

* 2U Housing with power supply modules, Rack Rails and HDD cages

* Basic units with:

- 2 Hot-Plug Power Supply rated 1,200W

- 4 non-hot plug Fans (redundancy)

* Dual port SAS Backplane for 12x 3.5"or 2.5" HD

* Drives/Bays

- 12 bays 1" for hot plug 3.5"/2.5" HD

- SAS I/F HDD or SSD supported

- HDD configuration per Server node

- empty bays will be covered with dummy frames

* Server nodes

- each CX420 S1 can support 2x CX272 S1

- position of CX server nodes fixed

Software:

* ServerView Suite Software

* Documentation engl. (multilingual on CD)

Fujitsu Technology Solutions x86 PRIMERGY Serve 6 of 21

System configurator and order-information guide

APRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Rack version for 19'' racks with

PSU included in Base Unit

Basic unit with

12x 3,5" HDD cage S26361-K1461-V135

2x 1200W PSU module One 1200W power supply module hot plug No loose delivery

100-240V wide range no power cable included!!!

94% efficiency (Platinum) 200-240V environment: Full AC redundancy is available.

100V environment: System performance adjusted, when only one

PSU is in operation

Please order appropriate power cord additionally:

Powercord for rack, 4m, grey, IEC320 C13->C14 connector

T26139-Y1968-L10

Power Cord USA / Canada, 1.8m, grey

T26139-Y1742-L10

Fujitsu Technology Solutions x86 PRIMERGY Serve 7 of 21

System configurator and order-information guide

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

PRIMECENTER Rack

Sliding rail

1-hand-mounting

RMK - 1 pair consisting of

carrier length variable S26361-F4530-L12

toolless mounting possible

Adapter angle PC/DC-Rack, till 50Kg

necessary for mounting RMKs in

asymmetrical racks

included in base unit

S26361-F4530-E12

S26361-F4530-E10

Mounting 2U server in Mounting in

asymmetrical racks symmetrical & 3rd party racks

with 2U support bracket (no support bracket needed)

SNP:SY-F1647E301-P

Installation ex works for one

server or subsystem.

Hereby the rack will be delivered "Rack-mounting ex factory"

completely pre-mounted and

This service is to be ordered once

all wired connections are tested.

per installable server/storage

With PCR S2 12U, 24U, 38U and subsystem, in order to get the

PRC M1 16U, 24U, 42U: server/storage subsystem

Systems and components mounted into the racks.

will be delivered installed in the rack In case of the 46 U PCR S2

With PCR S2 racks 46U: this service has to be ordered,

Systems and components to get the mounting kits and the

will be delivered separately cables installed.

To be ordered only together with

a PRIMECENTER rack

PCR S2 e.g. S26361-K826-V10x

new PCR M1 e.g. S26361-K827-Vxxx

refer PCR S2 or M1 rack configurator

max. 1x per System PRIMERGY Classic 19" rack is not supported

S26361-F1452-E100

S26361-F1452-E110

REGION KIT EMEA AP REGION KIT JP

For Shipments to EMEA / Asia and For Shipments to Japan regions

Pacific regions

1x per system

Power cord has to be ordered separately

Power cord options (1x per PSU)

T26139-Y1968-E100 Powercord for rack, 4m, grey,

IEC 320 C14 connector

T26139-Y1742-E10

USA, Canada, 1.8m, grey

T26139-Y3850-E10

Option "no powercord", for Countries without

specific cable orderable like e.g. China

Fujitsu Technology Solutions x86 PRIMERGY Serve 8 of 21

System configurator and order-information guide

Start PRIMERGY CX272 S1

PRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Section

II Basic unit

CX272 S1 System unit consisting of:

* 2U half wide server node (tray & motherboard) for pluggin into CX420 chassis

* Basic units with:

- Server tray mechanics

- Motherboard

- 1x PCIe- x8 slots for PSAS CP200i

- 1x PCIe- x8 GEN3 low profile

- 1x PCIe- x8 GEN3 low profile (only for 10GbE D2755 and 10GbE-T card)

Systemboard D3306 with:

* Up to two Xeon 4C, 6C & 8C CPU`s (Socket-R)

with 2 serial QPI links ( Quick Path Interconnect ) and four memory channels per CPU

CPU has to be selected for an orderable basic unit,

* Chipset Intel® C600 Series

* number of PCI slots: see above

* 16 memory slots for max. 512GB RAM DDR3 available

- Memory is divided into 8 DIMMs per CPU ( 4 channels with 2 slots per channel )

Possible max. configurations are:

16x 16GB RDIMM (dual rank modules) = 256GB

16x 4GB UDIMM (dual rank modules) = 64GB

First Memory ( one module ) has to be selected for an orderable basic unit per CPU

- Memory upgrade is possible by 8x memory units

- SDDC (Chipkill) is supported for memory modules,

* Dual Port 10/100/1000 x4 PCI Express* Gigabit Ethernet Intel LAN controller Powerville on-board

* AST2300 (integrated Baseborad Management Controller) on-board server management controller with

dedicated 10/100 Service LAN-port and integrated graphics controller.

The Service LAN-port can be switched alternatively on standard Gbit LAN port

* Graphics Controller integrated in AST2300 (integrated Baseboard Management Controller):

1600x1200x16bpp 60Hz, 1280x1024x16bpp 60Hz, 1024x768x32bpp 75Hz, 800x600x32bpp 85Hz,

640x480x32bpp 85Hz

Interfaces at the rear:

* 1x RS-232-C (serial, 9 pins)

* 1x VGA (15 pins)

* 2x USB 2.0 ( UHCI ) with 480MBit/s, no USB wakeup

* 2x LAN RJ45, 1x Service-LAN RJ45

Interfaces internal:

* 1x USB 2.0 for UFM modul (embeded ESXi)

* 6x SATA interface via Patsburg -A for 6 SATA HD`s Non-Raid or 4 SATA HD's Raid 0/1/10 (LSI SW Raid)

Fujitsu Technology Solutions x86 PRIMERGY Serve 9 of 21

System configurator and order-information guide

APRIMERGY CX420 S1 / CX272 S1 Status 2013-12-30

Server node for CX400 S1 2U chassis

PSU is part of CX400 S1 Base Unit

Basic unit is without CPU and Memory

Non fully ocupied configuration is not supported

For an orderable basic unit two CPU always

CX272 S1 Basic unit

PRIMERGY CX272 S1 S26361-K1465-V300 CX420 S1 with 2x CX272 S1

S26361-K1465-V300

PRIMERGY CX272 S1

2U half wide

INTEL Processor 2x

for CX272 S1

Each CX272 S1 configuration to be identical

based dual socket Server Blade.

Always 2x per system unit

S26361-F4575-E10

Service for CX-Server nodes

installation in the CX420 12x 3.5"

max. 2x per system unit

Server#1Server#2

Fujitsu Technology Solutions x86 PRIMERGY Serve 10 of 21

Autres manuels pour PRIMERGY CX420 S1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Fujitsu Serveur

Fujitsu

Fujitsu PRIMERGY RX600 S5 Manuel utilisateur

Fujitsu

Fujitsu SPARC M10-4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX100 S1 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T5120 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY TX300 S8 Manuel utilisateur

Fujitsu

Fujitsu FUTRO S700 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M8000 Manuel de service

Fujitsu

Fujitsu SPARC Enterprise M4000 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX2540 M5 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY CX400 M6 Manuel utilisateur

Fujitsu

Fujitsu BX630 - PRIMERGY - S2 Dual Manuel du propriétaire

Fujitsu

Fujitsu PRIMEQUEST 2000 Series Manuel utilisateur

Fujitsu

Fujitsu Primergy RX100 S4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX300 S7 Manuel utilisateur

Fujitsu

Fujitsu Primergy RX300 S2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX400 S1 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY MX130 S2 Upgrade and maintenance... Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY CX400 M4 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY RX330 S1 Manuel utilisateur

Fujitsu

Fujitsu Primergy RX100 S3 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise M3000 Manuel utilisateur

Fujitsu

Fujitsu SPARC Enterprise T5120 Manuel de service

Fujitsu

Fujitsu D3320 PRIMERGY BX2560 M2 Manuel utilisateur

Fujitsu

Fujitsu PRIMERGY BX600 S3 Instructions d'installation

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
