Getting Started
Getting Started
fi-65F Image Scanner
fi-65F Image Scanner
1
Thank you for purchasing our image scanner.
This manual describes the preparation required to use this product. Follow the procedures in this manual.
Make sure to read the attached "Safety Precautions" manual before using the scanner. For details about
scanner functions and features, basic operation, daily care and troubleshooting, refer to the Operator's
Guide (PDF). The Operator's Guide can be displayed by selecting [Browse manual] [Operator's Guide
(PDF)] in the Setup DVD-ROM.
Microsoft product screenshots in this manual are reprinted with permission from Microsoft Corporation.
ISIS is a trademark of Open Text.
Intel, Pentium, and Intel Core are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other
countries.
PaperStream is a registered trademark of PFU Limited in Japan.
Other company names and product names are the registered trademarks or trademarks of the respective
companies.
March 2022
© PFU Limited 2013-2022
Checking the Components
Make sure that all items shown below are included in the package. If any other packaging is provided, make
sure to keep it as well. The components must be handled with care.
The box and packaging materials are required for storage and transportation of the scanner. Do not throw
them away. If anything is missing or damaged, contact your FUJITSU scanner dealer or an authorized
FUJITSU scanner service provider.
Scanner (×1)
USB bus power cable (×1)
AC cable (×1)
Setup DVD-ROM (×1)
Safety Precautions (×1)
AC adapter (×1) USB cable (×1)
P3PC-4542-06EN
2
Safety Information
The attached Safety Precautions manual contains
important information about the safe and correct
use of this product. Make sure that you read and
understand it before using the scanner.
Symbols Used in This
Manual
The following symbols are used in this manual.
Removing the Protective
Packaging
The scanner is secured with orange protective
tape. Peel off the tape before using the scanner.
Installing the Software
The following software are bundled with the
scanner:
PaperStream IP (TWAIN)
Conforms to the TWAIN standard. Used when
you operate the scanner using TWAIN-
compliant 32-bit applications.
PaperStream IP (TWAIN x64)
Conforms to the TWAIN standard. Used when
you operate the scanner using TWAIN-
compliant 64-bit applications.
Can be installed on 64-bit operating systems.
PaperStream IP (ISIS) for fi-60F/fi-65F
Conforms to the ISIS standard. Used when you
operate the scanner using ISIS-compliant
applications.
Software Operation Panel
View the scanner information and configure
various settings such as the operation of the
scanner. Installed together with PaperStream
IP (TWAIN), PaperStream IP (TWAIN x64), or
PaperStream IP (ISIS) for fi-60F/fi-65F.
PaperStream ClickScan
A 32-bit image scanning application which
supports PaperStream IP (TWAIN).
Scanning can be performed via simple settings
and operations.
This program starts automatically when you log
in to your computer and resides in the
notification area located at the far right of the
task bar.
For details, refer to the PaperStream
ClickScan Help.
PaperStream Capture
A 32-bit image scanning application which
supports both PaperStream IP (TWAIN) and
PaperStream IP (ISIS) for fi-60F/fi-65F. By
defining scan settings as document profiles,
you can customize the settings according to
your preference.
PaperStream Capture Pro
(EVALUATION)
A 32-bit image scanning application which
supports PaperStream IP (TWAIN).
It is the trial version of PaperStream Capture
Pro.
To use the full version, purchase and activate a
license.
In addition to the functions in PaperStream
Capture, PaperStream Capture Pro also allows
you to perform multistation operations and
advanced meta data settings.
For details, refer to the PaperStream Capture
User's Guide.
Manual
Includes Safety Precautions, Getting Started,
and Operator's Guide.
Scanner Central Admin Agent
Used to centralize the management of multiple
scanners, by allowing you to apply firmware
updates simultaneously, monitor the operating
status, and check the scanner information.
Note that required applications will differ
depending on the form of operation.
For details, refer to the Scanner Central Admin
User’s Guide.
Symbol Description
WARNING
This indication alerts operators of
an operation that, if not strictly
observed, may result in severe
injury or death.
CAUTION
This indication alerts operators of
an operation that, if not strictly
observed, may result in safety
hazards to personnel or damage
to the product.
Bundled Software
3
fi Series Online Update
An application that checks for the software
updates for fi Series, and runs the updates.
The system requirements are as follows.
*1: The software operates as a desktop
application.
*2: Required disk space varies according to the
file size of the scanned images.
Install the bundled software from the Setup DVD-
ROM in the following procedure.
Note that there are two ways to install the bundled
software: select [Installation (Recommended)] to
install all the software required to operate the
scanner, or [Installation (Custom)] to select and
install one software at a time.
■Installation (Recommended)
The following software are installed:
PaperStream IP (TWAIN)
Software Operation Panel
PaperStream ClickScan
PaperStream Capture
Manual
fi Series Online Update
1. Turn on the computer and log onto
Windows®as a user with Administrator
privileges.
System Requirements
Operating
system
Windows Server
®
2008 R2 Standard
(64-bit)
Windows
®
7 Professional
(32-bit/64-bit)
Windows
®
7 Enterprise (32-bit/64-bit)
Windows Server
®
2012 Standard
(64-bit) (*1)
Windows Server
®
2012 R2 Standard
(64-bit) (*1)
Windows®8.1 (32-bit/64-bit) (*1)
Windows®8.1 Pro (32-bit/64-bit) (*1)
Windows®8.1 Enterprise
(32-bit/64-bit) (*1)
Windows®10 Home
(32-bit/64-bit) (*1)
Windows®10 Pro (32-bit/64-bit) (*1)
Windows®10 Enterprise
(32-bit/64-bit) (*1)
Windows®10 Education
(32-bit/64-bit) (*1)
Windows Server®2016 Standard
(64-bit) (*1)
Windows Server®2019 Standard
(64-bit) (*1)
Windows Server®2022 Standard
(64-bit) (*1)
Windows®11 Home (64-bit) (*1)
Windows®11 Pro (64-bit) (*1)
Windows®11 Enterprise (64-bit) (*1)
Windows®11 Education (64-bit) (*1)
CPU
Intel
®
Pentium
®
4 1.8 GHz or higher
(Recommended:
Intel
®
Core™ i5 2.5 GHz or higher,
excluding mobile processors)
Memory
1 GB or more
(Recommended: 4 GB or more)
Hard disk
drive
5,400 rpm or more
(Recommended: 7,200 rpm or more)
Display
resolution
1,024 × 768 pixels or more,
65,536 colors or more
Hard disk
space
11 GB or more of free hard disk space
(*2)
DVD
drive
Required for installing the software
Interface USB 2.0/1.1
ATTENTION
If the system requirements above are not
satisfied, the scanner may not operate.
Scanning speed will slow down in the following
cases:
- The CPU or the memory does not meet the
required specifications
- The version of the USB port or the USB hub
is USB 1.1
HINT
The screenshots used in this manual are of
Windows®7. The actual windows and
operations may differ depending on the
operating system.
Where there is no distinction between the
different versions of the operating system
shown in the table of system requirements, the
general term Windows®is used.
Installing the Bundled Software
ATTENTION
If an old version of the software is installed
already, uninstall it first.
For details about the uninstallation procedures,
refer to "A.4 Uninstalling the Software" in the
Operator's Guide.
4

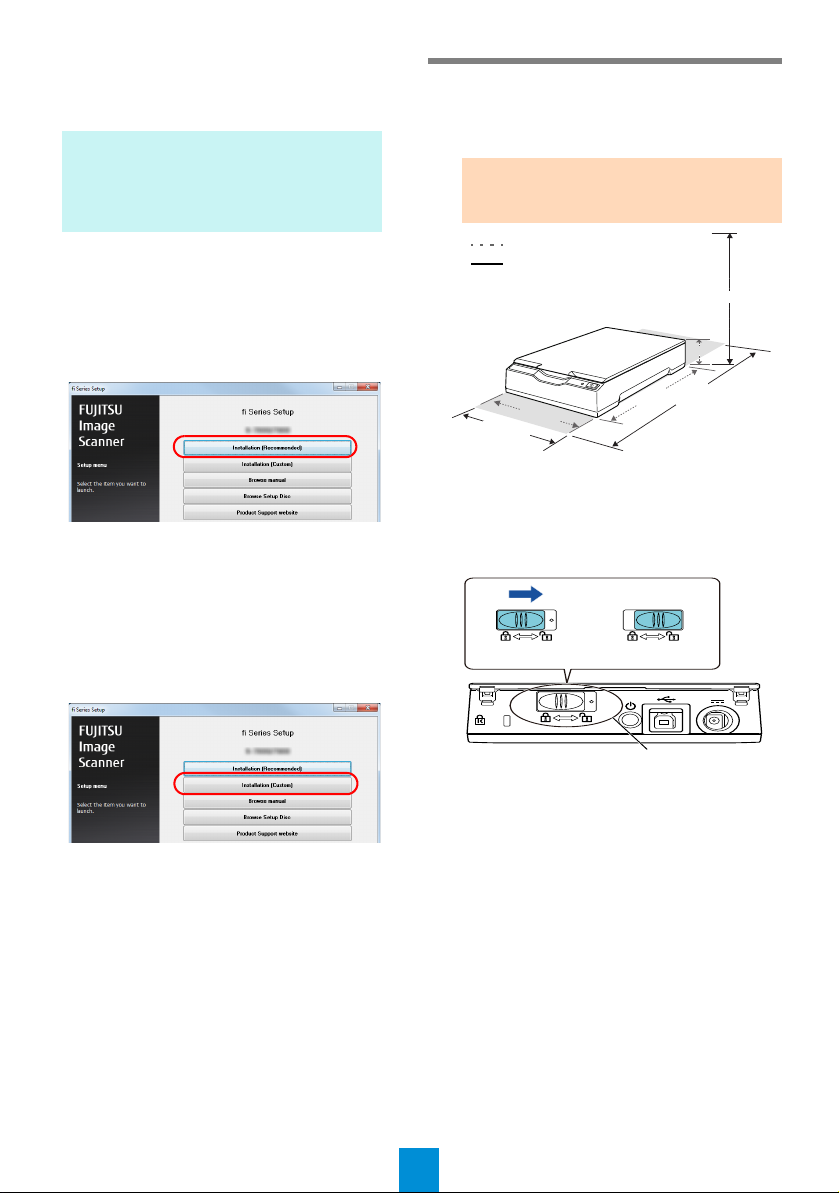

2. Insert the Setup DVD-ROM into the DVD
drive.
The [fi Series Setup] screen appears.
3. Click the scanner model name to be used
(if the window for selecting a model name
is displayed).
4. Click the [Installation (Recommended)]
button.
5. Follow the instructions on the screen to
proceed with the installation.
■Installation (Custom)
1. Perform steps 1. to 3. in "Installation
(Recommended) (page 3)".
2. Click the [Installation (Custom)] button.
3. Select the check box for the software to
install and click the [Next] button.
4. Follow the instructions on the screen to
proceed with the installation.
Installing the Scanner
Install the scanner in the following procedure.
1. Place the scanner at its installation site.
2. Unlock the transport lock switch.
There is a carrier unit inside the flatbed which
is fixed in place to prevent damage during
transportation.
Slide the transport lock switch on the back.
HINT
If the [fi Series Setup] screen does not
appear, double-click "Setup.exe" in the
Setup DVD-ROM via Windows Explorer or
[Computer].
ATTENTION
Carry the scanner by supporting it from the
bottom.
145 (5.71)
257
281
234
(10.12)
40 (1.57)
(11.06)
(9.21)
145 (5.71)
Outer dimensions
Installation space
Unit: mm (in.)
Locked Unlocked
Transport lock switch
5
Connecting the Cables
Connect each cable in the following procedure.
1. Confirm that the computer is turned off.
2. Connect the USB cable to the USB
connector of the scanner and USB port of
the computer.
3. Connect the power cable or USB bus
power cable.
For the power cable connection
The AC cable and AC adapter connected to
each other are collectively called the "power
cable".
Connect the power cable to the power
connector of the scanner, and plug the other
end into an AC outlet.
For the USB bus power cable
Connect the USB bus power cable to the
power connector of the scanner and to the
USB port of the computer.
Test-Scan
Follow the procedure described below to check
that documents can be scanned correctly by using
PaperStream Capture and PaperStream IP
(TWAIN).
1. Turn on the computer.
The scanner is turned on, and the power
LED lights in green.
CAUTION
Only use the supplied AC adapter. Not doing
so may cause the scanner to malfunction.
Furthermore, do not use the supplied AC
adaptor for other products.
ATTENTION
Use the supplied USB cable.
When you use a USB hub, a USB 2.0
certified hub is recommended. If the
scanner that is connected to the USB hub
does not operate properly, connect the
USB cable to the USB port of the
computer directly.
If you connect the scanner with USB 2.0,
it is required that the USB port be
compliant with USB 2.0. The scanning
speed slows down when you connect the
scanner with USB 1.1.
Connect it with
the USB mark
facing up.
1
3
2
2
3
3
USB connector
AC cable
USB cable
Power connector
AC adapter
USB bus power cable
USB mark
WARNING
Only use the power cable or USB bus
power cable that is supplied with the
scanner.
Doing the following may cause an electric
shock or the scanner to malfunction:
Using a power cable or USB bus power
cable that is not supplied with the
scanner.
Using the supplied power cable or USB
bus power cable with other products.
ATTENTION
If the power LED does not light in green,
refer to "Chapter 6 Troubleshooting" in the
Operator's Guide.
Power LED
6
The scanner is automatically recognized
by the computer.
2. Place a document on the scanner.
1. Open the document cover.
2. Place the document on the document bed.
Place the document face-down to align its
top left-hand corner with the reference point.
3. Gently close the document cover.
3. Start up PaperStream Capture.
Windows Server®2008 R2/Windows®7
Select the [Start] menu [All Programs]
[PaperStream Capture] [PaperStream
Capture].
Windows Server®2012
Right-click the Start screen, select [All apps]
on the app bar, and then select
[PaperStream Capture] under [PaperStream
Capture].
Windows Server®2012 R2/Windows®8.1
Click [] on the lower left side of the Start
screen, and then select [PaperStream
Capture] under [PaperStream Capture].
To display [], move the mouse cursor.
Windows®10/Windows Server®2016/
Windows Server®2019/Windows Server®
2022
Select the [Start] menu [PaperStream
Capture] [PaperStream Capture].
Windows®11
Select the [Start] menu [All apps]
[PaperStream Capture] [PaperStream
Capture].
4. Click [Scan] in the menu area.
5. Click one of the three types of document
profiles that are prepared beforehand.
Below is an example of when the document
profile [Black and White] is clicked.

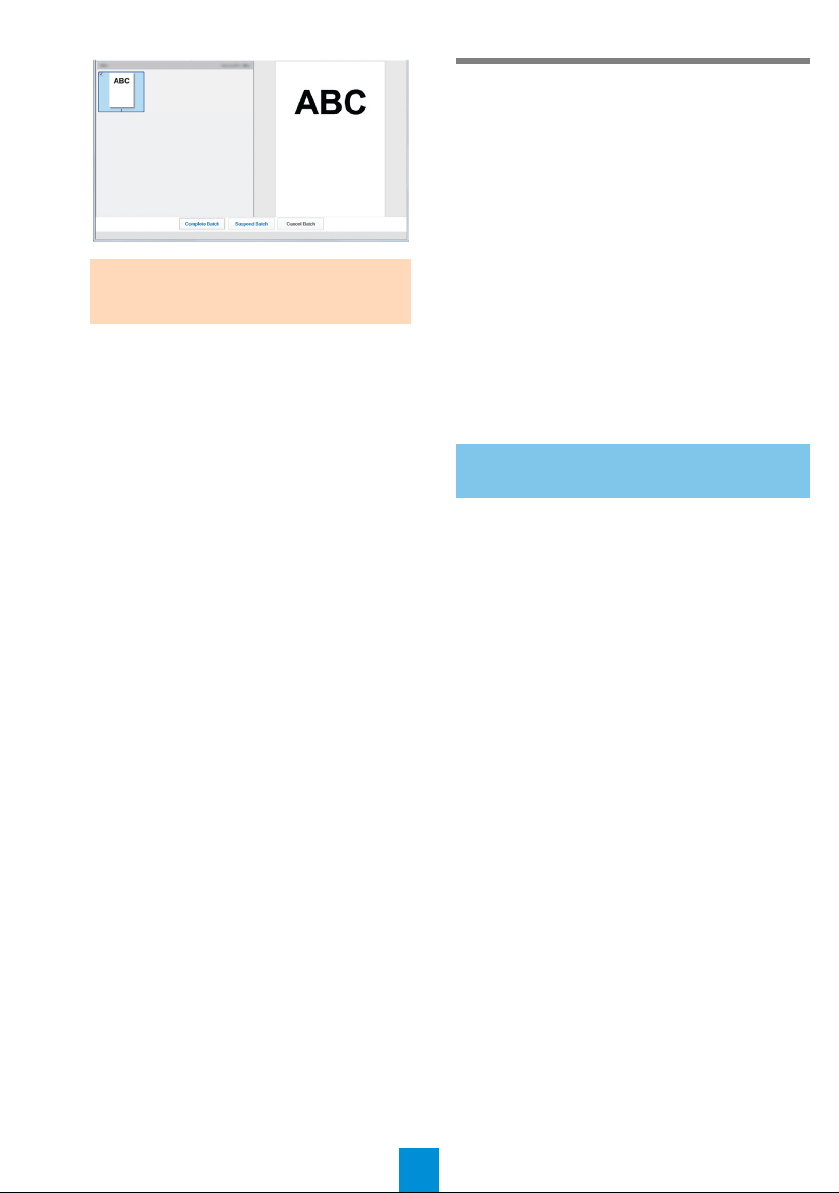

The document is scanned, and the
scanned image is displayed.
HINT
When the [Found New Hardware] dialog
box appears, click [Locate and install driver
software (recommended)] and then follow
the instructions on the screen to proceed
with the installation.
Document cover
ABC
ABC
Reference point
Document bed
ABC
Document
cover
7
For details about other scanning features, refer to
"Chapter 4 Various Ways to Scan" in the
Operator's Guide.
Contact for Inquiries
Refer to the contact list on the following web page:
https://imagescanner.fujitsu.com/r/ctl/
Image Scanner fi Series
For other inquiries regarding the scanner,
refer to the following web page:
https://www.fujitsu.com/global/support/
products/computing/peripheral/scanners/fi/
If the solution to your problem cannot be
found on the above web page, refer to the
contact information for your Fujitsu office on
the following web page:
https://www.fujitsu.com/global/about/
resources/shop/computing/peripheral/
scanners/index.html
https://imagescanner.fujitsu.com/r/ctl/
Notice
Copying of the contents of this document in whole
or in part and copying of the scanner application is
prohibited under the copyright law.
The contents of this document are subject to
change without notice.
ATTENTION
If a problem occurs, refer to "Chapter 6
Troubleshooting" in the Operator's Guide.
Contact for Purchasing Consumables
or Cleaning Materials
Autres manuels pour fi-65F
2
Table des matières
Autres manuels Fujitsu Scanner
Fujitsu
Fujitsu M3093DE Manuel
Fujitsu
Fujitsu FI 4220C - Document Scanner Manuel utilisateur
Fujitsu
Fujitsu SP-1130Ne Manuel
Fujitsu
Fujitsu S510 - ScanSnap - Document Scanner Manuel utilisateur
Fujitsu
Fujitsu Fi-4750c - Color Duplex Document Scanner 50ppm 90ipm... Manuel utilisateur
Fujitsu
Fujitsu fi-4530C Guide de configuration
Fujitsu
Fujitsu ScanSnap S1300i Instructions de montage
Fujitsu
Fujitsu ScanSnap iX500 Manuel utilisateur
Fujitsu
Fujitsu FI-4120C Manuel
Fujitsu
Fujitsu fi-5530C - Document Scanner Manuel
Fujitsu
Fujitsu ScanSnap FI-4110EOX2 Guide de référence
Fujitsu
Fujitsu fi-7140 Manuel utilisateur
Fujitsu
Fujitsu fi-4530C Manuel utilisateur
Fujitsu
Fujitsu ScanSnap S1100i Instructions de montage
Fujitsu
Fujitsu FI-4120C2 - Document Scanner Manuel
Fujitsu
Fujitsu N7100 Guide de configuration
Fujitsu
Fujitsu Scan Snap S1300i Manuel
Fujitsu
Fujitsu ScanSnap S1300i Manuel utilisateur
Fujitsu
Fujitsu FI-5900C Guide de configuration
Fujitsu
Fujitsu PA03338-B035 Manuel utilisateur
Manuels Scanner populaires d'autres marques
Plustek
Plustek Scanner Manuel utilisateur
Z/I Imaging
Z/I Imaging PhotoScan 2001 Manuel utilisateur
Renkforce
Renkforce DS100-5M Manuel utilisateur
Image Access
Image Access WideTEK A2 Manuel utilisateur
Canon
Canon imageFORMULA CR-120N Manuel utilisateur
GeoSlam
GeoSlam ZEB Horizon Instructions d'installation
Infinite Peripherals
Infinite Peripherals INFINEA TAB M Manuel utilisateur
Mustek
Mustek PageExpress 4800 Pro Manuel utilisateur
Optex
Optex 750830 Manuel utilisateur
Innova
Innova 5210 Manuel utilisateur
Visioneer
Visioneer CardReader 100 Guide de démarrage rapide
Rohde & Schwarz
Rohde & Schwarz TSME6 Manuel utilisateur
