Fujitsu FI-4860C2 Guide de configuration

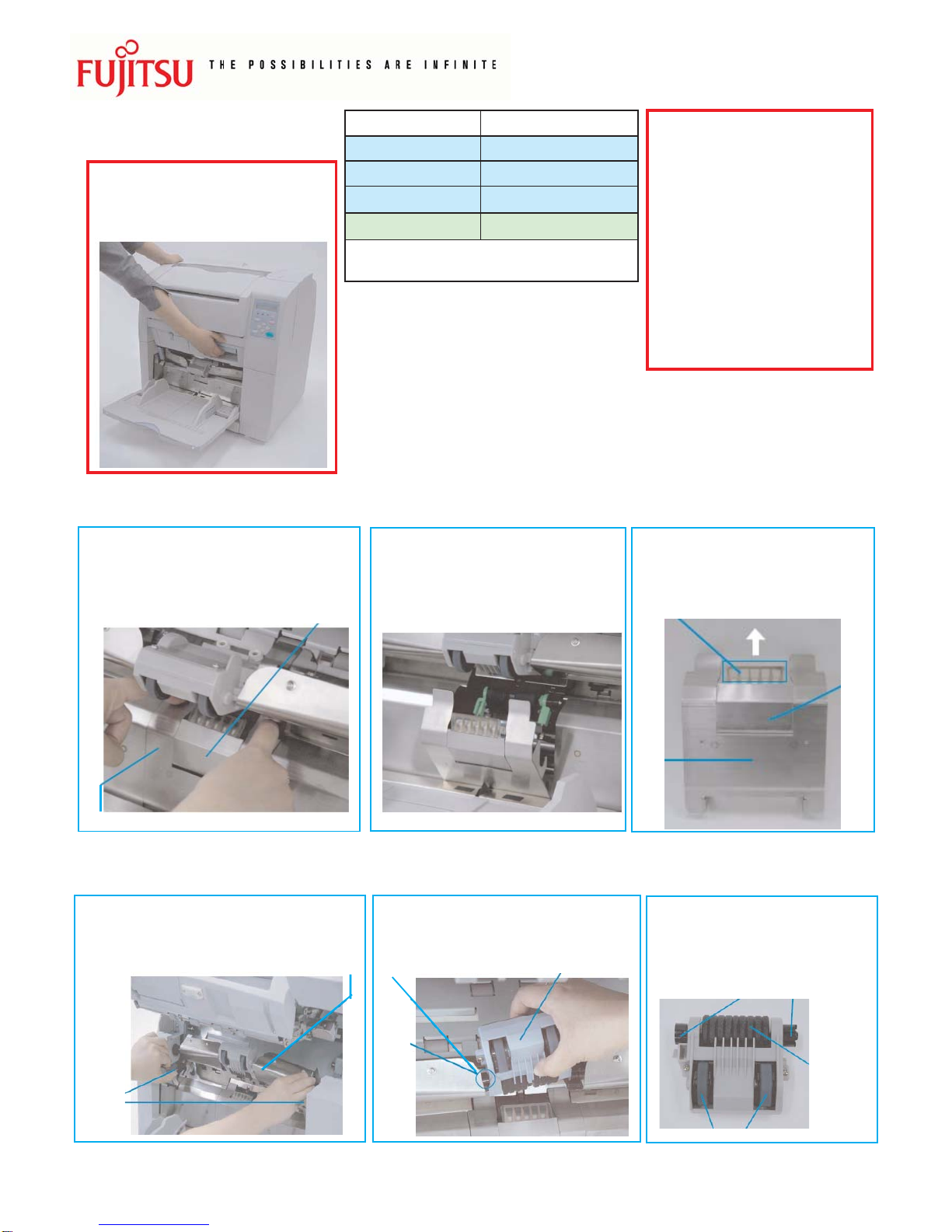

BEFORE CLEANING

Remove documents from the stacker.

Pull up the lever on the right front of

the upper transport and raise it.

Pad Assy

Guide Plate

Pull the ADF release lever towards you

and lift up theADF upper sheet guide. Press down on the upper part of the

guide plate with your fingers at the

two positions shown, rotate the plate

towards you and remove it.

Wipe the translucent rubber part of

the pad ASSY using cleaning paper

moistened with cleaner F1.

Cleaning the Pad - Recommended Cleaning Cycle Every 300,000 Sheets

Parts Part Number

Pad CA04315-G730

Pick Roller CA03296-F711

Brake Roller CA04315-F705

Cleaning Kit SC-CLE-KIT2

Note: Please ensure Cleaner F2 is NOT

used on Rubber Rollers.

Cleaning Instructions for

fi-4860C2 Scanner

ADF Upper Sheet Guide

ADF

Release

Lever

Pad (Cleaning Area)

Pad

Assy

Guide

Plate

Pick Roller Unit

Ring

Shaft

Ring Ring

Pick Roller Unit

Separation

Roller

While pulling the ADF lever towards you,

lift up the ADF upper sheet guide. Slide the Pick Roller unit to the left to

disengage the clutch ring from the shaft. Wipeboth Pick Rollers (2 positions)

and the Separation Roller using

cleaning paper moistened with F1

cleaner.

Cleaning the Pick Roller - Recommended Cleaning Cycle Every 300,000 Sheets

123

For further cleaning

instructions please

refer to the

fi-4860C2 Image

Scanner Operators

Guide

which can be found on

our Website:

www.fel.fujitsu.com/scanner

ADF Upper

Sheet Guide

ADF Release Lever

Pad Assy

Guide Plate

Brake Roller

Bail

While pulling the ADF lever towards

you, lift up the ADF upper sheet

guide.

Pressing down on the upper part

of the Guide Plate with your

fingers, pull the plate towards

you to remove.

Cleaning the Brake Rollers - Recommended Cleaning Cycle Every 300,000 Sheets

Lift the bail of the Brake Roller upwards

and release the lock. Pull the Brake

Roller forward to remove it. Wipe roller

surface using cleaning

paper moistened with

cleaner F1.

Brake Roller

Feed Rollers

(in 12 locations)

Wipe the metal feed rollers using a lint free cloth moistened with cleaner F2. Wipe the rollers

thoroughly. If the rollers have black build up, feed reliability will be affected

Cleaning the Feed Rollers - Recommended Cleaning Cycle Every 300,000 Sheets

Use your index fingers to lift both

ends of the removable sheet guide.

Lift right side first.

Shift the sheet guide to the left while

lifting up to remove.

Removable Sheet Guide

Wipe both sides of the glass

surface using a cleaning paper

moistened with cleaner F1.

Cleaning the Glass Surface - Recommended Cleaning Cycle Every 200,000 Sheets

123

Glass Sheet Guide Glass Sheet Guide

Tab

Push down on the Glass Sheet Guide tab to open. Wipe Glass Sheet Guide using a

cleaning paper moistened with cleaner

Cleaning the Glass Sheet Guide - Recommended Cleaning Cycle Every 200,000 Sheets

January 2007
