Getting Started

fi-6110 Image Scanner

Thank you for purchasing fi-6110 Color Image Scanner (hereinafter referred to as "the scanner").

This manual describes the preparation required for use of the scanner. Follow the preparation procedures

described in this manual.

Make sure to read the "Safety Precautions" document provided with the scanner before use. For details

about scanner functions and features, basic operation, daily care, consumable replacement and

troubleshooting, refer to the "Operator's Guide" (PDF). The "Operator's Guide" is displayed by clicking

[USER'S GUIDE] J[Operator's Guide] on the supplied Setup DVD-ROM.

July 2010

Microsoft, Windows, Windows Server, Windows Vista, and SharePoint are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

Intel, Pentium, and Intel Core are trademarks or registered trademarks of Intel Corporation in the United

States and other countries.

ISIS and QuickScan are either registered trademarks or trademarks of EMC Corporation in the United

States.

Adobe, the Adobe logo, and Acrobat are either registered trademarks or trade names of Adobe Systems

Incorporated in the United States and/or other countries.

Other company names and product names are the registered trademarks or trademarks of the respective

companies.

Checking the Components

Make sure that all items shown below are included in the package. If any other packaging is provided, make

sure to store it as well. Make sure to handle the components with care.

The box and packaging materials are required for storage and transportation of the scanner. Do not throw

them away. If anything is missing or damaged, contact your FUJITSU scanner dealer or an authorized

FUJITSU scanner service provider.

Scanner (× 1) USB Cable (× 1)AC Cable (× 1)

ADF Paper

Chute (× 1)

Setup DVD-ROM (× 1)

AC Adapter (× 1)

Carrier Sheet (× 1)

Getting Started

(this manual) (× 1)

Safety Precautions (× 1) Adobe®Acrobat®

DVD-ROM (× 1)

QuickScan™ Pro brochure (× 1)

Note: The contents may vary depending on the country.

P3PC-3002-01EN

Safety Precautions

The provided "Safety Precautions" document

contains important information about the safe use

of the scanner. Before using the scanner, make

sure to read and understand the information

provided in the "Safety Precautions" document.

Symbols Used in This

Manual

The following symbols are used in this manual.

Removing the Protective

Packaging

The scanner comes in a variety of protective

packaging. Follow the procedure described below

to remove the packaging before using the

scanner.

1. Open the stacker, and peel off the tape to

remove the protective foam sheet from the

ADF.

2. Pull the ADF release tab to open the ADF,

and pull the tape to remove the protective

card.

Installing the Scanner

Software

The following software is bundled with the

scanner.

zTWAIN Driver

Conforms to the TWAIN standard. Used when

you operate the scanner using TWAIN-

compliant applications.

zISIS Driver

Conforms to the ISIS standard. Used when you

operate the scanner using ISIS-compliant

applications.

zSoftware Operation Panel

Configures settings for scanning behavior and

consumables management. Installed together

with the scanner drivers (TWAIN/ISIS drivers).

zError Recovery Guide

Shows the error status and the action to take

when an error occurs. Installed together with

the scanner drivers (TWAIN/ISIS drivers).

zImage Processing Software Option (trial)

A software option featuring advanced

binarization of scanned images.

zScandAll PRO

A TWAIN/ISIS-compliant image scanning

application (recommended). You can define

scanning settings as batch profiles to suit your

various operation requirements. By defining

scanning settings as batch profiles, you can

easily perform scans in accordance with

various operation requirements.

Symbol Description

This symbol alerts operators to an

operation that, if not strictly

observed, may result in severe

injury or death.

This symbol alerts operators to an

operation that, if not strictly

observed, may result in safety

hazards to personnel or damage

to equipment.

This symbol alerts particularly

important information. Be sure to

read this information.

This symbol alerts operators to

helpful advice regarding

operation.

WARNING

CAUTION

Protective

Foam Sheet

and Tape

ADF

Stacker

Bundled Software

ADF Release

Tab

ADF

Protective

Card and

Tape

zScan to Microsoft SharePoint

An application that allows you to upload your

files easily from ScandAll PRO to a SharePoint

site. Can be installed together with ScandAll

PRO.

zQuickScan Pro (trial)

An application for image scanning that

conforms to the ISIS standard. By using an

ISIS driver, you can scan documents as

images. This is a trial version, and can be

executed 30 times before it is disabled. You

will need to purchase the full product version if

you wish to continue using it.

zManuals

Includes the Getting Started, Operator's Guide,

How to Use ScandAll PRO, FUJITSU TWAIN

User's Guide, and Image Processing Software

Option User's Guide.

zAdobe®Acrobat®Standard

The de-facto standard application used for

creating, editing, managing, and making use of

digitalized documents in PDF format.

System requirements are as follows.

*1: QuickScan Pro does not support the

Windows®64-bit version.

*2: Not supported by ScandAll PRO.

Adobe®Acrobat®, bundled with the

scanner, may be upgraded without

notice.

Refer to Adobe Acrobat Help if the

actual screens differ from those

described in this manual.

System Requirements

Operating

system

zWindows®XP Home Edition

zWindows®XP Professional

zWindows®XP Professional x64

Edition (*1)

zWindows Server®2003, Standard

Edition (*2)

zWindows Server®2003, Standard

x64 Edition (*1) (*2)

zWindows Server®2003 R2,

Standard Edition

zWindows Server®2003 R2,

Standard x64 Edition (*1)

zWindows Vista®Home Basic (32-

bit/64-bit) (*1)

zWindows Vista®Home Premium

(32-bit/64-bit) (*1)

zWindows Vista®Business (32-bit/

64-bit) (*1)

zWindows Vista®Enterprise (32-bit/

64-bit) (*1)

zWindows Vista®Ultimate (32-bit/

64-bit) (*1)

zWindows Server®2008 Standard

(32-bit/64-bit) (*1)

zWindows Server®2008 R2,

Standard (64-bit) (*1)

zWindows®7 Home Premium (32-

bit/64-bit) (*1)

zWindows®7 Professional (32-bit/

64-bit) (*1)

zWindows®7 Enterprise (32-bit/64-

bit) (*1)

zWindows®7 Ultimate (32-bit/64-bit)

(*1)

CPU

Intel®Core™ 2 Duo 2.2 GHz or

higher recommended

(Minimum of Intel®Pentium®4 1.8

GHz)

Memory 1 GB or more recommended

Display

resolution

1024 x 768 or higher, 65536 colors

or more

Hard disk

space

1.2 GB or more of free hard disk

space is required (*3)

DVD drive Essential for installing the software

Interface USB2.0 (High-Speed)

*3: Disk space corresponding to the resulting

scanned file size is required when scanning

documents.

The following describes how to install the bundled

software from the "Setup DVD-ROM" contained in

the scanner package.

There are two ways to install the bundled

software: [INSTALL (Recommended)] which

installs all software needed to operate the

scanner, or [INSTALL (Custom)] which installs

selected software one at a time.

For how to install Adobe®Acrobat®, refer to

"Installing Adobe®Acrobat®" (page 5).

■INSTALL (Recommended)

For [INSTALL (Recommended)], the following

software can be installed.

zTWAIN driver

zSoftware Operation Panel

zError Recovery Guide

zScandAll PRO

zScan to Microsoft SharePoint

zManuals

1. Turn on your computer and log on to

Windows®.

2. Insert the Setup DVD-ROM into the DVD

drive.

DThe [fi series Image Scanner Setup]

screen appears.

3. Click the [INSTALL (Recommended)]

button.

4. Install the software, following the on-

screen instructions.

■INSTALL (Custom)

1. Perform Steps 1. to 2. in "INSTALL

(Recommended)" (page 4).

2. Click the [INSTALL (Custom)] button.

DThe [INSTALL PRODUCTS] screen

appears.

3. Click the button of the software to be

installed.

4. Install the software, following the on-

screen instructions.

Repeat Steps 3. to 4. to install other software

here.

Windows Vista®screen examples are

used to explain the operations. The

screens and operations may differ slightly

depending on the operating system you

are using.

Where there is no distinction between the

different versions of the operating system

shown in the table of system

requirements, the general term Windows®

is used.

Installing the Bundled Software

zIf an old version of the software is

installed already, uninstall it first. For

how to uninstall software, refer to "A.4

Uninstalling the Software" in the

Operator's Guide.

zLog on as a user with "Administrator"

privileges (Administrators).

If the [fi series Image Scanner Setup]

screen does not appear, find

"Install.exe" in the Setup DVD-ROM

using "Windows Explorer" or

"Computer" and execute it directly.

Install Adobe®Acrobat®using the following

procedure from the "Adobe®Acrobat®DVD-ROM"

supplied with the scanner.

1. Insert the supplied "Adobe®Acrobat®

DVD-ROM"into the DVD drive.

DThe DVD-ROM is recognized

automatically, and the following dialog box

appears.

2. Select [US English] in [Select The

Language], and then click the [OK] button.

DThe following dialog box appears.

3. Follow the on-screen instructions to install

the software.

This Acrobat version does not support Windows

Server®2008.

Installing the Scanner

The following describes how to install the scanner.

1. Place the scanner at its installation site.

2. Attach the ADF paper chute.

Insert the tabs on the ADF paper chute into

the slots on the back of the scanner, and

push in to lock it firmly.

Installing Adobe®Acrobat®

You do not have to install Adobe®

Acrobat®if it is already installed on your

computer.

This dialog box is not displayed

automatically when the [Auto play]

setting of your computer is

deactivated. In this case, run

"AutoPlay.exe" of this DVD-ROM

directly using the "Windows Explorer"

or "Computer".

Refer to Adobe Acrobat Help about how

to use Adobe®Acrobat®.

Carry the scanner by supporting it

from the bottom.

143

(5.63)

292

130

380

850

493.5

(14.96)

(33.46)

(19.43) (11.50)

(5.12)

Scanner's Dimensions

Unit: mm (in.)

Installation Space

Tab

ADF Paper Chute

Side Guide

Connecting the Cables

The following describes how to connect the cables

between the scanner and your computer.

1. Make sure that the computer is turned off.

2. Connect the USB cable with the USB

connector of the scanner and the USB port

of the computer.

3. Connect the AC cable with the AC adapter

(hereinafter referred to as "the power

cable").

4. Connect the power cable to the power

connector of your scanner and to the AC

outlet.

CAUTION

Do not use AC adapters other than the one

supplied with this scanner. Doing so may

cause damage to the scanner.

Manufacturer: Sanken Electric Co., Ltd.

Model number: SED80N2-24.0

zBe sure to use the USB cable which

comes as an accessory with this

scanner.

zWhen connecting to an USB hub,

use the first stage USB hub that is

closest to the computer. If you use

the second or later hub stages, the

scanner may not operate correctly.

zIf you connect the scanner with USB

2.0, it is required that the USB port

and the hub be compliant with USB

2.0. The scanning speed slows down

when you connect the scanner with

USB 1.1.

zConnect the USB cable with the side

showing the USB mark facing up.

USB Connector

AC Cable

USB Cable

Power Connector

AC Adapter

USB mark should

face up

WARNING

Be sure to use the supplied power cable.

The following cases may cause electrical

shock or malfunction.

zUsing a power cable other than that

supplied

zUsing the supplied power cable for other

devices

When you plug the AC cable into an

outlet, the [Power] button of the

operator panel on the scanner will

flash once. Note that this is an initial

diagnosis and not a malfunction.

Test-Scanning Documents

Using ScandAll PRO, you can test-scan

documents to check if they are scanned correctly.

The following describes how to test-scan a

document:

1. Press the [Power] button on the operator

panel of the scanner.

DThe power is turned on, and the [Power]

button lights in green.

During initialization, the Function Number

Display of the operator panel changes as

follows: "8" J"P" J"0" J"1". The

scanner is ready when "1" is displayed.

2. Turn on your computer.

DThe scanner is automatically detected.

3. Load a sheet into the scanner.

1. Pull out the chute extension 1 and chute

extension 2 according to the length of the

sheet.

2. Load the document in the ADF paper chute.

Set the sheet with its front side (scanning

side) facing the ADF paper chute.

3. Adjust the side guides to the width of the

sheet.

4. Lift up the stacker and stacker extension

according to the length of the sheet.

4. Launch ScandAll PRO.

Select the [Start] menu J[All Programs] J

[Fujitsu ScandAll PRO] J[ScandAll PRO].

5. Select the [Tool] menu J[Preferences].

DThe [Setup] dialog box appears.

6. On the [Scan] tab, select a driver to use,

and then click the [OK] button.

To use a TWAIN driver, click [TWAIN].

To use an ISIS driver, click [ISIS/VRS].

7. Select the [Scan] menu J[Select

Scanner].

DThe [Select Scanner] dialog box appears.

8. Select the scanner you want to use, and

then click the [Select] button.

Select the scanner model which is connected

to your computer.

The list of scanner models varies depending

on the scanner driver installed.

9. Click the [Scan] menu J[Scan Settings].

DThe [Scan Settings] dialog box appears.

10.

Clear the [Save to file] check box.

11.

Click the [Scanner Setting] button.

DThe scanner driver's setup dialog box

appears.

If "1" is not shown in the Function

Number Display, refer to "Chapter 8

Troubleshooting" in the Operator's

Guide.

When you press the [Power] button,

the Check LED will flash once. Note

that this is an initial diagnosis and not

a malfunction.

When the [Found New Hardware]

dialog box appears, select [Locate and

install driver software

(recommended)], and install the driver

by following the on-screen

instructions.

Check

Function

Send to

Scan

/Stop

Power

Function

Number

Display

[Power] Button

Check LED

TWAIN Driver ISIS Driver

FUJITSU fi-6110dj Fujitsu fi-6110

You only check the operation now, so

you do not have to save to file.

Stacker

Chute

Extension 1

Chute

Extension 2

Stacker

Extension

Side Guides

12.

Configure scanner settings such as the

resolution and paper size.

zTWAIN/ISIS drivers

Configure scan settings, and then click the

[OK] button.

13.

In the [Scan Settings] dialog box, click the

[Scan] button.

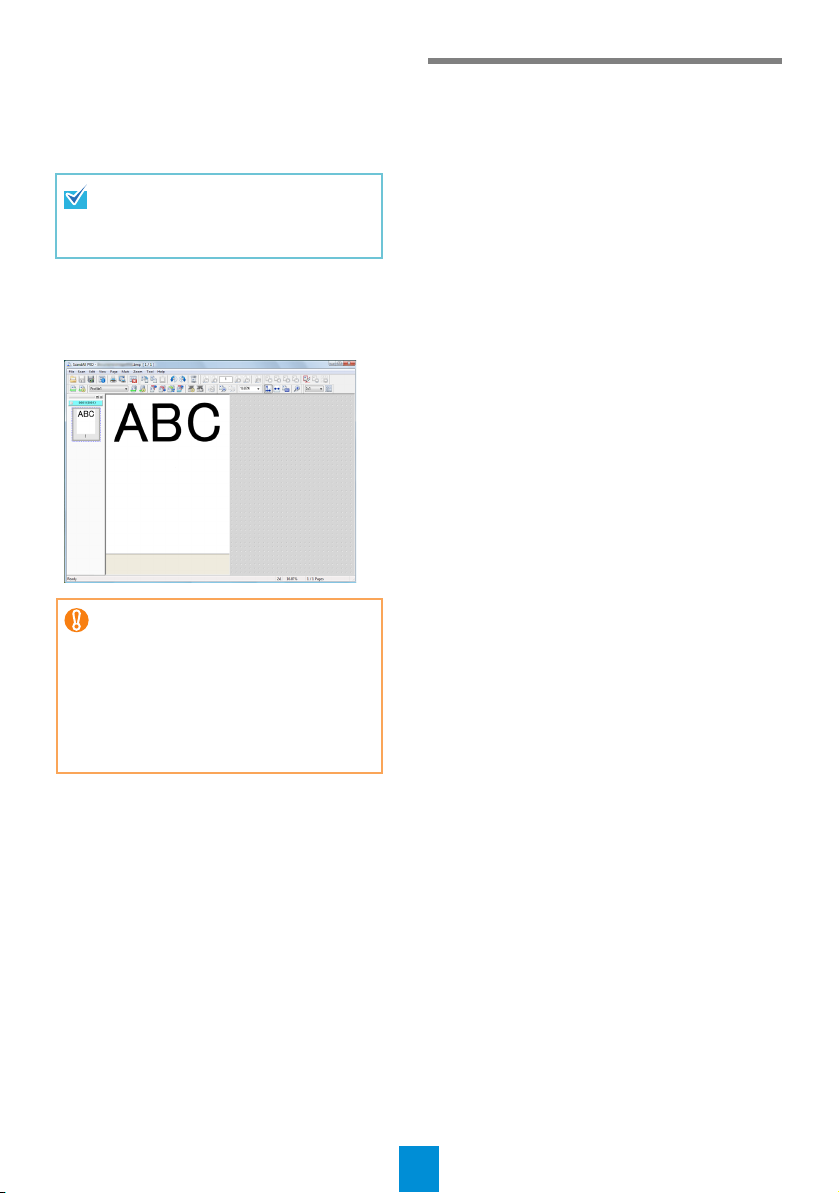

DThe scanned document images are

displayed in the ScandAll PRO window.

For information about other scanning features,

refer to "Chapter 5 Various Ways to Scan" in the

Operator's Guide.

Contact for Inquiries

Refer to the contact list on the last page of the

"Safety Precautions" document.

The scanner driver setup dialog box

may be displayed again after the [OK]

button is clicked. If this occurs, click

the [Scan] button in the dialog box.

When an error occurs in the scanner,

the Function Number Display

alternates between either "J" or "U"

and an "error number" for temporary

errors, and either "E", "H" or "L" and

an "alarm number" for device errors.

If an error occurs, refer to "Chapter 8

Troubleshooting" in the Operator's

Guide.

Autres manuels pour fi-6110

Table des matières

Autres manuels Fujitsu Scanner

Fujitsu

Fujitsu M3096EX Guide de configuration

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Fujitsu

Fujitsu M3096EX/GX Manuel

Fujitsu

Fujitsu ScanSnap fi-5110C Manuel utilisateur

Fujitsu

Fujitsu S500M - ScanSnap - Document Scanner Manuel utilisateur

Fujitsu

Fujitsu fi-60F Manuel

Fujitsu

Fujitsu ScanPartner 15C Manuel utilisateur

Fujitsu

Fujitsu ScanSnap iScanner fi-6010N Manuel utilisateur

Fujitsu

Fujitsu M4099D Guide de configuration

Fujitsu

Fujitsu ScanSnap fi-5110EOX Manuel utilisateur

Fujitsu

Fujitsu FI-6750S Manuel utilisateur

Fujitsu

Fujitsu FI-4120C Guide de référence

Fujitsu

Fujitsu M3097E Plus Manuel

Fujitsu

Fujitsu Fi-4750c - Color Duplex Document Scanner 50ppm 90ipm... Manuel utilisateur

Fujitsu

Fujitsu fi-4110CU Series Guide de configuration

Fujitsu

Fujitsu Fi-5110EOX2 - ScanSnap! - Document Scanner Manuel utilisateur

Fujitsu

Fujitsu FI-5120 Manuel utilisateur

Fujitsu

Fujitsu S1500 - ScanSnap Deluxe Bundle Manuel utilisateur

Fujitsu

Fujitsu SV600 Instructions de montage

Fujitsu

Fujitsu ScanSnap S1100i Instructions de montage

Fujitsu

Fujitsu S510 - ScanSnap - Document Scanner Manuel utilisateur

Fujitsu

Fujitsu SCANPARTNER 600C Manuel utilisateur

Fujitsu

Fujitsu fi-5650C Guide de configuration

Fujitsu

Fujitsu fi-6400 Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur

Innova

Innova 5210 Manuel utilisateur

Visioneer

Visioneer CardReader 100 Guide de démarrage rapide

Rohde & Schwarz

Rohde & Schwarz TSME6 Manuel utilisateur

Fujitsu fi-6110 Manuel utilisateur

Manuels Scanner populaires d'autres marques
