FTP-637MCL401/601

nOverview

The FTP-637 MCL Series are 24V driven high-speed printers

with a ultra low prole auto cutter and long life.

The FTP-637 MCL Series can be used for a variety of

applications, such as POS terminals, ticket vending machines,

label printers, banking terminals, and measurement and

medical equipment.

nHiGHLiGHTS

• Ultralowprole

Height 21.8 mm, width 103.2/104.5 mm, depth 42.2 mm

• Highspeedprinting

It can print at 100/150 mm/s maximum by using Fujitsu's

unique head drive control.

• AutoCutter

Long life and high reliable guilotine with dedicated motor.

• Easypapersetting

Our lever platen release mechanism allows a

wide paper route, so paper can be easily inserted.

Conventional auto loading is also available.

• Multifunctionaldie-castframe

Wide operating temperature range, long continuous

printing, high ESD absorbtion and discharge of static

electricity vibration and shock resistant.

• RoHScompliant

FTP-637MCL401/601

24v driveN, FTP-607 Series

3” HiGH SPeed THerMaL PriNTer

FTP-637MCL401/601

FTP-637DSL291

FTP-637DSL601R

FTP-637MCL401/601

nParT NuMberS

nSPeCiFiCaTiONS

Part number FTP-637MCL401/601

Printing method Thermal-line dot method

Dot structure 576 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 72 mm

Number of columns ANK 48 columns/line (maximum 12 x 24 dot font)

Paper width 80 mm

Paper thickness 60 to 85 µm (some paper in this range may not be used because of

paper characteristics)

Printing Speed MCL401 Maximum 100mm/sec. (800 dot line/sec.)

MCL601 Maximum 150mm/sec. (1,200 dot line/sec.)

Alphanumeric, kana: 159 types

International characters: 195 types

JIS Kanji (Kanji CG loaded board): about 6800 types

12 × 24 dots, (1.5 × 3.0 mm), 48 columns: ANK

24 × 24 dots, (3.0 × 3.0 mm), 24 columns: ANK

8 × 16 dots, (1.0 × 2.0 mm), 72 columns: ANK

16 × 16 dots, (2.0 × 2.0 mm), 36 columns: ANK

SpecicationsItem

Character types

Character, dimensions (W×H), number of

columns

Part Number

Easy Load Model with low prole cutter FTP-637MCL401

FTP-637MCL601

LSI for driving MCL401 FTP-627CU301R

MCL601 FTP-627CU601R

Interface

board for

Mech/Cutter

Cutter

supported

MCL401 FTP-637DSL291R Parallel (Centronics) /Serial (RS-232C)

MCL601 FTP-627DSL601R Serial (RS-232C) / USB

MCL401 FTP-637DSL623R USB (V 1.1)

FTP-637DSL625R Serial (RS-232C)

MCL601 FTP-637DSL633R USB (V 1.1)

FTP-637DSL635R Serial (RS-232C)/

Interface

cables

Parallel (Centronics) FTP-628Y202

Serial (RS232C) FTP-628Y302

USB FTP-629Y301

Power

cables

Logic FTP-629Y401

Head, motor FTP-629Y601

FTP-637MCL401/601

nSPeCiFiCaTiONS

*+5˚C to +40˚C printing density assurance rance.

Item Specication

Interface Conforms to RS232C/Centronics

Power

supply

For print

head

MCL401 24 VDC average current, 0.7A (1.3A peak)

MCL601 24 VDC average current, 1.3A (2.5 A peak)

(print ratio: 12.5%, print speed 100mm/sec.)

For motor 24 VDC ±5%, 1.0 A maximum

For cutter MCL401 24 VDC ±5%, 1.1 A maximum

MCL601 24 VDC ±5%, 1.3 A maximum

For logic 3.3 to 5.25 VDC, 0.2 A maximum

Dimensions Mechanism with cutter 104.5 x 42.2 x 21.8 mm (WxDxH)

Interface

board

DSL291 70 x 60 x 12 mm (WxDxH)

DSL6xx 95 x 70 x 21.6 mm (WxDxH)

Weight Mechanism with cutter Approximately 118g/122g

Interface board Approximately 50g / 50g

Life Head MCL401 Pulse durability: 50 million pulses/dot (print ratio: 12.5% or less).

MCL601 Pulse durability: 100 million pulses/dot (print ratio: 12.5% or less).

MCL401 Abrasion resistance: paper traveling distance 50km

MCL601 Abrasion resistance: paper feed length 100km.

Cutter MCL401 500,000 cuts

MCL601 1,000,000 cuts

Platen 5,000 times (open/close)

Operating

environment

Operating temperature* 0ºC to +50ºC

Operating humidity 20 to 85% RH (no condensation)

Storage temperature -20ºC to +60ºC (paper not included)

Storage humidity 5 to 95% RH (no condensation)

Detection

function

Head temperature detection Detected by thermistor

Paper out/mark detection Detected by photo-interruptor

Platen release Detected by sliding switch

Recommended thermal sensitive paper High sensitive paper TF50KS-E4 (Nippon paper)

Standard paper TF60KS-E (Nippon paper),

FTP-020PU001 (58mm)

PD150R (Oji paper)

FTP-020PU701 (58mm)

Medium life paper TF60KS-F1 (Nippon paper)

FTP-020P0102 (58mm)

PD170R (Oji paper)

P220VBB-1 (Mitsubishi paper)

Long life paper PD160R (Oji paper)

AFP-235 (Mitsubishi paper)

TP50KJ-R (Nippon paper)

HA220AA (Nippon paper)

FTP-637MCL401/601

nFuNCTiON OF iNTerFaCe bOard

ndiMeNSiONS

1.Printermechanism

Unit: mm

Note: 1. Dimensions are nominal value (tolerance ±5 unless otherwise specied).

2. Platen unit (lever, platen, etc) moves by approximately 0.7mm toward paper insertion direction when platen is

open.

FTP-637MCL401/601

11degrees

27.7

1.6

103.2 / 104.5

28.3 (29.3 max.)

21.8

10.7

5.4

(42.2)

11.6

36.0

90.4

13.1

22.1

13.9 (14.4 max.)

7.5

Center of paper

Center of mechanism

Item Item

1. Test print function 8. Cutter trouble detect

2. Paper out detection 9. Motor power saving function

3. Paper near end detection 10. Mark detection function

4. Paten open detection 11. MCU operation abnormality detection

5. Thermal head temperature abnormality

detection 12. Power ON/OFF sequence protection

6. Blow-out fuse detection 13. Motor over-current protection

7. Head voltage abnormality detection 14. Hardware timer

FTP-637MCL401/601

1.Connector(FPC)specication(CN4)

(1) Connector

Mechanical unit side: FPC connector

Remote side (housing site): 52610-3071 (made by Molex)

(2) Pin assignment on the mechanical side

G —

M I

oN langiS O/I stnetnoC

1 KHP — )edohtaC(retpurretniotohP

2 NESV I rosnesrepaprofylppusrewopdnuorG

3 EHP O )rottimE(retpurretniotohP

4 HV I rewopevirddaeH

5 HV I rewopevirddaeH

6 HV I rewopevirddaeH

7 ID I tupniataD

8 3BTS I 3ebortS

9 4BTS I 4ebortS

01 DD rewoPcigoL

11 DN dnuorgdaeH

21 DNG — dnuorgdaeH

31 DNG — dnuorgdaeH

41 DNG — rewopevirddaeH

51 DNG — rewopevirddaeH

61 DNG — rewopevirddaeH

71 MT O rotsimrehT

81 1BTS I 1ebortS

91 2BTS I 2ebortS

02 TAL I hctaLataD

12 KLC I kcolC

22 HV I rewopevirddaeH

32 HV I rewopevirddaeH

42 HV I rewopevirddaeH

52 WS — hctiwsneponetalP

62 WS — hctiwsneponetalP

72 AT AlangiseticxerotoM

82 AT AlangiseticxerotoM

92 BT BlangiseticxerotoM

03 BT BlangiseticxerotoM

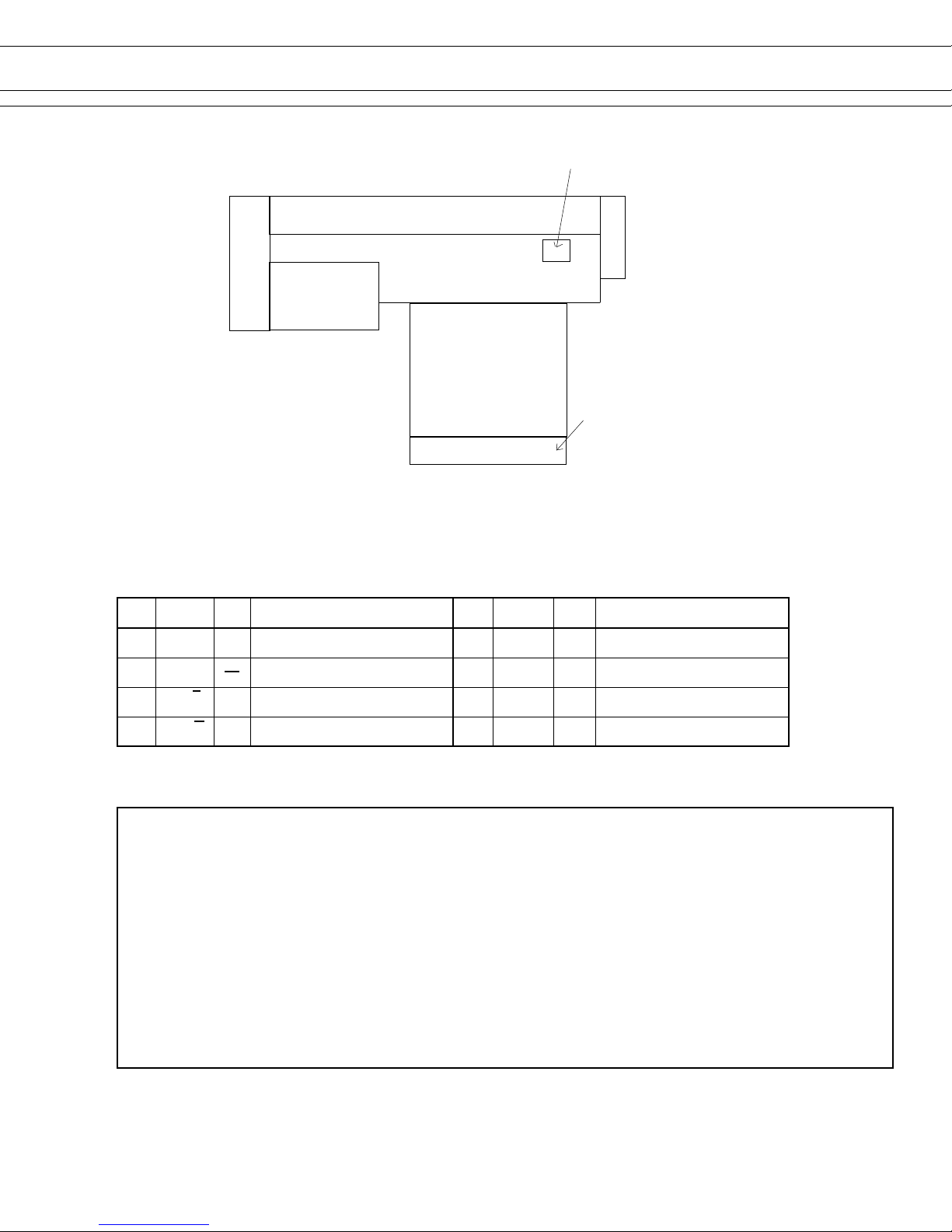

FTP-637MCL401/601

Platen unit

Thermal head

Motor

Sensor (Photo-

interruptor)

30, 29, .....................2,1

Connector No

(FPC pin numbers)

FPC

Connect terminal:

surface side

2.Cutter(CN5)

Connector on control circuit side: 52610-0871 Molex or equivalent

M I

3 KP

M 8

M I

N —

.oN langiS O/I stnetnoC .oN langiS O/I stnetnoC

1 NESV I rewoprosnesrepaP 2 EHP O )rottime(rotpurretniotohP

H )edohtac(rotpurretniotohP 4 AT AlangiseticxerotoM

5 AT AlangiseticxerotoM 6 BT BlangiseticxerotoM

7 BT Blangiseticxeroto C detcennoctoN

Japan

Fujitsu Component Limited

Gotanda-Chuo Building

3-5, Higashigotanda 2-chome, Shinagawa-ku

Tokyo 141 8630, Japan

Tel: (81-3) 5449-7010

Fax: (81-3) 5449-2626

Email: [email protected]

Web: www.fcl.fujitsu.com

NorthandSouthAmerica

Fujitsu Components America, Inc.

250 E. Caribbean Drive

Sunnyvale, CA 94089 U.S.A.

Tel: (1-408) 745-4900

Fax: (1-408) 745-4970

Email: [email protected]

Web: http://us.fujitsu.com/components/

Europe

Fujitsu Components Europe B.V.

Diamantlaan 25

2132 WV Hoofddorp

Netherlands

Tel: (31-23) 5560910

Fax: (31-23) 5560950

Email: [email protected]

Web: emea.fujitsu.com/components/

AsiaPacic

Fujitsu Components Asia Ltd.

102E Pasir Panjang Road

#01-01 Citilink Warehouse Complex

Singapore 118529

Tel: (65) 6375-8560

Fax: (65) 6273-3021

Email: [email protected]

Web: http://www.fujitsu.com/sg/services/micro/components/

FujitsuComponentsInternationalHeadquarterOfces

owners.

Fujitsu Components America or its afliates do not warrant that the content of datasheet is error free. In a continuing effort to improve our

products Fujitsu Components America, Inc. or its afliates reserve the right to change specications/datasheets without prior notice.

Rev. February 27, 2009.
