FTP-631MCL351/352

■OVERVIEW

This thermal printer (driven by VDC 24) and cutter provide high

speed printing for 3- inch wide paper (85 mm). This printer is small in

size, light weight, and has low power consumption. The print head is

desined with open construction for easy maintenance.

This printer is suitable for the variety of applications, such as POS

terminals, ticket machines, label printers, measuring devices and

medical equipment.

In addition to the interface board, a driving LSI (MCU + Gate Array) is

also available.

■HIGHLIGHTS

• Ultra high speed printing

It can print at 100 mm/s (800 dotlines/s) by using Fujitsu

Components' unique head drive control system.

• Auto cutter

Full or partial cutting are available by normal or reverse rotation of

the motor (command set).

• Low power consumption

The peak current for head driving is approximately 2.6 A (at 50

mm/s printing speed, 50% printing ratio).

• Easy head access

Head-open construction makes head maintenance easy,

especially for head cleaning.

• Paper auto loading function

The thermal paper can be loaded without head-up lever

operation.

• High resolution

8 dots/mm head provides clear print output.

• Selectable paper paths

Front or rear insertion types are available.

24V DRIVE, ULTRA HIGH SPEED LINE THERMAL PRINTER

3” MECHANISM, WITH AVAILABLE CUTTER

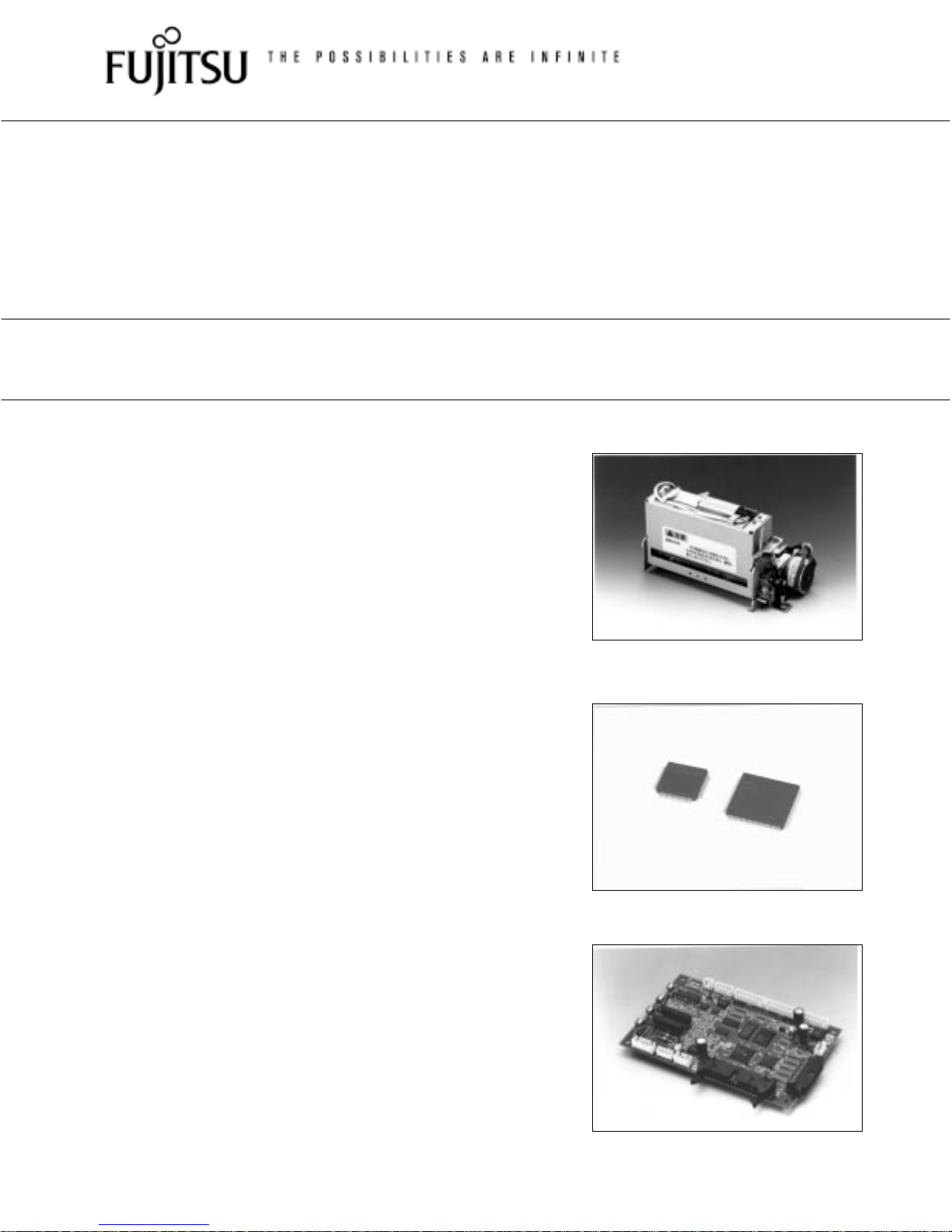

FTP-631MCL351/352 shown after

assembly with FTP-631CT001cutter

FTP-621DCL013

FTP-621CU102, FTP-633GA101

FTP-631MCL351/352

■DESIGNATION

Part number

Front paper insertion type

Rear paper insertion type

FTP-631MCL351

FTP-631MCL352

FTP-631CT001

FTP-621DCL013

FTP-621CU102

FTP-633GA101

Item

Printer mechanism

Micro Controller Unit

Gate Array

LSI

Interface board

Cutter

Printing method Thermal-sensitive line dot method

Dot structure 576 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 72 mm

Number of columns 48 columns/line (maximum)—Alphanumeric KANA

Maximum printing speed 800 dot lines/s (100 mm/s) maximum

JIS ANK : 128 International characters : 130

Character types Semi-graphic : 63 ASCII small characters : 31

Download : 384

24 ×12 dots, (3.0 ×1.5 mm), 48 columns

32 ×16 dots, (4.0 ×2.0 mm), 36 columns

24 ×24 dots, (3.0 ×3.0 mm), 24 columns

32 ×32 dots, (4.0 ×4.0 mm), 18 columns

Interface 1) Centronics standard 2) Bus interface*1

Cutting method Guillotine method

Cutting type Full-cut or partial cut (command set)

Minimum cut length 20 mm

Paper thickness 65 to 150 µm

■GENERAL SPECIFICATIONS

SpecificationsItem

Character composition, dimensions (H×W),

Number of columns (standard)

(Continued)

Cutter

FTP-631MCL351/352

24 VDC ±5%, average:*2

0.55 (0.56) A (at 25 mm/s printing speed, 25% printing ratio)

For head 0.84 (1.11) A (at 50 mm/s printing speed, 25% printing ratio)

3.23 (4.29) A (at 50 mm/s printing speed, 100% printing ratio)

( ): Peak

For motor 24 VDC ±5%, 1.0 A maximum

For logic 5 VDC ±5%, 0.5 A maximum

Weight Mechanism with cutter: approx. 540 g. Interface board: approx. 100 g

Mechanism + cutter 132 (W) ×60 (D) ×71.0 (H) mm (Excluding connector)

Interface board 140 (W) ×89 (D) ×24.0 (H) mm

Pulse durability : 5 ×107pulse/dot (usingFujitsu Takamisawa's standard

driving method)

Wear resistance: 50 km (at 12.5% printing ratio)

Cutter Cutting life: 3 ×105times

Operating temperature +5 to +40°C*3

Operating humidity 20 to 85% RH (no condensation)

Storage temperature –20 to +60°C (excluding paper)

Storage humidity 5 to 95% RH (no condensation)

Head temperature By thermistor (applied energy control, abnormal temperature detection)

Detection Paper out/Mark detect By photointerrupter (command set)

Head-up By microswitch

Paper width 85 mm

1 ply paper in roll : FTP-030P0020

SpecificationsItem

(Continued)

Power supply

Dimension

Thermal head

Life

Environmental

condition

–1

Recommended thermal sensitive

paper*4

*1: The data to be printed is automatically read out by the printer driver equipment memory (host system frame

memory). The communication is parameter transfer.

*2: At 25°C, maximum applied voltage, minimum head resistance, specified paper, stable printing ratio.

*3: Temperature range for guaranteed printing density. It can operate at 0 to +40°C.

*4: Please contact us for other thermal papers.

FTP-631MCL351/352

■DIMENSIONS

Printer mechanism with cutter

Unit: mm

JAPAN

68 (At cutter open)

35.5 (Mounting hole)

40.5

7.5 (300)

(76)

<FTP-631MCL351>

<FTP-631MCL352>

Paper insertion

SECTION Y-Y

11.8

2-M3 Burring

25.4

(Mounting screw)

2.5 (Mounting hole)

52.1 (Center of paper & connector)

106.2 (Mounting hole)

132

21.9

14.2

315

94.8

Paper insertion

Note:

All dimensions are nominal value.

FTP-631MCL351/352

Interface board

CN3 CN4 CN2

CN5 CN1 CN10

CN11

CN7

Height of devices side

Height of solder side

23.6

139.7

129.6

113.1

22.9 14.0

(5.1)

88.9

78.8

(5.1)

14.0

88.9 (5.1)

(5.1)

28.0

25.4

4—ø3.6

1.6

CN12 CN13

22.3 27.4

31.8

CN6

15.3

Unit: mm

■INTERFACE, COMMAND, OPTIONS

Please refer to the FTP-621DCL003/013 DATA SHEET for Interface, Command, and Options.

FTP-631MCL351/352

trademarks of their respective owners. Rev. 09/2001
