Fujitsu D3231-S Manuel utilisateur

TechNotes V0.9

Industrial Mainboard Series

D3231-S

D3235-S

D3236-S

Page

TechNotes D323x-S V0.9 Page 2 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

Content

1Safety Instructions 5

2Feature Overview D323x-S 6

2.1 Basic Layout D3231-S 10

2.2 Basic Layout D3235-S 11

2.3 Basic Layout D3236-S 12

2.4 Block Diagram “Q87” 13

2.5 Block Diagram “H81” 14

2.6 External Connectors D3231-S / D3236-S 15

2.7 External Connectors D3235-S 16

2.8 Onboard components D323x-S 17

2.9 Summary: Feature Differences D323x-S 18

2.10 I/O-Shield 19

3Interfaces & Connectors 20

3.1 Frontpanel Connector 20

3.2 Internal Serial (COM) Port Connector 21

3.3 External Serial (COM) Port 21

3.4 Internal Parallel Port Connector 22

3.5 Internal USB2.0 Connector (2 Ports) 22

3.6 Internal USB3.0 Connector (2 Ports) 23

3.7 External USB3.0 Connector 23

3.8 Keyboard Port 24

3.9 Mouse Port 24

3.10 LAN Connector 25

3.11 DVI-I Connector 25

3.12 DisplayPort V1.2 Connector 26

3.13 Serial ATA Connectors 26

3.14 mSATA Connector 27

3.15 Fan Connectors 28

Page

TechNotes D323x-S V0.9 Page 3 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

3.16 Power Supply Fan Connector 28

3.17 High Definition Frontpanel Audio Connector (HD Audio) 29

3.18 AC97 Frontpanel Audio Connector (Legacy Audio) 29

3.19 S/PDIF Connector 30

3.20 GPIO (Feature Connector) 31

3.21 Power Supply Connector 32

3.22 Additional Power Supply Connector 32

3.23 Chassis Intrusion 33

4System Monitoring 34

4.1 D3236-S / D3231-S: Temperature Sensors and Fan Connectors 35

4.2 D323x-S: SystemGuard 36

4.3 D323x-S: SystemGuard - Details 37

4.4 SilentFanConfigManager –Customize System Monitoring Settings 38

4.5 Components for continous 24/7 operation @ +60°C 39

4.6 Capacitor Endurance Time Comparison 40

4.7 Temperature Reference Points D323x-S 41

4.8 BMC –BIOS Default Settings 42

4.9 ATX Power Supply 43

5Display Options 44

5.1 VGA Output 44

5.2 DVI Output 45

5.3 HDMI Output 46

5.4 DisplayPort Output 47

5.5 Dual Digital plus VGA Output (3 Displays) 48

5.6 Three Digital Outputs (3 Displays) 49

6Operating System Support 50

6.1 Support for Windows 7 / Windows 8 51

7Mainboard Tools 52

Common Mainboard Tools 52

7.1 BIOS Boot Logo Tool 52

7.2 EditCMOS 52

7.3 OEMIDENT 52

7.4 SystemGuard 53

Industrial Tools 54

7.5 SilentFanConfig-Manager 54

Page

TechNotes D323x-S V0.9 Page 4 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

7.6 Windows System-Monitoring API (BMCAPI) 54

7.7 Linux System-Monitoring Driver (“LM-Sensors”) 54

8Known Issues & Important Notes 55

8.1 Driver support for MS Windows XP / MS Win8 55

8.2 Memory Issue 55

8.3 Possible Power Supply Issue 55

8.4 SATA Interface (Intel chipset limitation) 56

8.5 Graphics driver issue with future Core-i3 / Pentium-G processor 56

8.6 mSATA support 56

8.7 USB3.0 Performance 57

9Miscellaneous 58

9.1 Trusted Platform Module (TPM) 58

9.2 System Watchdog (WD) 59

9.3 BIOS Update / BIOS Recovery 62

9.4 BIOS/CMOS Reset: 63

9.5 BIOS integrated HW Diagnostic Tool 64

9.6 BIOS integrated Erase Disk Tool 64

Page

TechNotes D323x-S V0.9 Page 5 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

1Safety Instructions

TechNotesD307x-S V1.1

Safety Instructions

Do not connect or disconnect any cables or modules to or from any onboard connectors (except

for the rear I/O connectors) until the mainboard is completely powered down.

Any damage caused to the mainboard by misuse of the onboard connectors is excluded from the

standard warranty. Fujitsu Technology Solutions cannot be held liable for any damage that results

from incorrect use of any onboard connectors.

The system integrator is fully responsible for the usage of appropriate connectors and cables in

order to fulfill the technical requirements (electrical contact, durability, power/current levels,

signal integrity etc.)

Page

TechNotes D323x-S V0.9 Page 6 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

2Feature Overview D323x-S

•Based on latest Intel

Lynxpoint

single-chip technology (iQ87 resp. iH81)

•Support for full range of latest LGA1150

Haswell

processors (Intel CoreTM-i Gen 4; up to 95W TDP)

•Intel® Core™ i7 / i5 –4xxx processor series

•Future Intel® Core™ i3 – 4xxx processor series

•Future Intel® Pentium®

Haswell

processor series

•Future Intel® Celeron®

Haswell

processor series

•iAMT 9.0 / VPro 2013 Manageabilty Support

Note: Available feature set depends on PCH and

installed processor

•Max. four memory sockets DDR3-1333/1600 supporting up to 32GB

•Intel Gbit LAN i217LM (“Clarkville”) onboard

•iAMT support

•Second Intel Gbit LAN i210AT (optional)

•Teaming support

Page

TechNotes D323x-S V0.9 Page 7 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

Feature Overview D323x-S

•Trusted Platform Module TPM V1.2 (Infineon) onboard (optional)

•Latest Intel®HD Graphics (integrated in processor)

•Simultaneous use of integrated graphics and PCIe graphics possible

•Onboard option for up to three digital displays (1 x DVI / 2 x DisplayPort V1.2)

or two digital displays (2 x DisplayPort V1.2) and 1 x VGA (DVI-I via VGA converter)

•Support of 4k resolutions (3840 x 2160) via DisplayPort V1.2

•PCI Express Gen3 (Q87) / PCI Express Gen2 (H81)

Page

TechNotes D323x-S V0.9 Page 8 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

Feature Overview D323x-S

•Internal Socket for USB stick / Dongle onboard (optional)

•USB 3.0 onboard

•Multichannel audio (5.1) incl. S/PDIF onboard

•6-Layer PCB

•Improved electrical signal quality

•Improved durability

Page

TechNotes D323x-S V0.9 Page 9 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

Feature Overview D323x-S

Designed & approved for 24/7 continuous operation @ 60°C

High Efficiency core voltage regulator design (80-85%)

Extended lifecycle up to 5 years

BIOS-POST/-Boot & OS –HW Watchdog onboard

Easy SW integration via Windows API & Linux Driver

mSATA Socket onboard(optional)

for OS installation or harddisk caching

incl. USB 2.0 interface for USB-based moduls

Page

TechNotes D323x-S V0.9 Page 10 of 65 http://www.fujitsu.com/fts/products/computing/pc/accessories/mainboards

mainboards

Feature Overview D323x-S

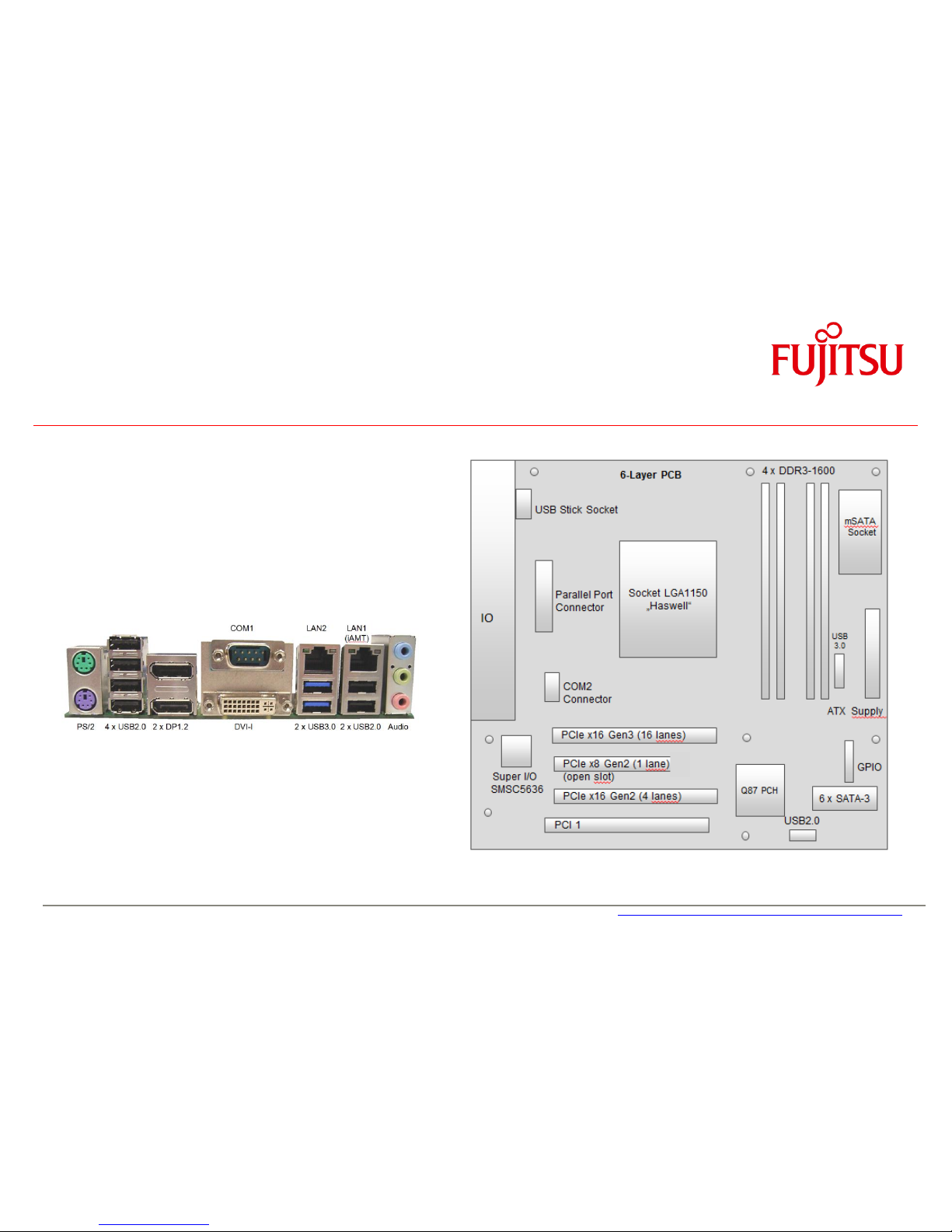

2.1

Basic Layout D3231-S
