FujiFilm FM-DP L Manuel utilisateur

FM-DP L

Service Manual

MAINTENANCE

H-1

FM-DP L

Service Manual

H-1

MAINTENANCE CONTROL SHEET

006-252-05

06.30.01 FM3040

CONTROL SHEET

Revision Number Reason Pages AffectedIssue Date

03/18/99 00 New release (FM2437) All pages

06/15/99 01 Revised(FM2514) 1-1~1-69, 2-1~2-78, 3-1~343,

4-1~4-151,5-1~5-54, 5-158~5-171

10/22/99 02 Revised(FM2569) 1~15, 1-1,1-6~1-79, 2-3, 2-26, 2-53,

2-60, 2-68~2-70, 2-76~2-81, 3-2,

3-9~3-389, 4-2, 4-4, 4-5, 4-15, 4-18,

4-60, 4-62~4-64, 4-66, 4-67, 4-106,

4-125, 4-127~4-163, 5-1~5-3,

5-5~5-7, 5-9~5-177

03/03/00 03 Revised(FM2738) 1,1-34,1-48,1-51~1-57

05/20/00 04 Revised(FM2742) 1, 4, 5, 7~10, 12, 13, 1-59, 1-76, 2-3,

2-7~2-13, 2-15~2-19, 2-28, 2-29,

2-33, 2-37, 2-40, 2-44, 2-52~2-54,

2-56, 2-60, 2-64, 2-66~2-69, 2-76,

2-77, 3-3~3-25, 3-25.1~3-25.4, 3-56,

3-57, 3-60, 3-72, 3-77, 3-89,

3-89.1~3-89.6, 3-330, 3-331, 4-2,

4-6, 4-13, 4-14, 4-16, 4-18, 4-19,

4-72, 4-73.1~4-73.4, 4-75,

4-95.1~4-95.4, 4-134, 4-135, 4-156,

5-10, 5-12, 5-13, 5-18, 5-19, 5-23,

5-26, 5-29, 5-32, 5-39, 5-41, 5-42,

5-49, 5-50, 5-52, 5-53, 5-55~5-58,

5-167~5-171, 5-173, 5-174, 5-177

06/30/01 05 Revised(FM3040) 1, 2, 4, 5, 7, 9~15, 1-1~1-3, 1-18,

1-19, 1-24, 1-26, 1-28, 1-65~1-65.4,

1-77~1-79, 2-28, 2-34~2-37,

2-39~2-41, 2-51, 2-53.1~2-55.4,

2-69~2-69.4, 2-72, 2-78, 3-2,

3-7~3-7.4, 3-14, 3-19~3-19.4, 3-32,

3-33, 3-39~3-44, 3-60, 3-72,

3-74~3-80.4, 3-83~3-89.16, 3-92,

3-96, 3-100, 3-104, 3-106~3-108,

3-110~3-112, 3-116, 3-120, 3-124,

3-128, 3-132, 3-136, 3-140, 3-144,

3-148, 3-150~3-152, 3-156, 3-160,

3-164, 3-168, 3-172, 3-180, 3-184,

3-188, 3-192, 3-196, 3-200, 3-204,

3-208, 3-212, 3-216, 3-220, 3-224,

3-228, 3-232, 3-236, 3-240, 3-244,

3-248, 3-252, 3-256, 3-260, 3-264,

3-268, 3-272, 3-278, 3-280, 3-283,

3-284, 3-308, 3-319~3-323, 3-325,

3-326, 3-342, 3-348, 3-349, 3-370,

3-384, 4-1, 4-2, 4-4, 4-5,

4-19~4-19.4, 4-29, 4-78,

4-95.1~4-95.3, 4-120~4-121.4,

4-154, 4-158, 4-159, 4-162, 4-163,

5-4, 5-6, 5-10~5-13, 5-17~5-20, 5-23,

5-26~5-32, 5-33.1~5-33.4, 5-35,

5-41, 5-42, 5-45, 5-52, 5-55,

5-60~5-189

H1-1

006-252-05

06.30.01 FM3040 FM-DP L

Service Manual

H1-1

MAINTENANCE 1. OUTLINE OF EQUIPMENT

1. OUTLINE OF EQUIPMENT

1.1 Outline of Equipment

Features of This Equipment

• Dry printer adopting laser exposure and thermal development method with a

high speed processing ability of about 130 sheets/hour (35 x 43 cm).

• Improved operationability with large liquid crystal touch screen.

• Film sizes 35 x 43 cm, 26 x 36 cm and 20 x 25 cm (*1) can be used. Mount-

ing the optional lower removal unit allows both film sizes to be used at the

same time.

Replacing with the 20 x 25 cm film tray allows use of 20 x 25 cm films. (The

20 x 25 cm film tray can only be mounted to the lower removal unit.)

• MountinganythreeinterfaceboardsfromDICOM,E-IF,analogvideo,digital

video, digital, and optical transmission enables up to three channels to be

connected. However, for DICOM connection, the CPU90G board after

version B will be required.

• Connecting the FN-PS551 or mounting LAN90A board enables use as a

DICOM network printer.

• By setting the blue base/clear base film setting for each film tray, both types

of film can be used. (*1)

• Mounting the automatic density correction function enables the maximum

density to be set to 3.0 or 2.64 for every channel.

• Mounting the image memory board (MMB90A) enables 20 Pix/mm image

outputs of 26 x 36 cm size (*2) and 20 x 25 cm size (*1) CR input images.

• Commercial power supply can be used, without the need for extra power

supply construction.

*1: Main unit software version B03 or later.

*2: Main unit software version B01 or later.

Features of Sorter

• 10-bin sorter, of which each bin can store up to 50 films.

• Sorts by input channel.

• As this sorter has no film removal detection function in each bin, bins cannot

be changed even when the maximum storage number has been exceeded.

• Films are discharged to the top of the FM-DP L if they do not correspond to

the sorting conditions and sorting information set.

• Comes with self-diagnosis function which works immediately after power

ON.

H1-2MAINTENANCE 1. OUTLINE OF EQUIPMENT

006-252-05

06.30.01 FM3040 FM-DP L

Service Manual

H1-2

1.2 System Configuration

Mounting up to three of any optional interface boards enables connection of three types

of interfaces.

The following shows examples of system configuration.

System configuration example 1

When directly connecting to three devices by random combination of the E-I/F, analog

video, and digital video, and digital interface boards.

Modality

FCR

FM-DP L

Analog

Digital

E-I/F

FP3B0202.EPS

System configuration example 2

When connecting to a network using FN-PS551.

Modality

FCR

FN-PS551Modality

FM-DP L

Analog

E-I/F

Ethernet

FP3B0203.EPS

H1-3

006-252-05

06.30.01 FM3040 FM-DP L

Service Manual

H1-3

MAINTENANCE 1. OUTLINE OF EQUIPMENT

System configuration example 3

Multiple-connection using MF-300L.

FCR

MF-300L

FN-PS551Modality

FM-DP L

E-I/F

Modality

Digital

Analog

Ethernet

FP3B0204.EPS

System configuration example 4 (*1)

When connecting to a network.

FCR

MF-300L

LAN90A

Modality

FM-DP L

E-I/F

Ethernet

(10Base-T/100Base-TX)

Modality

Digital

Analog

Ethernet

FP3B0205.EPS

*1: Main unit software version B03 or later.

H1-4MAINTENANCE 1. OUTLINE OF EQUIPMENT

006-252-01

06.15.99 FM2514 FM-DP L

Service Manual

H1-4

1.3 Overall Configuration and Names of Parts

External View

Upper cover

Operation panel

Upper tray

Lower tray

Front cover

Upper right-hand side cover

Lower right-hand side cover

FP3F0201.EPS

Upper rear cover

Rear power switch

External device connector

Upper left-hand side cover

Lower left-hand side cover

Lower rear cover

FP3F0202.EPS

H1-5

006-252-01

06.15.99 FM2514 FM-DP L

Service Manual

H1-5

MAINTENANCE 1. OUTLINE OF EQUIPMENT

Operation Panel

FP3F0219.EPS

123

No. Name No. Name

1 Remote/Local switch 4 Touch panel

2 READY display 5 ERROR display

3 CALL display 6 POWER display

TP3F0209.EPS

H1-6MAINTENANCE 1. OUTLINE OF EQUIPMENT

006-252-02

10.22.99 FM2569 FM-DP L

Service Manual

H1-6

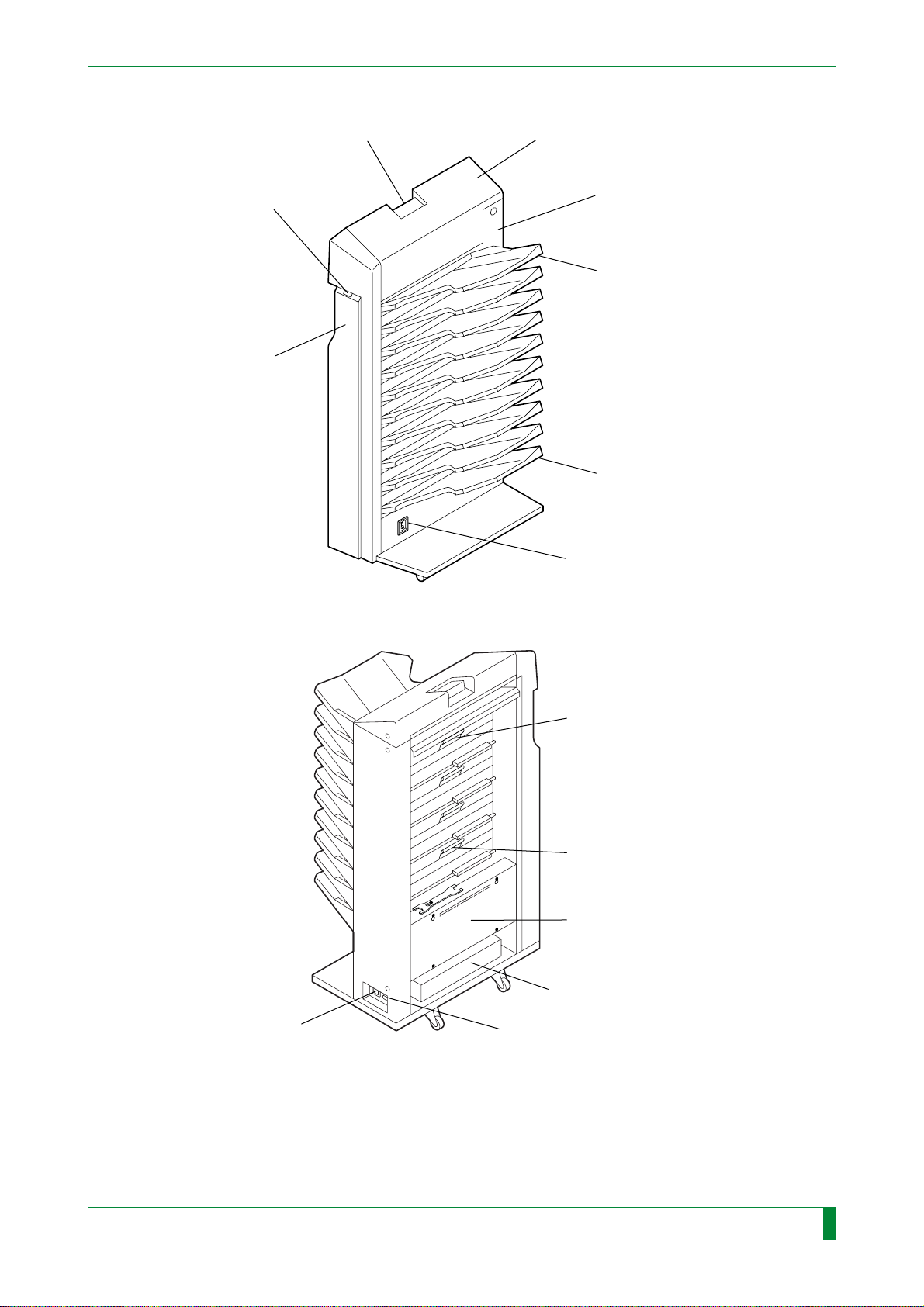

Sorter

FP3F0S01.EPS

Sorter release lever

Sorter power LED

Front cover

Upper cover

Rear cover

Bin 1

Bin 10

Sorter power switch

FP3F0S02.EPS

Jam removing guide 1

Jam removing guide 4

Control board cover

Sorter power unit

Interface connector

Power cable connector

H1-7

006-252-02

10.22.99 FM2569 FM-DP L

Service Manual

H1-7

MAINTENANCE 1. OUTLINE OF EQUIPMENT

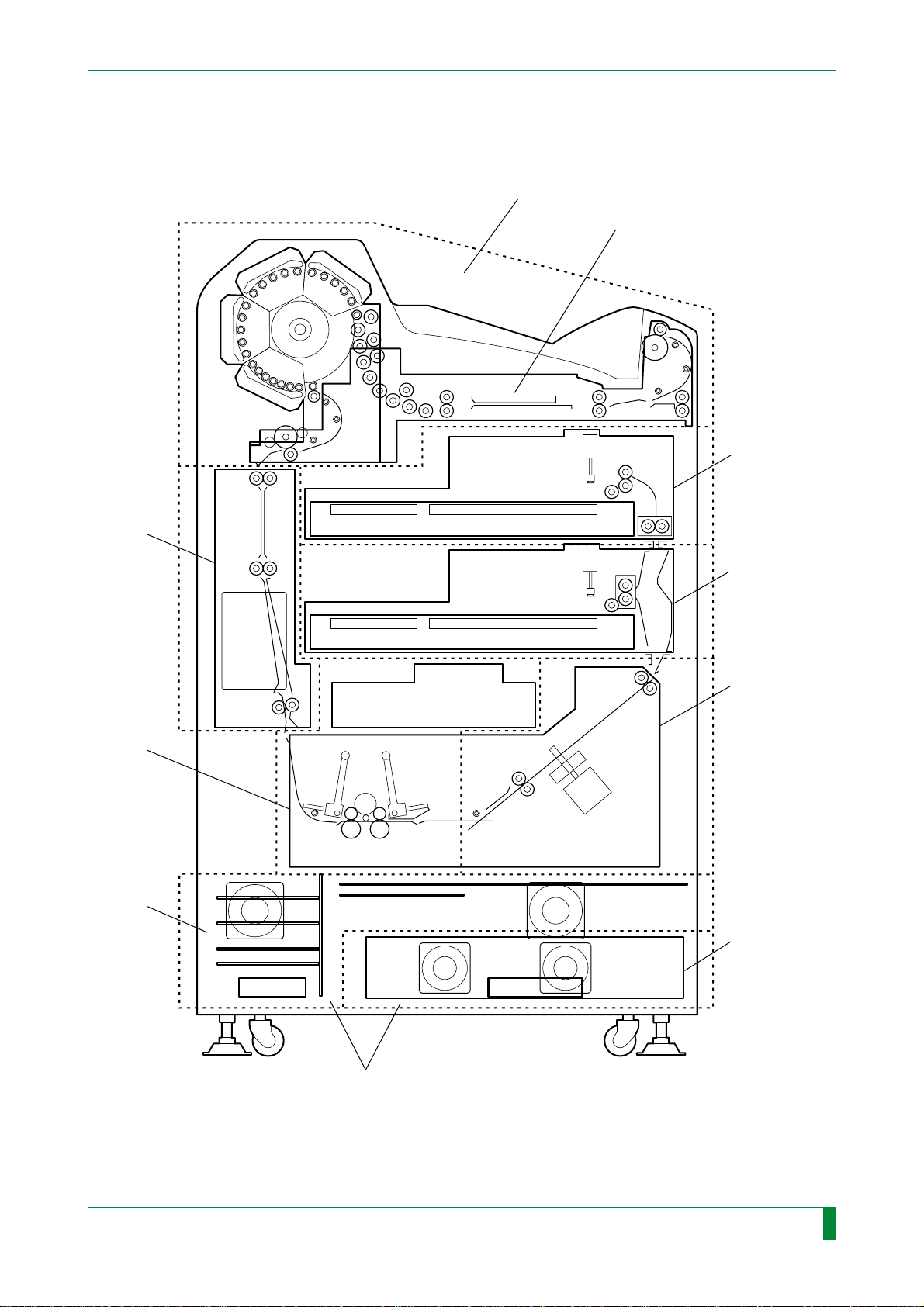

1.4 Position of Parts

1.4.1 Layout of Units

Transport

unit

Sub scanning

unit (D)

Before-sub-

scanning

comveyor (C)

Heat development unit (G)

Density measurment unit (S)

Lower removal

unit (B)

(Optional)

Upper removal

unit (A)

Enclosure (J)

Control unit

Power supply

unit

Optical unit

FP3F0203.EPS

H1-8MAINTENANCE 1. OUTLINE OF EQUIPMENT

006-252-02

10.22.99 FM2569 FM-DP L

Service Manual

H1-8

1.4.2 Layout of Rollers

Main Body

: Grip roller

FP3F0204.EPS
