Front Runner RRAC051 Manuel utilisateur

PRO KAYAK & CANOE

CARRIER

RRAC051

INSTALL TIME: 5 Mins

REV_A01

FIT your

Canoe Kayak CArriers

You will need:

10 & 13 mm Flat Wrench

4 mm Hex Key

()

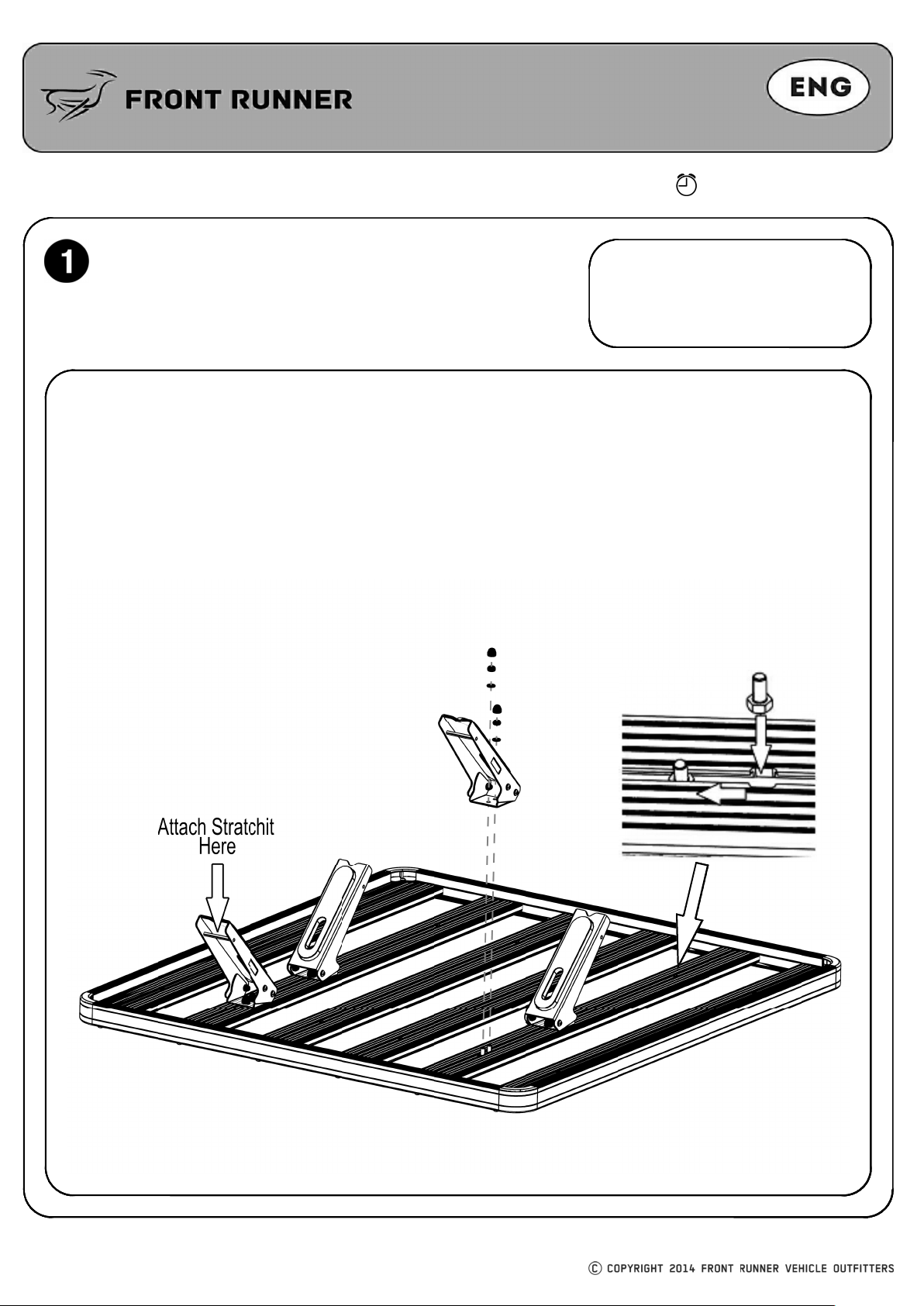

Decide where on your Rack you would like to place your set of four Canoe/ Kayak Carriers. Work out the

correct spacing for the length of your Canoe/ Kayak. Slide four M8 x16 Hex Bolts into the T-slot of each of

the two corresponding Slats through the machined slot as shown. Place each Carrier over two Hex Bolts,

with the cut out in the foam towards the inside of the rack as shown. Loosely fasten the four Carriers to

the Rack using the M8 Flat Washers and M8 Nyloc Nuts supplied. Position the four Carriers left to right as

required and fasten all the Nyloc Nuts. Place a M8 Nut Cap over each of the Nyloc Nuts.

Secure your Canoe / Kayak using the Stratchits supplied. The Stratchits are attached to the Carriers on

the cross bar as indicated.

Congratulations, you have completed your installation. Take a step back and admire your work. Good Job!

()

Adjusting your Canoe Kayak Holders

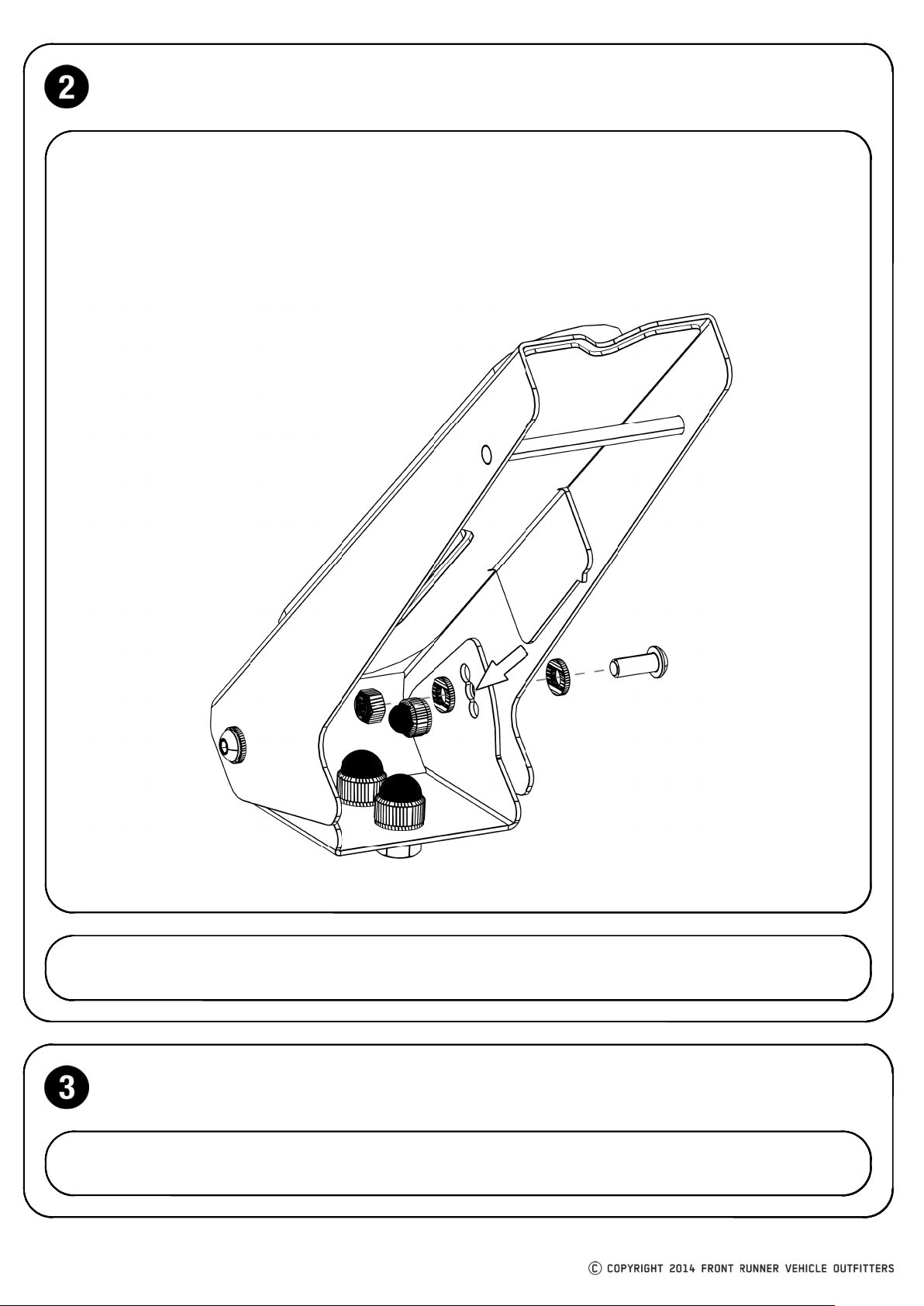

Each Holder has three settings, as indicated by the arrow, allowing you to adjust the angle of each Holder

to best suite your Canoe / Kayak. To adjust the angle, loosen and remove the M6 Button Head Bolt as

shown, adjust the Holder up or down as required and line the hole on the outside of the Holder up with

one of the three adjustment holes on the inside of the holder. Fasten the Holder in position again using the

Button Head Bolt removed earlier.

()
