Front Runner LAMG003 Manuel utilisateur

front runner

LAMG003

ENG

Thank you for purchasing a Front Runner Mercedes Geladewagen G Class (1979 - 2018) Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

MERCEDES GELANDEWAGEN G CLASS (1979-2018)

LADDER

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED

TOOLS NEEDED

IN THE BOX

1 1 X Ladder Top Assembly LH

2 2 X Ladder Side

3 2 X Ladder Step - 150mm Long

4 6 X M6 x 25 Thread Forming Screw

5 8 X M6 x 16 Button Head Bolt

6 8 X M6 Nyloc Nut

7 8 X M6 Nut Cap

8 1 X Bottom Support LH

9 1 X Ladder Bottom Step 156.5mm

10 1 X Bottom Support RH

11 1 X Ladder Base Assembly

12 1 X Stopper Bracket

13 1 X Rubber Buffer

14 1 X M5 x 16 Button Head Bolt

15 1 X M5 Nut Cap

16 1 X Ladder Top Assembly RH

17 1 X M5 Nyloc Nut

IN THE BOX

18 2 X M8 Nyloc Nut

19 2 X M8 Nut Cap

20 2 X M6 Jack Nut

21 2 X M6 x 25 Button Head Bolt

22 1 X Jack Nut Tool

23 1 X M6 x 35 Button Head Bolt

4mm

5mm

8mm

10mm

13 mm

Denatured

Alcohol

22 20 11

17 12

13 14

NOTE: Bottom Step is a different length

(156.5mm Long)

RH Top assembly parts

supplied loose.

Torx

T30

FIT AND SECURE2

2.1

2.2

2.3

The side the door opens will determine

which side the ladder will be installed.

If the rear door opens to the right hand side,

the ladder must be installed on the left hand

side of the vehicle as shown.

If the rear door opens to the left hand side,

the ladder must be installed on the right

hand side of the vehicle.

Identify the Ladder Top Clamp and Gutter

Clamp you will use during the ladder

assembly.

Item 1 = Left Hand Side identiﬁer

Item 16 = Right Hand Side identiﬁer

For the purpose of this ﬁtment guide a left

hand assembly and installation will be

shown.

Loosely assemble the Stopper Bracket (Item

12) to the Bottom RH Support and Ladder

Side (Items 2 & 10), using a Rubber Buffer,

M5 x 16 Button Head Bolt, M5 Nyloc Nut and

M5 Nut Cap (Items 13, 14, 15 & 17).

Loosely assemble the Ladder Sides LH & RH

and Bottom LH & RH Supports (Item 2, 8 &

10) using M6 x 16 Flange Button Head Bolts,

M6 Nyloc Nuts and M6 Nut Caps (Items 5, 15

& 17).

Loosely assemble the Ladder Base Assembly

(Item 11) to the Bottom Support Plates

(Item 8 & 10).

Left Hand Side Right Hand Side

15 17

Torx

T30

8mm

10mm

13mm

4mm

70mm

Door Frame Edge

Ladder Side

FIT AND SECURE2

2.4

2.5

2.6

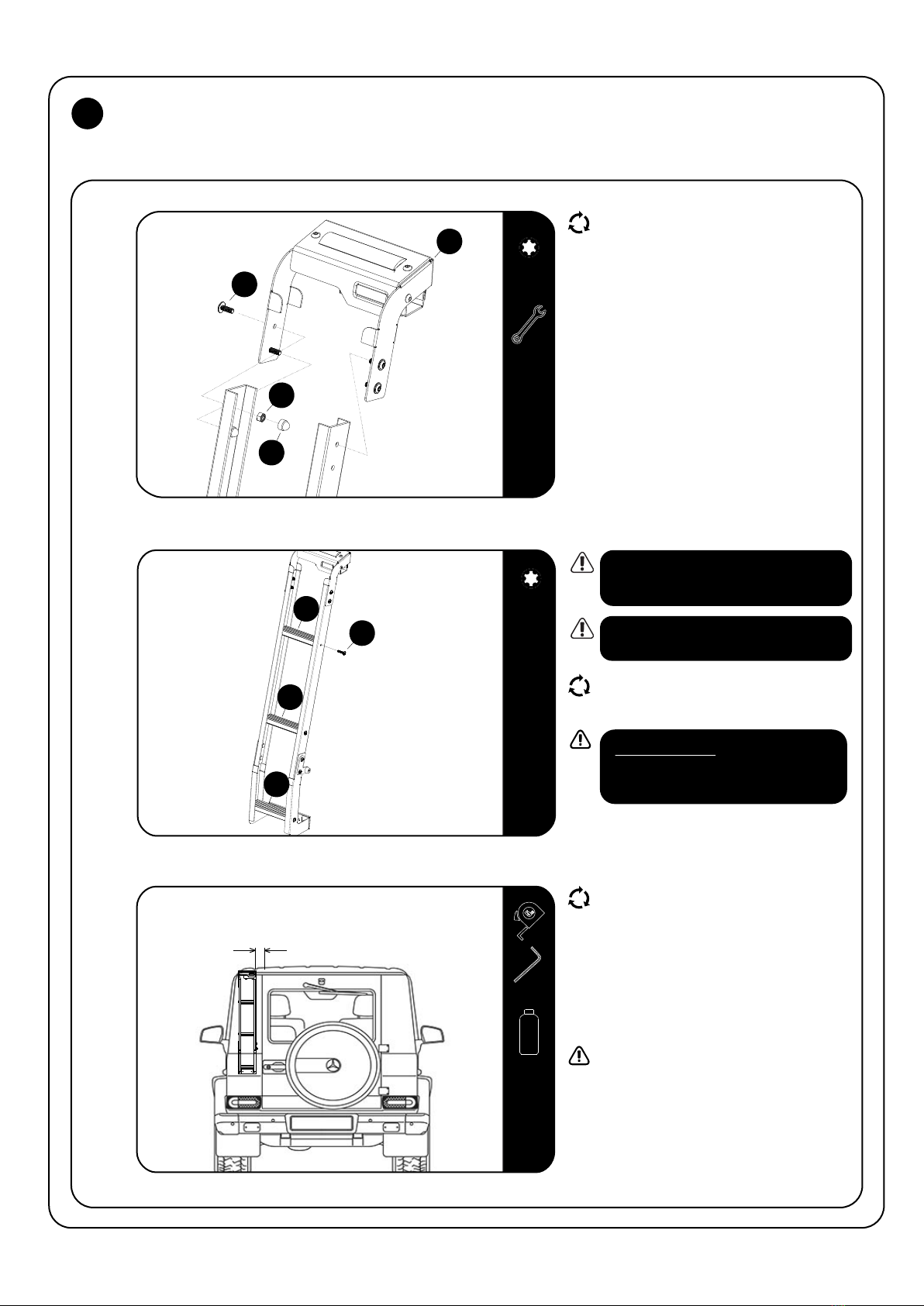

Loosly assemble the Ladder Top Assembly

(Item 1) to the Ladder sides (Item 2) using

M6 x 16 Flange Button Heads and M6 Nyloc

Nuts (Items 5 & 17).

Secure the Steps (Item 3 & 9) to the Ladder

Sides as shown using M6 x 25 Thread

Forming Screws (Item 4)

Swing open the Gutter Clamp on the top

assembly. Fit the top assembly into vehicle's

gutter and let the Bottom Support rest

against the vehicle. Align and space the

Ladder Side at the top and the Ladder Side

at the bottom, 70mm away from door frame

edge.

Fully tighten the two M6 x 60 Cap Screws,

clamping the Ladder to the gutter.

Clean the surface area where the Double

Sided Tape rests against the vehicle with

Denatured Alcohol.

Make sure the spacing at the top and bottom

is 70mm from the Door Frame Edge.

Remove the backing tape from the Double

Sided Tape and ﬁrmly push and secure the

bottom of the ladder against the vehicle.

Use a little petroleum jelly on screw

threads before inserting. Note these are

Thread Forming Screws.

NOTE: Step Length differs refer to ﬁg 1.1

or 2.5.

Tightening Torque:

M6 : 8-10Nm / 5.9 ft lb - 7.38 ft lb

5mm

Denatured

Alcohol

Torx

T30

Torx

T30

10mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
