Frigidaire FSC23F7H Mode d’emploi

E23CS75DSS0.eps N58FCFEFA1.eps N58RCFCHA5.eps N58BABAAD5.eps

N58SEHLBC13.eps N58TBAAAB4.eps N58CAAAAC10.eps N58XEAAAA1.eps

N58YDAAAC4.eps N58I115TServo.eps W241516401A.eps S241516401A.eps

Product No. FSC23F7HB1 FSC23F7HW1 FSC23F7HSB1

Series counter depth counter depth counter depth

Color black white stainless

Volts 115 115 115

Wiring Diagram 241516401A 241516401A 241516401A

Owner's Guide 241814800 241814800 241814800

Market North America North America North America

Energy Guide 241615434 241615434 241615435

Service Data Sheet 241532603 241532603 241532603

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995489829

07/05/01

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FSC23F7H

Publication No: 5995489829 FSC23F7H

05/07 2

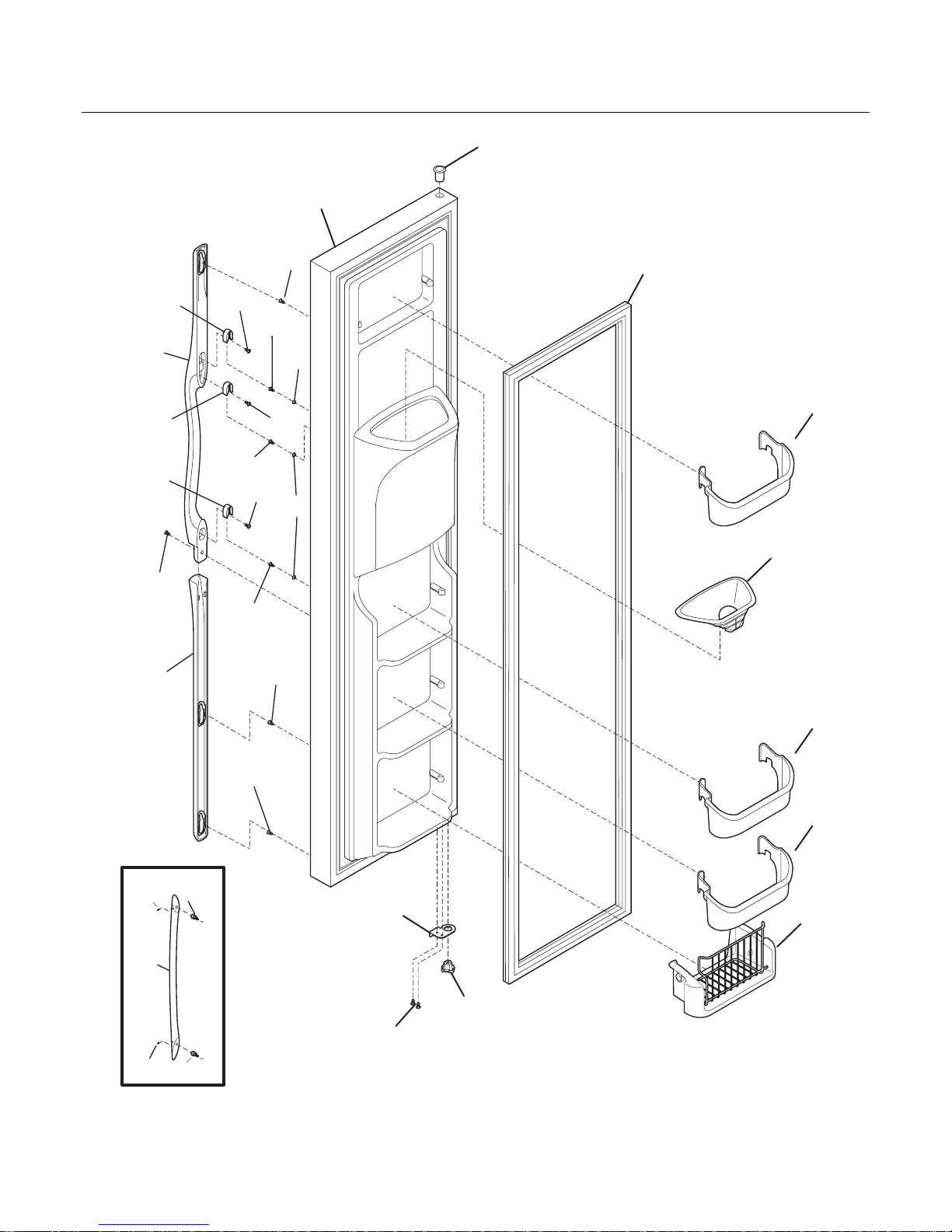

FREEZER DOOR

Stainless Handle

22C

22A

21A

13A

N58FCFEFA1

21C

79 80

FSC23F7H Publication No: 5995489829

# Functional Parts 3 05/07

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFSC23F7H (FSC23F7HB1)

BFSC23F7H (FSC23F7HW1)

CFSC23F7HS (FSC23F7HSB1)

POS. NO PART NO. DESCRIPTION

1 # 241510204 A - C Gasket-frzr door, black, magnetic

1 # 241510202 - B - Gasket-frzr door, white, magnetic

4B 241511602 A B C Bin-door

5 241545001 A B C Bin-tilt out, tilt-out

11 241668172 A - - Door-frzr, black, complete assy

11 241668123 - B - Door-frzr, white, complete assy

11 241668503 - - C Door-frzr, stainless, complete assy

13A 240581906 A - C Door Stop, black, frzr

13A 240581902 - B - Door Stop, white, frzr

18 241711705 A - - Handle-door, black

18 241711704 - B - Handle-door, white, frzr

18 240536818 - - C Handle-door, stainless steel, with insert, & set screw

21 218781101 A B - Screw, pan head, 8-18 x 0.625

21A 240598402 A B C Screw, 10-32 x 1/2

21C 240521304 A B - Screw, #8-18 x 3/4

22A 240328204 A - C Bearing-hinge(frz), black, closer

22A 240328202 - B - Bearing-hinge(frz), closer

22C 240328404 A - C Bearing-hinge, black, upper

22C 240328402 - B - Bearing-hinge, natural, upper

37 241711602 A - - Trim-handle, 30.13", black, lower

37 241711601 - B - Trim-handle, 30.13", white, lower

68 241525101 A B C Chute-ice

72 240421701 A B - Button-handle mtg, dovetail

73 218396700 A B - Block-handle mtg, dovetail

74 215503204 A B - Screw, cr pan hd, 10-16

79 218755402 - - C Screw-set, 10-32 x 0.375

80 218755504 - - C Screw-shoulder, #10 AB, handle mounting

* 240552102 A B C Harness-wiring, door

* 241806601 A B C Connector-water, straight

* 5303918256 A B C Dispenser heater kit

Publication No: 5995489829 FSC23F7H

05/07 4

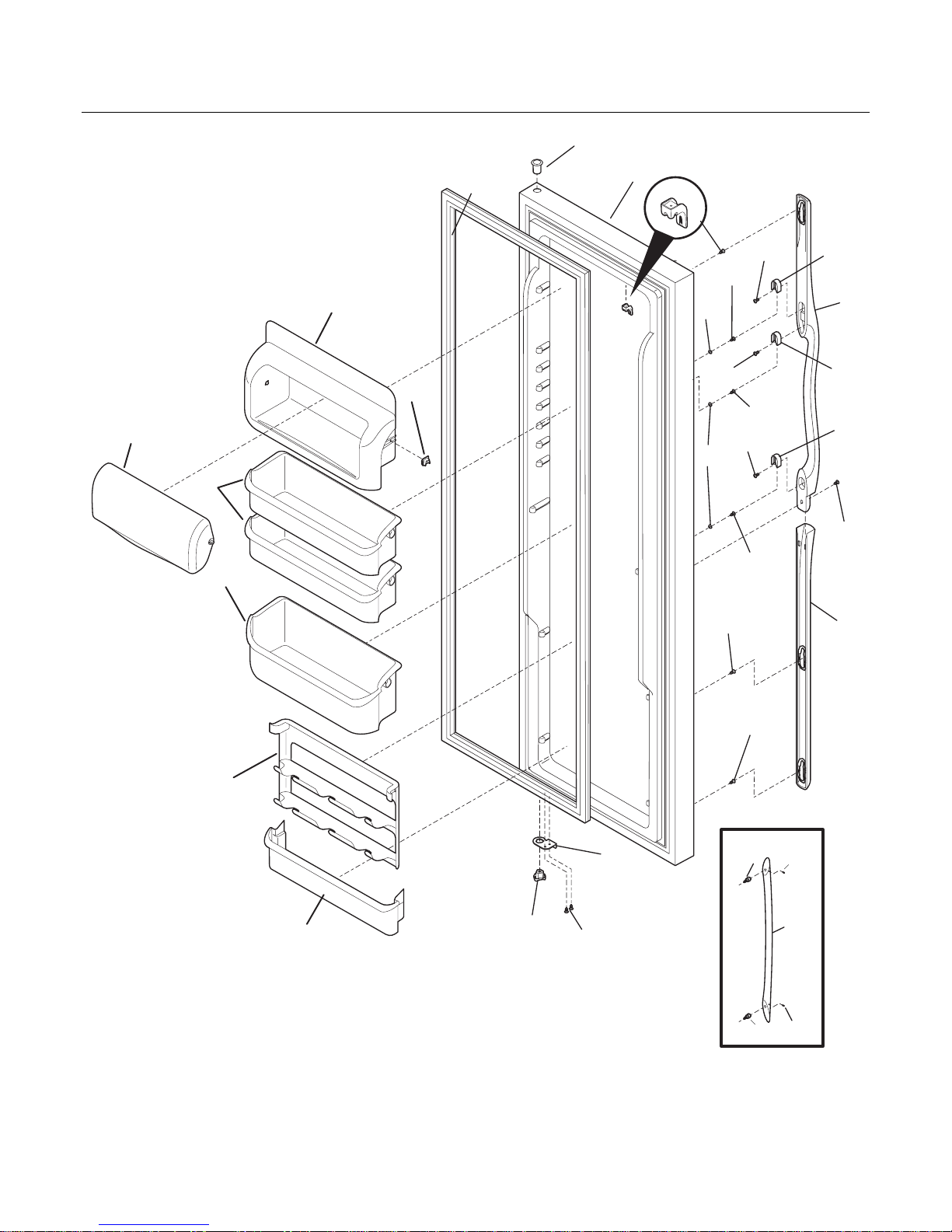

REFRIGERATOR DOOR

Stainless Handle

49A

21A

22B

N58RCFCHA5

21C

FSC23F7H Publication No: 5995489829

# Functional Parts 5 05/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFSC23F7H (FSC23F7HB1)

BFSC23F7H (FSC23F7HW1)

CFSC23F7HS (FSC23F7HSB1)

POS. NO PART NO. DESCRIPTION

2 # 241510203 A - C Gasket-refr door, black, magnetic

2 # 241510201 - B - Gasket-refr door, white, magnetic

5 241516102 A B C Rack-can

6 241515901 A B C Lug-dairy compartment

7 241515601 A B C Door-dairy

13 240581905 A - C Door Stop, black, ref

13 240581901 - B - Door Stop, white, refr

15 241534505 A - - Door-refr, black, complete assy

15 241534504 - B - Door-refr, white, complete assy

15 241534533 - - C Door-refr, stainless, complete assy

18 241711702 A - - Handle-door, black

18 241711701 - B - Handle-door, white, refr

18 240536818 - - C Handle-door, stainless steel, with insert, & set screw

21 218781101 A B - Screw, pan head, 8-18 x 0.625

21A 240598402 A B C Screw, 10-32 x 1/2

21C 240521304 A B - Screw, #8-18 x 3/4

22 240328203 A - C Bearing-hinge, black, closer

22 240328201 - B - Bearing-hinge(ref), closer

22B 240328404 A - C Bearing-hinge, black, upper

22B 240328402 - B - Bearing-hinge, natural, upper

37 241711602 A - - Trim-handle, 30.13", black, lower

37 241711601 - B - Trim-handle, 30.13", white, lower

48 241511701 A B C Bin-door, ref

49 241505301 A B C Bin-door, 2-liter

49* 241779901 A B C Liner, bin, 2 liter

49A 241505501 A B C Bin-door, gallon

49A* 241780001 A B C Liner, bin, gallon

50 241508401 A B C Cover-magnet

70 241515801 A B C Compartment-dairy, removable

72 240421701 A B - Button-handle mtg, dovetail

73 218396700 A B - Block-handle mtg, dovetail

74 215503204 A B - Screw, cr pan hd, 10-16

79 218755402 - - C Screw-set, 10-32 x 0.375

80 218755504 - - C Screw-shoulder, #10 AB, handle mounting

Publication No: 5995489829 FSC23F7H

05/07 6

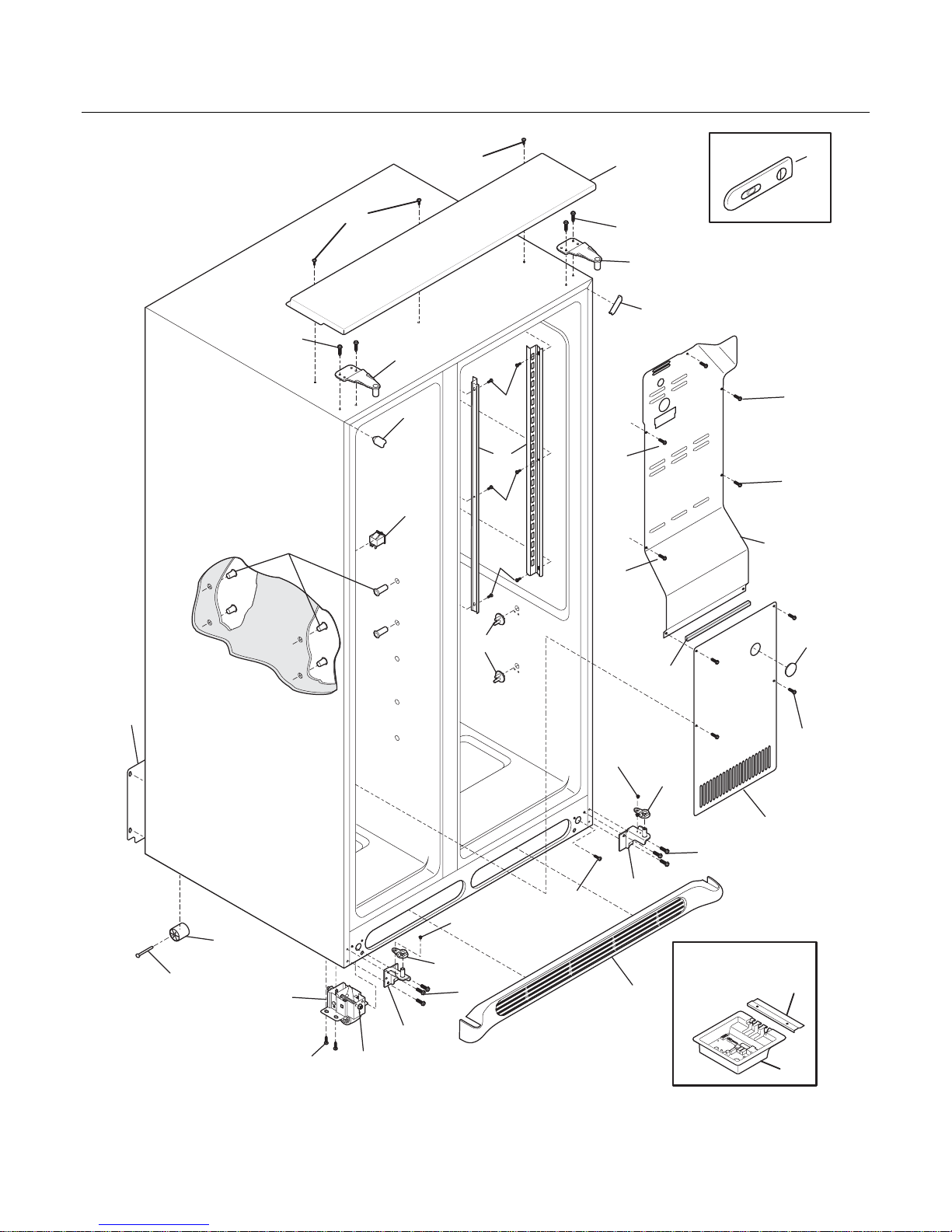

CABINET

14A

100

21C

30A

10A

N58BABAAD5

FSC23F7H Publication No: 5995489829

# Functional Parts 7 05/07

* Non-Illustrated Parts

CABINET

Model Index: AFSC23F7H (FSC23F7HB1)

BFSC23F7H (FSC23F7HW1)

CFSC23F7HS (FSC23F7HSB1)

POS. NO PART NO. DESCRIPTION

10 241509804 A B C Cover-air duct

10A 240475911 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14A 241547901 A B C Switch-light/lamp, frzr door

21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - C Plate-door closer

22 240457701 - B - Plate-door closer

23 240402702 A B C Screw-#10-32 x 1/4 flat hd

28 240335502 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B C Bracket-lower hinge, ref

30A 241603704 A B C Bracket-lower hinge

37 240337610 A - C Trim-cabinet corner, black, (2)

37 240337608 - B - Trim-cabinet corner, white, (2)

38 240327207 A B C Bracket-upper hinge

40 241555103 A - C Cover-hinge, black

40 241555101 - B - Cover-hinge

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 A B C Roller Assy, adjustable, front, (2)

45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500

47 241513001 A B C Channel-shelf mtg, side, (2)

50 241511101 A B C Board-main power

50* 241524801 A B C Seal-Mother Board Housing

50* 241532501 A B C Clip-harness

54 241532401 A B C Channel

58 241595402 A B C Screw-#10-32 X 3/4

66 241513601 A B C Damper Assy

72 241521619 A - C Grille/Kickplate, black

72 241521617 - B - Grille/Kickplate, white

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B C Cover-access, w/label

90 218249808 A B C Seal-coil cover

92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

* 240479601 A B C Plug, button, cab liner holes

* 241591701 A B C Louver

* 5303321321 A - C Paint, touch-up, black

* 5303321319 - B - Paint, touch-up, white

Publication No: 5995489829 FSC23F7H

05/07 8

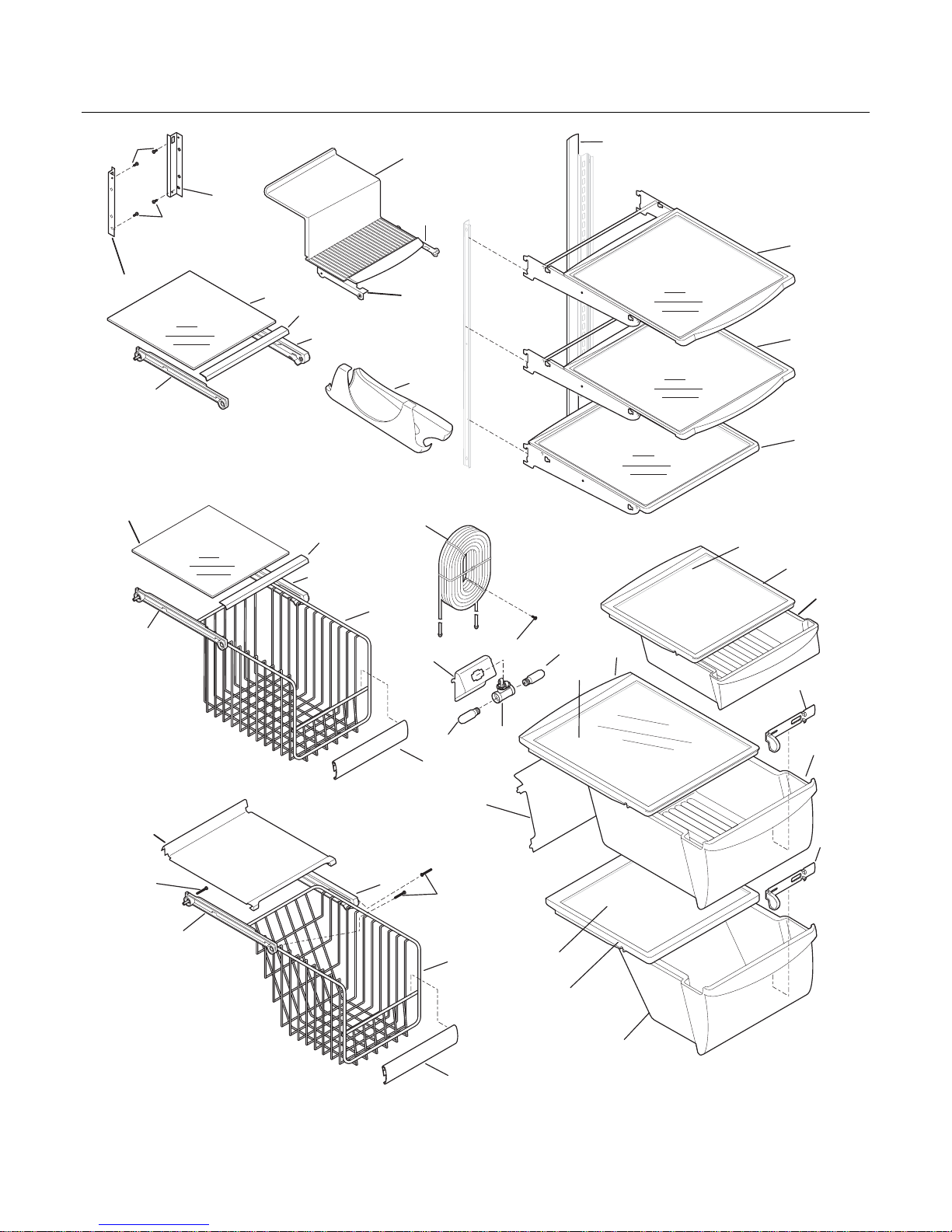

SHELVES

52A

11A

51A

49B

N58SEHLBC13

24B

140

25B

47B

47A

25A

26A

101

100

109 15A

15A 16A

126

120

24B

122

121

136

FSC23F7H Publication No: 5995489829

# Functional Parts 9 05/07

* Non-Illustrated Parts

SHELVES

Model Index: AFSC23F7H (FSC23F7HB1)

BFSC23F7H (FSC23F7HW1)

CFSC23F7HS (FSC23F7HSB1)

POS. NO PART NO. DESCRIPTION

2 241510605 A B C Trim-basket

11 240443357 A B C Shelf-freezer, glass, lower

11A 240443358 A B C Shelf-freezer, glass, upper

15A 241552801 A B C Light Bulb

16A 241622802 A B C Socket-light

16A* 241523202 A B C Harness-wiring

21 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625, 21

24 240355240 A B C Shelf-"Spill-Safe", fixed, (3)

24B 240350129 A B C Shelf-"Spill-Safe", cantilever, sliding

25 240599301 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240350902 A B C Cover-crisper pan, lower

25B 240599801 A B C Cover-meat pan

26 240351005 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240362201 A B C Control-humidity

27 240351205 A B C Pan-crisper, lower

39 240367603 A B C Trim-shelf, 11.65", front

41 241637601 A B C Baffle-air

47 240350633 A B C Insert-pan cover, glass

47A 240350603 A B C Insert-pan cover, glass

47B 240443360 A B C Insert-pan cover, glass

49 241515001 A B C Basket-sliding

49B 241514901 A B C Basket-sliding, upper, full

51 241514501 A B C Hanger-basket, RH

51A 241514701 A B C Hanger-shelf glass, RH

52 241514601 A B C Hanger-basket, LH

52A 241514801 A B C Hanger-shelf glass, LH

62 240599701 A B C Pan-meat

81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 A B C Water Tank

100 240326304 A B C Cover-water tank

101 218493101 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 241513202 A B C Base-crisper light socket

120 241691701 A B C Shelf-ice cream

121 241504701 A B C Rail-ice cream shelf, LH

122 241504702 A B C Rail-ice cream shelf, RH

126 241674401 A B C Channel, auger mtg, LH

126 241674402 A B C Channel, auger mtg, RH

136 241657702 A B C Dispenser-can, clear

140 240430504 A B C Channel, wtr tube cover

* 241615434 A B - Energy Guide

* 241615435 - - C Energy Guide

Publication No: 5995489829 FSC23F7H

05/07 10

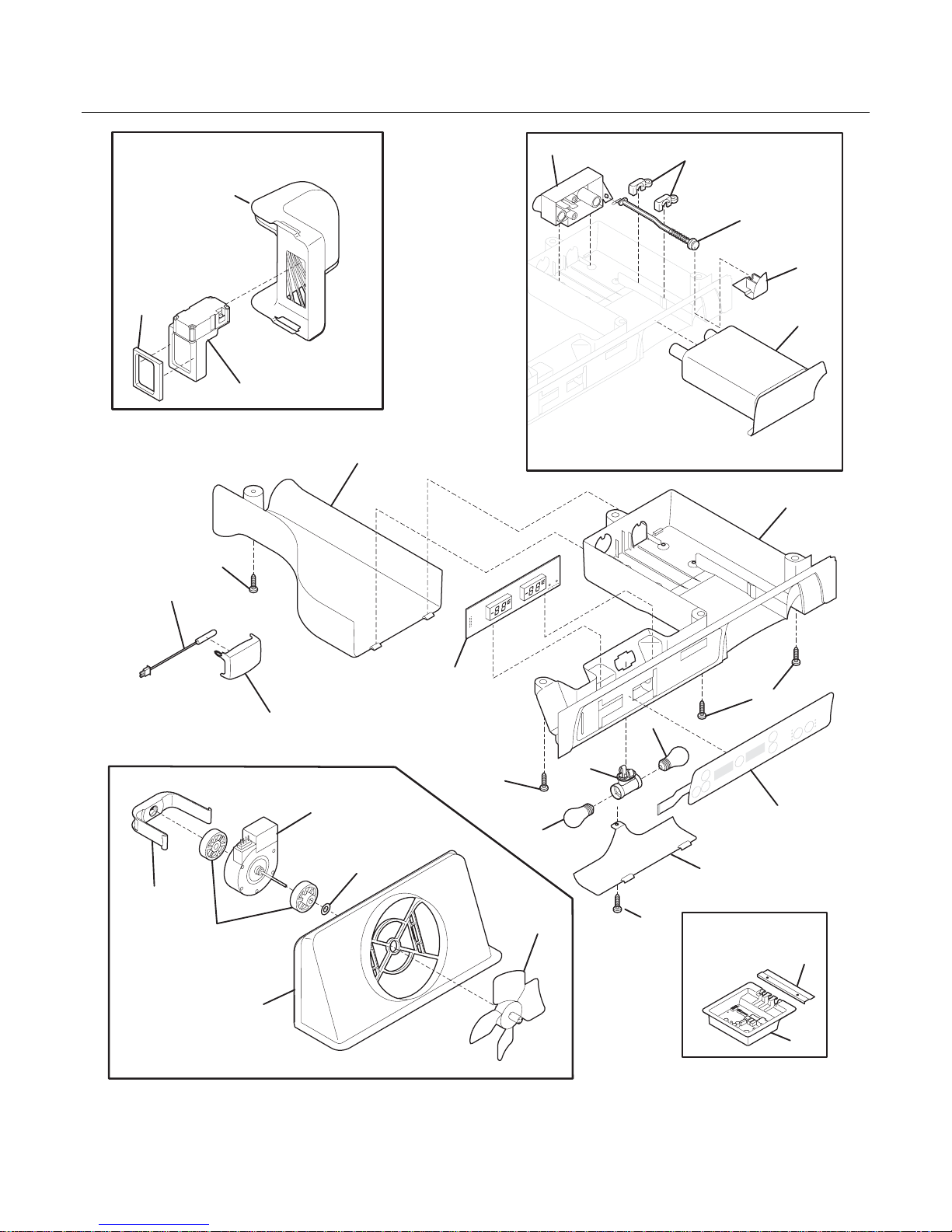

CONTROLS

201

199

198

151

149

139

138

137

116

115

75A

N58TBAAAB4
