Product No. FRT21H8CB2 FRT21H8CK2 FRT21H8CQ2 FRT21H8CT2 FRT21H8CW2 FRT21H8CZ2

Series R134a R134a R134a R134a R134a R134a

Color black (RH) black (LH) bisque (RH) bisque (LH) white (RH) white (LH)

Volts 115 115 115 115 115 115

Wiring Diagram 240398801 240398801 240398801 240398801 240398801 240398801

Owner's Guide 240400110 240400110 240400110 240400110 240400110 240400110

Market North America North America North America North America North America North America

Energy Guide 240592212 240592212 240592212 240592212 240592212 240592212

Service Data Sheet 240379014 240379014 240379014 240379014 240379014 240379014

Installation Instructions 240568300 240568300 240568300 240568300 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995404869

04/02/27

(EN/SERVICE/DCS)

357

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21H8C

Publication No: 5995404869 FRT21H8C

02/04 2

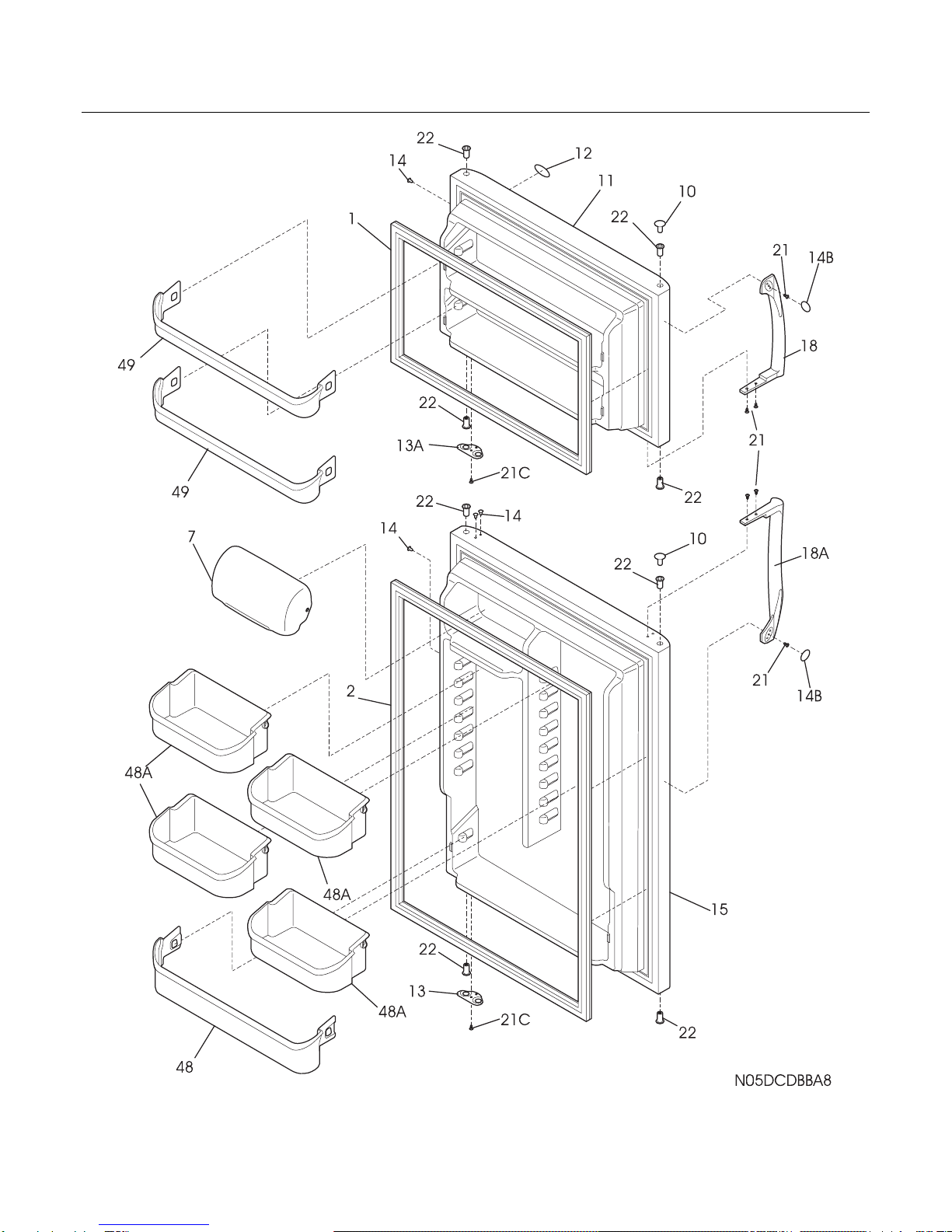

DOOR

FRT21H8C Publication No: 5995404869

# Functional Parts 3 02/04

* Non-Ilustrated Parts

DOOR

Model Index: AFRT21H8C (FRT21H8CB2)

BFRT21H8C (FRT21H8CK2)

CFRT21H8C (FRT21H8CQ2)

DFRT21H8C (FRT21H8CT2)

EFRT21H8C (FRT21H8CW2)

FFRT21H8C (FRT21H8CZ2)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A B - - - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - - C D E F Gasket, seal, white, frzr door, magnetic

2 # 240514612 A B - - - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - - C D E F Gasket, seal, white, refr door, magnetic

7 240338303 A B C D E F Door, dairy, clear

10 240381303 A B - - - - Plug-button, black, hinge brg hole

10 240381302 - - C D - - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - - - E F Plug-button, white, hinge brg hole, (2)

11 240450342 A B - - - - Door, frzr, black

11 240450341 - - C D - - Door, frzr, bisque

11 240450340 - - - - E F Door, frzr, white

12 240572601 A B C D E F Label-nameplate

13 240312405 A B - - - - Door Stop, black, refr

13 240312407 - - C D - - Door Stop, bisque, ref

13 240312403 - - - - E F Door Stop, white, ref

13A 240312406 A B - - - - Door Stop, black, frzr

13A 240312408 - - C D - - Door Stop, bisque, frzr

13A 240312404 - - - - E F Door Stop, white, frzr

14 240494003 A B - - - - Plug-button, black

14 240494002 - - C D - - Plug-button, bisque

14 240494001 - - - - E F Plug-button, white

14B 240383603 A B - - - - Plug-button, black, door handle

14B 240383602 - - C D - - Plug-button, bisque, door handle

14B 240383601 - - - - E F Plug-button, white, door handle

15 240450450 A B - - - - Door-refr, black, complete assy

15 240450449 - - C D - - Door-refr, bisque, complete assy

15 240450448 - - - - E F Door-refr, white, complete assy

18 240339203 A B - - - - Handle-door, black

18 240339204 - - C D - - Handle-door, bisque

18 240339201 - - - - E F Handle-door, white

18A 240339208 A B - - - - Handle-door, black

18A 240339209 - - C D - - Handle-door, bisque

18A 240339206 - - - - E F Handle-door, white

21 240383401 A B C D E F Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C D E F Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A B - - - - Bearing-hinge, black

22 240527101 - - C D E F Bearing-hinge, natural color

48 240338101 A B C D E F Bin-door, pseudo, bottom

48A 240338202 A B C D E F Bin-door, gallon

49 240495805 A B C D E F Bin-door, pseudo, frzr

Publication No: 5995404869 FRT21H8C

02/04 4

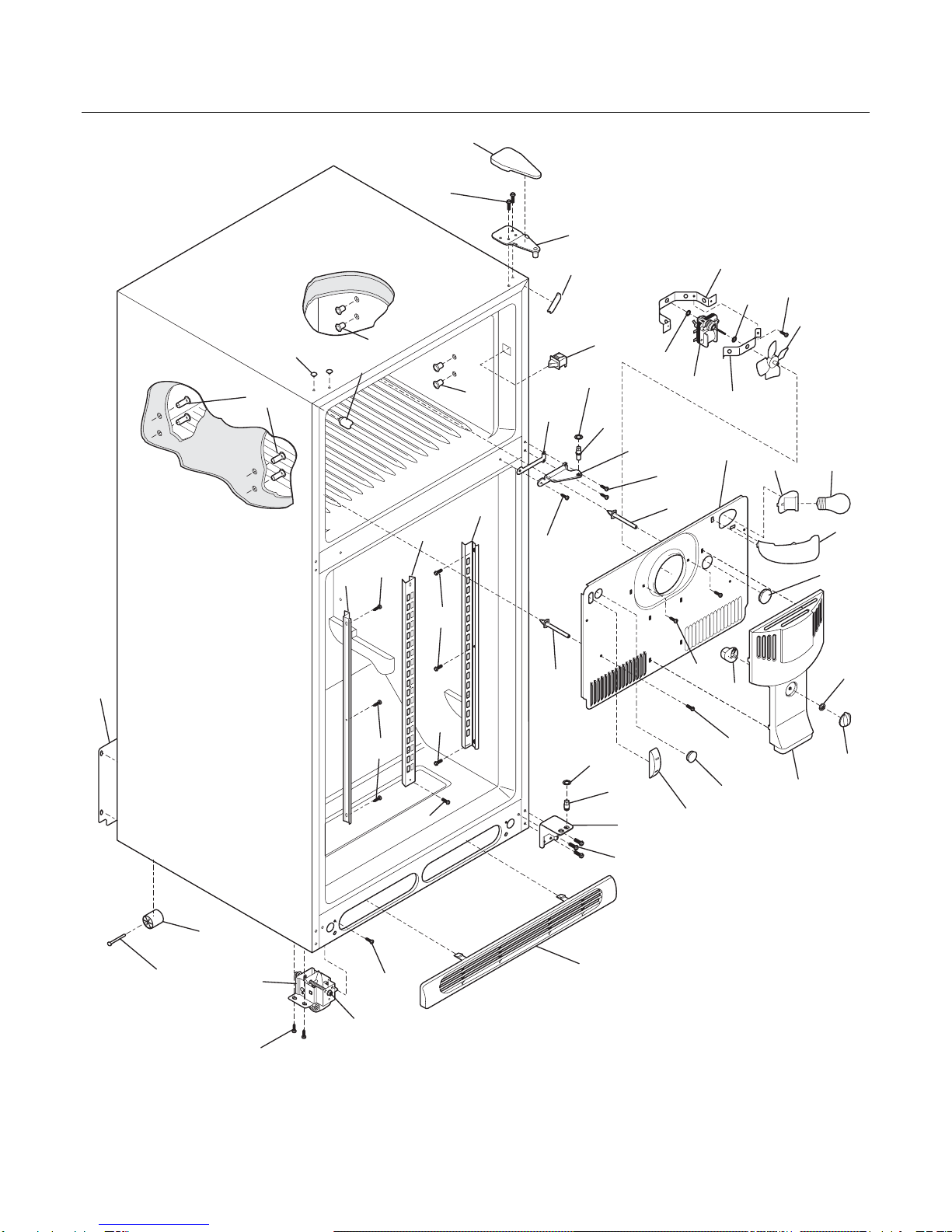

CABINET

114

12A

35A 36

N05BAAABC2

21C

FRT21H8C Publication No: 5995404869

# Functional Parts 5 02/04

* Non-Ilustrated Parts

CABINET

Model Index: AFRT21H8C (FRT21H8CB2)

BFRT21H8C (FRT21H8CK2)

CFRT21H8C (FRT21H8CQ2)

DFRT21H8C (FRT21H8CT2)

EFRT21H8C (FRT21H8CW2)

FFRT21H8C (FRT21H8CZ2)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C D E F Cover-fan

2 240367001 A B C D E F Knob-damper control

3 5303001028 A B C D E F Nut, push-on

4 240367401 A B C D E F Damper-fan cover

5 # 5308000010 A B C D E F Fan Blade, red, evaporator fan

8 5300157666 A B C D E F Bushing-motor mtg, (2)

9 5303292396 A B C D E F Bracket-motor mtg, front

10 240313609 A B C D E F Cover-evap coil, w/light

10* 240568606 A B C D E F Seal-coil cover

10*# 241537701 A B C D E F Wiring Harness, freezer section, with light

11 5303208309 A B C D E F Plug-hole, factory test

12 240366801 A B C D E F Plug-ice maker harness, rectangular

12* 218843800 A B C D E F Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 A B C D E F Plug-wtr inlet tube, round, 1"

13 # 240369701 A B C D E F Motor-evap fan

13* 218931001 A B C D E F Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B C D E F Bracket-motor mtg, rear

15 215812200 A B C D E F Light Bulb/Lamp, 25W

16 # 241513901 A B C D E F Socket-light

18 240411901 A B C D E F Support-evap cover, (2)

21C 218252200 A B C D E F Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A B - - - - Plug-button, black, upr hinge holes

22 215774919 - - C D - - Plug-button, bisque, upr hinge holes

22 215774901 - - - - E F Plug-button, white, upr hinge holes

28 240335501 A B C D E F Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A B - - - - Bracket-lower hinge, black

30 240314004 - - C D - - Bracket-lower hinge, bisque

30 240314002 - - - - E F Bracket-lower hinge, white

34 240311303 A B C D E F Washer, hinge, nylon, (2)

35 240313803 A B - - - - Bracket-ctr hinge, black

35 240313804 - - C D - - Bracket-ctr hinge, bisque

35 240313802 - - - - E F Bracket-ctr hinge, white

35A 240336802 A B C D E F Spacer-hinge, center

36 240516401 A B C D E F Pin-center hinge

37 240337603 A B - - - - Trim-cabinet corner, black, (2)

37 240337604 - - C D - - Trim-cabinet corner, bisque, (2)

37 240337601 - - - - E F Trim-cabinet corner, white, (2)

38 240313701 A B C D E F Bracket-upper hinge

40 240354404 A B - - - - Cover-upper hinge, black

40 240354403 - - C D - - Cover-upper hinge, bisque

40 240354401 - - - - E F Cover-upper hinge, white

41 5303001609 A B C D E F Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B C D E F Grommet, shelf mtg, 1.25", LH

42 240578901 A B C D E F Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C D E F Roller Assy, front, (2)

Publication No: 5995404869 FRT21H8C

02/04 6

CABINET

114

12A

35A 36

N05BAAABC2

21C

FRT21H8C Publication No: 5995404869

# Functional Parts 7 02/04

* Non-Ilustrated Parts

CABINET

Model Index: AFRT21H8C (FRT21H8CB2)

BFRT21H8C (FRT21H8CK2)

CFRT21H8C (FRT21H8CQ2)

DFRT21H8C (FRT21H8CT2)

EFRT21H8C (FRT21H8CW2)

FFRT21H8C (FRT21H8CZ2)

POS. NO PART NO. DESCRIPTION

47 218233300 A B C D E F Channel-shelf mtg, side, (2)

48 5303292395 A B C D E F Channel-shelf mtg, center

49 218362500 A B C D E F Screw, hex washer head, 8-18AB x 1.250

56 240516501 A B C D E F Pin-lower hinge

58 5303001343 A B C D E F Screw, hex washer head, 8-15A x 0.500

59 240442703 A B - - - - Screw-#10-32 X 3/4, black

59 240442704 - - C D - - Screw-#10-32 X 3/4, bisque

59 240442702 - - - - E F Screw-#10-32 X 3/4, white

72 240368207 A B - - - - Grille/Kickplate, black

72 240368206 - - C D - - Grille/Kickplate, bisque

72 240368205 - - - - E F Grille/Kickplate, white

74 240354301 A B C D E F Shield-light, frzr

81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C D E F Roller, compressor base, rear, (2)

83 5303316859 A B C D E F Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326115 A B C D E F Cover-access, with label

89* 241500301 A B C D E F Screw, hex washer head, 8-18AB x 0.500

92 216850900 A B C D E F Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114# 241554901 A B C D E F Switch-light/lamp

* 240479601 A B C D E F Plug, button, cab liner holes, (2)

* 5303305345 A B - - - - Paint, touch-up, black

* 5304414035 - - C D - - Paint, touch-up, bisque

* 5303305324 - - - - E F Paint, touch-up, white

Publication No: 5995404869 FRT21H8C

02/04 8

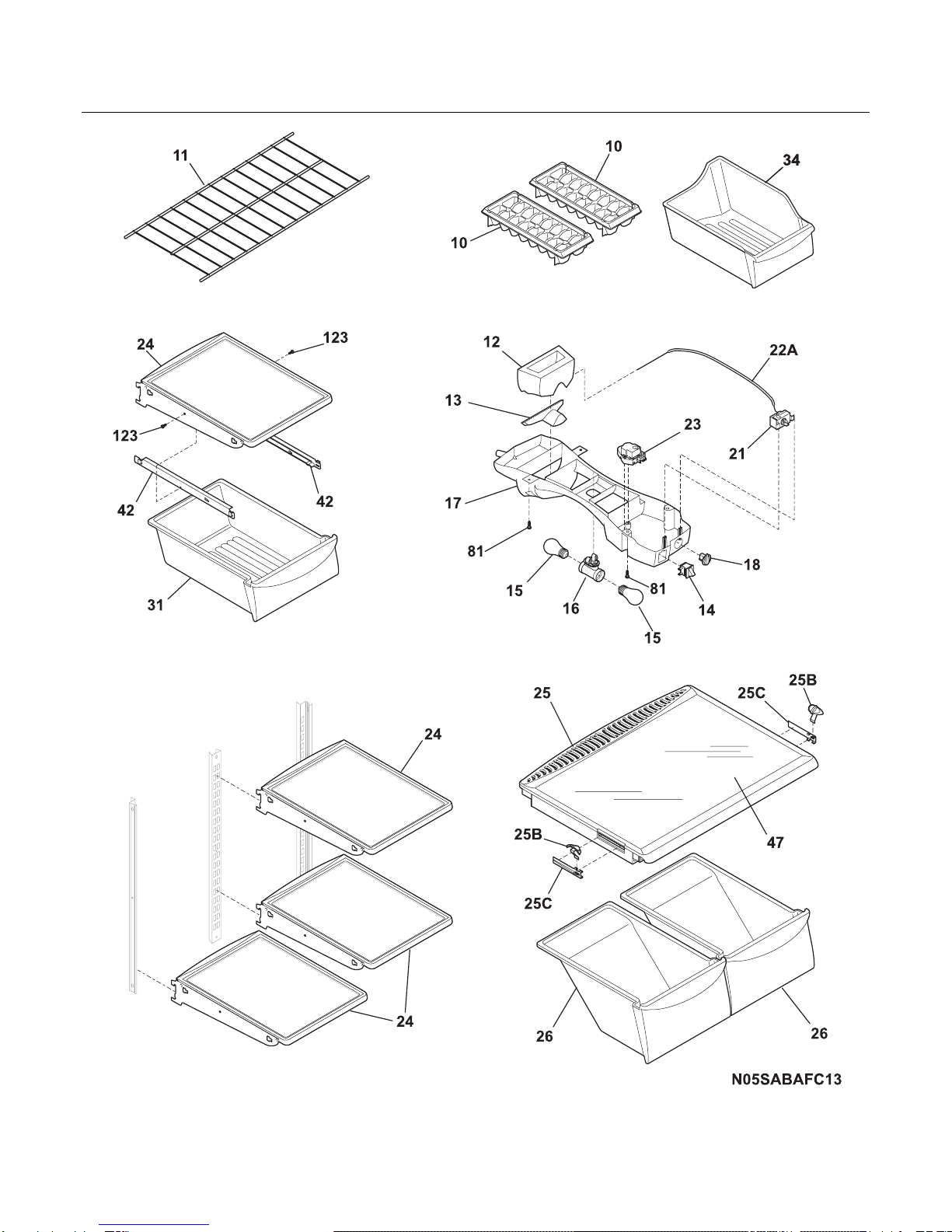

SHELVES

FRT21H8C Publication No: 5995404869

# Functional Parts 9 02/04

* Non-Ilustrated Parts

SHELVES

Model Index: AFRT21H8C (FRT21H8CB2)

BFRT21H8C (FRT21H8CK2)

CFRT21H8C (FRT21H8CQ2)

DFRT21H8C (FRT21H8CT2)

EFRT21H8C (FRT21H8CW2)

FFRT21H8C (FRT21H8CZ2)

POS. NO PART NO. DESCRIPTION

10 215667501 A B C D E F Tray, ice cube, plastic

11 240358003 A B C D E F Shelf, freezer, full-width, wire

12 240545901 A B C D E F Diffuser-air, top

13 240362601 A B C D E F Diffuser, air, bottom

14 # 241554901 A B C D E F Switch-light/lamp

15 240436702 A B C D E F Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 240364201 A B C D E F Socket-light/lamp, dual

17 240368101 A B C D E F Control Box

17*# 240388701 A B C D E F Wiring Harness, control box

18 240360801 A B C D E F Knob, temp control

21 # 5304421256 A B C D E F Control, temperature

22A 5303916855 A B C D E F Tube, sensor sleeve, plastic, clear

23 # 215846606 A B C D E F Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C D E F Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 A B C D E F Shelf-"Spill-Safe", cantilever, fixed

25 240364718 A B C D E F Cover-crisper pan

25B 240361201 A B C D E F Control-humidity

25C 240361301 A B C D E F Damper, humidity cont.

26 240343803 A B C D E F Pan, crisper, (2)

31 240530903 A B C D E F Pan-meat, w/o graphics, clear

34 240385201 A B C D E F Container, ice bin

42 240356501 A B C D E F Track, meat pan hanger, RH

42 240365401 A B C D E F Track, meat pan hanger, LH

47 240350654 A B C D E F Insert-pan cover, glass

81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B C D E F Screw, hanger/rlr mtg, 8-10 x 0.438

* 240592212 A B C D E F Energy Guide

Publication No: 5995404869 FRT21H8C

02/04 10

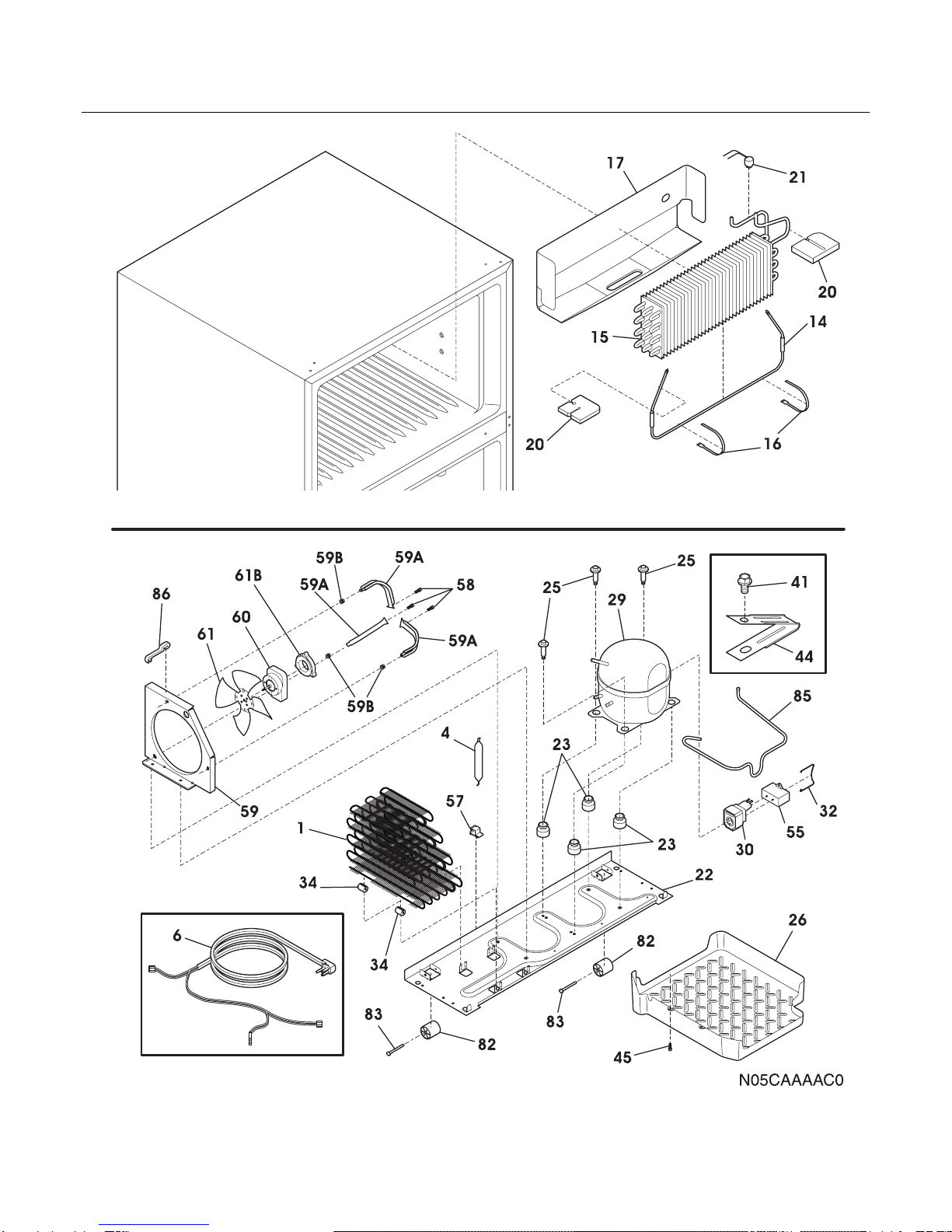

SYSTEM

Autres manuels pour FRT21H8C

Table des matières

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FRT21LR7A Manuel utilisateur

Frigidaire

Frigidaire FRS26KF6CB1 Guide de l'utilisateur

Frigidaire

Frigidaire FRS26ZSH Manuel utilisateur

Frigidaire

Frigidaire FRT15A2D Manuel utilisateur

Frigidaire

Frigidaire EFR100-C-BLACK Manuel du propriétaire

Frigidaire

Frigidaire FRT21PRG Manuel utilisateur

Frigidaire

Frigidaire FRT21S6A Manuel utilisateur

Frigidaire

Frigidaire Gallery FGHB2846LF Instructions d'installation

Frigidaire

Frigidaire Gallery FGHF2369MF Manuel du propriétaire

Frigidaire

Frigidaire FGUS2632LE Instructions d'installation

Frigidaire

Frigidaire FRS3R4EB Mode d’emploi

Frigidaire

Frigidaire GHSC39FTE Manuel utilisateur

Frigidaire

Frigidaire GLRS237ZA Manuel utilisateur

Frigidaire

Frigidaire PLHS239ZDBA Guide de l'utilisateur

Frigidaire

Frigidaire FRTS07G3HRW Manuel utilisateur

Frigidaire

Frigidaire FRT21S6A Manuel utilisateur

Frigidaire

Frigidaire FRT15B3A Manuel utilisateur

Frigidaire

Frigidaire FRT21G4B Manuel utilisateur

Frigidaire

Frigidaire FRS23R4A Manuel utilisateur

Frigidaire

Frigidaire FPHI1887KF - Gallery 18.2 cu. Ft. Top Freezer... Manuel utilisateur

Frigidaire

Frigidaire FRT18G7C Manuel utilisateur

Frigidaire

Frigidaire FGHC2379K - Gallery 22.6 Cu. Ft. Side Manuel utilisateur

Frigidaire

Frigidaire FRTB7B4EMB1 Manuel utilisateur

Frigidaire

Frigidaire RL 5201 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
