Frigidaire FRT18LBH Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18LBHW0 FRT18LBH R134a System white 115

MARKET

North America

Publication No.

5995324406

990604

-EN/SERVICE /KB

390

REFRIGERATOR

Model No.

FRT18LBH

FACTORY PARTS CATALOG

REFRIGERATOR

WIRING DIAGRAM - # 218758400

OWNER’S GUIDE - # 218942600

SERVICE DATA SHEET - # 218758400

101 MASTERS BLVD.

ANDERSON, SC 29624

06/99 2

Publication No. FRT18LBHW0

5995324406

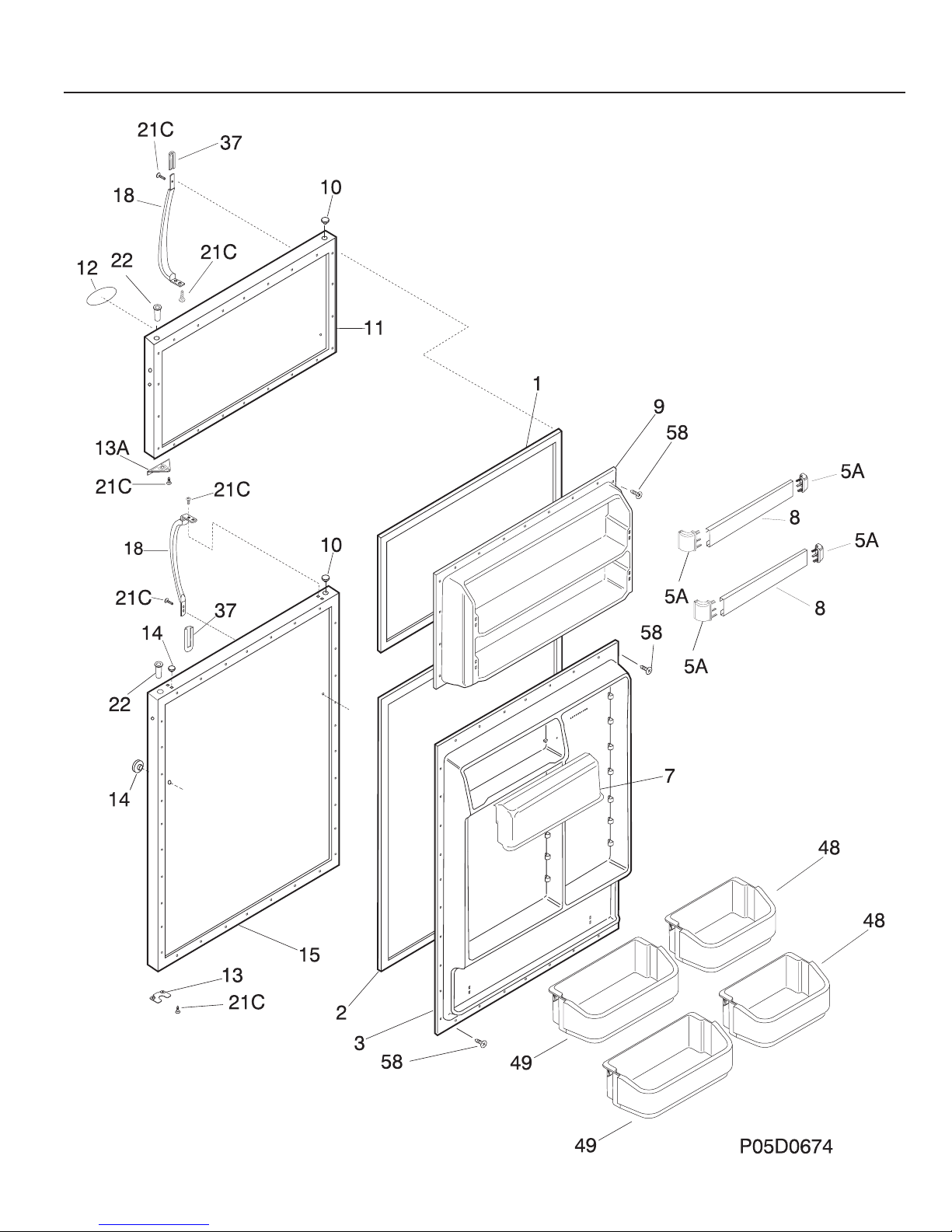

DOOR

# = Fast-moving Parts 3 06/99

* = Non-Illustrated Parts

FRT18LBHW0 Publication No.

5995324406

DOOR

POS. NO PART NO DESCRIPTION

1 # 215608916 Gasket-frzr door,white ,magnetic

2 # 218730605 Gasket-refr door,white ,magnetic

3 218360701 Panel-inner door,refr

5A 218758602 Support-door rack,RH/LH

7 5303304569 Door-dairy,12.96" wide

8 218763638 Rack-door,22.36" x 2.04"

9 218360101 Panel-inner door,frzr

10 5308000134 Plug-button,white ,hinge brg hole

11 5303917805 Panel-frzr door,white ,w/insulation

12 218917601 Label-nameplate,white

13 218800300 Door Stop,plated

13A 218249001 Door Stop,white ,frzr section

14 218915701 Plug-button,white

15 5303917806 Panel-refr door,white ,w/insul & brace

18 218668001 Handle-door,white

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 218519300 Bearing-hinge

37 215870629 Trim-handle,2.47" ,white, w/satin AL band

37 * 218676004 Band-decorative,satin aluminum, handle trim

48 218592324 Bin-door,2 liter ,with trim

49 218592323 Bin-door,gallon ,with trim

58 218699800 Screw,truss head ,8-15A x 0.500

* 5303917276 Insulation-door,fiberglass ,(bulk)

06/99 4

Publication No. FRT18LBHW0

5995324406

CABINET

# = Fast-moving Parts 5 06/99

* = Non-Illustrated Parts

FRT18LBHW0 Publication No.

5995324406

CABINET

POS. NO PART NO DESCRIPTION

1 218672501 Cover-fan

2 5303307351 Knob-damper control

3 5303001028 Nut,push-on

4 218722200 Damper-fan cover,black

5 # 218649000 Fan Blade,black

6 218448301 Cover,white ,lwr hinge hole

8 5300157666 Bushing-motor mtg,(2)

9 5303205118 Bracket-motor mtg,front

10 3206451 Cover-evap coil

11 5303208309 Plug-hole,factory test

12 215079000 Plug-harness hole,round

12 215079100 Plug-wtr inlet tube,round

13 # 218878701 Motor-evap fan

14 5303322992 Bracket-motor mtg,rear

17 218725700 Trough-drain

18 215245000 Support-evap cover,(2)

19 5303001198 Tube,rubber

22 215774901 Plug-button,white ,upr hinge holes

23 5303269702 Tube-drain,w/seal ring

24 5303207353 Seal Ring,drain tube

25 215774100 Spout-drain tube,w/mounting pins

29 5308000007 Washer,.34 x .62 x .05 ,nylon

29 5308011326 Washer,.34 x .62 x .02 ,nylon

30 5304409595 Bracket-lower hinge

30* 215882300 Tapping Plate,lower hinge ,(2)

32 215217701 Plug-button,white ,cabinet base ,(2)

35 218220101 Bracket-ctr hinge,light grey

36 218251300 Pin-center hinge

37 5303321081 Trim-cabinet corner,white

38 3206100 Bracket-upper hinge

40 3206101 Cover-upper hinge,white

41 5303001609 Grommet,shelf/rod mtg ,RH

41* 5308009759 Grommet,shelf mtg ,LH

42 215880100 Screw-hinge mtg,hex washer head, 1/4-20 x 0.685,(2)

43 218724000 Roller Assy,front ,complete

43* 5308000186 Washer,.34 x .62 x .10 ,nylon

43* 5308009760 Roller

43* 5308009761 Bolt-roller adj

43* 5308009790 Spring-roller adj

44 5303283014 Roller Assy,metal housing

45 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec

47 218233300 Channel-shelf mtg,side ,(2)

48 5303292395 Channel-shelf mtg,center

49 218362500 Screw,hex washer head ,8-18AB x 1.250

56 218220300 Pin-lower hinge

59 218188000 Screw,pan hd ,10-32 x 0.625, hinge/mullion,thread forming

78 5303274237 Screw-bracket,hex wshr hd, 8-32CA x 0.500

81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile

83 5308000107 Bracket-connector

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875, (6)

98 215099701 Plug-button,white

* 5303305324 Paint,touch-up ,white

* 5308016571 Plug-button,cab liner holes

06/99 6

Publication No. FRT18LBHW0

5995324406

SHELVES

# = Fast-moving Parts 7 06/99

* = Non-Illustrated Parts

FRT18LBHW0 Publication No.

5995324406

SHELVES

POS. NO PART NO DESCRIPTION

1 218874301 Mullion,white

5 # 218781003 Heater-mullion

6 218845602 Tapping Plate,mullion mtg ,(2)

7 218814800 Panel-top,refr cavity

8 218872903 Divider,styrofoam ,w/foil tape

8* # 218878500 Harness-wiring,control/divider

9 218814700 Panel-bottom,frzr cavity

10 215667501 Tray-ice,plastic

11 5303288242 Shelf-freezer,fixed/flat ,full width, wire

11* 5303299664 Spacer-shelf

12 218730000 Deflector-air

13 218631001 Cover-air deflector

14 # 5309918806 Switch-light/lamp

15 5303001179 Light Bulb/Lamp,40 W

16A 218906801 Socket-light/lamp

17 5303321455 Control Box

17* 5308016567 Nut-anchor

18 5303311079 Knob-temp control

19 # 5303286905 Switch-energy saver,rocker type

21 # 5304404821 Control-temperature

21* 5303001260 Screw-control mtg,pan hd ,6-32 x 0.250

22A 5303916855 Tube,plastic ,clear ,sensor sleeve

22B 218731104 Tube,PVC ,white ,@ air deflector, insulator

23 # 215846605 Timer-defrost

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438

24 5303307355 Shelf,cantilever ,full width ,wire

25 5303207340 Cover-crisper pan,with beam, less insert

26 3206438 Pan-crisper

28 3201150 End Cap-shelf,protector ,frzr shelf

29 215217565 Trim-wire shelf,24.92" ,front

31 215742602 Pan-meat

34 5303212918 Container-ice

36 5303307356 Shelf,cantilever ,half width ,wire

36A 215919160 Frame-half shelf,cantilever

37 215217564 Trim-wire shelf,12.13" ,front

37A 218830309 Trim-glass shelf,12.13" ,front

42 5304404462 Hanger-pan/tray,LH

42 5304404463 Hanger-pan/tray,RH

43 218498172 Glass-shelf,12.09" x 14.57"

44 215919809 Trim-glass shelf,12.13" ,rear

46 5303307359 Front-crisper pan

47 218498174 Insert-pan cover,24.60" x 12.75" ,glass

59 218188000 Screw,pan hd ,10-32 x 0.625, hinge/mullion,thread forming

67 5303307363 Front-meat pan

81 5303001380 Screw,truss head ,8-10 x 1.625

123 215005100 Screw-roller/hanger,8-10 x .438

145 218660800 Clip,plastic ,temp sensor mtg ,snap-in

06/99 8

Publication No. FRT18LBHW0

5995324406

SYSTEM

# = Fast-moving Parts 9 06/99

* = Non-Illustrated Parts

FRT18LBHW0 Publication No.

5995324406

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 218173900 Condenser

1* 5303208866 Spacer-cond tube,black

2 5308000296 Bracket,condenser mtg ,(4)

4 # 218541000 Drier-filter,R134a System

5 # 218878500 Harness-wiring,control/divider

6 # 215257004 Harness-wiring,compressor

7 # 5316254901 Cord-electric power

8 5303001197 Cover-wiring

13 # 218429306 Heat Exchanger,suction line

14 # 3206453 Heater-defrost

15 # 3206452 Evaporator

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 5303207493 Insulator-evap,plastic

18 5308013648 Insulation Block,RH

19 5303007287 Insulation Plug,RH

20 5308017227 Insulation Block,LH

21 # 5316269001 Thermostat-defrost

22 218802500 Plate-compr mtg,with rail

23 218254500 Grommet-compr mtg,(4)

24 5308003633 Washer-compr mtg

25 5308003596 Clip-compressor mtg

26 215372500 Pan-defrost drain

27 5303001348 Nut-lock,1/4-20 ,drain pan mtg

28 5303916001 Pan Retainer Kit,Service

29 # 218846902 Compressor,R134a ,w/o electricals

30 # 218721103 Starter/Overload Assy

32 218740800 Wire-bale

41 5308000039 Screw,hex wshr hd ,8-32CA x 0.500, serrated head

43 5303001199 Clamp-wiring harness,strain relief, galv steel

44 5308000133 Clamp,nylon ,.75 OD tube

45 218843800 Screw,hex wshr hd ,#8 14 x ½, wiring clamps

45 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec

45* 5300141713 Screw,hex wshr hd ,8-32 x .625 ,spec

55 # 216236200 Capacitor-run,180-200 VAC, 15 microfarad

* # 3916557 Hot Tube Repair Kit,Service
