Frigidaire FRT18KG3D Manuel utilisateur

N05L00004.eps N05DBDCKA0.eps N05BBAABA23.eps N05SAAAEF16.eps

N05CBBBAC3.eps 240398801.eps 240398601.eps

Product No. FRT18KG3DW7 FRT18KG3DW8

Series R134a R134a

Color white white

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 240400113 241694400

Market North America North America

Energy Guide 240598697 240598697

Service Data Sheet 240379017 240379017

Installation Instructions 240568301 240568301

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995456133

05/12/13

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18KG3D

Publication No: 5995456133 FRT18KG3D

12/05 2

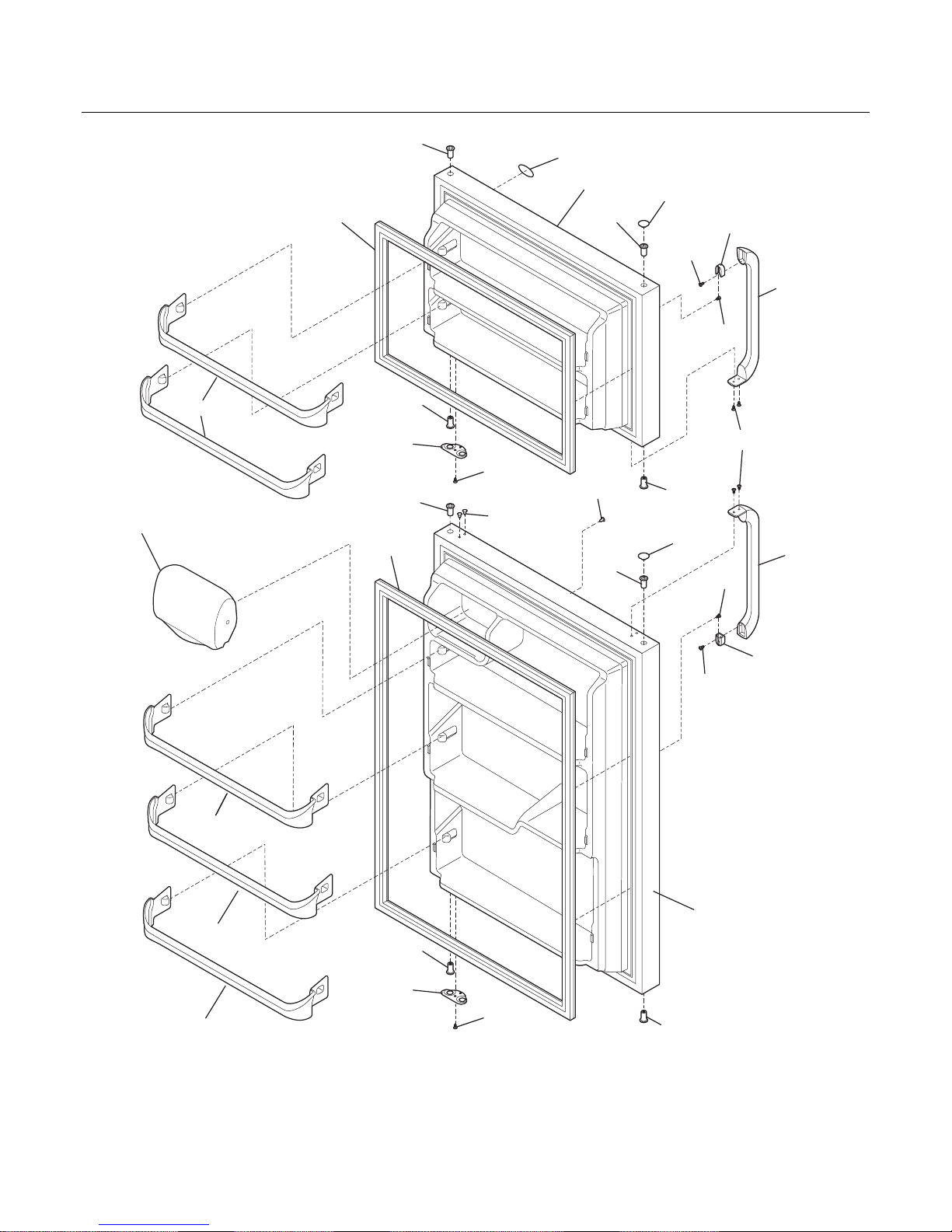

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT18KG3D Publication No: 5995456133

# Functional Parts 3 12/05

* Non-Illustrated Parts

DOOR

Model Index: AFRT18KG3D (FRT18KG3DW7)

BFRT18KG3D (FRT18KG3DW8)

POS. NO PART NO. DESCRIPTION

1 240542115 A B Gasket-frzr door, white, magnetic

2 240542118 A B Gasket-refr door, white, magnetic

4 240534901 A B Rack-door

4B 240534701 A B Rack-door, 4B

7 240337703 A B Door-dairy, w/o graphics, clear

8 240534801 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240410201 A B Door-frzr, white, complete assy

12 240415201 A B Label-nameplate, white

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 240410301 A B Door-refr, white, complete assy

18A 218428101 A B Handle-door, white, w/block & screw

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21A 240521301 A B Screw, #10-16 x 1/2

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995456133 FRT18KG3D

12/05 4

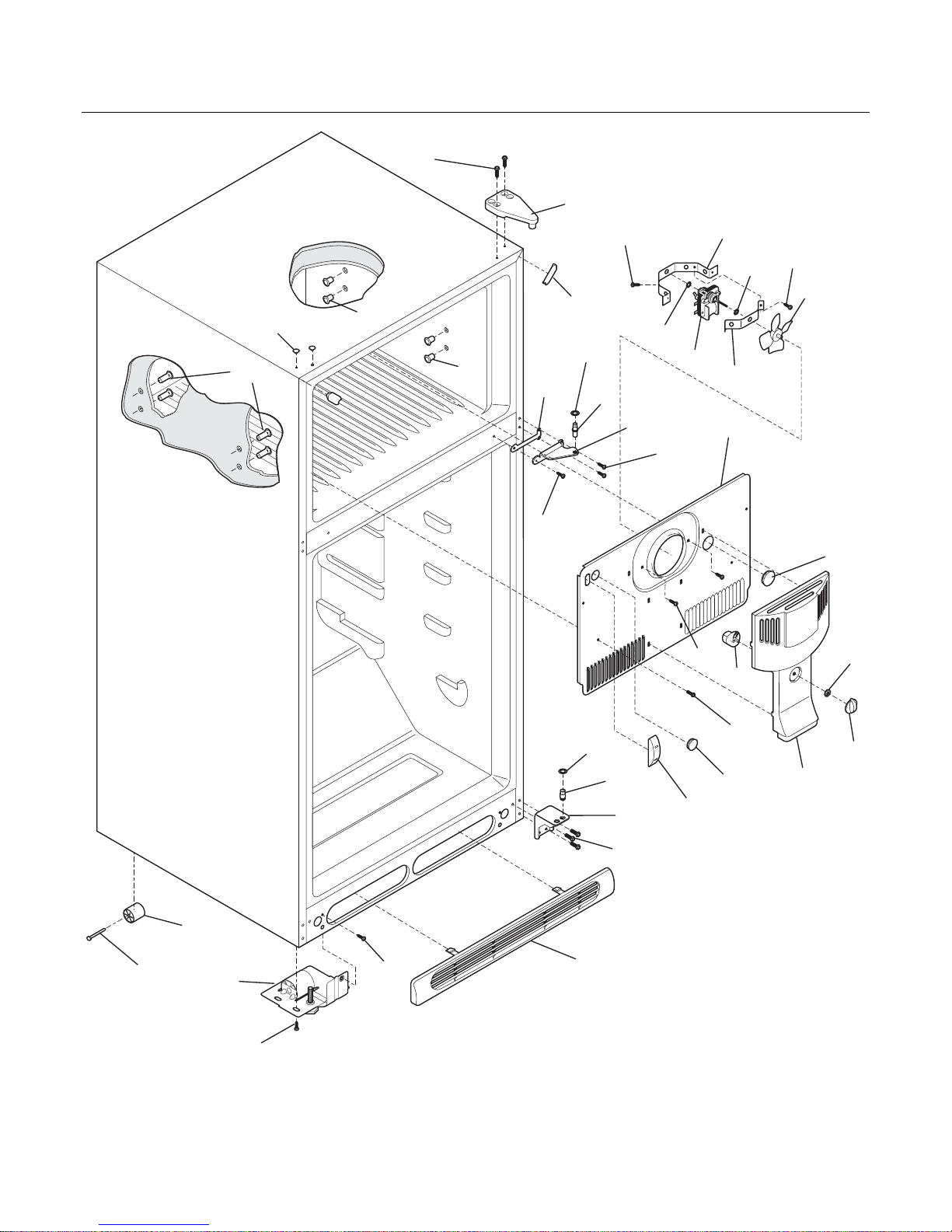

CABINET

12A

35A 36

N05BBAABA23

43 21C

21C

FRT18KG3D Publication No: 5995456133

# Functional Parts 5 12/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT18KG3D (FRT18KG3DW7)

BFRT18KG3D (FRT18KG3DW8)

POS. NO PART NO. DESCRIPTION

1 241652301 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 241652210 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring, freezer

11 5303208309 A B Plug-hole, factory test

12 241557601 A B Plug-ice maker harness, rectangular

12A 240374401 A B Plug-wtr inlet tube, round, 1"

12A* 241586701 A B Plug-foam-wtr-inlet, round

13 240369702 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433201 A B Screw, hex washer head, 8-18 x 0.375

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

30 240314001 A B Bracket-lower hinge, zinc

34 240311303 A B Washer, hinge, nylon, (2)

35 240313801 A B Bracket-ctr hinge, zinc

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 241611301 A B Trim-cabinet corner, white, (2)

38 241622601 A B Bracket-upper hinge, plastic, white

41 5308009759 A B Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559602 A B Roller Assy, fixed, front LH

43* 241559601 A B Roller Assy, fixed, front RH

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw, hex washer head, 8-15A x 0.500

59 240442701 A B Screw-#10-32 X 3/4, zinc

72 240368205 A B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241624301 A B Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 240479601 A B Plug, button, cab liner holes, (2)

* 5303305324 A B Paint, touch-up, white

Publication No: 5995456133 FRT18KG3D

12/05 6

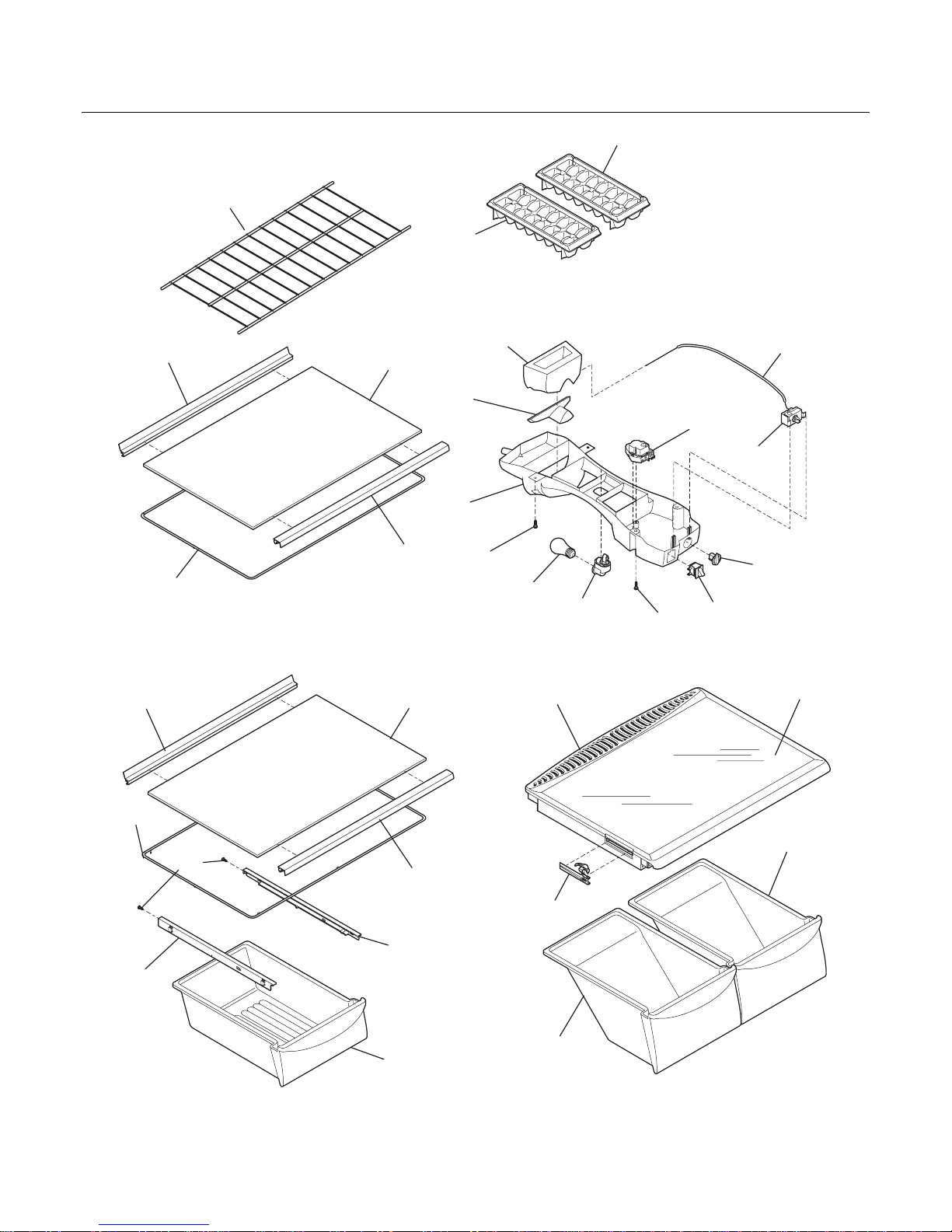

SHELVES

25 47

N05SAAAEF16

22A

24A

123

25C

FRT18KG3D Publication No: 5995456133

# Functional Parts 7 12/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRT18KG3D (FRT18KG3DW7)

BFRT18KG3D (FRT18KG3DW8)

POS. NO PART NO. DESCRIPTION

10 215667501 A B Tray, ice cube, plastic

11 240358005 A B Shelf, freezer, full-width, wire

12 241542001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 241555401 A B Light Bulb

16 241559801 A B Socket-light

17 240352701 A B Control Box

17* 240568607 A B Seal

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372409 A B Frame, sliding shelf, full width

24A 240372410 A B Frame, sliding shelf, full width, w/hanger tabs

25 240364713 A B Cover-crisper pan, with beam, humid cont

25C 241613502 A B Control-humidity, LH

26 240337107 A B Pan-crisper, clear, (2), no graphics

29 240357704 A B Trim-shelf, front

31 240530810 A B Pan, meat bin

40 240350620 A B Glass-shelf, 23.78" x 16.34"

41 240561502 A B Trim-shelf, rear

42 240530601 A B Track, meat pan hanger, LH

42 240530701 A B Track, meat pan hanger, RH

47 240350608 A B Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995456133 FRT18KG3D

12/05 8

SYSTEM

FRT18KG3D Publication No: 5995456133

# Functional Parts 9 12/05

* Non-Illustrated Parts

SYSTEM

Model Index: AFRT18KG3D (FRT18KG3DW7)

BFRT18KG3D (FRT18KG3DW8)

POS. NO PART NO. DESCRIPTION

1 # 240406408 A - Condenser, static

1 # 241674102 - B Condenser, static

1* 240405201 A B Grommet, rubber, black, cond tube/wire

1* 5303208866 A B Spacer, condenser tube, black

1* 5304406721 A B Spacer-cond tube, round, 5/8 OD x .81"lg

2 5308000296 A - Bracket, condenser mtg, (4)

2 241658801 - B Bracket, condenser mtg

4 # 218944001 A B Drier-filter, R134a System

6 241678801 A B Harness-wiring, machine compt

6* 241520701 A B Harness-wiring, freezer

6* # 240388701 A B Wiring Harness, control box

14# 240356214 A B Heater-defrost

15 # 5303918274 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 241551801 A B Trough-drain

20 241551901 A B Insulation Block

21 # 5303918202 A B Thermostat-defrost, kit

22 241602001 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240598501 A B Pan-defrost drain

26* 5303307896 A B Thermal Mastic

29 # 5303918326 A B Compressor, w/electricals

30 # 241667501 A B Relay Combo

41 240433202 A B Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

57 240542601 A B Clip-wiring harness

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 A B Tube-drain, lower

85 241544301 A B Tube-connector, suction

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 5303918263 A B Heat Exchanger Kit, suction line

* # 5303918234 A B Hot Tube Repair Kit, service

Publication No: 5995456133 FRT18KG3D

12/05 10

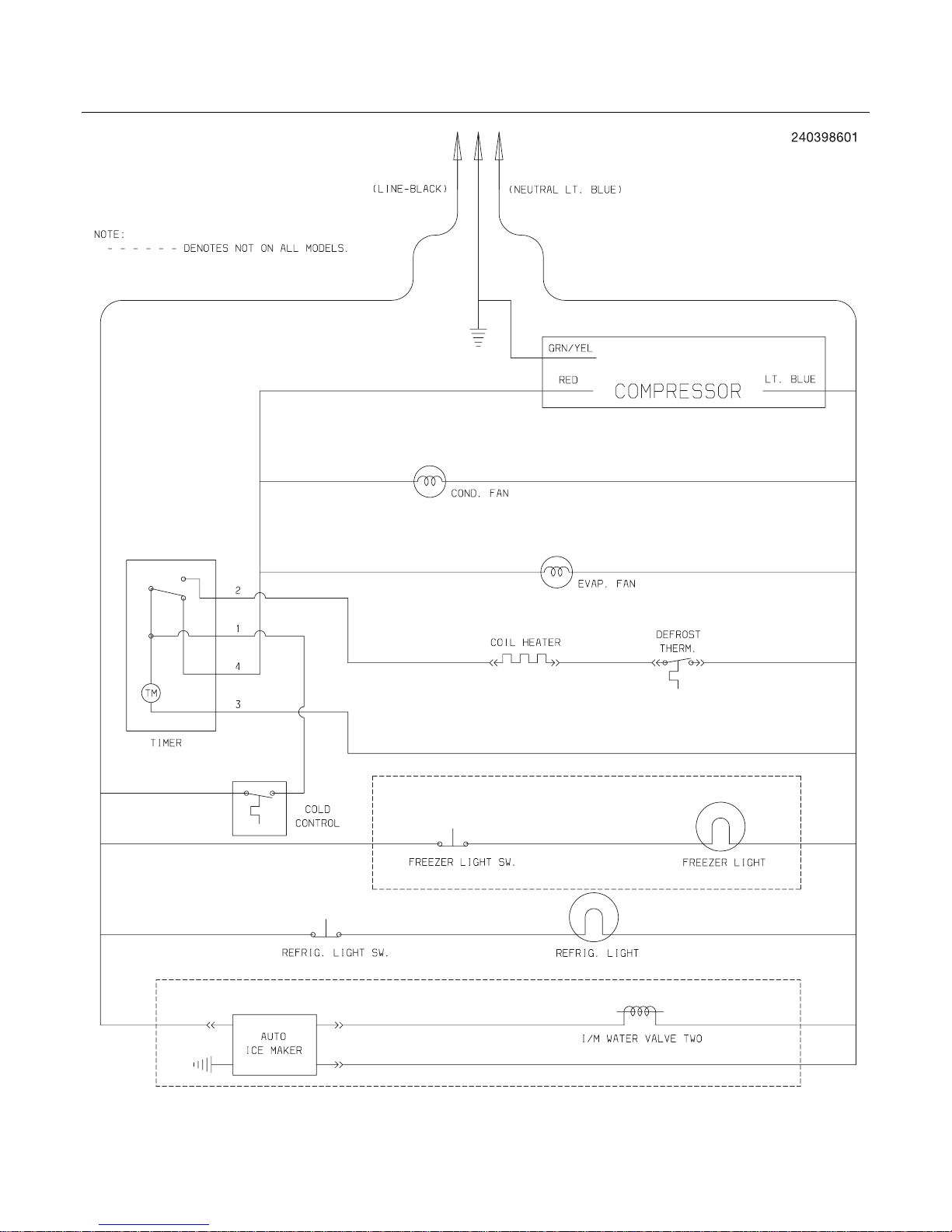

WIRING SCHEMATIC
