Frigidaire GLES388C Manuel utilisateur

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

GLES388CSA GLES388C 37956397H3411 white North America

Publication No.

5995385779

030212

-EN/SERVICE /ECL

377

ELECTRIC

RANGE

Model No.

GLES388C

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045064

OWNER’S GUIDE - # 318200823

TIMER INSTRUCTION SHEET - # 318200161

INSTALLATION INSTRUCTIONS - # 318201600

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

02/03 2

Publication No. GLES388CSA

5995385779

BACKGUARD

# = Functional Parts 3 02/03

* = Non-Illustrated Parts

GLES388CSA Publication No.

5995385779

BACKGUARD

POS. NO PART NO DESCRIPTION

13A# 316095500 Switch,infinite ,drawer/zone ,warmer

14 # 318076700 Light,indicator ,125v

18 318039310 End Cap,white ,RH

18A 318039311 End Cap,white ,LH

19 318220518 Panel,control mtg. ,white

20 # 318183621 Clock/Timer,electronic ,white

20* 316243300 Overlay,clock ,white

21 318027804 Trim,backguard ,white ,top

23 318015042 Bracket,clock mtg ,upper

23A 318015043 Bracket,clock mtg ,lower

31 318197600 Knob,control ,white

36 318196633 Knob,control ,white

36A 318196630 Knob,dual control ,white

42 318106924 Trim,backguard ,white ,bottom

46 5303297274 Lens,indicator light

54 # 318220006 Switch,surface unit ,small

54A# 318220008 Switch,surface unit

54B# 318191002 Switch,infinite ,dual

69 5303323134 Screw,switch mtg. ,8-32 x 0.188

102 318055601 Bracket,mounting

* 3201861 Screw,6 x 0.375

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

02/03 4

Publication No. GLES388CSA

5995385779

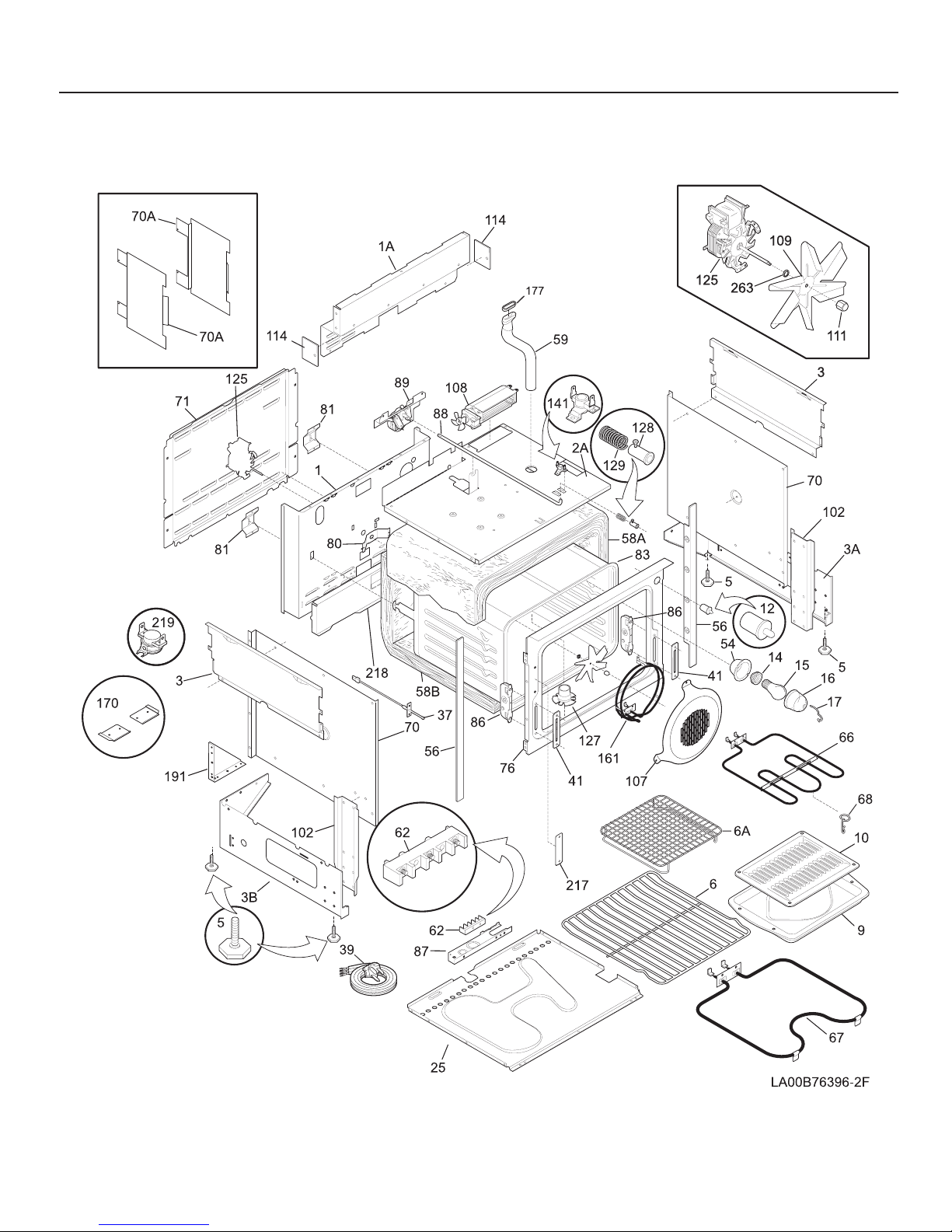

BODY

# = Functional Parts 5 02/03

* = Non-Illustrated Parts

GLES388CSA Publication No.

5995385779

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

1A 318070910 Panel,main back ,upper

2A 318108600 Shield,oven top

3 318159800 Panel,body side ,upper

3A 318160004 Panel,lower side ,RH

3B 318160005 Panel,lower side ,LH

5 318175503 Screw,leveling

6 318025308 Rack,oven

6A 318219500 Rack,broiler pan

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089914 Switch,light

14 5308011085 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

25 318179107 Panel,heat shield ,sm oven bottom

37 # 318198510 Probe,oven temp

41 5303310526 Cover,hinge cutout

54 318222400 Housing,oven light

56 318002612 Trim,oven ,white ,front

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072502 Tube,oven vent

62 # 5303310518 Terminal Block

62* 5303323144 Nut,10-32

62* 316208500 Plate,grounding strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 318194400 Shield,insulation

70A 318199802 Deflector

71 5303310515 Panel,wiring cover ,rear

76 318124100 Front,oven

80 5303320846 Plate,oven mtg

81 318192400 Spring,oven

83 318089616 Liner,oven complete

86 5303310524 Receptacle,hinge

87 318111803 Plate,mounting

88 318118904 Rod,latch

89 # 318095937 Motor,latch assy ,w/brkt & switch

89* 318120711 Switch

102 5303311142 Support,oven front

107 318219401 Cover,fan

108# 318073012 Motor,blower

109 316136400 Blade,fan

111 316136600 Nut,fan retainer

114 318175100 Plate,filler

125# 316234601 Motor,fan

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

141# 318005201 Switch,thermal cutout

161# 318050710 Element,convection ,2500 W

170 5304405244 Anti-tip & accessories

177 5303324040 Gasket,vent

191 5303304030 Bracket,angle ,corner

217 318112102 Plate,warning

218 318123901 Deflector

219# 318003606 Thermostat,safety

263 316136500 Washer,fan motor

* 318226300 Clip,wiring

* 5303311207 Tube,protector

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

02/03 6

Publication No. GLES388CSA

5995385779

TOP/DRAWER

# = Functional Parts 7 02/03

* = Non-Illustrated Parts

GLES388CSA Publication No.

5995385779

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 5303310500 Drawer

4 318134011 Panel,drawer ,white ,front

6 318111103 Support,element ,(2)

11 5303311125 Bracket,drawer

13 5303311129 Channel,drawer ,RH

13A 5303311130 Channel,drawer ,LH

15 # 318198810 Element,surface ,6" ,1200 W

15A# 318177900 Element,bridge

15B# 316224300 Element,dual ,9"/6" ,surface ,2100W/700W,radiant

15C# 316098202 Element,warmer zone ,100W

16 318154715 Main Top,glass ,white

51 # 318044820 Light,indicator ,red

52 5303317177 Spring,element mtg.

53 318125931 Bracket,indicator light ,hot surface

55 5303317178 Spacer,element

56 5303317179 Screw,element ,6 x 3/4

70 5303311143 Bracket,slide ,rear

71 5303311144 Magnet & spring assy

72 5303311145 Bracket & wheel assy

* 5303325173 Cap,plug

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

02/03 8

Publication No. GLES388CSA

5995385779

DOOR

# = Functional Parts 9 02/03

* = Non-Illustrated Parts

GLES388CSA Publication No.

5995385779

DOOR

POS. NO PART NO DESCRIPTION

1 318180310 Bracket,trim mtg

2 318180312 Bracket,upper trim mtg

3 318187810 Trim,door ,white ,RH side

3A 318187811 Trim,door ,white ,LH side

3B 318176646 Trim,door ,white ,top

4 318187715 Panel,door front assy ,glass ,white ,with lower trim

6 318056802 Shield,insulation

7 318133754 Insulation,oven door

9 318157011 Liner,door

10 5303308458 Screw,10-24

12 318053103 Gasket,oven door seal

16 318041603 Panel,glass ,inner oven door

17 318042102 Spacer,glass

18 318053001 Seal,window

23 318024700 Hinge,oven door

31 5303310536 Latch,oven door

39 316203001 Handle,door ,white

56 5303300265 Screw,8-18 x 0.500 ,chrome

64 5304417120 Tape,0.762 m ,Neoprene

77 318043100 Bracket,trim ,handle ,(2)

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

02/03 10

Publication No. GLES388CSA

5995385779

WIRING DIAGRAM
