Frigidaire GLGC36S8EBA Manuel utilisateur

GLGC36S8E.eps MGLGC36S8ESA.eps BGLGC36S8ESA.eps 318047112.eps

Left

Rear

Center

Rear

Right

Rear

Left

Front

Right

Front

Po w er B u rn er Sim m er Bu rn e r

PowerPlusBurner

GALLERY SERIES

Product No. GLGC36S8EBA GLGC36S8EQA GLGC36S8ESA

3775642665061 3775644665041 3775643665011

Series 36" gas 36" gas 36" gas

Color black bisque white

Market North America North America North America

Wiring Diagram 318047112 318047112 318047112

Owner's Guide 318200672 318200672 318200672

Installation Instructions 318201463 318201463 318201463

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995454112

05/11/15

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

GLGC36S8E

Publication No: 5995454112 GLGC36S8E

11/05 2

COOK TOP

GLGC36S8E Publication No: 5995454112

# Functional Parts 3 11/05

* Non-Illustrated Parts

COOK TOP

Model Index: AGLGC36S8E (GLGC36S8ESA)

BGLGC36S8E (GLGC36S8EBA)

CGLGC36S8E (GLGC36S8EQA)

POS. NO PART NO. DESCRIPTION

3 318171401 A B C Support

16 318018935 A - - Glass, main top, white

16 318018937 - B - Glass, main top, black

16 318018936 - - C Glass, main top, bisque

20 318321301 A - - Grate, double, gray, (2)

20 318321300 - B - Grate, double, black, (2)

20 318321302 - - C Grate, double, brown, (2)

20A 318321401 A - - Grate, gray, center

20A 318321400 - B - Grate, black, center

20A 318321402 - - C Grate, brown, center

21 316241700 A - - Skirt, 11K burner, gray

21 316241701 - B - Skirt, 11K burner, black

21 316241706 - - C Skirt, 11K burner, brown

21A 316264900 A - - Skirt, 14K burner, gray

21A 316264901 - B - Skirt, 14K burner, black

21A 316264905 - - C Skirt, 14K burner, brown

21B 316241900 A - - Skirt, 5K burner, gray

21B 316241901 - B - Skirt, 5K burner, black

21B 316241906 - - C Skirt, 5K burner, brown

21C 316241800 A - - Skirt, 9.5K burner, gray

21C 316241801 - B - Skirt, 9.5K burner, black

21C 316241806 - - C Skirt, 9.5K burner, brown

22 316242801 A - - Cap, 11K burner, gray

22 316242800 - B - Cap, 11K burner, black

22 316242805 - - C Cap, 11K burner, brown

22A 316219801 A - - Cap, 14K burner, gray

22A 316219800 - B - Cap, 14K burner, black

22A 316219804 - - C Cap, 14K burner, brown

22B 316206501 A - - Cap, 5K burner, gray

22B 316206500 - B - Cap, 5K burner, black

22B 316206504 - - C Cap, 5K burner, brown

22C 316242901 A - - Cap, 9.5K burner, gray

22C 316242900 - B - Cap, 9.5K burner, black

22C 316242905 - - C Cap, 9.5K burner, brown

31 316242001 A B C Seal, 12K burner

31A 316242000 A B C Seal, 14K burner

31B 316242003 A B C Seal, 5K burner

31C 316242002 A B C Seal, 9.5K burner

36 318196161 A - - Knob, control, white

36 318196163 - B - Knob, control, black

36 318196162 - - C Knob, control, bisque

45 318146211 A B C Bushing, black

46 318077005 A B C Box, burner

47 318144006 A B C Cord, service

132 3201437 A B C Strain relief

136 5303935029 A B C Support

137 5303285443 A B C Screw, lock bracket, 10-24 x 2.00

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995454112 GLGC36S8E

11/05 4

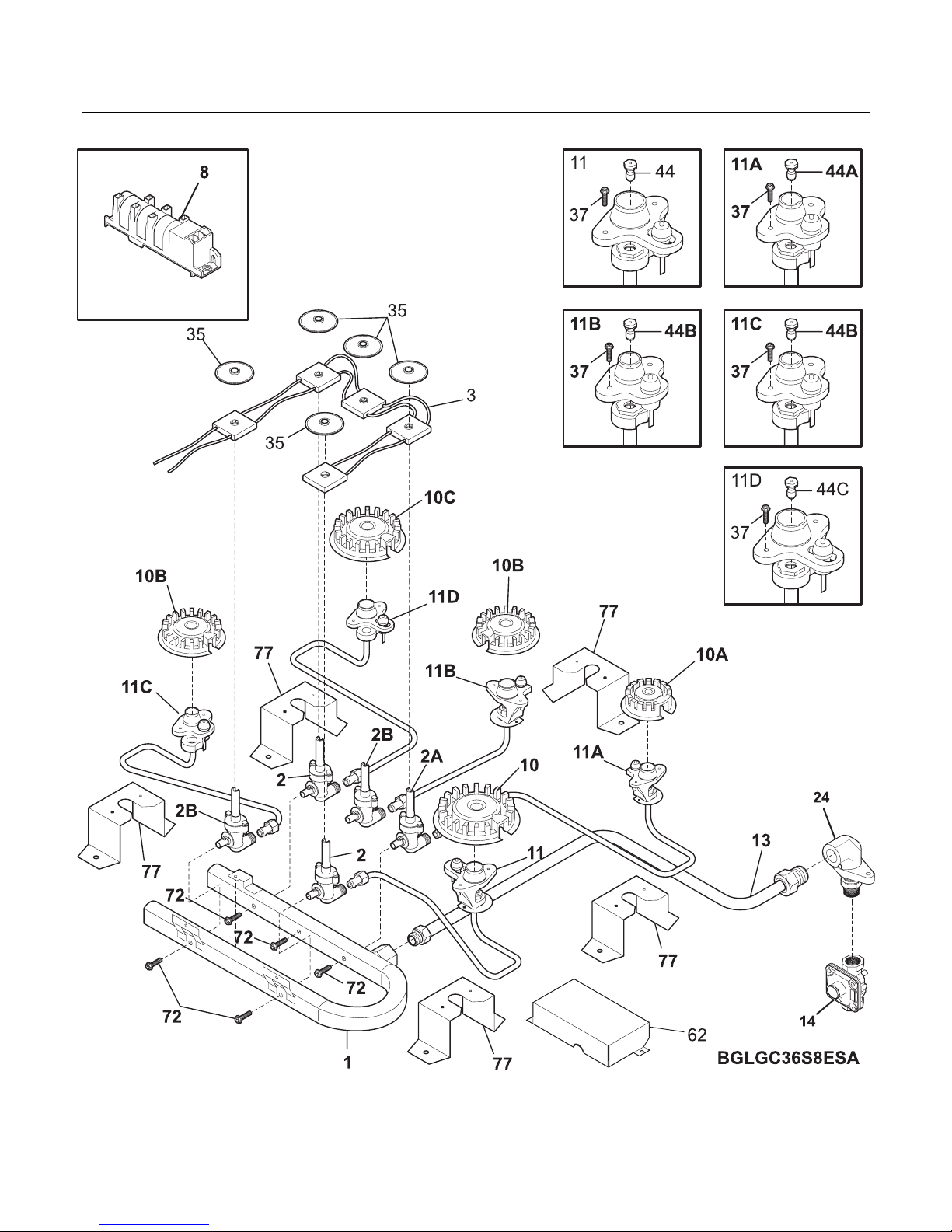

BURNER

GLGC36S8E Publication No: 5995454112

# Functional Parts 5 11/05

* Non-Illustrated Parts

BURNER

Model Index: AGLGC36S8E (GLGC36S8ESA)

BGLGC36S8E (GLGC36S8EBA)

CGLGC36S8E (GLGC36S8EQA)

POS. NO PART NO. DESCRIPTION

1 # 318177205 A B C Manifold Pipe

* 08011955 A B C Screw, 10-24 x 0.375, square drive

2 # 318087315 A B C Valve, burner, 11K/14K

2A # 318087313 A B C Valve, burner, 5K

2B # 318087314 A B C Valve, burner, 9.5K

3 # 318232605 A B C Wiring Harness, w/igntr switch

8 318079001 A B C Module, spark

10 # 316223400 A B C Burner, sealed, 14K

10A# 316206400 A B C Burner, sealed, 5K

10B# 316212400 A B C Burner, sealed, 9.5K

10C# 316212300 A B C Burner, sealed, 12K

11 # 318221361 A B C Ignitor/orifice assy., top burner, RH front, 14K, w/holder-tube

11A# 318221358 A B C Ignitor/orifice assy., top burner, RH rear, 5K, w/holder-tube

11B# 318221359 A B C Ignitor/orifice assy., top burner, center, 9.5K, w/holder, tube

11C# 316224700 A B C Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube

11D# 316224801 A B C Ignitor/orifice assy., top burner, rear, 12K, w/holder, tube

13 318054505 A B C Connection, manifold tube

14 # 5308007974 A B C Regulator, pressure

24 318054000 A B C Elbow, fitting

35 318146301 A B C Bushing

37 316240600 A B C Screw, assy mtg, ignitor/orifice

44 316237900 A B C Orifice, top burner, 14K

44A 316237903 A B C Orifice, top burner, 5K

44B 316237902 A B C Orifice, top burner, 9.5K

44C 316237908 A B C Orifice, top burner, 10K

62 318160203 A B C Cover, spark module

72 316134300 A B C Screw, 10-24, valve mounting

77 318192600 A B C Bracket, burner mtg, (5)

77* 5304403558 A B C Screw, 10-16 x 0.250

* 318199733 A B C Wiring Harness, ignitor

* # 318127426 A B C LP Conversion Kit

Publication No: 5995454112 GLGC36S8E

11/05 6

WIRING DIAGRAM
