Frigidaire FEFB66E Manuel utilisateur

FEFL66EC.eps T20G0056.eps T20V0038.eps T20T1827.eps T20D0033.eps

316417751d.eps 316417751s.eps

Product No. FEFB66ECB FEFB66ECC

Series 30" f/s elec 30" f/s elec

Color stainless stainless

Market North America North America

Wiring Diagram 316417751 316417751

Owner's Guide 316417003 316417003

Installation Instructions 316259206 316259206

Service Data Sheet 316417613 316417613

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995450524

05/10/05

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEFB66E

Publication No: 5995450524 FEFB66E

10/05 2

BACKGUARD

FEFB66E Publication No: 5995450524

# Functional Parts 3 10/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEFB66E (FEFB66ECB)

BFEFB66E (FEFB66ECC)

POS. NO PART NO. DESCRIPTION

1 316416100 A B Shield, backguard, rear wall

14 316022500 A B Light/Lamp, indicator, 125 V

15 316411405 A B Support, backguard, black, RH

15A 316411404 A B Support, backguard, black, LH

19 316453101 A B Panel, control, stainless/black, assembly, w/overlay

20 # 316418200 A B Clock/Timer, electronic, ES300

20A 316419103 A B Overlay, clock, black, ES300

23 316441600 A B Bracket-clock mtg, black

24 # 316246001 A B Switch, rocker, black

31 316223002 A B Knob, control, black

46 318228300 A B Lens, indicator light

54 # 316436000 A B Switch, infinite, small element

54A# 316436001 A B Switch, infinite, large element

56 316234013 A B Shield, backguard, black, inner

69 5303288565 A B Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995450524 FEFB66E

10/05 4

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEFB66E Publication No: 5995450524

# Functional Parts 5 10/05

* Non-Illustrated Parts

BODY

Model Index: AFEFB66E (FEFB66ECB)

BFEFB66E (FEFB66ECC)

POS. NO PART NO. DESCRIPTION

1 316401800 A B Panel, main back

3 316400104 A - Panel, bodyside, black, RH

3 316400105 A - Panel, bodyside, black, LH

3 316400118 - B Panel, bodyside, black, RH

3 316400119 - B Panel, bodyside, black, LH

5 316272900 A B Screw, leveling, plastic, rear, (2)

5A 316407201 A B Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B Rack, oven

8 316400601 A B Panel, oven bottom

12 316445501 A B Switch, oven light, door frame

14 316116400 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 08011086 A B Lens, oven light, glass

17 316087500 A B Retainer, lens

18 # 316405800 A B Latch Assembly, oven door

21 316408000 A B Clip, bodyside

25 5303289914 A B Shield-heat lower

29 316407301 A B Glide, drawer, front

37 # 316217001 A B Probe, oven temp

42 316407700 A B Shield, wool, lower

44 316246501 A B Spacer, oven door

45 316234100 A B Shield, wire, vent tube

57 316422400 A B Cover, access

58 316403800 A B Insulation, oven bottom

58A 316406600 A B Insulation, oven wrapper

58B 316406500 A B Insulation, oven back

59 316208201 A B Tube, oven vent, lower

59A 316208304 A B Tube, oven vent, upper

59B 316247300 A B Catalyst, oven vent, ceramic

62 5303935238 A B Terminal Block Kit, w/ground plate

62* 316085600 A B Insulator

62* 316205500 A B Nut, hex flange, 3/8 10-32

63 316278800 A B Plate, grounding strap

66 # 316203200 A B Element, broil

67 316075103 A B Element, bake

68 316404000 A B Support, element, broil

71 316422300 A B Shield, rear wall

86 316441300 A B Receptacle, hinge

86* 316418901 A B Screw, trilobe, 10-32 x 5/16"

87 316081200 A B Bracket, cable mtg

88 316203500 A B Rod, auto latch

89 # 316415400 A B Motor, latch/lock

151 316404600 A B Shield, bodyside

170 5303935180 A B Anti-tip Kit, w/bracket, screw

170* 316107200 A B Bracket, anti-tip

170* 316112500 A B Template, anti-tip

170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt

* # 316416422 A B Harness, wiring, main

* 3203550 A B Plug, button, oven bottom

* 5303305345 A B Paint, touch-up, black

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 A B Screw, 8-18 x 0.5, black

* 316089500 A B Screw, 10-16 x .486

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995450524 FEFB66E

10/05 6

TOP/DRAWER

26B

26A

15A

T20T 2718

FEFB66E Publication No: 5995450524

# Functional Parts 7 10/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEFB66E (FEFB66ECB)

BFEFB66E (FEFB66ECC)

POS. NO PART NO. DESCRIPTION

1 316408701 A B Drawer, utility

2 316403300 A B Liner, drawer

4 316409405 A B Panel, drawer front, stainless

7 316407400 A B Glide, drawer, rear

15 # 316010205 A B Element, surface, 6", 1200 W, radiant

15A# 316224200 A B Element, surface, 9", 2500W, radiant

16 316421239 A B Maintop, frame/glass, black

18 316436600 A B Hinge Bracket, maintop, (2)

26 316427600 A B Channel, element support, (2)

26A 316099202 A B Bracket, chassis support, rear

26B 316214200 A B Bracket, chassis support, front

39 316270200 A B Handle, door, black

39* 316437500 A B Screw, handle mtg., 10 14 x .4 trus, (2)

52 316278300 A B Clip, element mtg

* # 316416852 A B Harness, wiring, surface

* 316264000 A B Cleaner, cooktop

* 316279700 A B Cleaner, stainless steel

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 A B Screw, 8-18 x 0.5, black

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995450524 FEFB66E

10/05 8

DOOR

FEFB66E Publication No: 5995450524

# Functional Parts 9 10/05

* Non-Illustrated Parts

DOOR

Model Index: AFEFB66E (FEFB66ECB)

BFEFB66E (FEFB66ECC)

POS. NO PART NO. DESCRIPTION

4 316452700 A B Glass, oven door, black, outer

6 316406307 A B Shield, wool

7 316405600 A B Insulation, oven door

8 316117500 A B Glass, oven door, heat barrier

9 316423701 A B Liner, oven door

10 316433303 A B Screw, 10-14 x 1.820", handle mtg.

12 316405000 A B Seal, oven door

13 316407906 A B Panel, oven door, stainless, outer

17 316402403 A B Spacer, door glass, (2)

20 316408600 A B Spacer, door handle, (2)

23 316437704 A B Hinge, oven door

23* 316418900 A B Screw, sims lp, #8-32 x 5/16", black

39 316270200 A B Handle, door, black

53 316408201 A B Shield, door filler, black, (2)

55 316408300 A B Bracket, glass support, (4)

60B 316021110 A B Screw, 8-18 x 0.5, black

* 316279700 A B Cleaner, stainless steel

* 316433603 A B Label, anti-tip

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995450524 FEFB66E

10/05 10

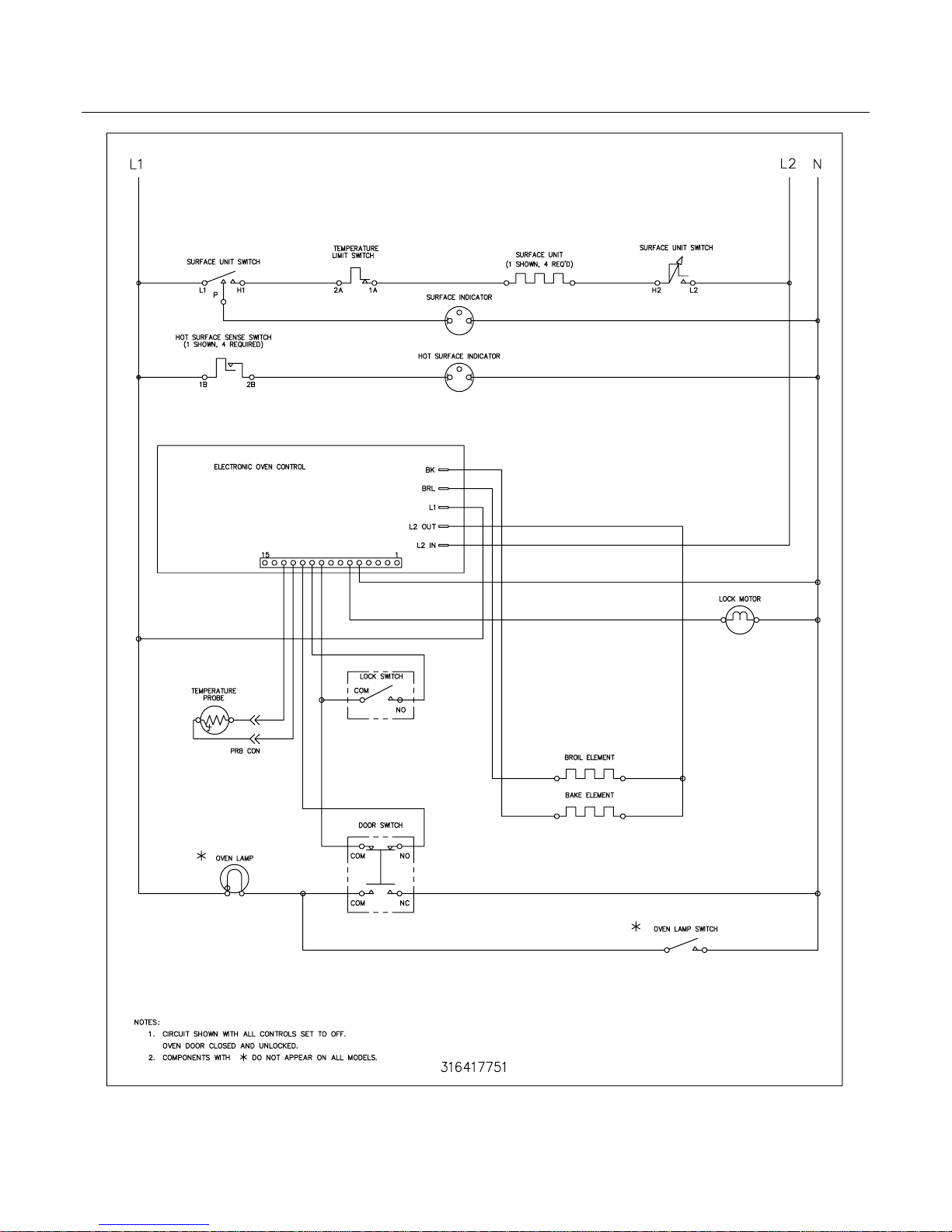

WIRING SCHEMATIC
