Frigidaire FGFB55A Manuel utilisateur

Product No. FGFL79DBB FGFL79DQB FGFL79DSB

Series 30" f/s gas 30" f/s gas 30" f/s gas

Color black bisque white

Market North America North America North America

Wiring Diagram 316417808 316417808 316417808

Owner's Guide 316417102 316417102 316417102

Installation Instructions 316259336 316259336 316259336

Service Data Sheet 316417603 316417603 316417603

FGFL79D.eps T24G0009.eps T24B0002.eps T24V0026.eps T24T0021.eps T24D0005.eps

316417808d.eps 316417808s.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995427076

05/01/19

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

FGFL79D / FGFB55A

Publication No: 5995427076 FGFL79D / FGFB55A

01/05 2

BACKGUARD

FGFL79D / FGFB55A Publication No: 5995427076

# Functional Parts 3 01/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFGFL79D (FGFL79DBB)

BFGFL79D (FGFL79DQB)

CFGFL79D (FGFL79DSB)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

2 316051600 A B C Shield, backguard, inner

2A 316235100 A B C Shield, top, inner

14A 316022500 A B C Light/Lamp, indicator, 125 V

15 316411405 A - - Support, backguard, black, RH

15 316411407 - B - Support, backguard, bisque, RH

15 316411403 - - C Support, backguard, white, RH

15A 316411404 A - - Support, backguard, black, LH

15A 316411406 - B - Support, backguard, bisque, LH

15A 316411402 - - C Support, backguard, white, LH

19 316424178 A - - Panel, control, black

19 316424179 - B - Panel, control, bisque

19 316424177 - - C Panel, control, white

20 # 316418306 A B C Clock/Timer, electronic, ES340

20A 316419303 A - - Overlay, clock, black, ES340

20A 316419305 - B - Overlay, clock, bisque, ES340

20A 316419304 - - C Overlay, clock, white, ES340

24C# 316114002 A - - Switch, speed bake, black

24C# 316114004 - B - Switch, convection, bisque

24C# 316114000 - - C Switch, speed bake, white

36 316220002 A - - Knob, top valve, black, 4

36 316220003 - B - Knob, top valve, bisque, (4)

36 316220000 - - C Knob, top valve, white, (4)

40 316204918 A - - Panel, manifold, black

40 316204919 - B - Panel, manifold, bisque

40 316204917 - - C Panel, manifold, white

42 316416200 A - - Trim, extrusion, black

42 316416202 - B - Trim, extrusion, tan

42 316416201 - - C Trim, extrusion, gray

46 316040201 A B C Lens, indicator light, red

56 316230701 A B C Shield, backguard, inner

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995427076 FGFL79D / FGFB55A

01/05 4

BURNER

FGFL79D / FGFB55A Publication No: 5995427076

# Functional Parts 5 01/05

* Non-Illustrated Parts

BURNER

Model Index: AFGFL79D (FGFL79DBB)

BFGFL79D (FGFL79DQB)

CFGFL79D (FGFL79DSB)

POS. NO PART NO. DESCRIPTION

1 # 316219500 A B C Pipe, manifold

2A # 5303935236 A B C Valve, 14K burner, w/mtg screw

2B # 5303935235 A B C Valve, 5K burner, w/mtg screw

2C # 5303935234 A B C Valve, 9.5K burner, w/mtg screw

3 # 316219004 A B C Wiring Harness, w/igntr switch

8 # 316135701 A B C Module, spark

10A# 316223400 A B C Burner, sealed, 14K

10B# 316206400 A B C Burner, sealed, 5K

10C# 316212400 A B C Burner, sealed, 9.5K

11 # 316237701 A B C Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube

11A# 316272000 A B C Ignitor/orifice assy., top burner, front

11B# 316237700 A B C Ignitor/orifice assy., top burner, rear, 5K, w/holder, tube

11C# 316237800 A B C Ignitor/orifice assy., top burner, front

13 # 316405300 A B C Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 A B C Regulator, pressure

14* 316021104 A B C Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 A B C Bracket, regulator

16 # 316405500 A B C Tube, valve to regul., 3/8

17 # 316404900 A B C Valve, safety

17* 08068018 A B C Shield, wire, safety valve

18 # 316404400 A B C Burner, oven

19 # 316428500 A B C Ignitor, oven burner

20 316401401 A B C Baffle, oven burner

21 5303013272 A B C Nut, hex head sems

22 # 316405400 A B C Tube, valve to mixer

23 # 316404300 A B C Burner, broiler

24 # 316409700 A B C Elbow, mixer

25 316401301 A B C Baffle, broil burner

26 # 316428600 A B C Ignitor, burner

26* 316401500 A B C Cover, broil Ignitor

37 316240600 A B C Screw, assy mtg, ignitor/orifice

44A 316237900 A B C Orifice, top burner, 14K

44B 316237903 A B C Orifice, top burner, 5K

44C 316237902 A B C Orifice, top burner, 9.5K

47 GRLP2 - - - LP Conversion Kit, w/instructions

47* 316248105 A B C Instructions, LP kit

* # 316253700 A B C Wiring Harness, ignitor module

* 316001003 A B C Screw, ground wire

* 316215600 A B C Screw, valve mtg., 1/4 - 20

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995427076 FGFL79D / FGFB55A

01/05 6

BODY

FGFL79D / FGFB55A Publication No: 5995427076

# Functional Parts 7 01/05

* Non-Illustrated Parts

BODY

Model Index: AFGFL79D (FGFL79DBB)

BFGFL79D (FGFL79DQB)

CFGFL79D (FGFL79DSB)

POS. NO PART NO. DESCRIPTION

1 316401600 A B C Back, main

2 316402201 A B C Shield, oven top

2* 316437100 A B C Brace, oven top

3 316400104 A - - Panel, bodyside, black, RH

3 316400105 A - - Panel, bodyside, black, LH

3 316400106 - B - Panel, bodyside, bisque, RH

3 316400107 - B - Panel, bodyside, bisque, LH

3 316400102 - - C Panel, bodyside, white, RH

3 316400103 - - C Panel, bodyside, white, LH

4 316201403 A B C Burner Box

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407200 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B C Rack, oven

8 316400603 A B C Panel, oven bottom

12 # 316407100 A B C Switch, oven light/door

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 08011086 A B C Lens, oven light, glass

17 316087500 A B C Retainer, lens

18 # 316405800 A B C Latch Assembly, oven door

21 316408000 A B C Clip, bodyside

25 316406200 A B C Shield, heat, lower

29 316407301 A B C Glide, drawer, front

30 316217700 A B C Bracket, hinge, RH, main top

30A 316217701 A B C Bracket, hinge, LH, main top

33 316402500 A B C Shield, rear wall

35 316116600 A B C Gasket, flue

36 316208901 A B C Flue

37 # 316217001 A B C Probe, oven temp

39 3202006 A B C Cord, electric power

42 316400703 A B C Shield, wool, lower

43 3131732 A B C Screw, 8-18 x 1.438, oven bottom

44 316246501 A B C Spacer, oven door

49 316234200 A B C Clip, maintop mtg, (2)

54 316404200 A B C Shield, heat

55 316404800 A B C Shield, flue

58A 316403700 A B C Insulation, oven wrapper

58B 316403600 A B C Insulation, oven back

58G 08067973 A B C Insulation, main front

82 316400801 A B C Shield, bake burner

82* 316432800 A B C Clip, wire

86 316407000 A B C Receptacle, hinge

86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"

87 316401200 A B C Bracket, harness

88 316232700 A B C Rod, auto latch

89 # 316415400 A B C Motor, latch/lock

90 316401100 A B C Shield, main front

91 316401000 A B C Shield, front, burner

Publication No: 5995427076 FGFL79D / FGFB55A

01/05 8

BODY

FGFL79D / FGFB55A Publication No: 5995427076

# Functional Parts 9 01/05

* Non-Illustrated Parts

BODY

Model Index: AFGFL79D (FGFL79DBB)

BFGFL79D (FGFL79DQB)

CFGFL79D (FGFL79DSB)

POS. NO PART NO. DESCRIPTION

106 316404100 A B C Bracket, motor mtg.

107 316026701 A B C Cover, fan

108# 316415700 A B C Motor, convection

109 316136400 A B C Blade, fan

110 316136500 A B C Washer, fan motor

111 316136600 A B C Nut, fan retainer

151 316404600 A B C Shield, bodyside

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

264 316404700 A B C Bracket, air dam

* 316416603 A B C Harness, wiring, main

* 316231800 A B C Cover, hole, conv. element

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316021132 A B C Screw, 8-18 X 11/16, black

* 316089500 A B C Screw, 10-16 x .486

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995427076 FGFL79D / FGFB55A

01/05 10

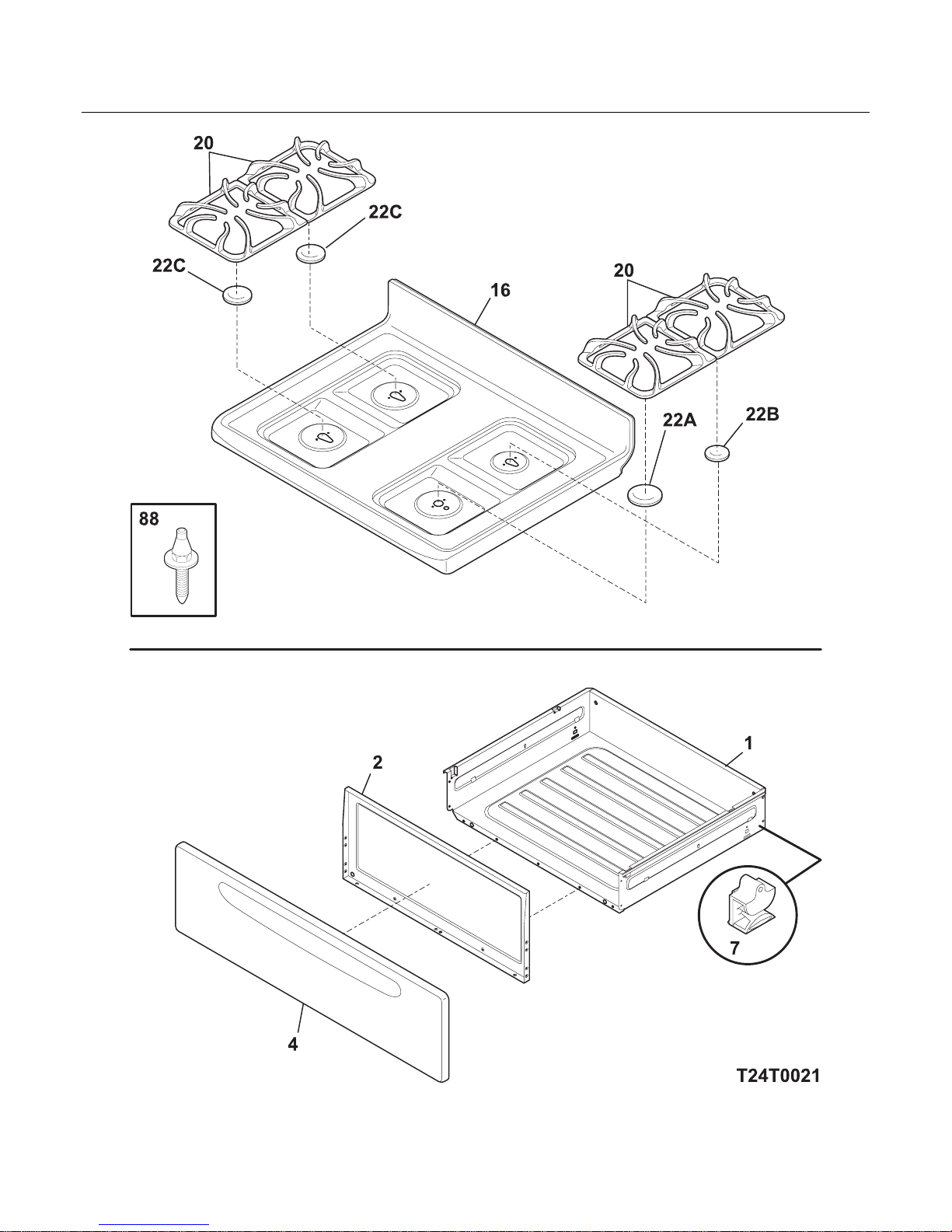

TOP/DRAWER
