Frigidaire FEFB67BH Manuel utilisateur

PRODUCT NO. FACTORY NO. COLOR MARKET

FEFB67BHWA 38354336B9011 WHITE U.S.A.

FEFB67BHDA 38354336B9031 ALMOND U.S.A.

Publication No.

5995321485

990421

-EN/SERVICE/MG

377

ELECTRIC - RANGE

Model No.

FEFB67BH

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # -318045253

OWNERS GUIDE #-318200407

INSTALLATION INSTRUCTION #-318154300

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA L5T1K6

TEL :(905) 565-9200

SELF-CLEANING OVEN

OFF

LEFT FRONT LEFTREAR RIGHT REAR RIGHT FRONT

SURFACE

OVEN LIGHT

SURFACE

CANCELBAKE

VARI-BROIL CLEAN

PREHEA T

OVEN

LOCKED

CANCELBAKE

VARI-BROIL CLEAN

04/99 2

Publication No. FEFB67BH

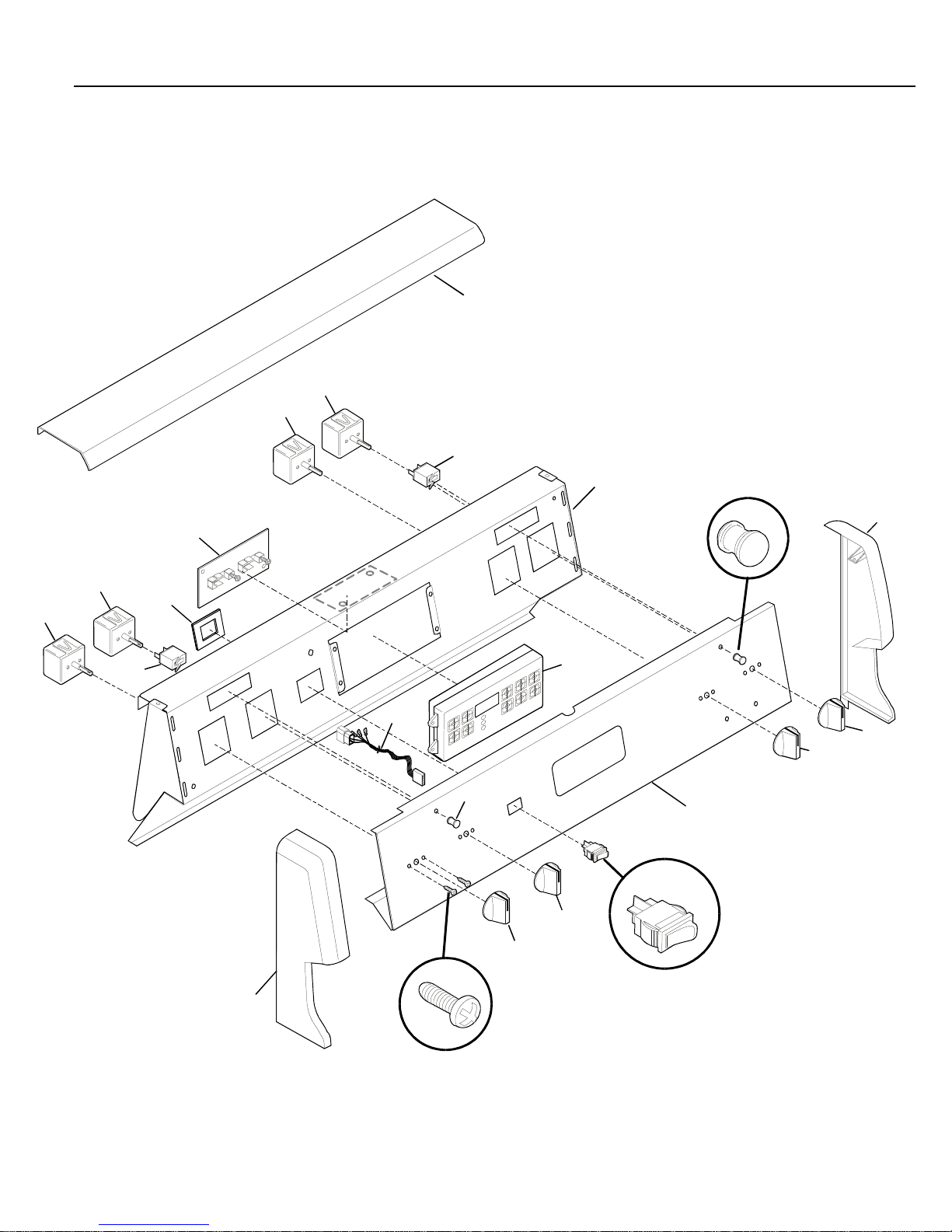

5995321485 BACKGUARD

18A

LAP23CG082

# = Functional Part 304/99

* = Non-Illustrated Part

FEFB67BH Publication No.

5995321485

POS. NO PART NO. DESCRIPTION

14 3200297 A B Light-indicator

16 318117426 A B Plate, instrument mtg

18 318118304 A B End Cap black,RH

18A 318118305 A B End Cap black,LH

19 318117182 A B Panel-control black

20 # 318013006 A B Electronic timer

21 318118002 A B Trim-canopy

24# 316005602 A B Switch-oven light, rocker type

36 318017111 A B Knob-control

46 5303297274 A B Lens-light

54 # 318120500 A B Switch-surface unit

64 318112200 A B Spacer rocker switch

86 318111201 A B Plate-connecting

98 318092405 A BWiring harness

*08016432 A B Screw truss head, 8-18 x 3/8

*5303310510 A B Screw 10-24 x 5/8

*5303320848 A BScrew, 6-20 X 1/4

*3201885 A B Nut (10-24)

*5303323134 A B Screw, 8-32 X 3/16

BACKGUARD

A= FEFB67BH (FEFB67BHWA)

B= FEFB67BH (FEFB67BHDA)

04/99 4

Publication No. FEFB67BH

5995321485 BODY

170

170A

183

178

177 166

166

54 15

166

165

182

86 86

58A

58B

127

LA9923CV14

141

171

184

162

163 12

129

128

# = Functional Part 504/99

* = Non-Illustrated Part

FEFB67BH Publication No.

5995321485

POS. NO PART NO DESCRIPTION

1 318108100 A B Back-main

3 318025601 APanel-bodyside,white

3318025602 BPanel-bodyside, almond

5 318175503 A B Screw leveling

6 5303310522 A B Rack-oven

9 5303317977 A B Pan-broiler

10 5303317976 A B Insert-broiler pan

11 318086100 A B Bracket-light switch

12 # 318089800 A B Switch-door

14 5308011085 A B Socket-light/lamp

15 3201908 A B Lamp-oven light

16 3201911 A B Glass-oven light lens

17 5304400195 A B Retainer lens

25 318108700 A B Shield-heat lower

30 318110800 A B Bracket-hinge, main top

37 # 316111203 A B Probe-oven temp

54 5303310514 A B Housing-oven light

57 318036500 A B Cover-access

58A 5303310539 A B Insulation,oven wrapper

58B 5303310538 A B Insulation,oven back

59 318072518 A B Tube oven vent

62 # 5303310518 A B Terminal Block

63 5303310517 A B Plate-ground strap

66 # 5303310513 A B Element-broil

67 # 5303310512 A B Element-bake

68 5304403015 A B Support-element

71 318086600 A B Shield wire

74 318141900 A B Bodyside

76 318108502 A B Frame-front, wheels incl

80 5303324473 A B Bracket-oven

83 318109405 A B Liner-oven assy

86 5303310524 A B Channel-hinge

88 318118902 A B Rod-latch

89 # 318095900 A B Motor-latch assy

89* 318120702 A B Switch latch

89* 318120704 A B Switch latch

99 318126101 A B Support side

127 5303310542 A B Adapter assy

128 5303311163 A B Bushing

129 5303311164 A B Spring

141# 5303302280 A B Thermostat-safety

162 318096401 A B Connection box

163 318135802 A B Cover connection box

165 318003100 A B Shield-plate

166 318111000 A B Bracket-bearing

170 3203575 A B Anti-tip bracket

170A 3203576 A B Anti-tip bracket

171 318111202 A B Plate-connecting

177 318053800 A B Gasket vent

178 318125700 A B Bracket vent

182 316042300 A B Plate-warning

183 5303323140 A B Screw ground

184 5303323144 A B Nut (10-32)

*5303211311 A B Screw, #8 x ½

*5303307980 A B Screw, 8-32 x 7/16

* 5303131801 A B Screw,10 x 3/8

*5303308449 A BFastener

*5303311528 A B Screw, 6-20 x 5/8

*5303323129 A B Screw, 8 X ¾

*5303323133 A B Screw, 8-18 X ½

*5303323139 A B Screw, 10-24 X 29/32

*5303325980 A B Screw, 10-32 X 0.437

*5304400427 A B Screw, 6-20 X ½

BODY

A= FEFB67BH (FEFB67BHWA)

B= FEFB67BH (FEFB67BHDA)

04/99 6

Publication No. FEFB67BH

5995321485 TOP/DRAWER

52A

LA23CT029G

13A

52A

15A

# = Functional Part 704/99

* = Non-Illustrated Part

FEFB67BH Publication No.

5995321485

POS. NO PART NO DESCRIPTION

1 318107103 A B Drawer-utility

3 318144321 A B Support,main top

4 318044301 APanel-drawer,white

4318044302 BPanel-drawer almond

7318014800 A B Spacer

11 318107500 A B Bracket-support,drawer

13 318018100 A B Channel-drawer,RH

13A 318018101 A B Channel-drawer,LH

15 # 318178101 A B Element-surface,2400W

15A# 318178100 A B Element-surface, 1500W

16 318043864 AMaintop, white

16 318043868 BMaintop, almond

18 318074400 A B Hinge-main top,

51# 5303297484 A B Light-indicator

52 318122007 A B Spring element mtg

52A 318122006 A B Spring element mtg

56 5304400427 A B Screw, 6-20 X ½

94 318132608 A B Insulation top

*5303211311 A B Screw, #8 X 1/2

*5304400428 A B Screw, 8-15 X 1/8

*3131048 A B Screw, 8 X 5/8

TOP/DRAWER

A= FEFB67BH (FEFB67BHWA)

B= FEFB67CH (FEFB67BHDA)

04/99 8

Publication No. FEFB67BH

5995321485 DOOR

LAP23CD015

# = Functional Part 904/99

* = Non-Illustrated Part

FEFB67BH Publication No.

5995321485

POS. NO PART NO DESCRIPTION

1 318043100 A B Bracket-trim, handle

3 318049205 A B Trim-oven, black

3A 318028900 A B Trim-oven door,upper

3B 318049019 A B Trim-oven door,black ,upper

4318041109 A B Glass-oven door,black outer

6 318056802 A B Shield-wool

7 318106001 A B Insulation-door

9 318048802 A B Liner-oven door

10 5303324305 A B Screw,10-24 x 5/8

12 318053103 A B Seal-oven door

16 318041603 A B Glass-oven door, heat barrier

17 318042102 A B Spacer-glass

18 318053001 A B Seal-rope

20 318014300 A B Spacer-handle, black

23 5303311215 A B Hinge

29 5303310535 A B Bumper door

31 5303310536 A B Latch-door

39 316091118 A B Handle-door, black

42 5303311200 A B Trim-oven door, black, lower

54 5303308456 A B Screw,8-18 X 0.531

* 5303211311 A B Screw,#8 x 1/2

* 5303307980 A B Screw,8-32 x 7/16

*08016432 A B Screw truss head 8-18 x 3/8

*3201899 A B Washer hinge assy

DOOR

A= FEFB67BH (FEFB67BHWA)

B= FEFB67BH (FEFB67BHDA)

04/99 10

Publication No. FEFB67BH

5995321485 WIRING DIAGRAM
