Frigidaire FGF367BG Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF367BGDB FGF367BG almond USA

FGF367BGWB FGF367BG white USA

FGF367CGSB FGF367CG white/white USA

Publication No.

5995309563

980629

-EN/SERVICE /CML

369

GAS - RANGE

Model No.

FGF367BG

FACTORY PARTS CATALOG

GAS RANGE

WIRING DIAGRAM # - 316002168

OWNER’S GUIDE # - 316000272

INSTALLATION INSTR. # 316002979

6000 Perimeter Drive

Dublin, OH 43017

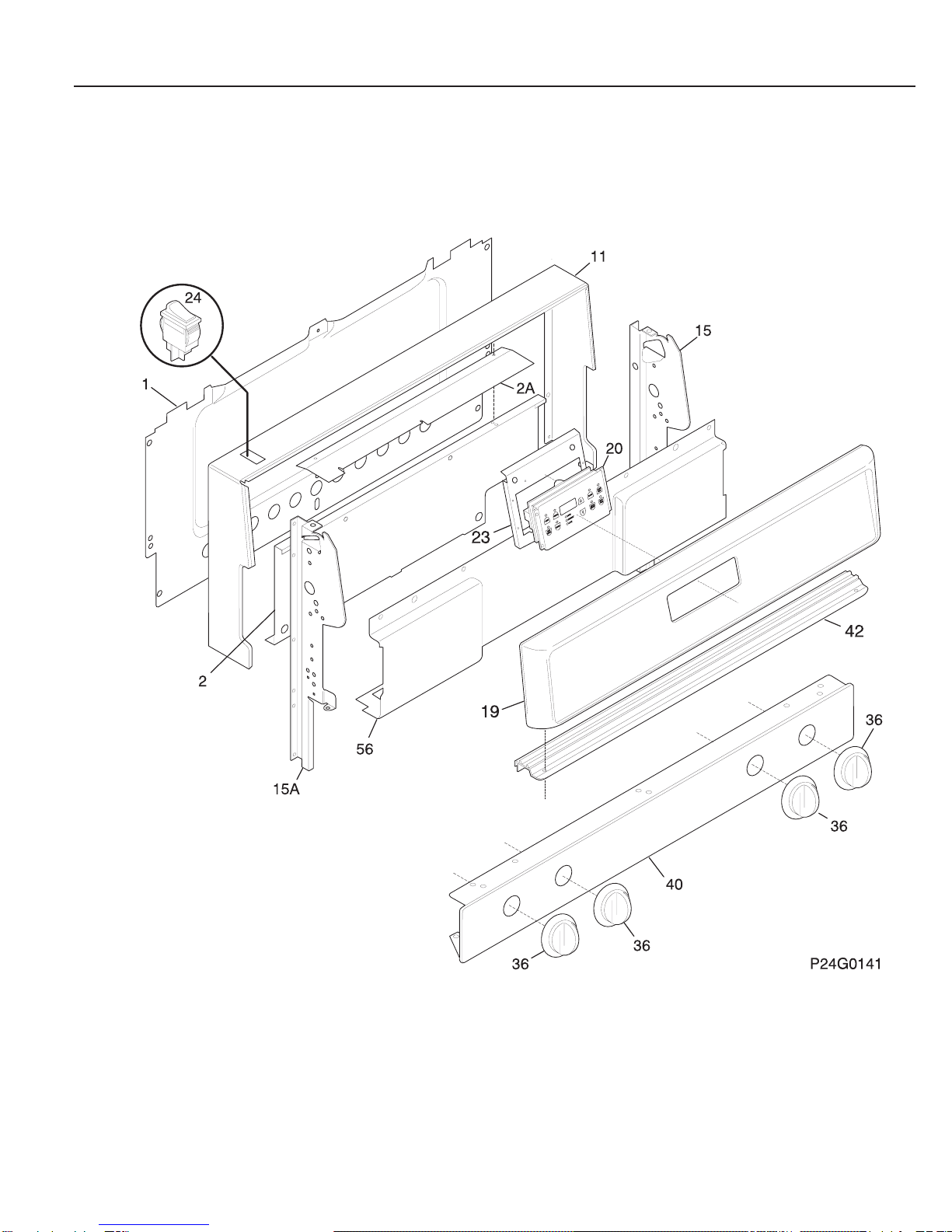

BACKGUARD

Publication No. FGF367BGWB,FGF367BGDB,FGF367BGSB

5995309563

07/98 2

A = FGF367BG (FGF367BGDB)

B = FGF367BG (FGF367BGWB)

C = FGF367CG (FGF367CGSB)

POS. NO PART NO DESCRIPTION

1 316028701 A B C Shield-backguard,rear wall

2 316051600 A B C Shield-backguard,inner

2A 316053802 A B C Shield-backguard,inner/top

11 316083718 A B - Trim-wrapper,black

11 316083722 - - C Trim-wrapper gas white w/hole,textured ,

white

15 316023108 A B C Support-backguard,RH

15A 316023109 A B C Support-backguard,LH

19 316100530 A B - Panel-control,metal ,black

19 316100525 - - C Panel-control,metal ,painted ,white

20 # 316101000 A B C Clock/Timer,electronic

20* 316101503 A B - Overlay-clock

20* 316101502 - - C Overlay-clock

23 316100300 A B C Bracket-clock mtg

24 # 316005602 A B - Switch-rocker,oven light ,black

24 # 316005607 - - C Switch-rocker,oven light ,white

36 316109502 A B - Knob-top valve black,black

36 316109503 - - C Knob-top valve white,white

40 316009268 A B - Panel-manifold

40 316009285 - - C Panel-manifold

42 316055200 A B - Trim-vent

42 316055201 - - C Trim-vent

56 316074907 A B C Deflector-flue,black

* 316021105 A B C Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C Screw-8-18x1/2 Tr Sqd black

* 316071902 A B C Gasket-edge

BACKGUARD

FGF367BGWB,FGF367BGDB,FGF367BGSB Publication No.

5995309563

# = Functional Part 3 07/98

* = Non-Illustrated Part

BURNER

Publication No. FGF367BGWB,FGF367BGDB,FGF367BGSB

5995309563

07/98 4

A = FGF367BG (FGF367BGDB)

B = FGF367BG (FGF367BGWB)

C = FGF367CG (FGF367CGSB)

POS. NO PART NO DESCRIPTION

1 # 316066201 A B C Manifold Pipe

2 # 5303935130 A B C Valve-top burner

2* 316048200 A B C Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

2A # 5303935132 A B C Valve-top burner,large ,(2)

3 # 316103600 A B C Switch-ignitor,(4)

4 # 316059612 A B C Tube-burner,red ,RF

5 # 316059613 A B C Tube-burner,green ,LF

6 # 316059614 A B C Tube-burner,nat. ,RR

7 # 316059615 A B C Tube-burner,black ,LR

8 # 5303280394 A B C Spark Module

8* 5303289034 A B C Harness-wiring,module/igniter

10 # 5303935025 A B C Burner Assy-top,sealed ,small ,9000 BTU

10A 5303935075 A B C Burner Assy-top,sealed ,large ,

1,100 BTU,(2), includes ,

11,37,44,45,&50

11 # 316011200 A B C Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C Regulator-pressure

14* 316021104 A B C Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 A B C Bracket-regulator

16 # 316065003 A B C Tube-valve to rgltr,3/8

17 # 5303208499 A B C Valve-safety,dual

18 # 3131290 A B C Burner-oven

19 # 5303935066 A B C Ignitor-oven

20 3131284 A B C Baffle-oven burner

21 5303013272 A B C Nut,hex head sems

22 # 316065002 A B C Tube-valve to mixer

23 # 316087900 A B C Burner-broiler

24 # 316070400 A B C Mixer Elbow

25 5303210379 A B C Baffle-broiler

26 # 5308067970 A B C Ignitor-broiler

37 316069300 A B C Screw-burner mtg,hex washer head ,

M3x0.50

44 5303210090 A B C Orifice-top burner,small

44A 3160108 A B C Orfifice-top burner, large

45 316011100 A B C Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C Plate-burner tube

47 5303307190 A B C LP Conversion Kit

* 5303271648 A B C Screw,wafer hd sq dr ,8-18AB x 1/2

BURNER

FGF367BGWB,FGF367BGDB,FGF367BGSB Publication No.

5995309563

# = Functional Part 5 07/98

* = Non-Illustrated Part

BODY

Publication No. FGF367BGWB,FGF367BGDB,FGF367BGSB

5995309563

07/98 6

A = FGF367BG (FGF367BGDB)

B = FGF367BG (FGF367BGWB)

C = FGF367CG (FGF367CGSB)

POS. NO PART NO DESCRIPTION

1 316029412 A B C Back-main

2 3131314 A B C Shield-oven top

3 316081030 A - - Panel-bodyside,almond ,RH

3 316081028 - B C Panel-bodyside,white ,RH

3* 316081031 A - - Panel-bodyside,almond ,LH

3* 316081029 - B C Panel-bodyside,white ,LH

4 316011912 A B C Burner Box,black

5 5303203397 A B C Screw-leveling

5* 3934058 A B C Anti-tip Kit

5* 316078600 A B C Screw,anti-tip ,(4)

5A 5303288460 A B C Nut,T-type ,leveling screw

6 316067902 A B C Rack-oven

7 316007002 A B C Hinge-oven door,(2)

8 5303212540 A B C Panel-oven bottom

8* 316064600 A B C Support-oven bottom

9 316073800 A B C Pan-broiler

10 3205234 A B C Insert-broiler pan

12 # 316027701 A B C Switch-oven light

13 316026800 A B C Rod-light switch /door

14 3014073 A B C Socket-light/lamp,oven

15 5303013071 A B C Light Bulb/Lamp

16 08011086 A B C Lens-light/lamp,glass ,oven

17 316087500 A B C Retainer-lens

18 # 316036300 A B C Latch-door

21 3014099 A B C Spacer-bodyside,(8)

25A 5303288580 A B C Shield-heat,lower

28 3011813 A B C Clip-wire,bodyside

29 3051162 A B C Glide-drawer,front

30 316059200 A B C Bracket-main top,RH

30A 316059201 A B C Bracket-main top,LH

33 316014401 A B C Shield,rear wall

35 08067965 A B C Gasket-flue

36 5303272844 A B C Flue

37 # 316111200 A B C Probe-oven temp

38 316051700 A B C Shield-heat

39 3202006 A B C Cord-electric power

39* 08067961 A B C Fastener-power cord

40 3200836 A B C Shield-heat baffle

40* 5303288570 A B C Screw-heat shield,hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B C Cover-hinge cutout

42 5303288578 A B C Shield-bake burner

43 3131732 A B C Screw-oven bottom,8-18 x 1.438

44 3131903 A B C Bumper-door/drawer,rubber

49 3051124 A B C Clip-spring mtg

53 5303288579 A B C Shield-main front

53A 08067992 A B C Shield-insulation

55 316107800 A B C Shield-flue

58A 316047705 A B C Insulation,oven wrapper

58B 316054200 A B C Insulation,oven back

58C 3131304 A B C Insulation,oven top

58G 08067973 A B C Insulation,main front

72 5303285692 A B C Cover-light/switch rod

88 316026400 A B C Rod-latch,auto

89 # 316028101 A B C Motor-latch/lock

* 08068018 A B C Shield-wire

* 08067757 A B C Cover Plate

* 316001632 A B C Harness-wiring,chassis

* 316021105 A B C Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C Screw,cup pt ,#8-18 x 3/8 ,hinge ,

BODY

FGF367BGWB,FGF367BGDB,FGF367BGSB Publication No.

5995309563

# = Functional Part 7 07/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FGF367BGWB,FGF367BGDB,FGF367BGSB

5995309563

07/98 8

ind lght brkt,manifold pnl

A = FGF367BG (FGF367BGDB)

B = FGF367BG (FGF367BGWB)

C = FGF367CG (FGF367CGSB)

POS. NO PART NO DESCRIPTION

1 316011501 A B C Drawer-utility

2 3131975 A B C Shield-panel

4 316084406 A - - Panel-drawer,almond

4 316084405 - B C Panel-drawer,white

7 3051163 A B C Glide-drawer,rear

16 5303307710 A - - Main Top,almond

16 5303307709 - B C Main Top,white

19 # 316011415 A B - Pan-burner,black ,small ,(2)

19 # 316011413 - - C Pan-burner,gray ,small ,(2)

19A# 316011419 A B - Pan-burner,black ,large ,(2)

19A# 316011417 - - C Pan-burner,gray ,large ,(2)

20 # 316085305 A B - Grate,(4)

20 # 316085304 - - C Grate,(4)

22 # 316098501 A B - Cap-burner,black ,(2)

22 # 316098508 - - C Cap-burner,small ,gray

22A# 316098505 A B - Cap-burner,black ,large

22A# 316098509 - - C Cap-burner,gloss gray

* 316021105 A B C Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C Screw-8-18x1/2 Tr Sqd black

* 316021113 A - - Screw-8-18x1/2 Tr Sqd Almond

* 316021112 - B C Screw-8-18x1/2 Tr Sqd White

* 316089600 A B C Spacer-drawer,(2)

* 5303280311 A B C Screw,waf hd sdr ,10-32 x 5/16 ,(2)

TOP/DRAWER

FGF367BGWB,FGF367BGDB,FGF367BGSB Publication No.

5995309563

# = Functional Part 9 07/98

* = Non-Illustrated Part

DOOR

Publication No. FGF367BGWB,FGF367BGDB,FGF367BGSB

5995309563

07/98 10
