Frigidaire FGF324WH Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR MARKET

FGF324WHSB FGF324WH Frigidaire white/white USA

FGF324WHSC FGF324WH Frigidaire white/white USA

Publication No.

5995345427

001023

-EN/SERVICE/KHB

369

GAS

RANGE

Model No.

FGF324WH

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - #316002174

OWNER’S GUIDE - # 316135900

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

01/01 2

Publication No. FGF324WH

5995345427

BACKGUARD

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FGF324WH Publication No.

5995345427

A = FGF324WH (FGF324WHSB)

B = FGF324WH (FGF324WHSC)

POS. NO PART NO DESCRIPTION

1 316028700 A B Shield-backguard,galv ,rear wall

11 316061857 A B Trim-wrapper,white ,textured

12 # 316032404 A B Thermostat

12* 316097602 A B Insulator

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316082653 A B Panel-control,metal

20# 316113200 A B Clock-timer

23 316079002 A B Bracket-clock mtg

24 # 316118101 A B Switch-oven light,rocker ,white

28 316017303 A B Button-clock,white , CLOCK SET

29 316028402 A B Button-selector,clock/timer ,white

32 316109509 A B Knob-thermostat,white

36 316109508 A B Knob-top valve,white ,(4)

40 316086820 A B Panel-manifold,white

42 316083300 A B Trim-vent

50 316096901 A B Bezel-nameplate,white

51 316095402 A B Label-nameplate,Frigidaire ,white

56 316074907 A B Deflector-flue, black

* 316021105 A B Screw,hex head cup pt,8-18 x 0.375, blk,back/bodyside

* 316021108 A B Screw,cup pt,8-18 x 0.375,chrom,hing,ind lgt,manifld pnl

* 316021110 A B Screw,8-18 x 0.500 ,black

BACKGUARD

01/01 4

Publication No. FGF324WH

5995345427

BURNER

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FGF324WH Publication No.

5995345427

BURNER

A = FGF324WH (FGF324WHSB)

B = FGF324WH (FGF324WHSC)

POS. NO PART NO DESCRIPTION

1 316113500 A - Manifold Pipe

1 # 316134400 - B Manifold Pipe

2 # 316098600 A - Valve-top burner,2-position ,(4)

2* 316048200 A - Screw-, hex wshr hd, 1/4-20 x 0.31, valve mount,w/gasket

2 # 316134200 - B Valve-top burner, natural gas, 2 position,(4)

2* 316134300 - B Screw,10-24 ,valve mounting

3 316001828 A B Wiring Harness,ignitor ,with switches

8 # 5303912606 A - Spark Module

8 # 316135700 - B Spark Module

10 # 316039002 A - Burner-top,front

10 # 316103800 - B Burner-top,venturi ring

10A# 316039003 A - Burner-top,rear

10A# 316103801 - B Burner-top,venturi ring

11 # 316081700 A - Ignitor-top burner,33"

11 # 316081702 - B Ignitor-top burner,33"

11A# 316081701 A - Ignitor-top burner,50"

11A# 316081703 - B Ignitor-top burner

12 3016993 A B Retainer-ignitor

14 # 316082900 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt, hex, 8-18 x 3/8 , nick, 3

17 # 3203459 A B Valve-safety

18 # 316114300 A B Burner-oven

19 # 316119301 A B Ignitor-oven

20 3203265 A B Baffle-oven burner

21 5303013272 A B Nut,hex head sems

36 316083000 A B Tubing,3/8 ,alum

48 3018603 A B Bracket-support,oven burner

49 3131438 A B Bracket,safety valve

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 0.500, burner box

01/01 6

Publication No. FGF324WH

5995345427

BODY

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FGF324WH Publication No.

5995345427

BODY

A = FGF324WH (FGF324WHSB)

B = FGF324WH (FGF324WHSC)

POS. NO PART NO DESCRIPTION

1 316029416 A B Back-main,1

3 316081034 A B Panel-bodyside,white ,RH

3 316081035 A B Panel-bodyside,white ,LH

4 316067206 A B Burner Box

4* 316130300 - B Spacer-burner box

5 316129200 A B Screw-leveling,plastic ,with stop

6 316067902 A B Rack-oven

7 316007003 A B Hinge-oven door,assembly

8 5303300701 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

14 316116400 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside, (8)

27 5303284616 A B Clip-thermo bulb

28 3011813 A B Clip-wire, bodyside

32 316107501 A B Channel-burner supt

32* 5303289684 A B Fastener,tanden wire ,(2)

33 316055601 A B Shield-spark module

34 3018607 A B Cover Plate

35 316116600 A B Gasket-flue

36 316133001 A B Flue,36

39 3202006 A B Cord-electric power

41 3131570 A B Cover-hinge cutout

43 3131732 A B Screw-oven bottom, 8-18 x 1.438

44 3131903 A B Bumper-door\drawer, rubber

54 5303271606 A B Housing-oven light

55 5303289358 A B Shield-flue

58A 3017142 A B Insulation,oven wrapper

58B 3203541 A B Insulation,oven back

60 5303015372 A B Cover-oven front

73 316109902 A B Base-low broil

93 316110000 A B Shield,metal ,galvanized ,ignitor

170 5303935180 A B Anti-tip Kit,w/bracket,screw

170* 316107200 A B Bracket,anti-tip

170* 316112500 A B Template, Anti-tip bracket

170* 316116000 A B Screw,concrete tpg, 1.75 inch, anti-tip brkt

185 316112900 A B Shield-thermo bulb

* 316021105 A B Screw,hex head cup pt,8-18 x 0.375, blk,back/bodyside

* 316021108 A B Screw,cup pt,8-18 x 0.375, chrom, hing,ind lgt,manifld pnl

01/01 8

Publication No. FGF324WH

5995345427

TOP/DRAWER

# = Fast-moving Parts 9 01/01

* = Non-Illustrated Parts

FGF324WH Publication No.

5995345427

TOP/DRAWER

A = FGF324WH (FGF324WHSB)

B = FGF324WH (FGF324WHSC)

POS. NO PART NO DESCRIPTION

1 316110201 A B Carriage, broiler

2 316110101 A B Liner-low broil

2A 316110800 A B Shield-broiler

4 316056205 A B Panel-drawer,white

4* 316021112 A B Screw,8-18 x 0.500 ,white

5 316129100 A B Fastener-spacer,push-in nut ,nylon

9 316081900 A B Pan-broiler

10 316082000 A B Insert-broiler pan

13 316111502 A B Glide-low broil,inner

13A 316111600 A B Glide-low broil,inner

13B 316111501 A B Glide-low broil,outer

16 5303285552 A B Main Top,white

17 316057601 A B Rod-maintop support

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

20 # 316088901 A B Grate,gray ,(4)

30 316111400 A B Insulation,broiler drawer

39 316019505 A B Handle-drawer,white

85 316115600 A B Rack-Low Broil

* 316021105 A B Screw,hex hd cup pt,8-18 x 0.375, blk,back/bodyside

* 316021108 A B Screw,cup pt,8-18 x 0.375,chrom, hinge,ind lgt,manifld pnl

* 316021110 A B Screw,8-18 x 0.500 ,black

* 316021120 A B Screw,shoulder head, 8-18 x 5/8, (2), square drive

* 5303280311 A B Screw,wafer hd sq dr, 10-32 x 0.312, (2)

01/01 10

Publication No. FGF324WH

5995345427

DOOR

Autres manuels Frigidaire Gamme

Frigidaire

Frigidaire FGDS3075K - Gallery Premeir 30 in. Dual Fuel Slide-In... Manuel utilisateur

Frigidaire

Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric... Manuel utilisateur

Frigidaire

Frigidaire FGF376CETP Manuel utilisateur

Frigidaire

Frigidaire FEFL68GMA Guide de l'utilisateur

Frigidaire

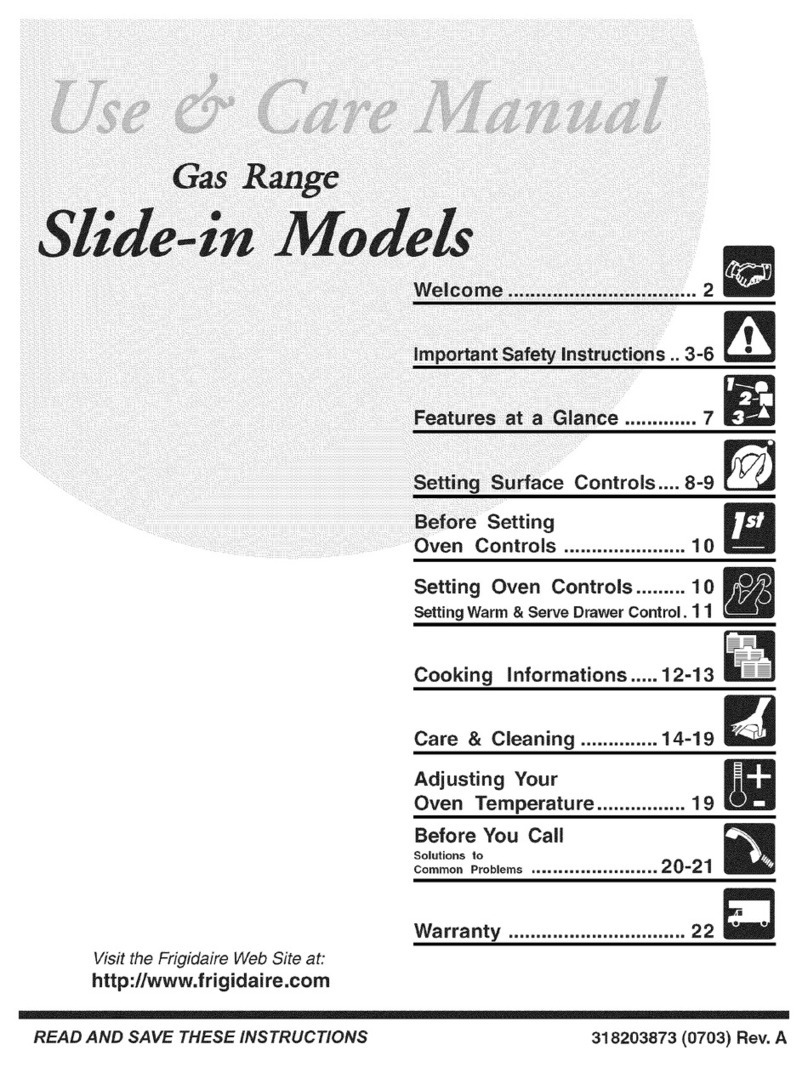

Frigidaire Gas Range Manuel utilisateur
