This Publication Supercedes Publication # 5995454021

Product No. PLGFMZ96ECC

Series 30" f/s gas

Color stainless

Market North America

Owner's Guide 316417113

Service Data Sheet 316441707

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459483

06/01/24

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING GAS

RANGE

Model No.

PLGFMZ96E

Publication No: 5995459483 PLGFMZ96ECC

01/06 2

BACKGUARD

PLGFMZ96ECC Publication No: 5995459483

# Functional Parts 3 01/06

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316416100 Shield, backguard, rear wall

2 316051600 Shield, backguard, inner

2A 316235100 Shield, top, inner

13 316414405 Control, bake, mini oven

14A 316022500 Light/Lamp, indicator, 125 V

15 316411405 Support, backguard, black, RH

15A 316411404 Support, backguard, black, LH

19 316436231 Panel, control, stainless

20 # 316418706 Clock/Timer, electronic, ES510

20A 316419700 Overlay, clock, black, w/mini oven, ES510

31 316223019 Knob, control, black

36 316220002 Knob, top valve, black, 4

40 316249015 Panel, manifold, stainless steel

42 316416200 Trim, extrusion, black

46 316040201 Lens, indicator light, red

55 316247700 Nut, hex control mtg

55A 316247800 Washer, lock, control mtg

56 316230701 Shield, backguard, inner

* 316416921 Harness, mini oven cntl

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995459483 PLGFMZ96ECC

01/06 4

BURNER

PLGFMZ96ECC Publication No: 5995459483

# Functional Parts 5 01/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 316219501 Pipe, manifold

2 # 5303935233 Valve, 17K burner, w/mtg screw

2A # 5303935235 Valve, 5K burner, w/mtg screw

2B # 5303935232 Valve, 9.5k/12k burner, w/mtg screw

2C # 5303935234 Valve, 9.5K burner, w/mtg screw

* 316215600 Screw, valve mtg., 1/4 - 20

3 # 316219006 Wiring Harness, w/igntr switch

8 318079001 Module, spark

10 # 316223300 Burner, sealed, 17K

10A# 316206400 Burner, sealed, 5K

10B# 316212300 Burner, sealed, 12K

10C# 316212400 Burner, sealed, 9.5K

11 # 316430500 Ignitor/orifice assy., top burner, right front, 16K, w/holder, tube

11A# 316430800 Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube

11B# 316430401 Ignitor/orifice assy., top burner, left rear, 12K, w/holder, tube

11C# 316237800 Ignitor/orifice assy., top burner, front

11D# 316430700 Ignitor/orifice assy., top burner, center, 9.5K, w/holder, tube

13 # 316405300 Tube, 3/8, aluminum, rgltr to manf, with fittings

14 # 316091706 Regulator, pressure

14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt

15 316091600 Bracket, regulator

16 # 316405500 Tube, valve to regul., 3/8

17 # 316404901 Valve, safety

18 # 316404400 Burner, oven

19 # 316428500 Ignitor, oven burner

20 316401401 Baffle, oven burner

21 5303013272 Nut, hex head sems

22 # 316405401 Tube, valve to mixer

23 # 316404300 Burner, broiler

24 # 316409700 Elbow, mixer

25 316401301 Baffle, broil burner

26 # 316428601 Ignitor, burner

26* 316401500 Cover, broil Ignitor

37 316240600 Screw, assy mtg, ignitor/orifice

44 316237912 Orifice, top burner, 16K

44A 316237903 Orifice, top burner, 5K

44B 316237901 Orifice, top burner, 12K

44C 316237902 Orifice, top burner, 9.5K

* # 316253702 Wiring Harness, ignitor module

* # 316064103 Wire, ground assembly

* 316001003 Screw, ground wire

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

Publication No: 5995459483 PLGFMZ96ECC

01/06 6

BODY

PLGFMZ96ECC Publication No: 5995459483

# Functional Parts 7 01/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316401602 Back, main

2 316402201 Shield, oven top

2* 316437100 Brace, oven top

3 316400118 Panel, bodyside, black, RH

3 316400119 Panel, bodyside, black, LH

4 316201403 Burner Box

5 316272900 Screw, leveling, plastic, rear, (2)

5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404501 Rack, oven

6A 318219500 Rack, broiler pan

8 316400603 Panel, oven bottom

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

12 316445500 Switch, oven light, door frame

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316405800 Latch Assembly, oven door

21 316408000 Clip, bodyside

30 316217700 Bracket, hinge, RH, main top

30A 316217701 Bracket, hinge, LH, main top

33 316402500 Shield, rear wall

35 316116600 Gasket, flue

36 316208901 Flue

37 # 316217001 Probe, oven temp

39 # 3131425 Cord, electric power

42 316400703 Shield, wool, lower

43 3131732 Screw, 8-18 x 1.438, oven bottom

44 316246501 Spacer, oven door

49 316234200 Clip, maintop mtg, (2)

54 316404200 Shield, heat

55 316404800 Shield, flue

57 316451100 Cover, access, w/ holes

57A 316451101 Cover, access, w/o holes

58A 316403700 Insulation, oven wrapper

58B 316403600 Insulation, oven back

58G 08067973 Insulation, main front

77 316451200 Plate, mounting, safety valve

82 316400801 Shield, bake burner

82* 316432800 Clip, wire

86 316441300 Receptacle, hinge

86* 316418901 Screw, trilobe, 10-32 x 5/16"

87 316451000 Bracket, harness, mini oven

88 316232700 Rod, auto latch

89 # 316415400 Motor, latch/lock

90 316401100 Shield, main front

91 316401000 Shield, front, burner

106 316404100 Bracket, motor mtg.

107 316026701 Cover, fan

108# 316415700 Motor, convection

Publication No: 5995459483 PLGFMZ96ECC

01/06 8

BODY

PLGFMZ96ECC Publication No: 5995459483

# Functional Parts 9 01/06

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

109 316136400 Blade, fan

110 316136500 Washer, flat

111 316136600 Nut, fan retainer

112 316435200 Standoff, strike plate

113 316431600 Plate, strike, mini oven

113* 316436700 Screw, countersunk HD, #10-16 x 1/4, (2)

151 316404600 Shield, bodyside

161# 316211604 Element, convection fan, 200 W

164 316450301 Trim, front, mini oven

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

264 316404700 Bracket, air dam

* # 316416628 Harness, wiring, main

* 5303305345 Paint, touch-up, black

* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 316021132 Screw, 8-18 X 11/16, black

* 316089500 Screw, 10-16 x .486

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

Publication No: 5995459483 PLGFMZ96ECC

01/06 10

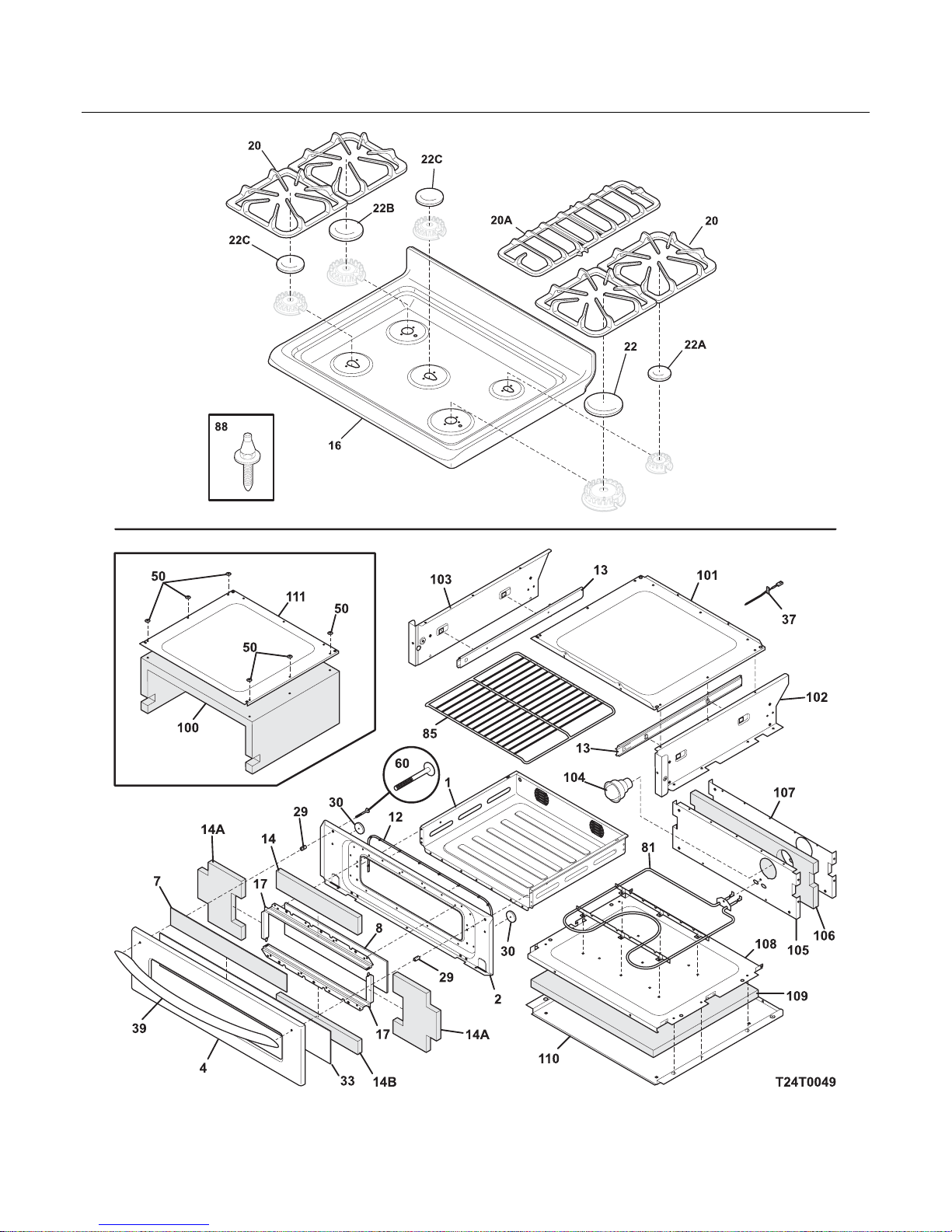

TOP/DRAWER
