Frigidaire FFEF3019M B Manuel utilisateur

Signature Features

Large Capacity

Our large capacity oven gives you

room to cook more at once.

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

One-Touch Self Clean

Start the self-cleaning cycle with

just the touch of a button.

SpaceWise®

Expandable Element

Flexible element expands to your

cooking needs.

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Extra-Large Element

Our extra-large 12" element gives you

space for larger pots and pans.

Store-More™ Storage Drawer

Our convenient drawer gives you extra

storage space in your kitchen.

Quick Clean

For a quick, light oven cleaning.

Color-Coordinated Oven Door

with Large Window

Stylish look with a large window makes it

easy to check on what’s cooking without

opening the door.

Delay Start Baking Option

Delay Clean

Set the oven to begin cleaning on your

schedule.

Hi / Lo Broil Options

Offers two-position broiling and variable

temperature control for more control.

Auto Shut-O

As an extra safety measure, the oven will

automatically shut off after 12 hours.

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy to see

what’s inside.

Attractive Stainless Steel Exterior1

Available in:

Freestanding Ranges

FFEF3019M S / W / B

Stainless

(S)

White

(W)

Black

(B)

Elements

Right Front

Right Rear

Left Front

Left Rear

Watts

2,700

1,200

1,200 /

2,500

1,200

Size

12"

6" / 9"

Expandable

1Select model only. frigidaire.com

30" Electric

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake

Broil

Quick Bake Convection

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Auto Oven Shut-O

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Center Element (Watts)

Hot Surface Indicator Light

Coil Cooktop / Drip Bowls

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Even Baking System

Broiling System

Bake Element / Broil Element (Watts)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Ready-Select® Controls

Black Ceramic Glass

Extra-Large

Stainless Steel ( S ),

Color-Coordinated ( W/B )

Stainless Steel ( S ),

Color-Coordinated ( W/B )

Black ( S ),

Color-Coordinated ( W/B )

Quick Bake Convection

Self Clean

Storage

Yes

Low and High

Yes

12 Hours

12" – 2,700

6" – 1,200

SpaceWise® Expandable

6"/ 9" – 1,200 / 2,500

6" – 1,200

5.4

Yes

2 Standard

Yes

Vari-Broil™ High / Low

3,500 / 3,600

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60Hz

12.5 / 9.5

140 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FFEF3019M S / W / B 30" Electric

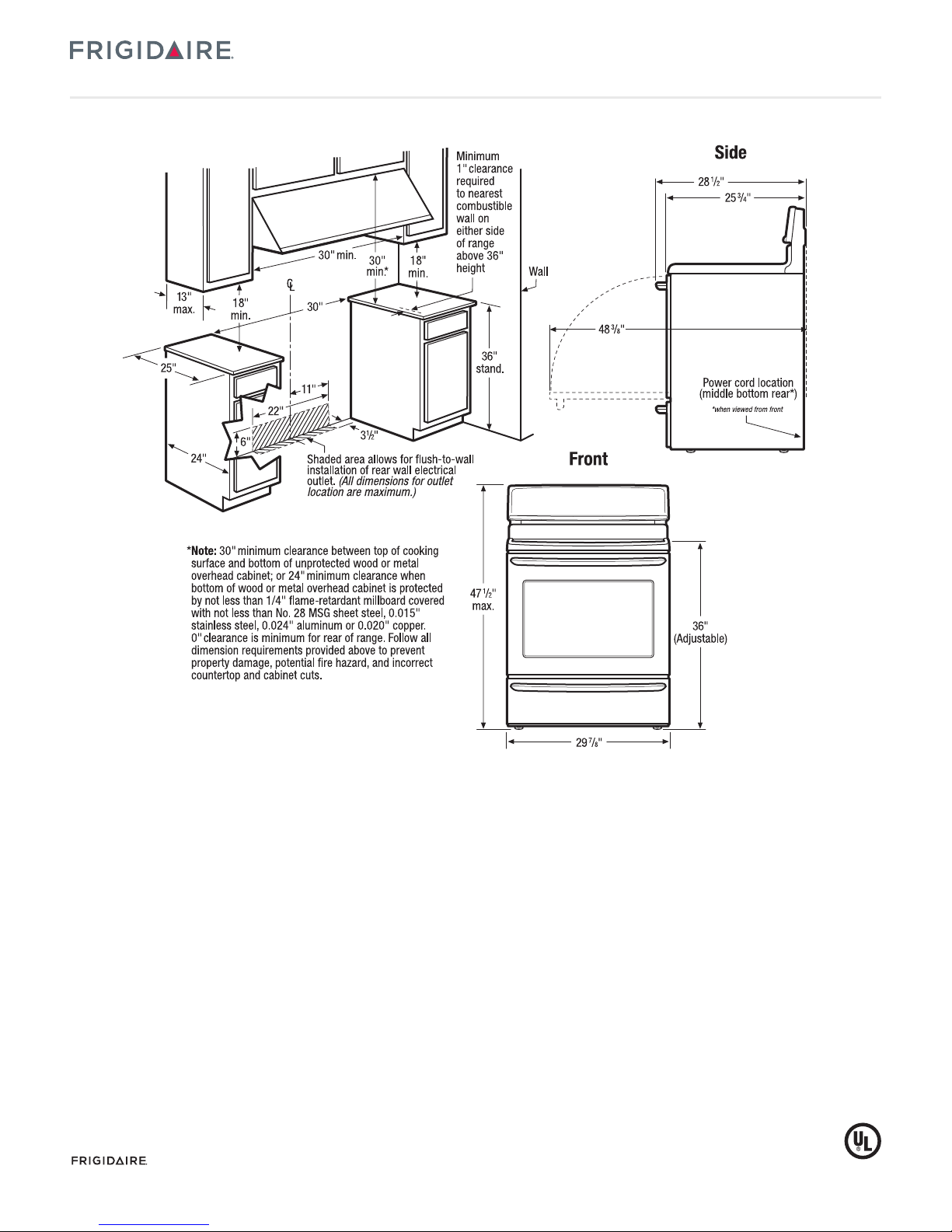

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

Specifications

subject to change.

30" Electric Freestanding Ranges with Storage Drawers

Baseline

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range Specifications

• Product Shipping Weight (approx.) – 140 Lbs.

• Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,

fused on both sides of line with ground.

•Connected Load (kW Rating) @ 240 / 208 Volts = 12.5 / 9.5 kW

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

•Make sure wall coverings around range can withstand heat generated

by range.

•Linoleum or any other synthetic floor covering located beneath range,

must be capable of withstanding minimum heat of 90° F above room

temperature without shrinking, warping or discoloring. Insulating pad

or 1/4"-thick plywood required between range and a carpeted floor.

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed flush to wall with 0" minimum rear clearance.

•Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Freestanding Ranges

FFEF3019M S / W / B 30" Electric

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
