Frigidaire FGF335CF Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF335CFSA FGF335CF white/white USA

FGF335CFTA FGF335CF almond/almond USA

Publication No.

5995310256

980710

-EN/SERVICE /CML

369

GAS - RANGE

Model No.

FGF335CF

FACTORY PARTS CATALOG

GAS RANGE

WIRING DIAGRAM # - 316002152

OWNER’S GUIDE # - 316000231

INSTALLATION INSTR. #— 316002989

104 Warren Road

Augusta, GA 30907-3755

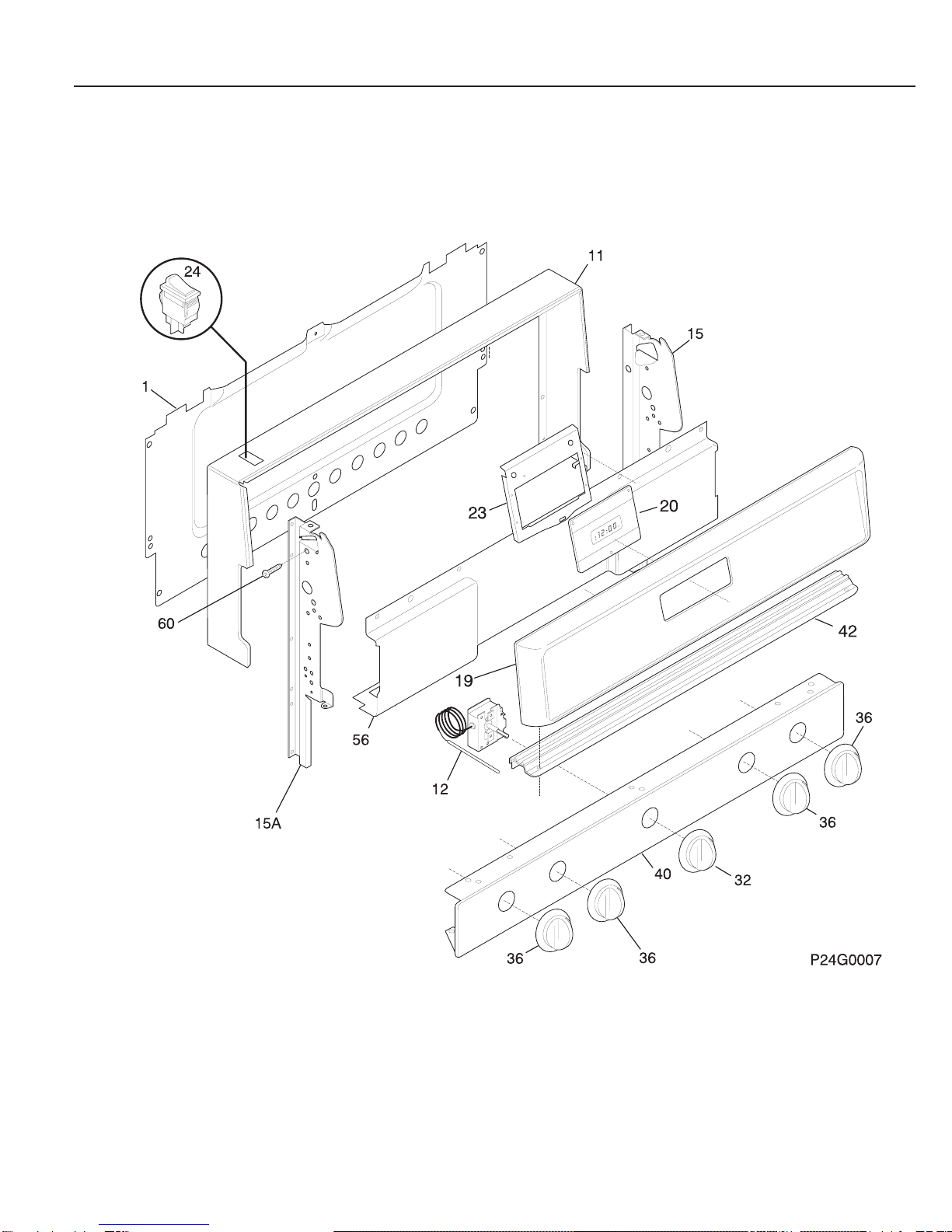

BACKGUARD

Publication No. FGF335CFSA,FGF335CFTA

5995310256

07/98 2

A = FGF335CF (FGF335CFSA)

B = FGF335CF (FGF335CFTA)

POS. NO PART NO DESCRIPTION

* 316002989 A B Instructions,installation

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

1 316028701 A B Shield-backguard,rear wall

11 316083722 A - Trim-wrapper gas white w/hole,textured ,

white

11 316083723 - B Trim-wrapper gas almond w/hole,almond

12 # 5303271464 A B Thermostat-oven

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316024492 A - Panel-control,white

19 316100527 - B Panel-contol, almond

20 # 316097901 A B Clock/Timer,electronic

20* 316098001 A - Overlay-clock

20* 316098002 - B Oerlay-TOD almond

23 316033204 A B Bracket-timer

24 # 316005607 A - Switch-rocker,oven light ,white

24 # 316005608 - B Switch-rocker,oven light ,almond

32 316053601 A - Knob-thermostat,white

32 316053603 - B Knob-thermostat alm gas

36 316109503 A - Knob-top valve, white

36 316109504 - B Knob-top valve, alm

40 316086832 A - Panel-manifold,white

40 316086833 - B Panel-manifold,almond

42 316055200 A B Trim-vent

56 316074907 A B Deflector-flue,black

60 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

BACKGUARD

FGF335CFSA,FGF335CFTA Publication No.

5995310256

# = Functional Part 3 07/98

* = Non-Illustrated Part

BURNER

Publication No. FGF335CFSA,FGF335CFTA

5995310256

07/98 4

A = FGF335CF (FGF335CFSA)

B = FGF335CF (FGF335CFTA)

POS. NO PART NO DESCRIPTION

* 5303271648 A B Screw,wafer hd sq dr ,8-18AB x 1/2

1 # 316066201 A B Manifold Pipe

2 # 5303935130 A B Valve-top burner

2* 316048200 A B Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

3 # 316103600 A B Switch-ignitor,(4)

4 # 316059612 A B Tube-burner,red ,RF

5 # 316059613 A B Tube-burner,green ,LF

6 # 316059614 A B Tube-burner,nat. ,RR

7 # 316059615 A B Tube-burner,black ,LR

8 # 5303280394 A B Spark Module

8* 5303289034 A B Harness-wiring,module/igniter

10 # 5303935025 A B Burner Assy-top,sealed ,small ,9000 BTU

11 # 316011200 A B Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 A B Bracket-regulator

16 # 316065006 A B Tube-valve to rgltr,3/8

17 # 3203459 A B Valve-safety

18 # 3131439 A B Burner-oven

19 # 5303935066 A B Ignitor-oven

20 3203265 A B Baffle-oven burner

21 5303013272 A B Nut,hex head sems

37 316069301 A B Screw-burner mtg

44 5303210090 A B Orifice-top burner,small

45 316011100 A B Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B Plate-burner tube

47 5303286386 A B LP Conversion Kit

48 3018603 A B Bracket-support,oven burner

49 3131438 A B Bracket,safety valve

BURNER

FGF335CFSA,FGF335CFTA Publication No.

5995310256

# = Functional Part 5 07/98

* = Non-Illustrated Part

BODY

Publication No. FGF335CFSA,FGF335CFTA

5995310256

07/98 6

A = FGF335CF (FGF335CFSA)

B = FGF335CF (FGF335CFTA)

POS. NO PART NO DESCRIPTION

* 316001219 A B Harness-wiring,main

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

1 316029412 A B Back-main

3 316081028 A - Panel-bodyside,white ,RH

3 316081030 - B Panel-bodyside,almond ,RH

3* 316081029 A - Panel-bodyside,white ,LH

3* 316081031 - B Panel-bodyside,almond ,LH

4 316011912 A B Burner Box,black

5 5303203397 A B Screw-leveling

5* 3934058 A B Anti-tip Kit

5* 316078600 A B Screw,anti-tip ,(4)

5A 5303288460 A B Nut,T-type ,leveling screw

6 316067902 A B Rack-oven

7 316007001 A B Hinge-oven door,(2)

7* 5303012323 A B Clip,hinge ,(4)

8 5303212540 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

21 3014099 A B Spacer-bodyside,(8)

26 08067757 A B Cover Plate

27 5303284616 A B Clip-thermo bulb

28 3011813 A B Clip-wire,bodyside

30 316059200 A B Bracket-main top,RH

30A 316059201 A B Bracket-main top,LH

33 316055601 A B Shield-spark module

34 3018607 A B Cover Plate

35 08067965 A B Gasket-flue

36 5303273108 A B Flue

39 3202006 A B Cord-electric power

39* 08067961 A B Fastener-power cord

41 3131570 A B Cover-hinge cutout

43 3131732 A B Screw-oven bottom,8-18 x 1.438

49 3051124 A B Clip-spring mtg

54 5303271606 A B Housing-oven light

55 5303289358 A B Shield-flue

58A 3017142 A B Insulation,oven wrapper

58B 3203541 A B Insulation,oven back

60 5303015372 A B Cover-oven front

73 5303281627 A B Base-broiler

93 316055500 A B Shield,igntr connector

185 316112900 A B Shield-thermo bulb

BODY

FGF335CFSA,FGF335CFTA Publication No.

5995310256

# = Functional Part 7 07/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FGF335CFSA,FGF335CFTA

5995310256

07/98 8

A = FGF335CF (FGF335CFSA)

B = FGF335CF (FGF335CFTA)

POS. NO PART NO DESCRIPTION

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

1 3018608 A B Drawer-broiler

2 3202803 A B Liner,broiler door

4 316056201 A - Panel-drawer,white

4 316056202 - B Panel-drawer,almond

7 3018610 A B Glide-broiler

8 3131386 A B Nut,push-on ,(2)

9 5303013568 A B Pan-broiler

10 5303131356 A B Insert-broiler pan

11 316066301 A B Bracket-hinge,broiler RH

11A 316066300 A B Bracket-hinge,broiler LH

12 3018619 A B Spring-broiler,RH

12A 3018618 A B Spring-broiler,LH

13 3131153 A B Channel-broiler

14 3206216 A B Plug-button,glide

16 5303301546 A - Main Top,white

16 5303301547 - B Main Top,almond

19 # 316011409 A - Pan-burner,gray ,(4)

19 # 316011410 - B Pan-burner,almond ,(4)

20 # 316085304 A B Grate,(4)

22 316098502 A B Cap-burner,grey

29 3018614 A B Pin-hinge

30 5303131258 A B Insulation,broiler drawer

39 316026106 A - Handle-drawer,white

39 316026107 - B Handle-drawer,almond

60 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

TOP/DRAWER

FGF335CFSA,FGF335CFTA Publication No.

5995310256

# = Functional Part 9 07/98

* = Non-Illustrated Part

DOOR

Publication No. FGF335CFSA,FGF335CFTA

5995310256

07/98 10
