Frigidaire FGF358CG Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF358CGSA FGF358CG white on white USA

FGF358CGSB FGF358CG white on white USA

Publication No.

5995308615

980612

-EN/SERVICE /VLM

369

GAS - RANGE

Model No.

FGF358CG

FACTORY PARTS CATALOG

GAS RANGE

WIRING DIAGRAM # - 316002169

OWNER’S GUIDE # - 316000272

INSTALLATION INSTRUCTIONS # - 316002989

104 Warren Road

Augusta, GA 30907-3755

BACKGUARD

Publication No. FGF358CG

5995308615

06/98 2

A = FGF358CG (FGF358CGSA)

B = FGF358CG (FGF358CGSB)

POS. NO PART NO DESCRIPTION

* 316002169 A B Wiring diagram

* 316002989 A B Instructions,installation

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

* 5303288574 A B Screw,truss head ,8-10 x 0.375 ,handle ,

(3)

1 316028701 A B Shield-backguard,rear wall

2 316051600 A B shield-backguard, inner

2A 316053802 A B Shield-backguard,inner/top

11 316083722 A B Trim-wrapper white w/hole, ,textured ,

13A 316095500 A B Switch-warmer,infinite ,drawer/zone ,

14 316022500 A B Light/Lamp,indicator ,125 V

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100524 A B Panel-control, metal,white

20 # 316101000 A B Clock/Timer,electronic

20* 316101502 A B Overlay-clock

23 316100300 A B Bracket-clock mtg

24# 316005607 A B Switch-rocker,oven light ,white

31 316095601 A B Knob-warmer,white

36 316109503 A B Knob-Top valve, ,white

40 316086822 A B Panel-manifold

42 316055201 A B Trim-vent

46 316040201 A B Lens-light/lamp,indicator ,red

56 316074907 A B Deflector-flue,black

69 5303292005 A B Screw-switch mounting

BACKGUARD

FGF358CG Publication No.

5995308615

# = Functional Part 3 06/98

* = Non-Illustrated Part

BURNER

Publication No. FGF358CG

5995308615

06/98 4

A = FGF358CG (FGF358CGSA)

B = FGF358CG (FGF358CGSB)

POS. NO PART NO DESCRIPTION

1 # 316066201 A B Manifold Pipe

2 # 5303935130 A B Valve-top burner

2* 316048200 A B Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

3 # 316103600 A B Switch-ignitor,(4)

4 # 316059612 A B Tube-burner,red ,RF

5 # 316059613 A B Tube-burner,green ,LF

6 # 316059614 A B Tube-burner,nat. ,RR

7 # 316059615 A B Tube-burner,black ,LR

8 # 5303280394 A B Spark Module

8* 5303289034 A B Harness-wiring,module/igniter

10 # 5303935025 A B Burner Assy-top,sealed ,small ,9000 BTU

11 # 316011200 A B Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 A B Bracket-regulator

16 # 316065003 A B Tube-valve to rgltr,3/8

17 # 5303208499 A B Valve-safety,dual

18 # 3131290 A B Burner-oven

19 # 5303935066 A B Ignitor-oven

20 3131284 A B Baffle-oven burner

21 5303013272 A B Nut,hex head sems

22 # 316065002 A B Tube-valve to mixer

23 # 316087900 A B Burner-broiler

24 # 316070400 A B Mixer Elbow

25 5303210379 A B Baffle-broiler

26 # 5308067970 A B Ignitor-broiler

37 316069301 A B Screw, top burner

44 5303210090 A B Orifice-top burner,small

45 316011100 A B Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B Plate-burner tube

47 5303286386 A B LP Conversion Kit

BURNER

FGF358CG Publication No.

5995308615

# = Functional Part 5 06/98

* = Non-Illustrated Part

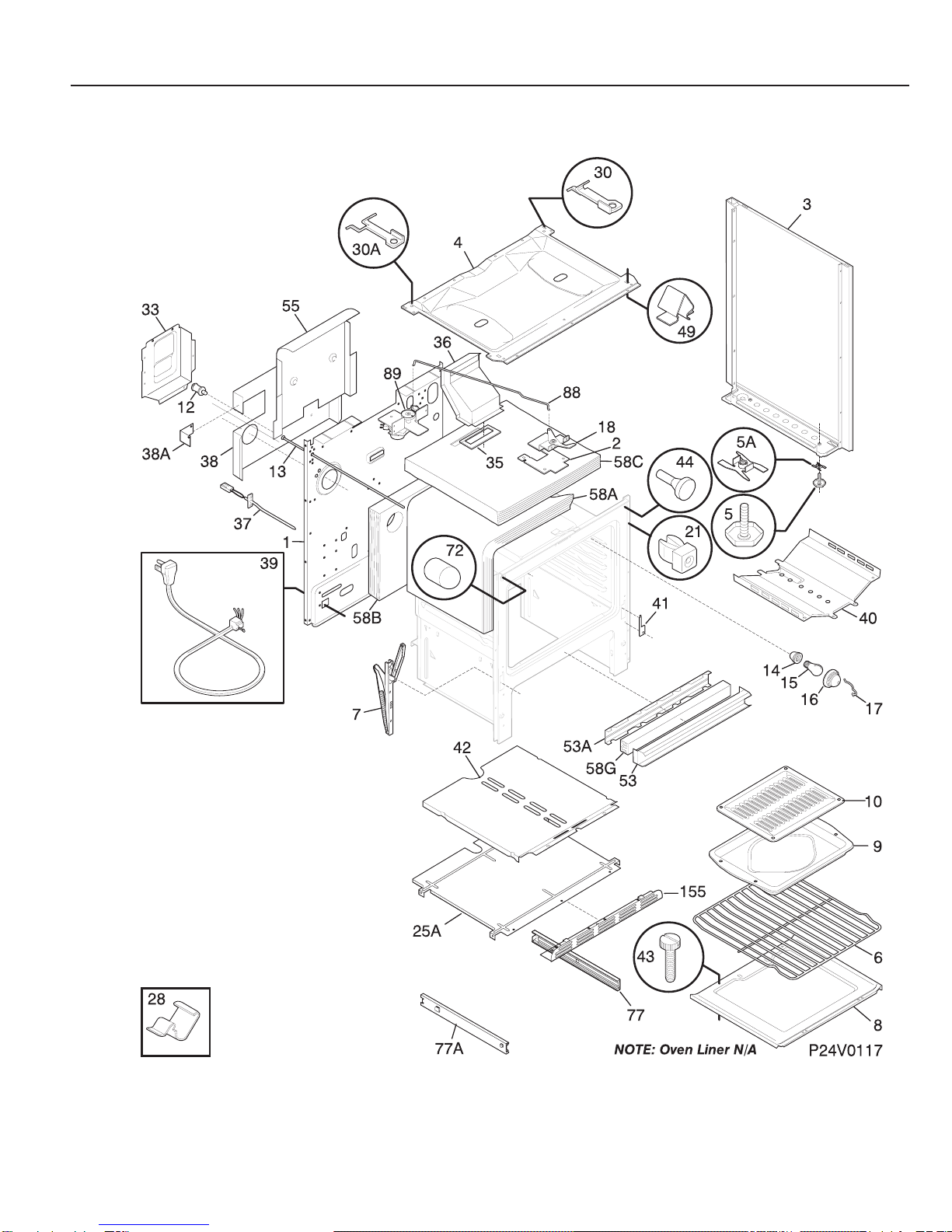

BODY

Publication No. FGF358CG

5995308615

06/98 6

A = FGF358CG (FGF358CGSA)

B = FGF358CG (FGF358CGSB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

1 316029412 A B Back-main

2 3131314 A B Shield-oven top

3 316081028 A B Panel-bodyside,white ,RH

3* 316081029 A B Panel-bodyside,white ,LH

4 316011914 A B Burner Box

5 5303203397 A B Screw-leveling

5* 3934058 A B Anti-tip Kit

5* 316078600 A B Screw,anti-tip ,(4)

5A 5303288460 A B Nut,T-type ,leveling screw

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

7* 5303012323 A B Clip,hinge ,(4)

8 5303212540 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

30 316059200 A B Bracket-main top,RH

18 # 316036300 A B Latch-door

30A 316059201 A B Bracket-main top,LH

21 3014099 A B Spacer-bodyside,(8)

25 316092300 A B Shield-warmer,upper

26 08067757 A - Cover Plate

28 3011813 A B Clip-wire,bodyside

33 316014401 A B Shield,rear wall

35 08067965 A B Gasket-flue

36 5303272844 A B Flue

37 # 316111200 A B Probe-oven temp

38 316051700 A B Shield-heat

38A 316097100 A B Insulator,shield

39 # 3131425 A B Cord-electric power

39* 08067961 A B Fastener-power cord

40 3200836 A B Shield-heat baffle

40* 5303288570 A B Screw-heat shield,hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B Cover-hinge cutout

42 5303288578 A B Shield-bake burner

43 3131732 A B Screw-oven bottom,8-18 x 1.438

44 3131903 A B Bumper-door/drawer,rubber

49 3051124 A B Clip-spring mtg

53 5303288579 A B Shield-main front

53* 08067973 A B Insulation,main front

53A 08067992 A B Shield-insulation,galv steel

55 316107800 A B Shield-flue

58A 316047708 A B Insulation,oven wrapper

58B 316054200 A B Insulation,oven back

58C 3131304 A B Insulation,oven top

72 5303285692 A B Cover-light/switch rod

77 316094900 A B Rail-drawer, RH, outer

77A 316094901 A B Rail-drawer,LH, outer

88 316026400 A B Rod-latch,auto

89 # 316028103 A B Motor-latch/lock

BODY

FGF358CG Publication No.

5995308615

# = Functional Part 7 06/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FGF358CG

5995308615

06/98 8

A = FGF358CG (FGF358CGSA)

B = FGF358CG (FGF358CGSB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316089500 A B Screw,10-16 x .486 ,safety valve ,

handle,(4)

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303288574 A B Screw,truss head ,8-10 x 0.375 ,handle ,

(3)

1 316094601 A B Drawer-warmer

2 316092901 A B Liner,drawer

4 316056201 A B Panel-drawer,white

13 316096500 A B Channel-drawer,rh,inner

13A 316096501 A B Channel drawer,lh,inner

14 3206216 A B Plug-button,glide

16 5303301546 A B Main Top,white

18 316059200 A B Bracket-maintop, RH

18A 316059201 A B Bracket-maintop, LH

19 # 316011409 A B Pan-burner,gray ,(4)

20 # 316085304 A B Grate,(4)

22 316098508 A B Cap-Burner, gloss gray

39 316026106 A B Handle-drawer,white

77 316094900 A B Rail-drawer RH,RH, outer

80 316109700 A B Seal-door,warmer drawer

81 # 316093100 A B Element,warmer drawer

82 316093200 A B Bracket-mounting,warmer element

83 316093300 A B Shield-terminal,warmer

84 316093500 A B Thermo disc,warmer

85 316093600 A B Rack,warmer drawer

86 316095800 A B Clip-hold down,warmer element

87 316091900 A B Base-warmer

TOP/DRAWER

FGF358CG Publication No.

5995308615

# = Functional Part 9 06/98

* = Non-Illustrated Part

DOOR

Publication No. FGF358CG

5995308615

06/98 10
