Frigidaire FES355E Manuel utilisateur

FES355E.eps la20bg0043.eps BFES355ESA.eps LA20CT0045.eps D79046592500.eps

318271906.eps

Product No. FES355EBA FES355ESA

37954335E5061 37954335E5011

Series 30" elec 30" elec

Color black white

Market North America North America

Wiring Diagram 318271906 318271906

Owner's Guide 318203804 318203804

Installation Instructions 318201611 318201611

Timer Guide 318200184 318200184

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995439386

05/06/15

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES355E

Publication No: 5995439386 FES355E

06/05 2

BACKGUARD

FES355E Publication No: 5995439386

# Functional Parts 3 06/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFES355E (FES355ESA)

BFES355E (FES355EBA)

POS. NO PART NO. DESCRIPTION

14 # 318293900 A B Light, indicator, 125v, (2)

16 318299100 A - Console, assy., white

16 318299102 - B Console, assy., black

16* 5304447071 A B Clip, console, (2)

19 318235138 A - Panel, control, white

19 318235139 - B Panel, control, black

19A 318224401 A B Panel, control mtg.

20 # 318185452 A - Clock/Timer, electronic, white, ES300

20 # 318185454 - B Clock/Timer, electronic, black, ES300

20* 316419104 A - Overlay, clock, white, ES300

20* 316419103 - B Overlay, clock, black, ES300

24 # 318037513 A - Switch, rocker, white, oven light

24 # 318037515 - B Switch, rocker, black, oven light

35 318183101 A - Support, glass, white, (4)

35 318183100 - B Support, glass, black

36 316223028 A - Knob, control, white

36 316223027 - B Knob, control, black

42 318298011 A B Trim, vent, black, upper

46 318228300 A B Lens, indicator light

54 # 318220080 A B Switch, surface unit, single

54A# 318220081 A B Switch, surface unit, large

69 5303323134 A B Screw, 8-32 x 0.188

99A 318223900 A B Gasket, dark grey

* 318301100 A B Wiring Harness, backguard

* # 318224812 A B Harness, wiring, timer

* # 318224815 A B Harness, wiring, infinite switch

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303311333 A B Screw, 8-32 x 3/8, (4)

Publication No: 5995439386 FES355E

06/05 4

BODY

FES355E Publication No: 5995439386

# Functional Parts 5 06/05

* Non-Illustrated Parts

BODY

Model Index: AFES355E (FES355ESA)

BFES355E (FES355EBA)

POS. NO PART NO. DESCRIPTION

1 318259202 A B Back, main

1A 318225110 A B Panel, main back, upper

2 318258900 A B Shield, insulation, upper

3 318225210 A B Panel, bodyside, upper RH

3A 318225211 A B Panel, bodyside, upper LH

4 318073906 A B Panel, subtop

5 318175503 A B Screw, leveling

6 318262502 A B Rack, oven

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 # 318089913 A B Switch, light

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

29 318147411 A B Bumper, (2)

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318285055 A B Insulation, oven wrapper

58B 318285056 A B Insulation, oven back

59 318072572 A B Tube, vent, oven

62 5303935061 A B Terminal Block Kit

62* 5303323139 A B Screw, 10-24 x 0.906

62* 5303323144 A B Nut, 10-32

63 318264200 A B Plate, grounding strap

66 # 318255600 A B Element, broil, 2750W

67 # 318255401 A B Element, bake, 3400W

68 5304403015 A B Support, hanger, (2), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260006 A B Panel, rear box

76 318056217 A B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

* 5303323129 A B Screw, 8 X 0.750

82 318258707 A B Shield, insulation, lower

83 318261403 A B Liner, oven assy

86 5303310524 A B Receptacle, hinge

87 318260608 A B Bracket, cable mtg.

87A 318111804 A B Plate, cord set mtg

89 # 318261202 A B Motor, latch assy

90 318296902 A - Panel, filler, white, RH

90 318296904 - B Panel, filler, black, RH

90A 318296903 A - Panel, filler, white, LH

90A 318296905 - B Panel, filler, black, LH

108# 318073018 A B Motor, blower

* 08016432 A B Screw, truss head, 8-18 x 0.375

108A 318251300 A B Bracket, fan support

119# 318005202 A B Switch, thermal cutout

Publication No: 5995439386 FES355E

06/05 6

BODY

FES355E Publication No: 5995439386

# Functional Parts 7 06/05

* Non-Illustrated Parts

BODY

Model Index: AFES355E (FES355ESA)

BFES355E (FES355EBA)

POS. NO PART NO. DESCRIPTION

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272900 A B Box, vent

132 318003000 A B Plate, shield

142 318123910 A B Deflector

162 318225810 A B Box, extension

163 318014110 A B Spacer, (4)

165 318322600 A B Plate, shield

165A 318326500 A B Shield, heat

166 318298400 A B Bracket, base support, (4)

170 318335501 A B Anti-tip & accessories

185 318165800 A B Spacer, (2)

200 318335600 A B Frame & Wheel Assembly, black

201 318298210 A B Frame, drawer

219# 318003606 A B Thermostat, safety

* # 318224925 A B Harness, wiring, main

* 318235300 A B Connector assy., w/3 lugs, & instructions

* 3051050 A B Screw, shoulder

* 3201861 A B Screw, 6 x 0.375, (4)

* 5303211311 A B Screw, 8 x 0.500

* 5303307980 A B Screw, 8-32 x 0.437

* 5304415832 A B Screw, 8-18 x 0.406

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995439386 FES355E

06/05 8

TOP/DRAWER

FES355E Publication No: 5995439386

# Functional Parts 9 06/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFES355E (FES355ESA)

BFES355E (FES355EBA)

POS. NO PART NO. DESCRIPTION

1 318107105 A B Drawer

4 318298901 A - Panel, drawer, white, front

4 318298903 - B Panel, drawer, black, front

7 318014800 A B Spacer

* 5303325171 A B Washer, plastic

11 318298601 A B Bracket, drawer support, (2)

13 318018100 A B Channel, drawer, RH

13A 318018101 A B Channel, drawer, LH

15 # 5303012223 A B Element, surface, 8", large

15A# 08067762 A B Element, surface, 6", small

16 318225602 A - Main Top, white

16 318225601 - B Main Top, black

17 3051554 A B Rod, support, main top panel

18 318227710 A B Hinge, maintop, (2)

19 # 318067056 A B Pan, surface element, large, chrome

19A# 318067046 A B Pan, surface element, small, chrome

27 # 5303912666 A B Terminal Block Kit, surface element

28 3017801 A B Medallion, stainless steel, surf elem

28 5303017715 A B Medallion, 1 1/2"dia, black, surface element

93 318122500 A B Support, terminal block, (4)

* # 318301000 A B Wiring Harness, surface units

* 5303325173 A B Cap, plug

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303311333 A B Screw, 8-32 x 3/8, (4)

Publication No: 5995439386 FES355E

06/05 10

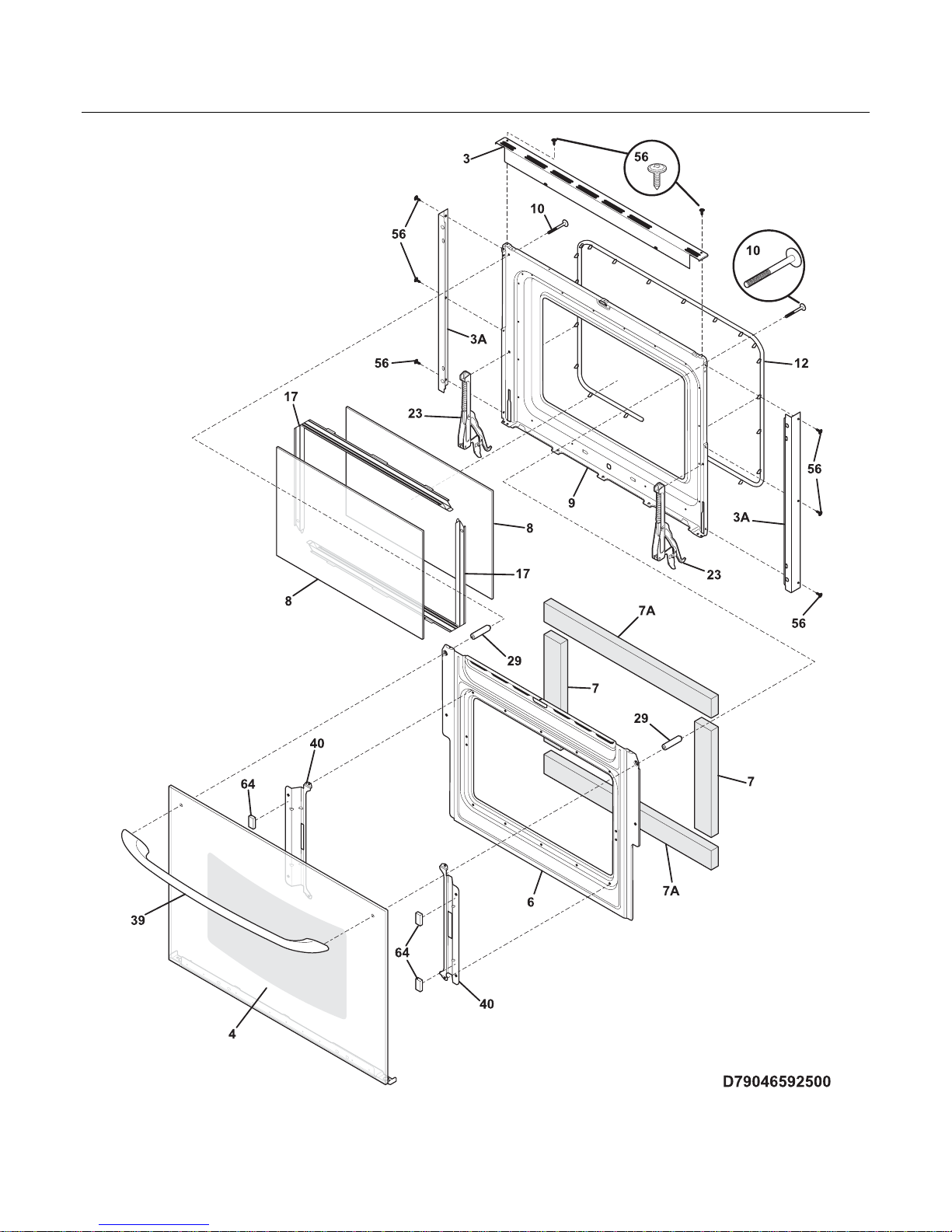

DOOR
