Frigidaire GLGC30S8EBA Manuel utilisateur

GLGC30S8E.eps MGLGC30S8ESA.eps BGLGC30S8ESA.eps 318047111.eps

Left

Rear

Simm er B u rner

PowerPlusBurner

Left

Front

Right

Front

Right

Rear

GA LLERY SERIES

Product No. GLGC30S8EBA GLGC30S8EQA GLGC30S8ESA

3775622665061 3775624665041 3775623665011

Series 30" gas 30" gas 30" gas

Color black bisque white

Market North America North America North America

Wiring Diagram 318047111 318047111 318047111

Owner's Guide 318200672 318200672 318200672

Installation Instructions 318201450 318201450 318201450

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995452447

05/10/25

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

GLGC30S8E

Publication No: 5995452447 GLGC30S8E

10/05 2

COOK TOP

GLGC30S8E Publication No: 5995452447

# Functional Parts 3 10/05

* Non-Illustrated Parts

COOK TOP

Model Index: AGLGC30S8E (GLGC30S8ESA)

BGLGC30S8E (GLGC30S8EBA)

CGLGC30S8E (GLGC30S8EQA)

POS. NO PART NO. DESCRIPTION

3 318171401 A B C Support

16 318018539 A - - Main Top, glass, white

16 318018541 - B - Main Top, glass, black

16 318018540 - - C Main Top, glass, bisque

20 318321301 A - - Grate, double, gray, (2)

20 318321300 - B - Grate, double, black, (2)

20 318321302 - - C Grate, double, brown, (2)

21 316241700 A - - Skirt, 11K burner, gray

21 316241701 - B - Skirt, 11K burner, black

21 316241706 - - C Skirt, 11K burner, brown

21A 316264900 A - - Skirt, 14K burner, gray

21A 316264901 - B - Skirt, 14K burner, black

21A 316264905 - - C Skirt, 14K burner, brown

21B 316241900 A - - Skirt, 5K burner, gray

21B 316241901 - B - Skirt, 5K burner, black

21B 316241906 - - C Skirt, 5K burner, brown

21C 316241800 A - - Skirt, 9.5K burner, gray

21C 316241801 - B - Skirt, 9.5K burner, black

21C 316241806 - - C Skirt, 9.5K burner, brown

22 316242801 A - - Cap, 11K burner, gray

22 316242800 - B - Cap, 11K burner, black

22 316242805 - - C Cap, 11K burner, brown

22A 316219801 A - - Cap, 14K burner, gray

22A 316219800 - B - Cap, 14K burner, black

22A 316219804 - - C Cap, 14K burner, brown

22B 316206501 A - - Cap, 5K burner, gray

22B 316206500 - B - Cap, 5K burner, black

22B 316206504 - - C Cap, 5K burner, brown

22C 316242901 A - - Cap, 9.5K burner, gray

22C 316242900 - B - Cap, 9.5K burner, black

22C 316242905 - - C Cap, 9.5K burner, brown

31 316242001 A B C Seal, 12K burner

31A 316242000 A B C Seal, 14K burner

31B 316242003 A B C Seal, 5K burner

31C 316242002 A B C Seal, 9.5K burner

36 318196155 A - - Knob, control, white

36 318196157 - B - Knob, control, black

36 318196156 - - C Knob, control, bisque

45 318146201 A B - Bushing, white

45 318146220 - - C Bushing, black

46 318077420 A B C Burner Box

47 318144006 A B C Cord, service

64 5303304033 A B C Bracket, retainer

65 5303304032 A B C Seal, rubber

132 3201437 A B C Strain relief

136 5303935029 A B C Support

137 5303285443 A B C Screw, lock bracket, 10-24 x 2.00

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995452447 GLGC30S8E

10/05 4

BURNER

GLGC30S8E Publication No: 5995452447

# Functional Parts 5 10/05

* Non-Illustrated Parts

BURNER

Model Index: AGLGC30S8E (GLGC30S8ESA)

BGLGC30S8E (GLGC30S8EBA)

CGLGC30S8E (GLGC30S8EQA)

POS. NO PART NO. DESCRIPTION

1 318177005 A B C Manifold Pipe

* 08011955 A B C Screw, 10-24 x 0.375, square drive

2 # 318087314 A B C Valve, burner, 9.5K

2A # 318087315 A B C Valve, burner, 11K/14K

2B # 318087313 A B C Valve, burner, 5K

3 # 318232604 A B C Wiring Harness, w/igntr switch

8 # 316135701 A B C Module, spark

* 5303311532 A B C Screw, 6-32 x 1/4", back

10 # 316212300 A B C Burner, sealed, 12K

10A# 316223400 A B C Burner, sealed, 14K

10B# 316206400 A B C Burner, sealed, 5K

10C# 316212400 A B C Burner, sealed, 9.5K

11 # 316224501 A B C Ignitor/orifice assy., top burner, rear, 11K, w/holder-tube

11A# 318221360 A B C Ignitor/orifice assy., top burner, front, 14K, w/holder, tube

11B# 316224400 A B C Ignitor/orifice assy., top burner, rear, 5K, w/holder-tube

11C# 316224500 A B C Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube

14 # 5308007974 A B C Regulator, pressure

35 318146301 A B C Bushing

37 316240600 A B C Screw, assy mtg, ignitor/orifice

44 316237908 A B C Orifice, top burner, 10K

44A 316237900 A B C Orifice, top burner, 14K

44B 316237903 A B C Orifice, top burner, 5K

44C 316237902 A B C Orifice, top burner, 9.5K

72 316134300 A B C Screw, 10-24, valve mounting

73 318024201 A B C Bracket, spark module

77 318192600 A B C Bracket, burner mtg, (5)

* # 318127425 A B C LP Conversion Kit

* 318199742 A B C Wiring Harness, ignitor

Publication No: 5995452447 GLGC30S8E

10/05 6

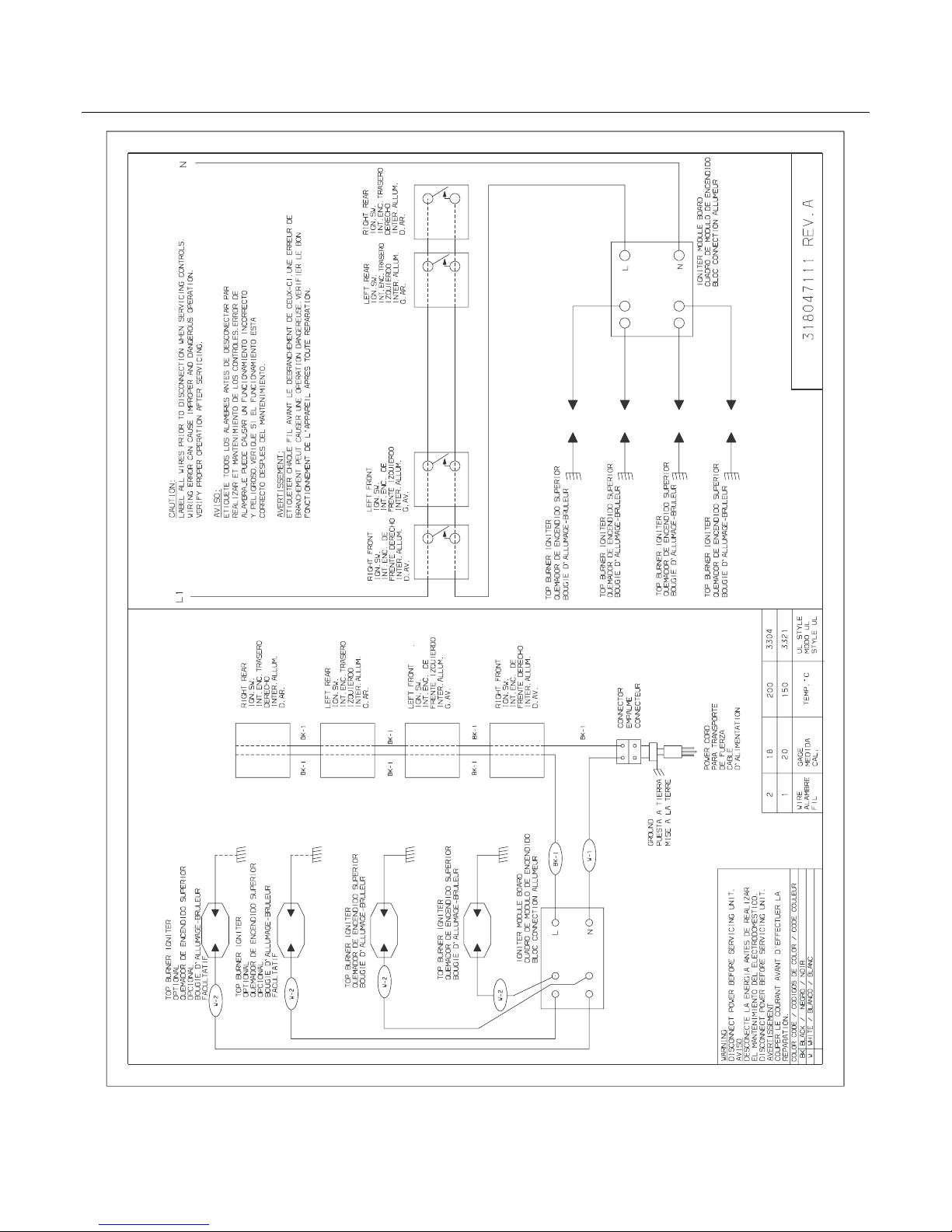

WIRING DIAGRAM
