Signature Features

30" Electric

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

One-Touch Options

Our ovens feature easy-to-use one-touch

buttons so you can cook pizza or chicken

nuggets — or even add a minute to the

timer — with the touch of a button.

SpaceWise® Half Rack

Flexible rack system that adjusts to cook

multiple dishes at once. Remove the

half rack and you’ll have extra height for

tall dishes.

Fits-More™ Cooktop

The Fits-More™ cooktop features five

elements so you can cook more at once.

Eortless™ Oven Rack

Bottom rack extends when you open

the door for easy access.

Eortless™ Convection

Takes the guesswork out of convection

cooking — our oven does the converting

for you.

Even Baking Technology

Our latest technology ensures even

baking every time.

Keep Warm Zone

Keep food warm until everything —

and everyone — is ready.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

White

(W)

Black

(B)

1Based on single rack cooking performance,

not set temperature, using Quick Preheat.

Quick Preheat

Preheat in less than six minutes.

True Convection

Multi-rack baking is faster and more

even with True Convection.

Express-Select® Controls

Easily go from warm to boil.

Quick Boil

Boils water faster.

Freestanding Ranges

FGEF3034K W/ B

Elements

Right Front

Right Rear

Left Front

Left Rear

Center

Size

9" / 12"

Expandable

6" / 9"

Expandable

Keep Warm

Zone

Watts

1,700 /2,700

1,200

1,200 /3,000

1,200

100

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

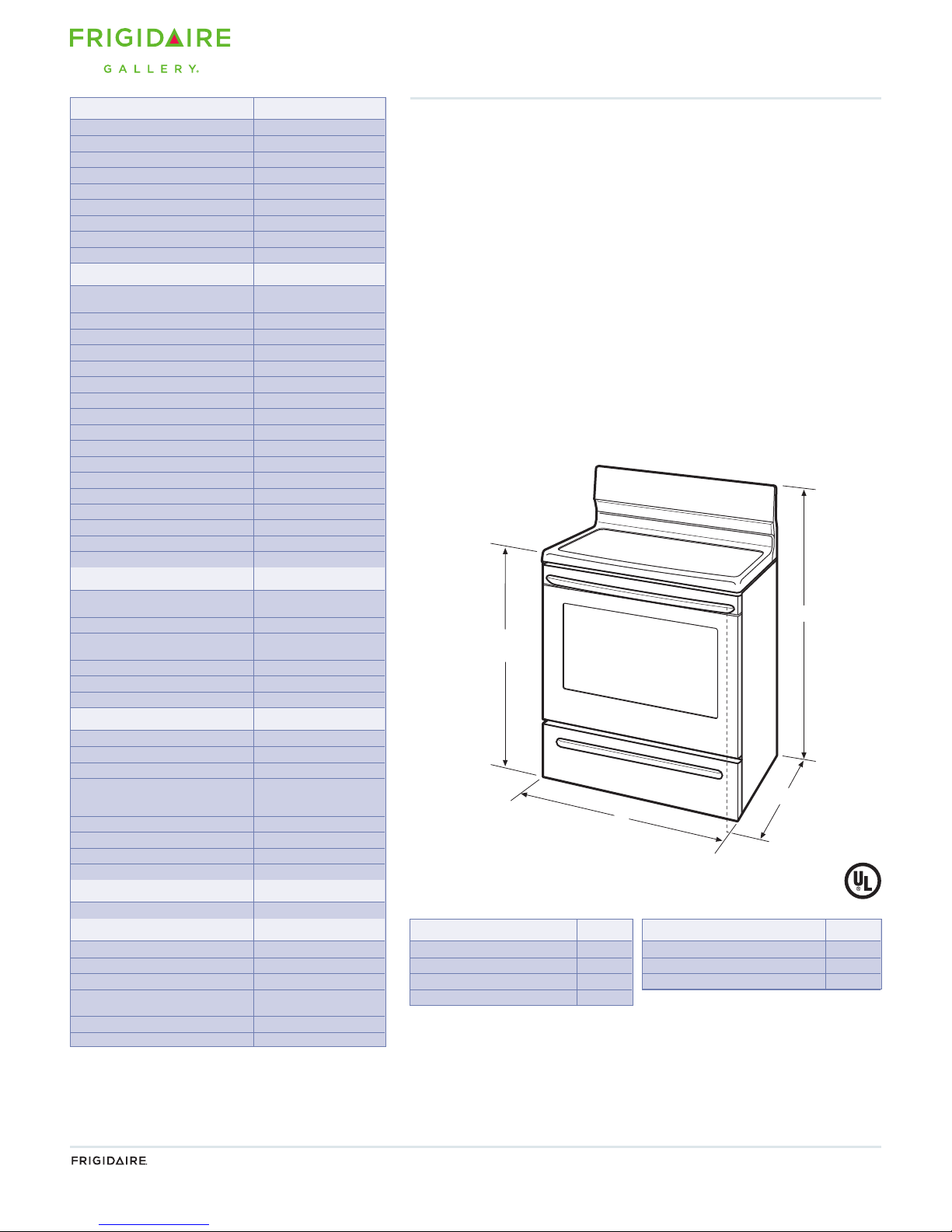

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Lower Drawe r Control

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Bridge Element (Watts)

Center Element (Watts)

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake Element / Broil Element (Watts)

Drawer Racks

Certiﬁcations

Sabbath Mode (Star-K® Cert.)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Express-Select® Controls

Black Ceramic Glass

Extra-Large

Color-Coordinated

True Convection

Self Clean

Storage

Yes / Variable

(400 - 500 °F)

Yes

Yes / No / Yes

Yes

2, 3, 4 Hours

Yes / Yes

6 Hours

Yes

SpaceWise® Expandable

9" / 12" – 1,700 / 2,700

6" – 1,200

SpaceWise® Expandable

6" / 9" – 1,200 / 3,000

6" – 1,200

Keep Warm Zone – 100

5.7

Yes

1 Heavy-Duty,

1 SpaceWise® Half Rack,

1 Eortless™

Even Baking Technology

Power Broil

3,500 / 3,900

Yes

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60 Hz

12.5 / 9.5

205 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FGEF3034K W/ B 30" Electric

30" Electric Freestanding Ranges

Gallery

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range Specifications

•Product Shipping Weight (approx.) – 205 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,

fused on both sides of line with ground.

•Connected Load (kW Rating) @ 240 / 208 Volts = 12.5 / 9.5 kW

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

•Make sure wall coverings around range can withstand heat generated

by range.

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed flush to wall with 0" minimum rear clearance.

•Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Freestanding Ranges

FGEF3034K W/ B 30" Electric

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

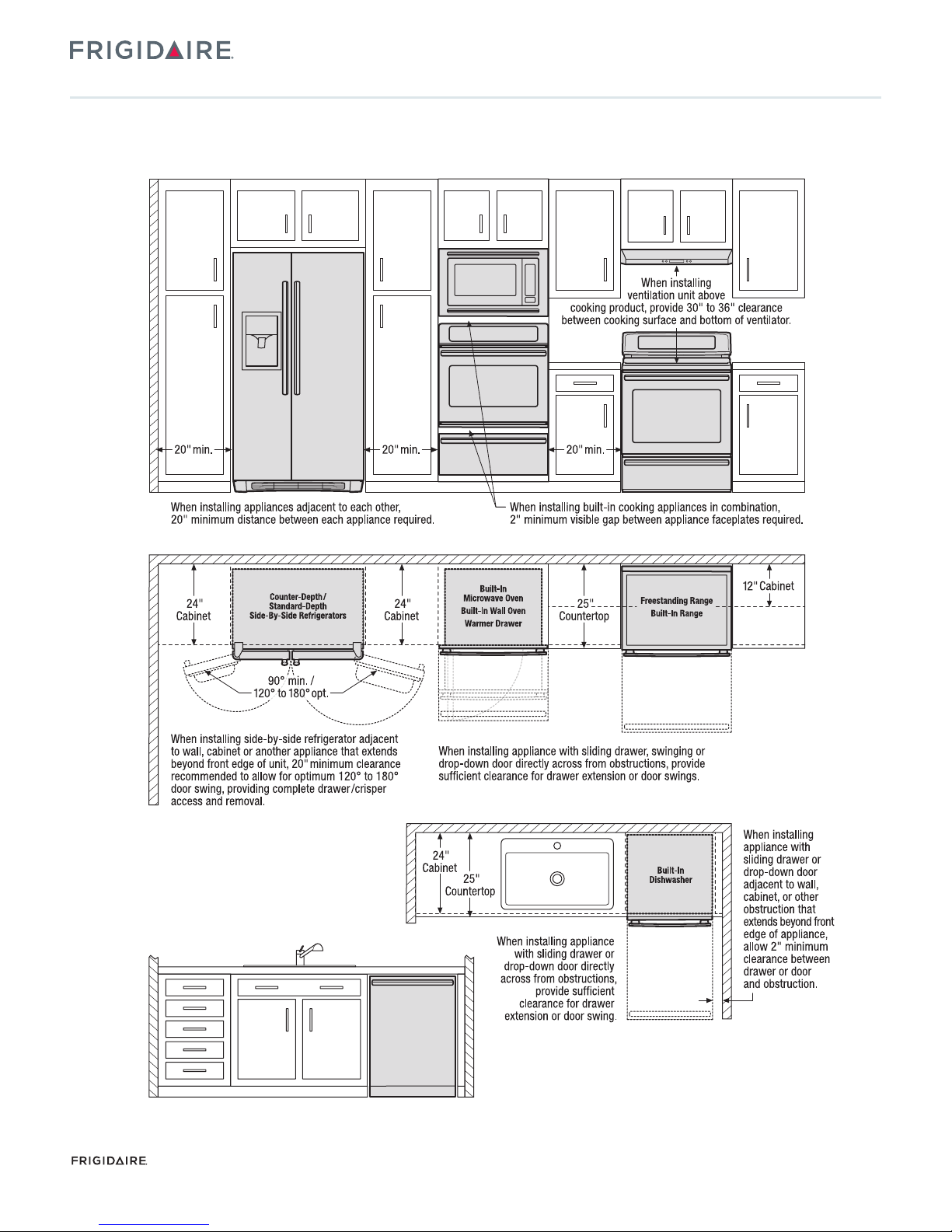

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
