Frigidaire FGF326A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF326ASC FGF326A white North America

Publication No.

5995377065

020819

-EN/SERVICE /ECL

369

GAS

RANGE

Model No.

FGF326A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

SERVICE DATA SHEET - # 316259145

WIRING DIAGRAM - #316255201

OWNER’S GUIDE - # 316257509

INSTALLATION INSTRUCTIONS -# 316259315

08/02 2

Publication No. FGF326ASC

5995377065

BACKGUARD

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FGF326ASC Publication No.

5995377065

POS. NO PART NO DESCRIPTION

1 316239900 Shield,backguard ,rear wall

15 316220214 Support,backguard ,white ,RH

15A 316220215 Support,backguard ,white ,LH

18 316240900 End Cap,white ,RH

18A 316240901 End Cap,white ,LH

19 316246600 Panel,backguard ,white

20 # 316222802 Clock/Timer,electronic

20* 316207200 Filter,noise ,electronic

20A 316220700 Overlay,clock ,white

24 # 316246000 Switch,rocker ,white ,oven light

36 316220000 Knob,top valve ,white ,(4)

40 316204911 Panel,manifold ,white

42 316245701 Trim,extrusion ,aluminum

56 316230701 Shield,backguard ,inner

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

08/02 4

Publication No. FGF326ASC

5995377065

BURNER

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FGF326ASC Publication No.

5995377065

POS. NO PART NO DESCRIPTION

1 # 316204000 Pipe,manifold

2C # 5303935213 Valve,9.5K top burner ,w/mtg screw

* 316134300 Screw,10-24 ,valve mounting

3 # 316219000 Wiring Harness,w/igntr switch

8 # 316135701 Module,spark

10C# 316212400 Burner,sealed ,9.5K

11B# 316237701 Ignitor/orifice assy.,top burner ,rear ,9.5K,w/holder ,tube

11C# 316237800 Ignitor/orifice assy.,top burner ,front ,9.5k,w/holder ,tube

13 # 316207000 Tube,3/8 ,aluminum ,rgltr to manf ,with fittings

14 # 316091706 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

15 316091600 Bracket,regulator

16 # 316065006 Tube,valve to regul ,3/8

17 # 3203459 Valve,safety

18 # 316114300 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3203265 Baffle,oven burner

21 5303013272 Nut,hex head sems

37 316240600 Screw,assy mtg ,ignitor/orifice

44C 316237902 Orifice,top burner ,9.5K

47 GRLP1 LP Conversion Kit,w/instructions

47* 316248105 Instructions,LP kit

48 3018603 Bracket,support ,oven burner

49 3131438 Bracket,safety valve

* # 316253700 Wiring Harness,ignitor module

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BURNER

08/02 6

Publication No. FGF326ASC

5995377065

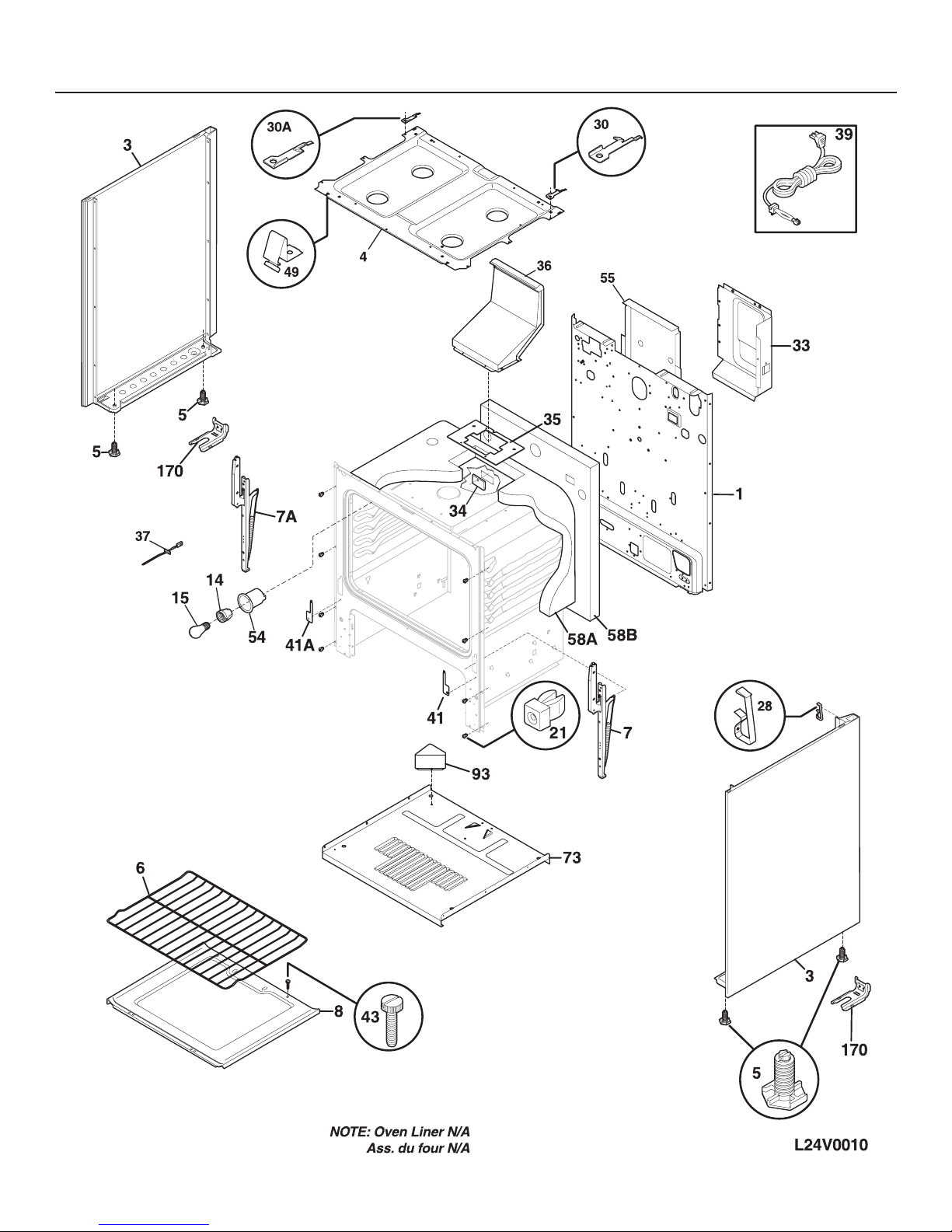

BODY

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FGF326ASC Publication No.

5995377065

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

3 316230114 Panel,bodyside ,white ,RH

3 316230115 Panel,bodyside ,white ,LH

3* 316021131 Screw,bodyside ,8-18 X 11/16 ,white

4 316201402 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316212908 Hinge,oven door ,RH

7A 316212909 Hinge,oven door ,LH

8 5303300701 Panel,oven bottom

8* 316064600 Support,oven bottom

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

21 3014099 Spacer,bodyside

28 3011813 Clip,wire ,bodyside

30 316217700 Bracket,hinge ,RH ,main top

30A 316217701 Bracket,hinge ,LH ,main top

33 316055600 Shield,spark module ,galv steel

34 3018607 Plate,cover

35 316116600 Gasket,flue

36 316133001 Flue,36

37 # 316233900 Probe,oven temp

39 # 3202006 Cord,electric power

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

43 3131732 Screw,8-18 x 1.438 ,oven bottom

49 316234200 Clip,maintop mtg ,(2)

54 5303271606 Housing,oven light

55 5303289358 Shield,flue

58A 3017142 Insulation,oven wrapper

58B 316054202 Insulation,1" ,oven back

73 316109902 Base,low broil

93 316110000 Shield,ignitor ,metal

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* 316253302 Harness,main

* 5303305324 Paint,touch-up ,white

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

BODY

08/02 8

Publication No. FGF326ASC

5995377065

TOP/DRAWER

# = Fast-moving Parts 9 08/02

* = Non-Illustrated Parts

FGF326ASC Publication No.

5995377065

POS. NO PART NO DESCRIPTION

1 316110201 Carriage,low broil

2 316236401 Liner,low broil

2A 316110800 Shield,broiler

2B 316237600 Shield,low broil ,top

4 316231211 Panel,drawer ,white

5 316129100 Fastener,push-in nut ,nylon ,spacer

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

13 316111502 Glide,low broil ,chassis

13A 316111600 Glide,low broil ,inner

13B 316111501 Glide,low broil ,outer

16 316202317 Main Top,white

20 316213800 Grate,black

22C 316213500 Cap,9.5K burner ,black

39 316019511 Handle,drawer ,white

85 316115600 Rack,low broil

88 316099500 Pin,guide ,(2)

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 316021120 Screw,shoulder head ,8-18 x 5/8 ,(2) ,square drive

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

TOP/DRAWER

08/02 10

Publication No. FGF326ASC

5995377065

DOOR
